Ubiquiti NanoStation 5AC Loco - AP client 5GHz antenna 13dBi MIMO2x2 airMAX AC - set of 5 pcs (without PoE injectors)
UBIQUITI | LOCO5AC-5 | 817882024099
On stock 12 pcs.
Price of goods is 228.98 €.
Weight of goods is 1.18 Kg.
Actual in cart 0 pcs.

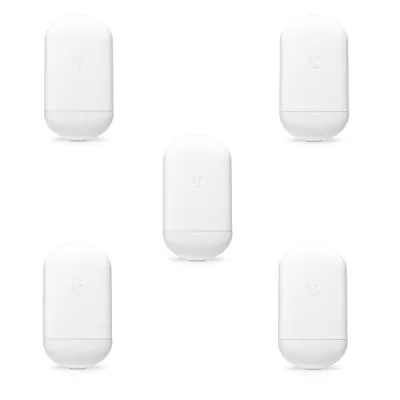

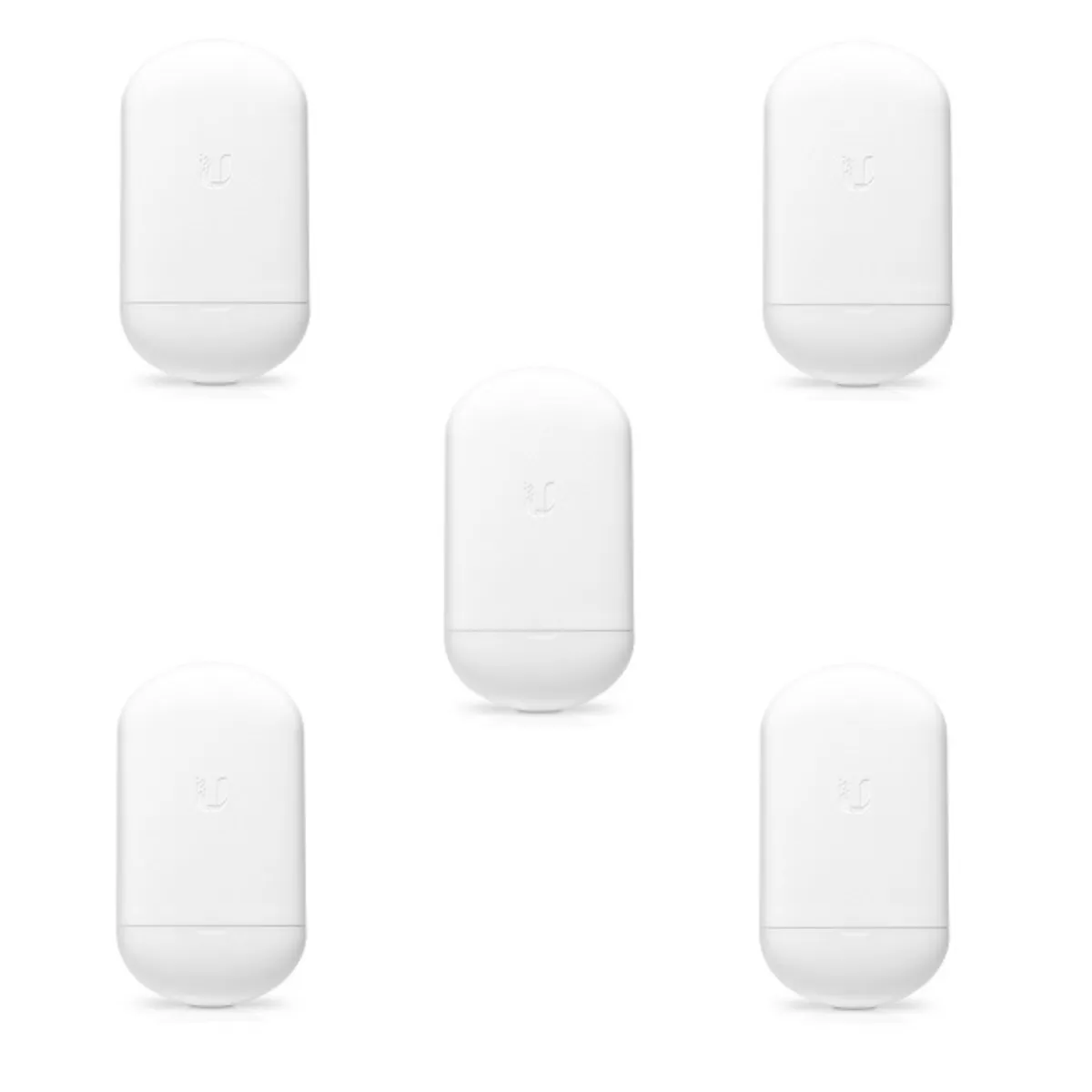

Ubiquiti NanoStation 5 AC Loco 5 pcs
Set of 5 pcs. NanoStation AC Loco outdoor unit with a revolutionary price/performance ratio, in a new design and with 802.11ac support. Thanks to this, it achieves a throughput of 450+ Mbps. Ideal for client units or Point-to-Point connections. Upgrade your network with minimal cost!
Power PoE injectors are not included in the package

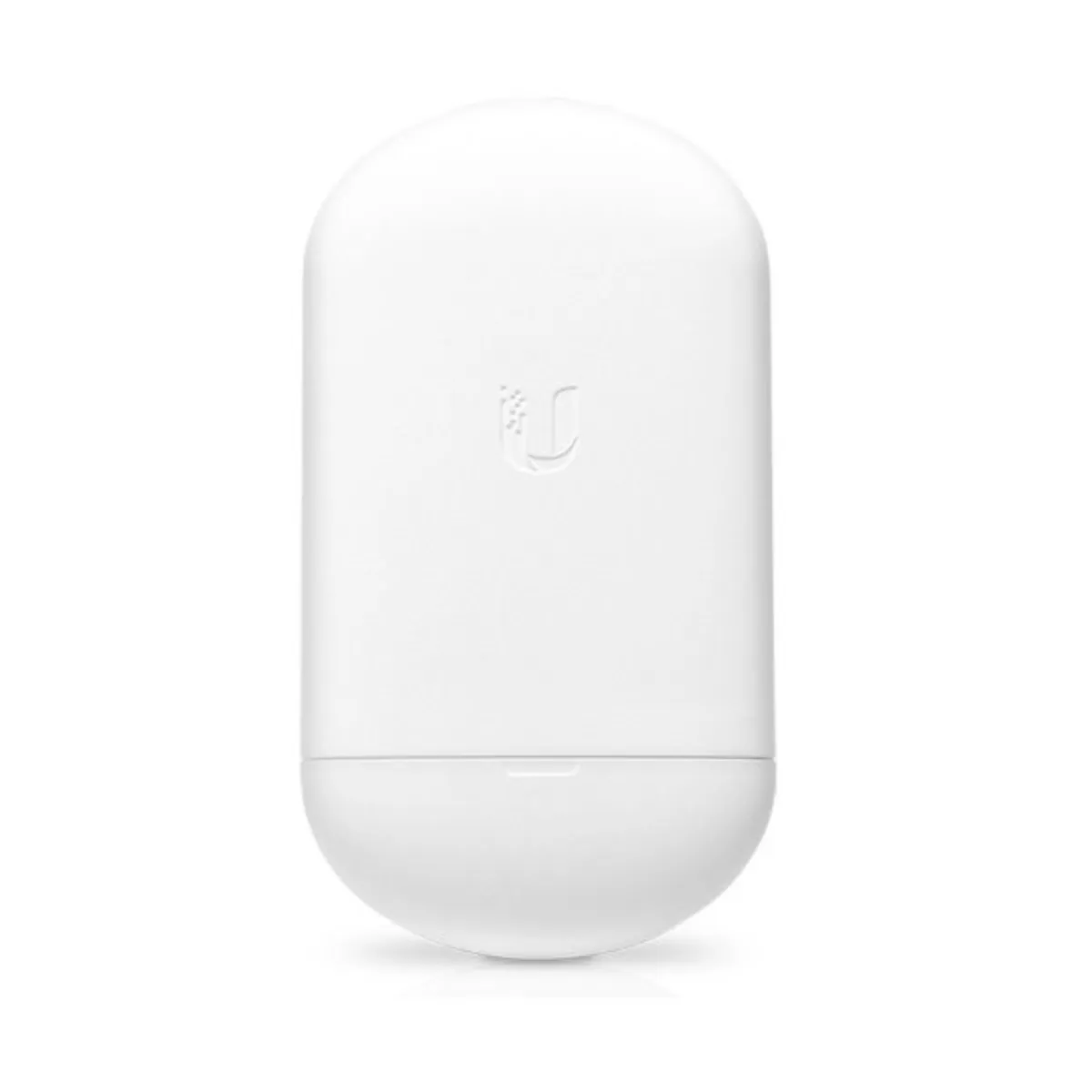

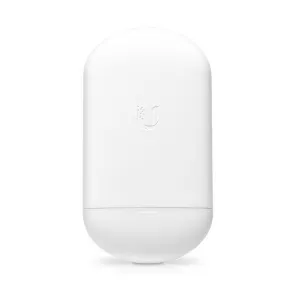

NanoStation AC L oco is an outdoor design and has an integrated 13 dBi (5 GHz) with horizontal and vertical polarization (MIMO 2x2). For high transmission rates, the unit uses 256QAM modulation and the AirMAX TDMA protocol to achieve low latencies. The NanoStation AC Loco is the second generation of airMAX AC devices that support wireless access to the unit and the ability to set it up in the UNMS mobile app. The UNMS application also helps with the orientation of the connection and will significantly speed up its installation.
The airOS 8 web interface is intuitive and displays a real-time constellation diagram and SNR progress. The unit supports AP/client modes in Point-to-MultiBod or Point-to-Point networks and router or bridge modes.
NanoStation AC Loco, like every device in the airMAX AC series, has a dedicated radio for continuous spectrum analysis of the 5 GHz band. The NanoStation AC Loco has improved surge protection that protects the device against electrostatic discharge.
CPU frequency: 560 MH
RAM memory: 64 M

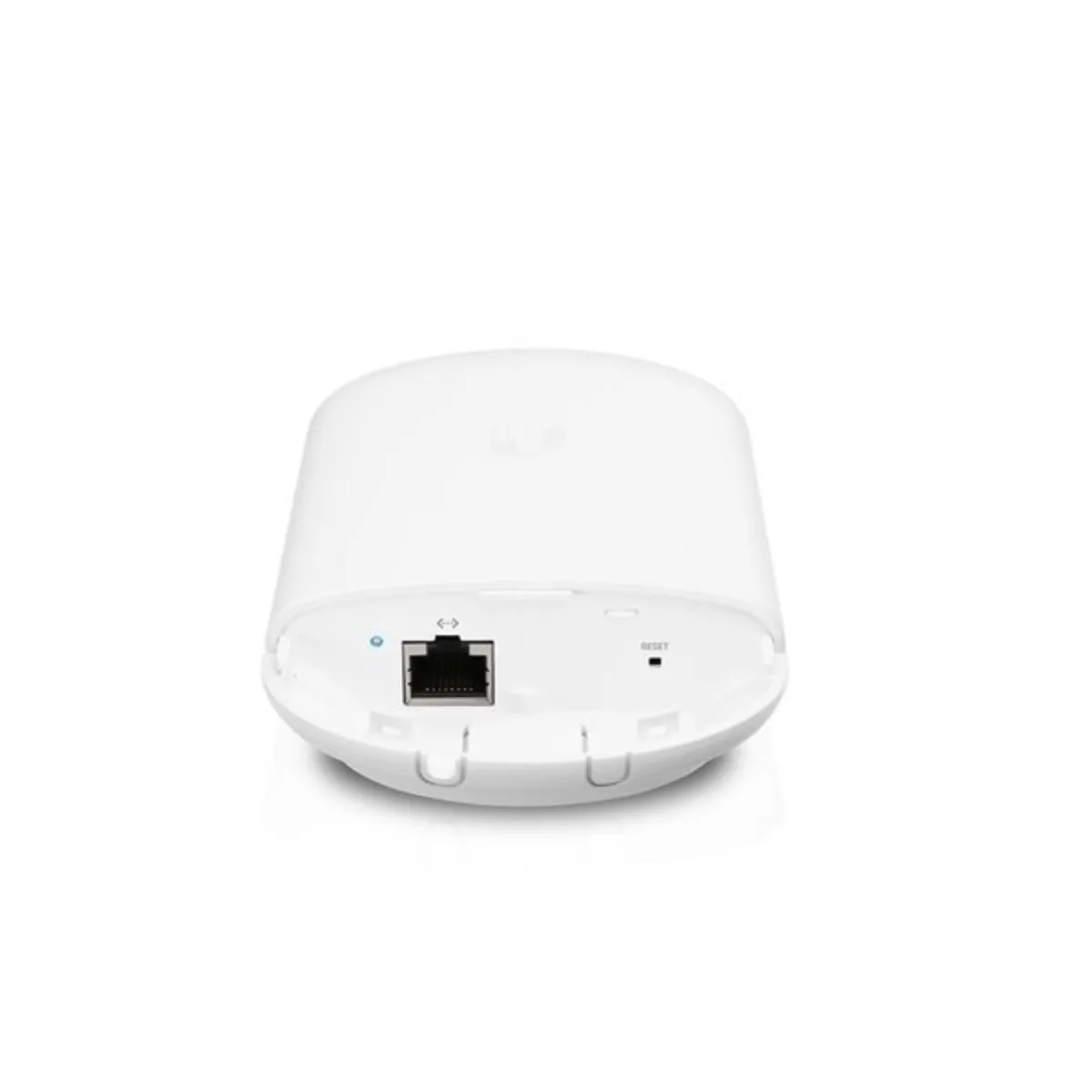

Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna: 13 dBi internal
Dimensions: 179 x 77.5 x 59.1 mm
Weight: 180 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 0,53 | |
| Dimension [mm] | 179 × 77,5 × 59,1 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 80 | |
| Wi-Fi standard | airMAX AC | |
| WPA security | No | |
| Processor | Atheros MIPS 74Kc, 560 MHz | |
| Default IP | 192.168.1.20 | |
| Height [mm] | 179 | |
| Chipset | Atheros | |
| Modulation | OFDM, QAM | |
| Width [mm] | 77,5 | |
| Operating mode | AP, Client | |
| Depth [mm] | 59,1 | |
| Conformity | CE, FCC, IC | |
| Power supply [V] | 24 | |
| Memory size [MB] | 128 | |
| NAND [MB] | 8 | |
| Encryption | WPA2-AES | |

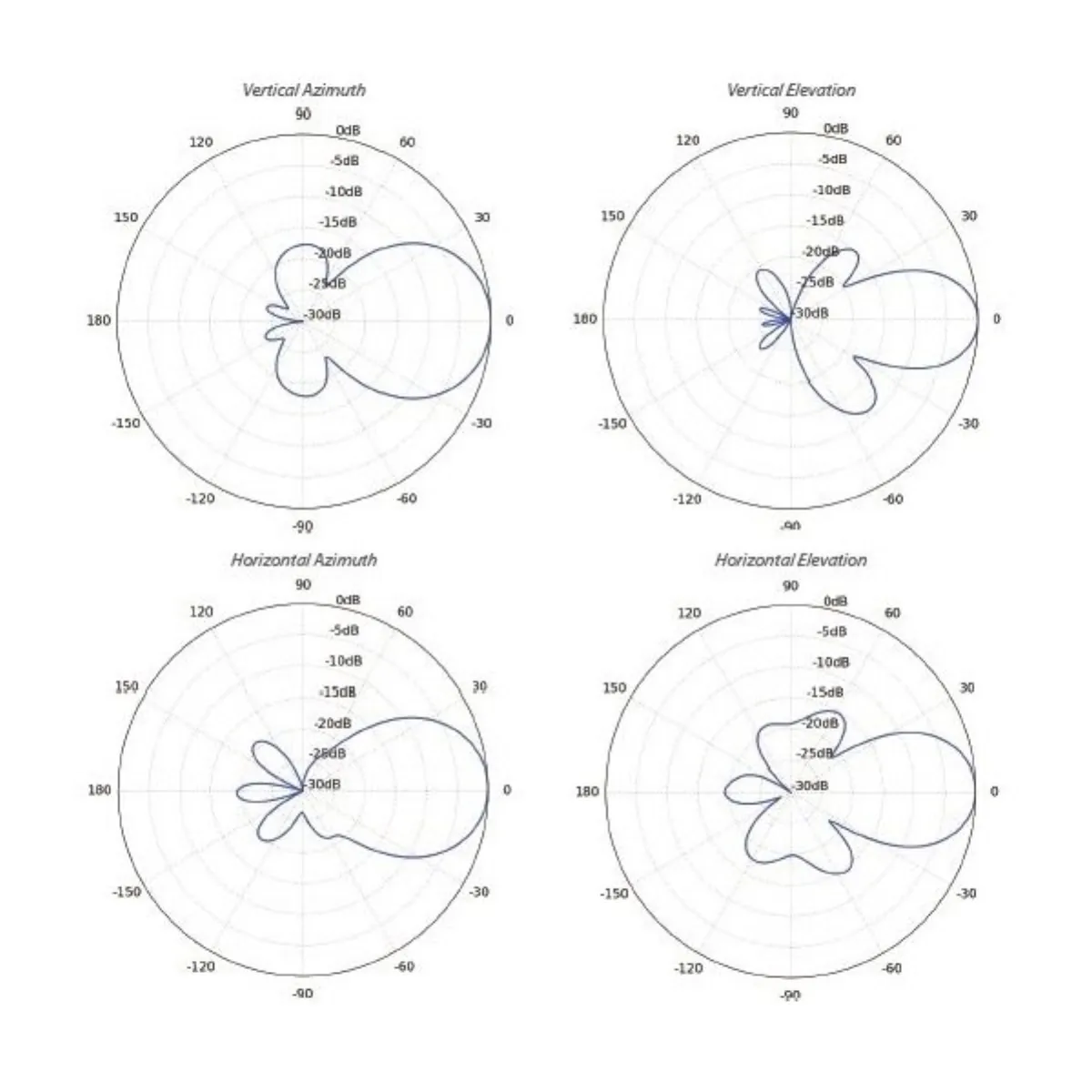

| Polarization | horizontal and vertical | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Max. output power [dBm] | 25 | |
| The default name | UBNT | |
| WPA2 security | Yes | |
| Transmission speed [Mbps] | 450 | |
| Gain [dBi] | 19 | |
| Port speed | 1 Gb/s | |
| IPv6 support | yes, transparent (BRIDGE mode) | |

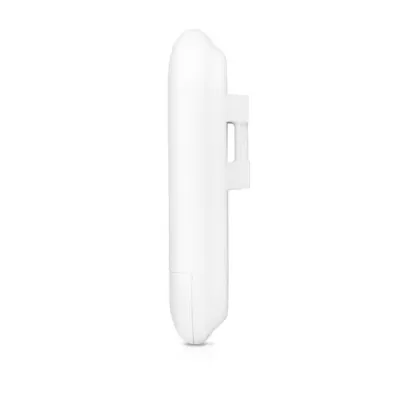

| Design | on the column | |
