Ubiquiti NanoStation M5 - AP client 5GHz antenna 16dBi MIMO2x2 airMAX 2x RJ45 PoE 24V

UBIQUITI | NSM5 | 810354022548

On stock 10 pcs.

Price of goods is 88.81 €.

Weight of goods is 0.643 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

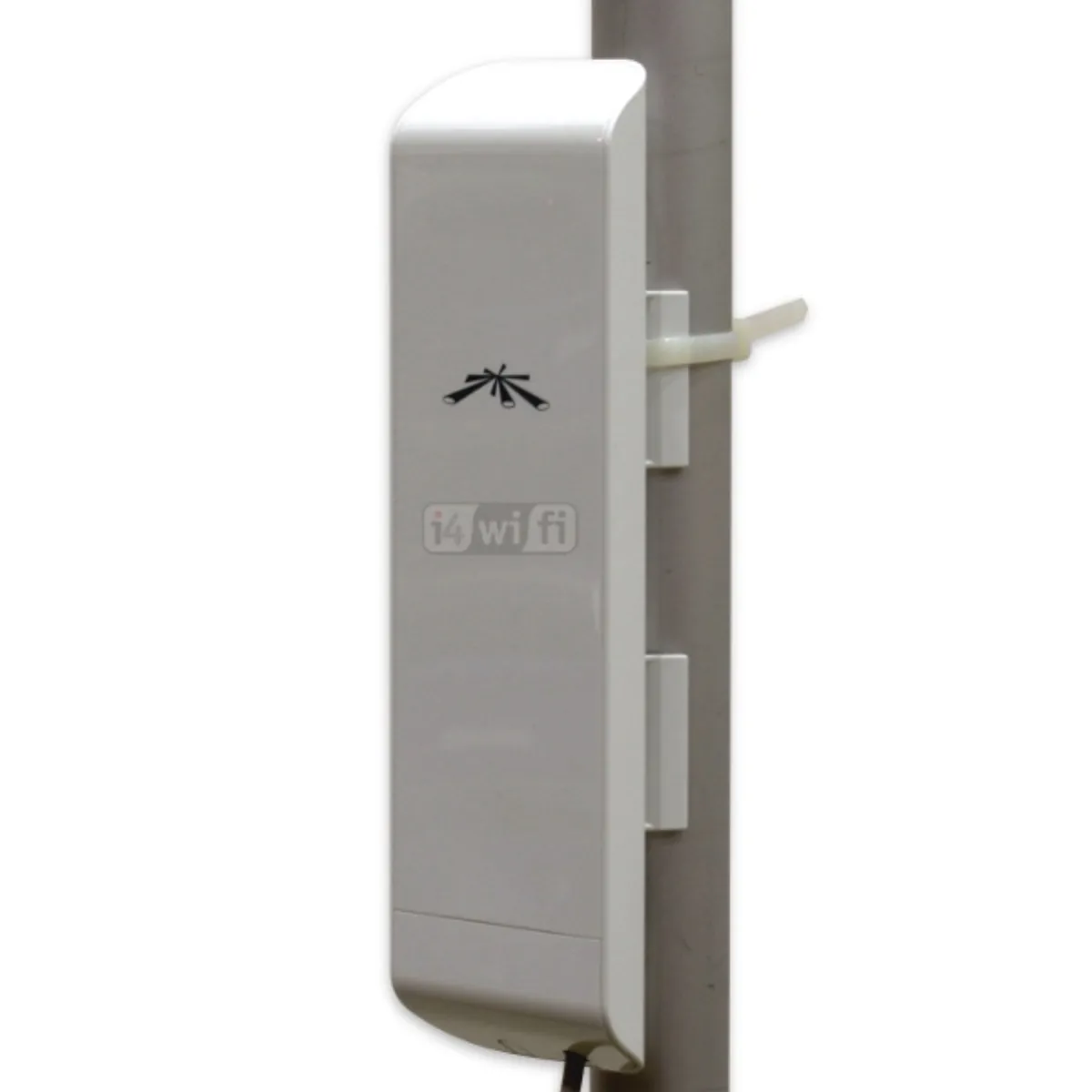

Ubiquiti NanoStation M5

NanoStation (NSM5) is a powerful complete outdoor unit including 2x 16 dBi antenna (MIMO) for the 5 GHz band. The unit enables communication at speeds of up to 150 Mbps.

Another advantage is, in addition to the high transmission speed thanks to the 802.11n standard, the use of TDMA time multiplex, which allows more than 300 clients to connect to the unit in AP mode and low latency. Compared to its predecessor, the NanoStation5 has a stronger processor clocked at 400 MHz and more memory.

Web administration is very simple and clear. You can set e.g.:

  • AP, client or WDS mode
  • traffic shaping
  • QoS
  • transparent bridge or routing between WAN and LAN, without NAT or with NAT
  • signal strength, which should correspond to a specific signaling LED
  • output power up to 27 dBi

In bridge and WDS mode, the device transparently supports IPv6 transmissions.

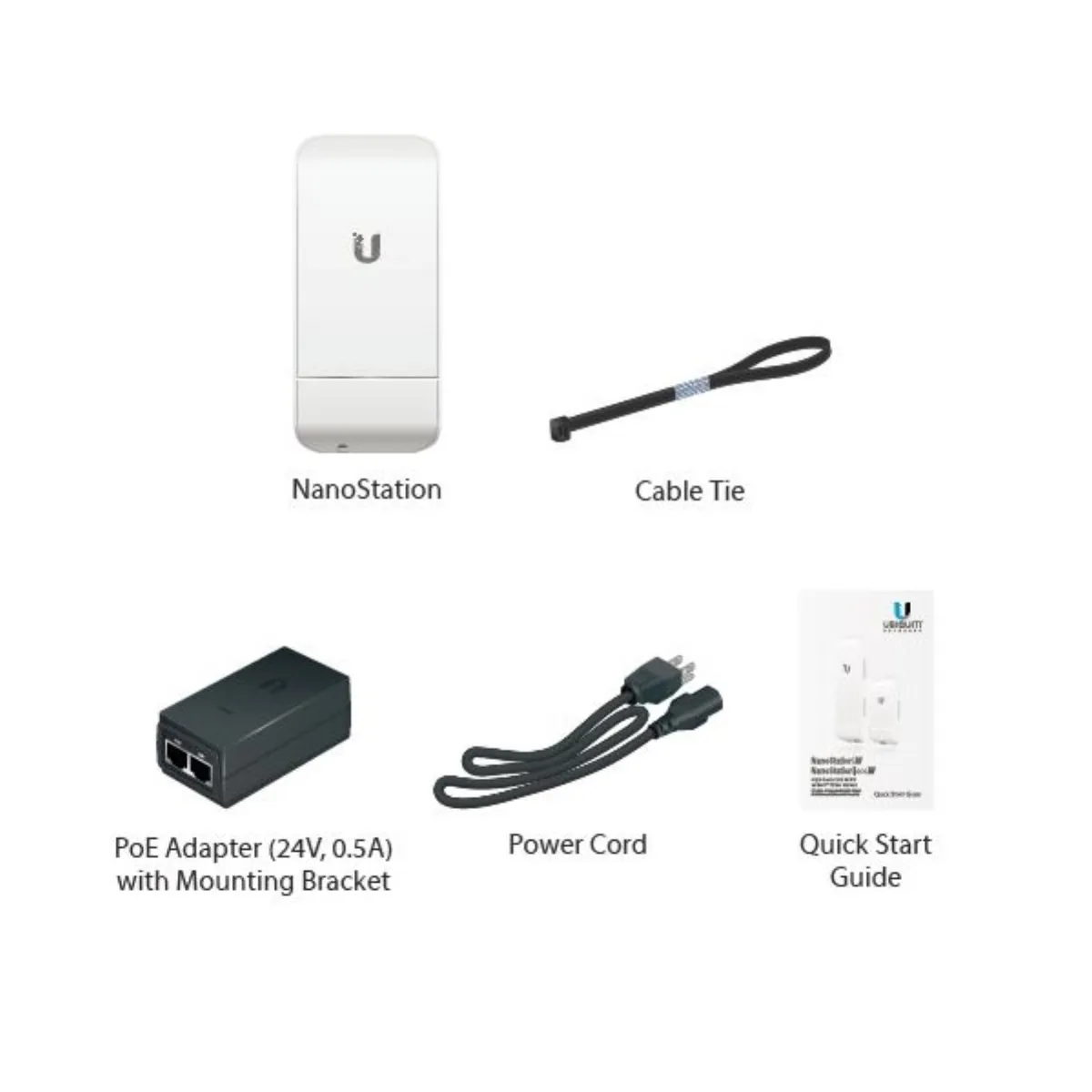

The package also includes a 24V/0.5A power PoE injector.

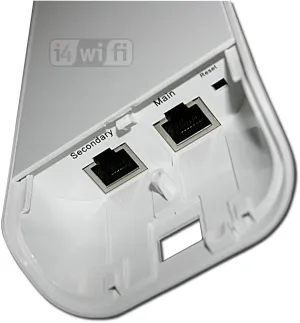

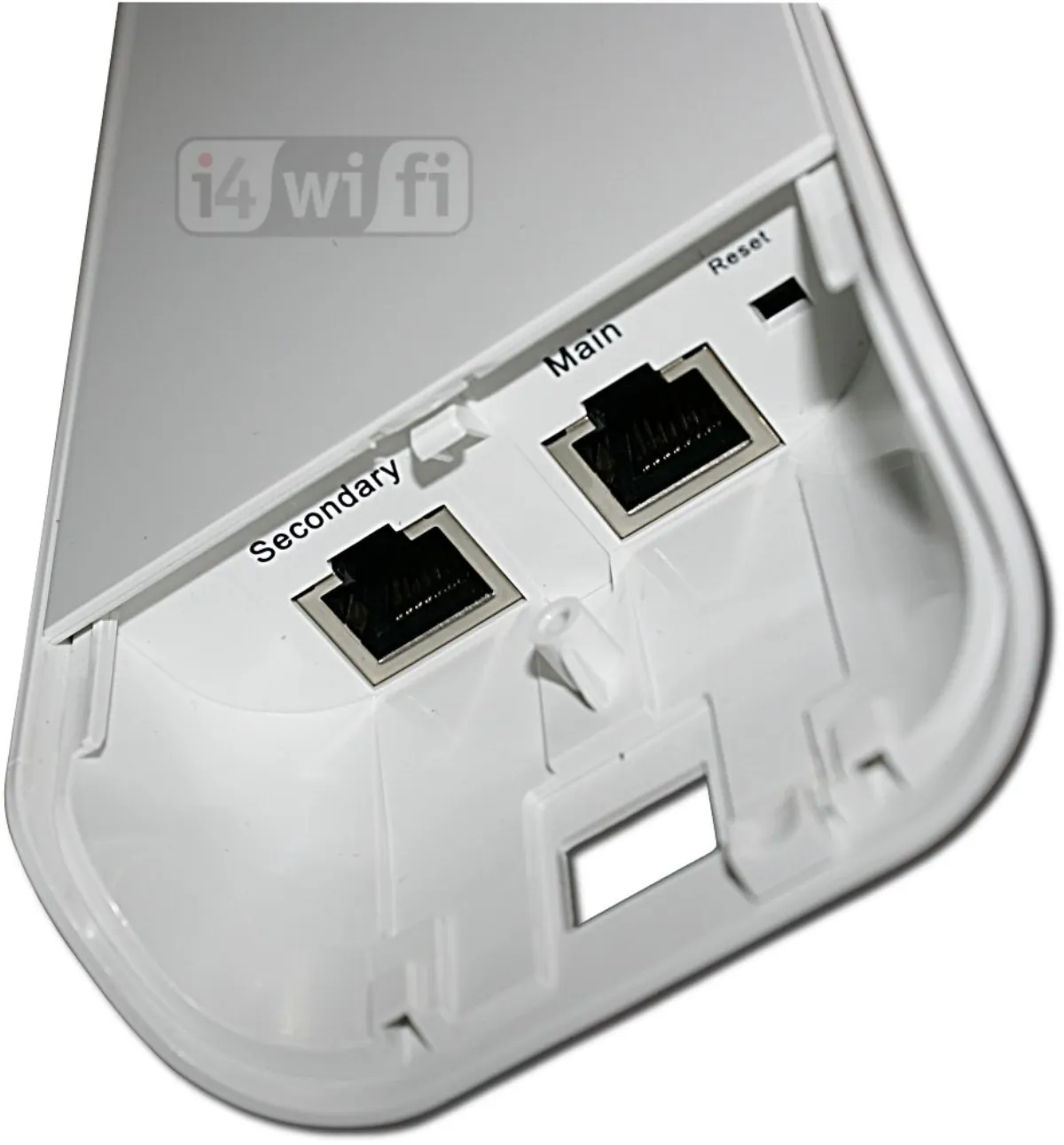

Another advantage is PoE support on the second Ethernet port for direct power supply to the second device. This feature can also be disabled in software.

The package includes installation tapes that are exposed to mechanical stress. We recommend replacing the tapes with new ones once every 2 years. This will prevent possible damage to the device.

Wi-Fi standard: IEEE 802.11a/n

CPU frequency: 400 MH

Number of cores: 1

RAM memory: 64 M

Ports: 2 x RJ-45

PoE support: yes

Frequency band: 5170 - 5875 MHz

Antenna: 2 x 16 dBi internal

Dimensions: 294 x 80 x 31 mm

Weight: 400 g

Properties

NameValue
Colorwhite
Weight, brutto [kg]0,4
Dimension [mm]294 × 31 × 80 mm
Minimum operating temperature [°C]-30
Wi-Fi standard802.11a/n
Default passwordUBNT
InterfaceLAN, Wi-Fi
Indoor useNo
Default IP192.168.1.20
Height [mm]294
Standards802.11a/n
ChipsetAtheros
ModulationOFDM
Width [mm]80
Operating modeAP, Client, WDS

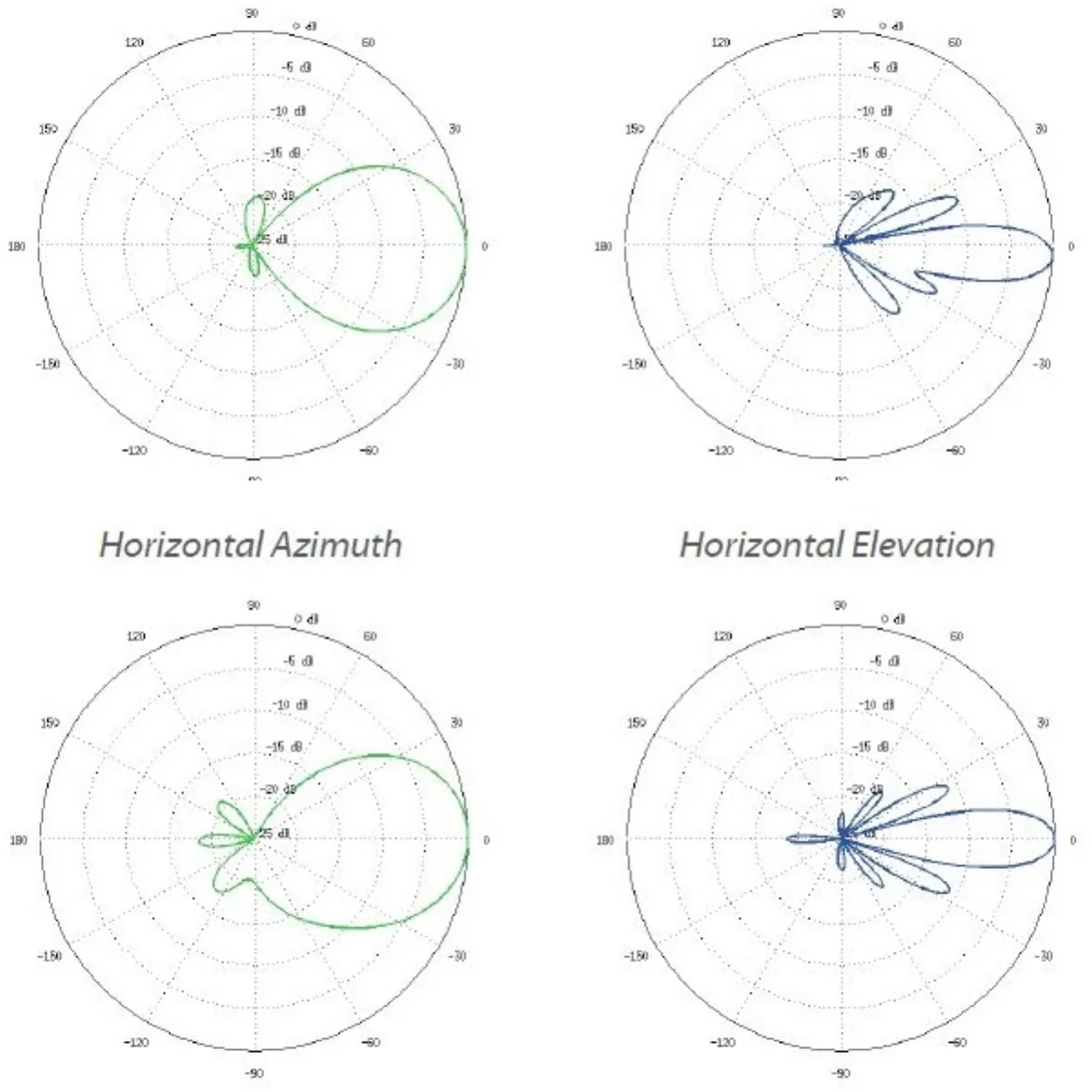

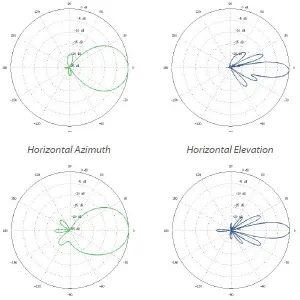

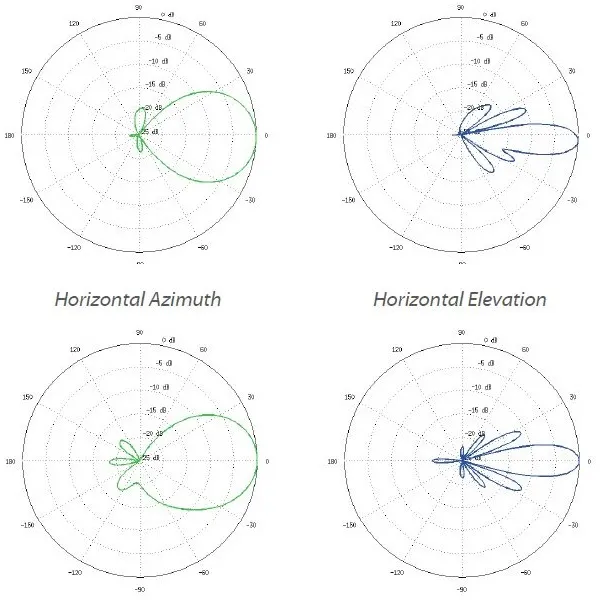

Vertical beam angle [°]15
Depth [mm]31
DHCPYes
ConformityCE, FCC
Memory size [MB]32
NAND [MB]8
Horizontal beam angle [°]41
EncryptionWPA-AES, WPA2-AES
Polarizationhorizontal and vertical
Wi-Fi frequency5170 - 5875 MHz
Sensitivity [dBm]-96
Max. output power [dBm]27
The default nameUBNT
WPA2 securityYes
Transmission speed [Mbps]150
Gain [dBi]16
Port speed100 Mb/s
IPv6 supportyes, transparent (BRIDGE mode)
DesignOutdoor
