Ubiquiti NanoStation M5 Loco - AP client 5GHz antenna 13dBi MIMO2x2 airMAX 1x RJ45 PoE 24V
UBIQUITI | LocoM5 | 810354022340
On stock 19 pcs.
Price of goods is 66.99 €.
Weight of goods is 0.514 Kg.
Actual in cart 0 pcs.

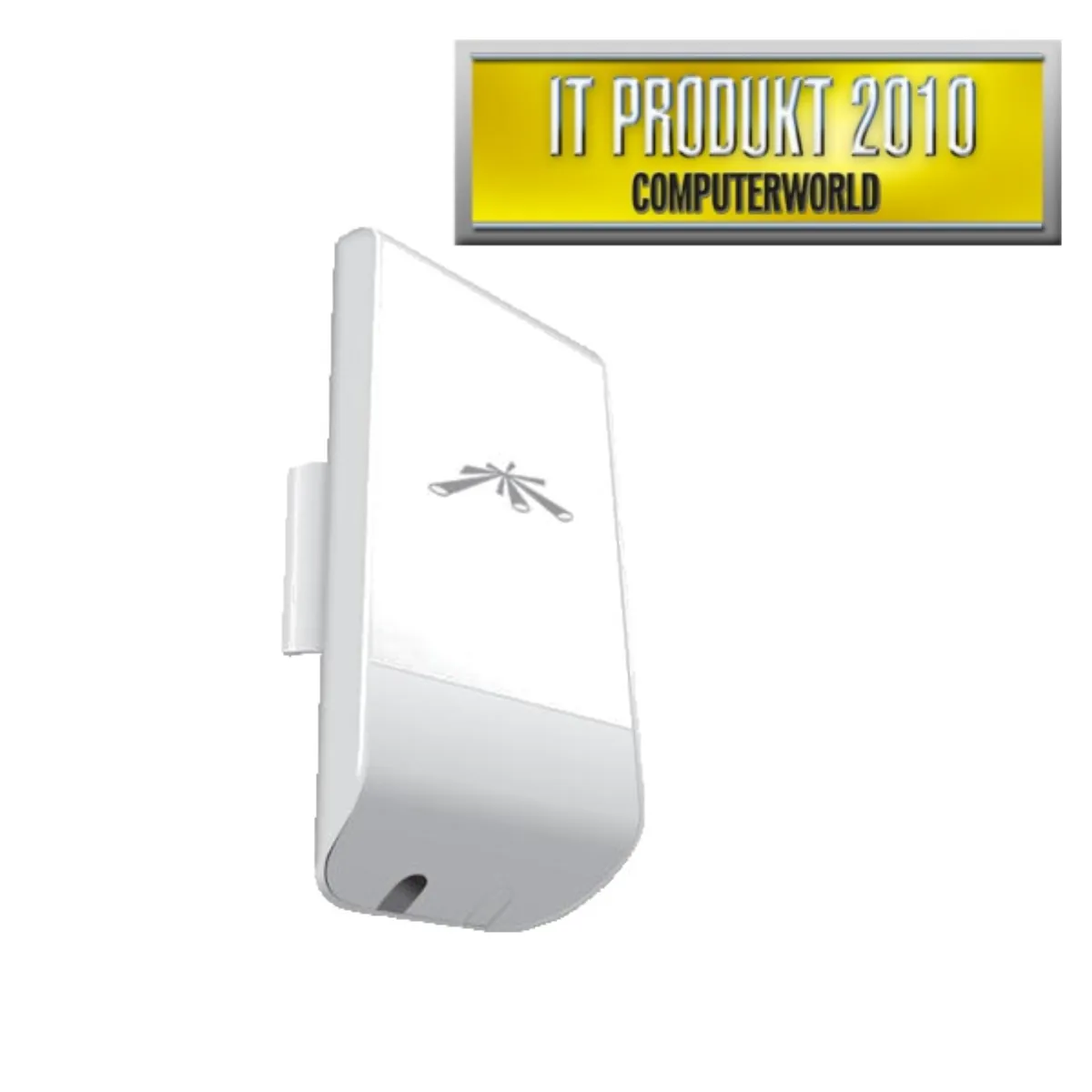

Ubiquiti NanoStation LocoM5
NanoStation (LOCOM5) is a scaled-down copy of the popular NanoStation M5 at an incredible price with speeds up to 150 Mbps. Thanks to its small dimensions, it fits practically anywhere. Compared to the Nanostation M5, it differs in size, 1x LAN and an integrated MIMO 2×2 13dBi antenna.
Another advantage is, in addition to the high transmission speed thanks to the 802.11n standard, the use of TDMA time multiplex, which allows more than 300 clients to connect to the unit in AP mode and low latency.
Web administration is very simple and clear. You can set e.g.:
- AP, client or WDS mode
- traffic shaping
- QoS
- transparent bridge or routing between WAN and LAN, without NAT or with NAT
- signal strength, which should correspond to a specific signaling LED
In bridge and WDS mode, the device transparently supports IPv6 transmissions.

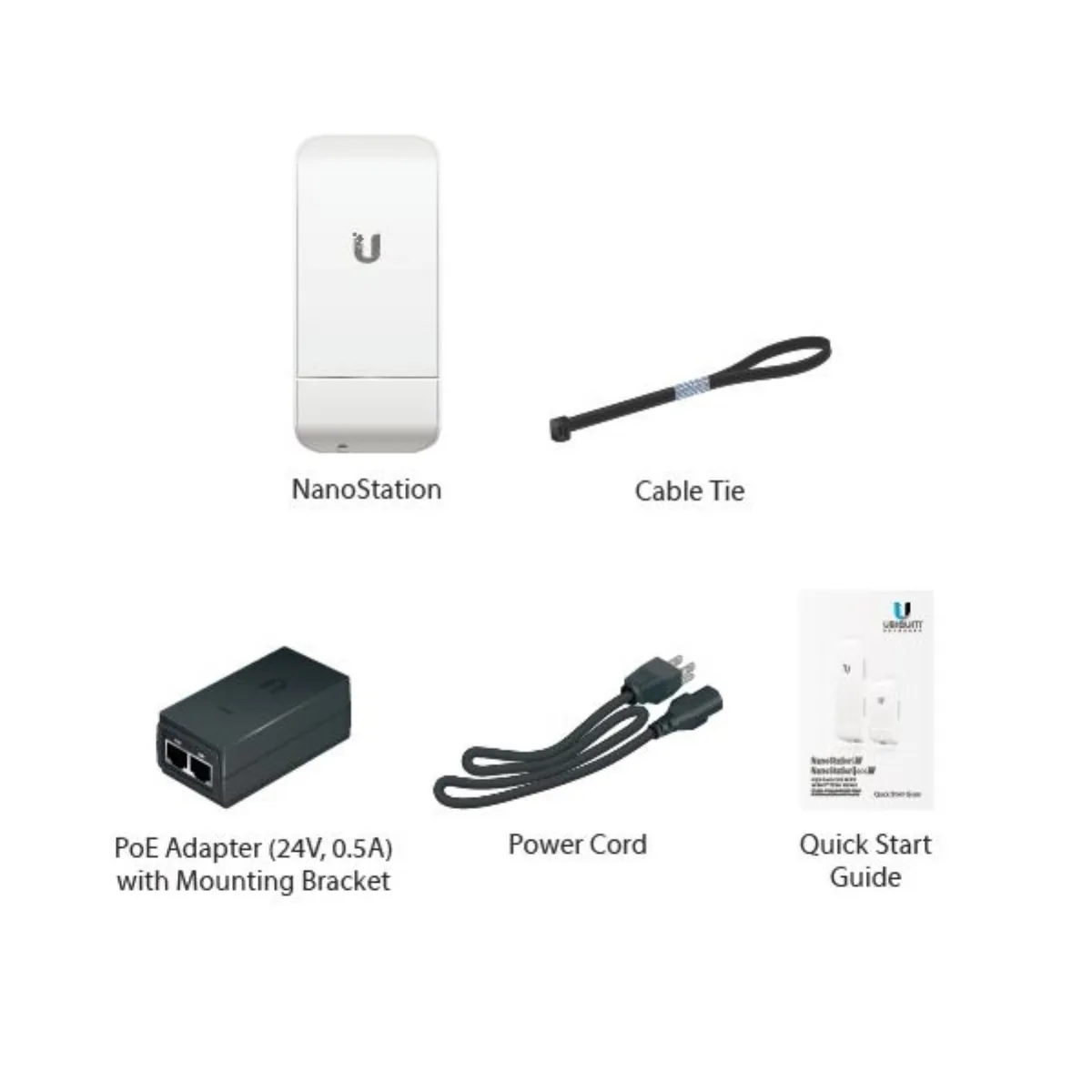

The package contains a PoE injector 24V/0.5A
The package includes installation tapes that are exposed to mechanical stress. We recommend replacing the tapes with new ones once every 2 years. This will prevent possible damage to the device.
Wi-Fi standard: IEEE 802.11a/n
CPU frequency: 560 MH
Number of cores: 1
RAM memory: 64 M

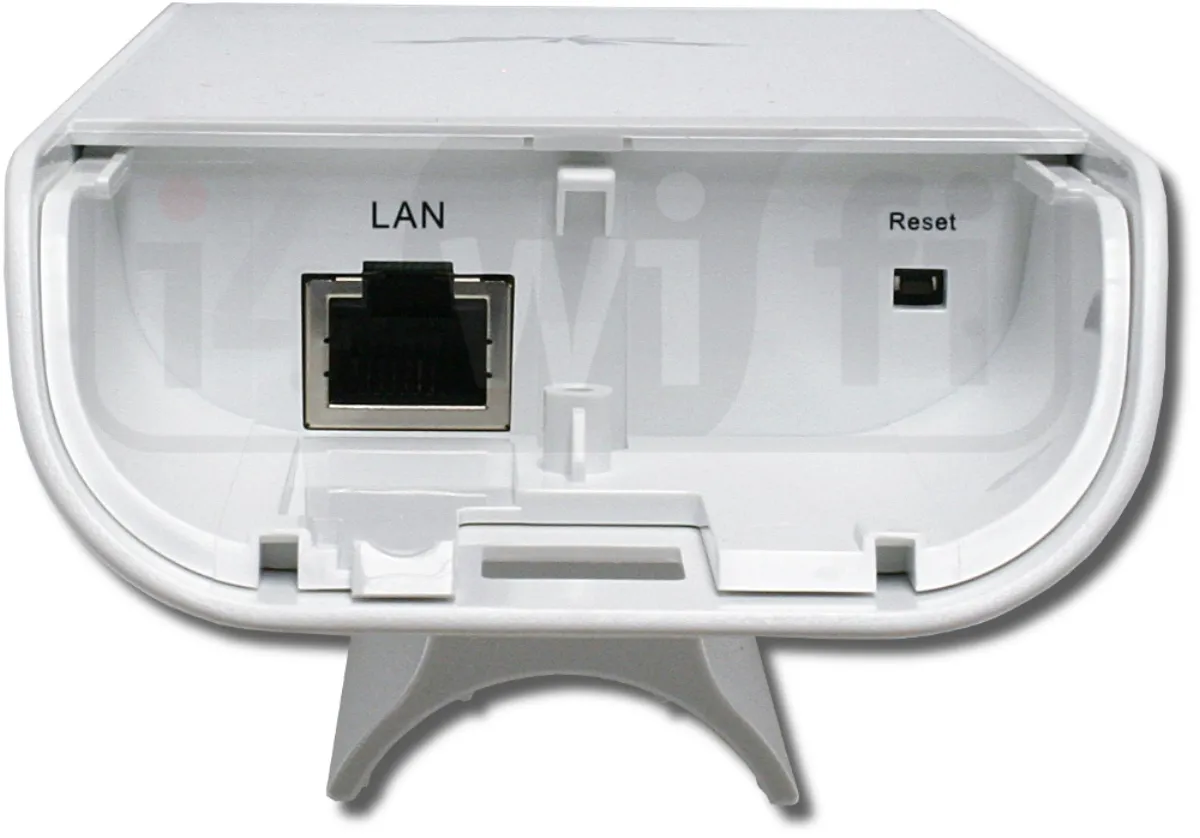

Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5170 - 5875 MHz
Antenna: 2 x 13 dBi internal
Dimensions: 161 x 80 x 31 mm
Weight: 180 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 0,18 | |
| Dimension [mm] | 161 × 80 × 31 mm | |
| Minimum operating temperature [°C] | -30 | |
| Processor | Atheros MIPS 24KC, 400 MHz | |
| Default IP | 192.168.1.20 | |
| Height [mm] | 161 | |
| Standards | 802.11a/n | |
| Chipset | Atheros | |
| Modulation | OFDM, DBPSK, DQPSK, CCK, 64QAM,16QAM | |
| Wi-fi | Yes | |
| Width [mm] | 80 | |
| Operating mode | AP, Client, WDS | |

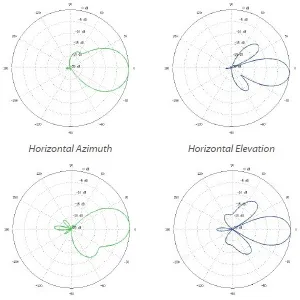

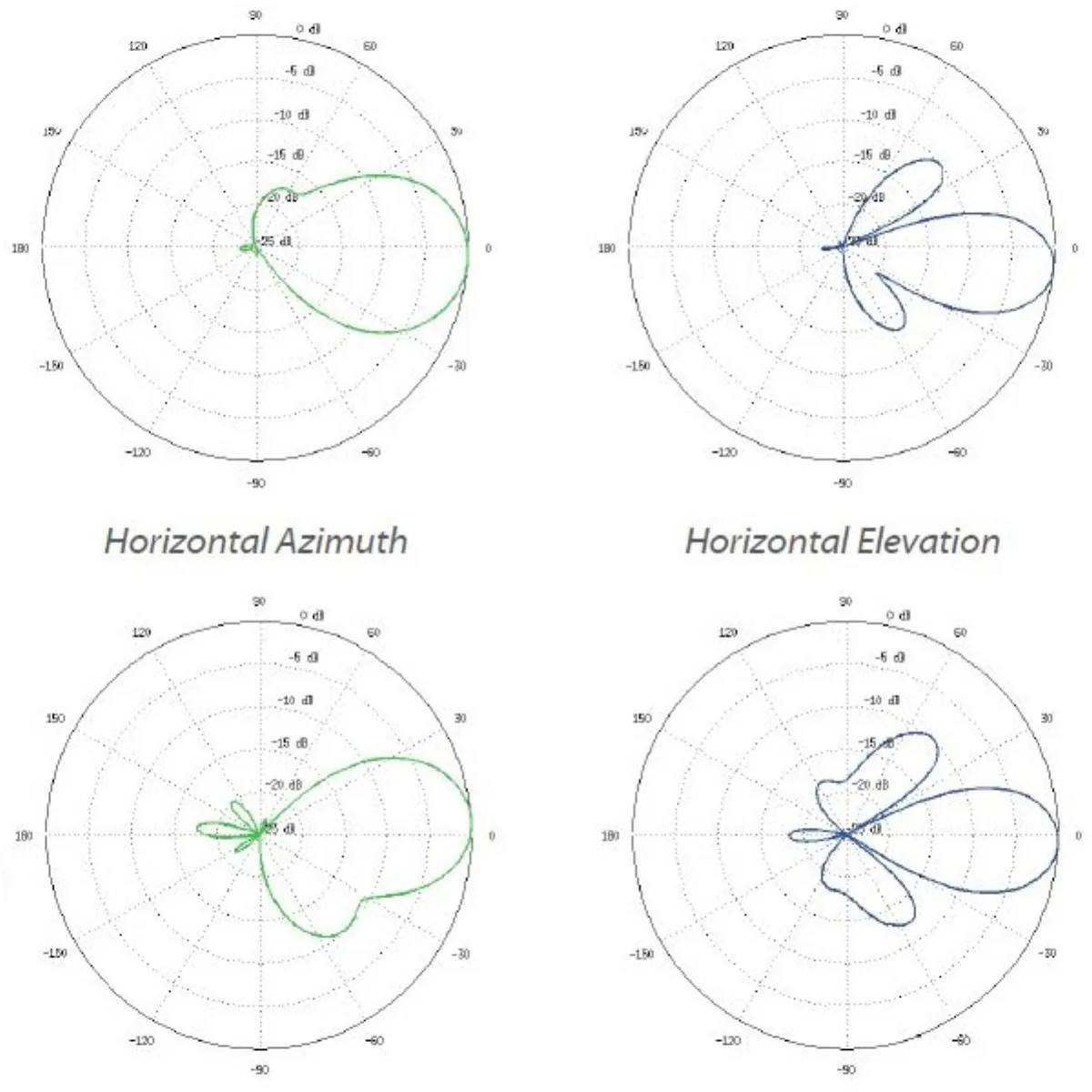

| Vertical beam angle [°] | 45 | |
| Depth [mm] | 31 | |
| DHCP | Yes | |
| Conformity | CE, FCC | |
| Memory size [MB] | 64 | |
| PSV | <1,4 | |
| NAND [MB] | 8 | |
| Horizontal beam angle [°] | 45 | |
| Encryption | WEP, WPA, WPA2 | |
| Polarization | horizontal and vertical | |
| Wi-Fi frequency | 5170 - 5875 MHz | |
| Sensitivity [dBm] | -96 | |
| Max. output power [dBm] | 23 | |
| The default name | UBNT | |
| Gigabit LAN | No | |
| Consumption [W] | 5,5 | |
| Output to ext. the antenna | No | |
| Transmission speed [Mbps] | 150 | |
| Gain [dBi] | 2 x 13 | |
| Port speed | 100 Mb/s | |
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Design | Outdoor | |
