Ubiquiti PowerBeam 5AC GEN2 - AP client 5GHz antenna 25dBi MIMO2x2 airMAX AC 1x Gbit RJ45 PoE 24V

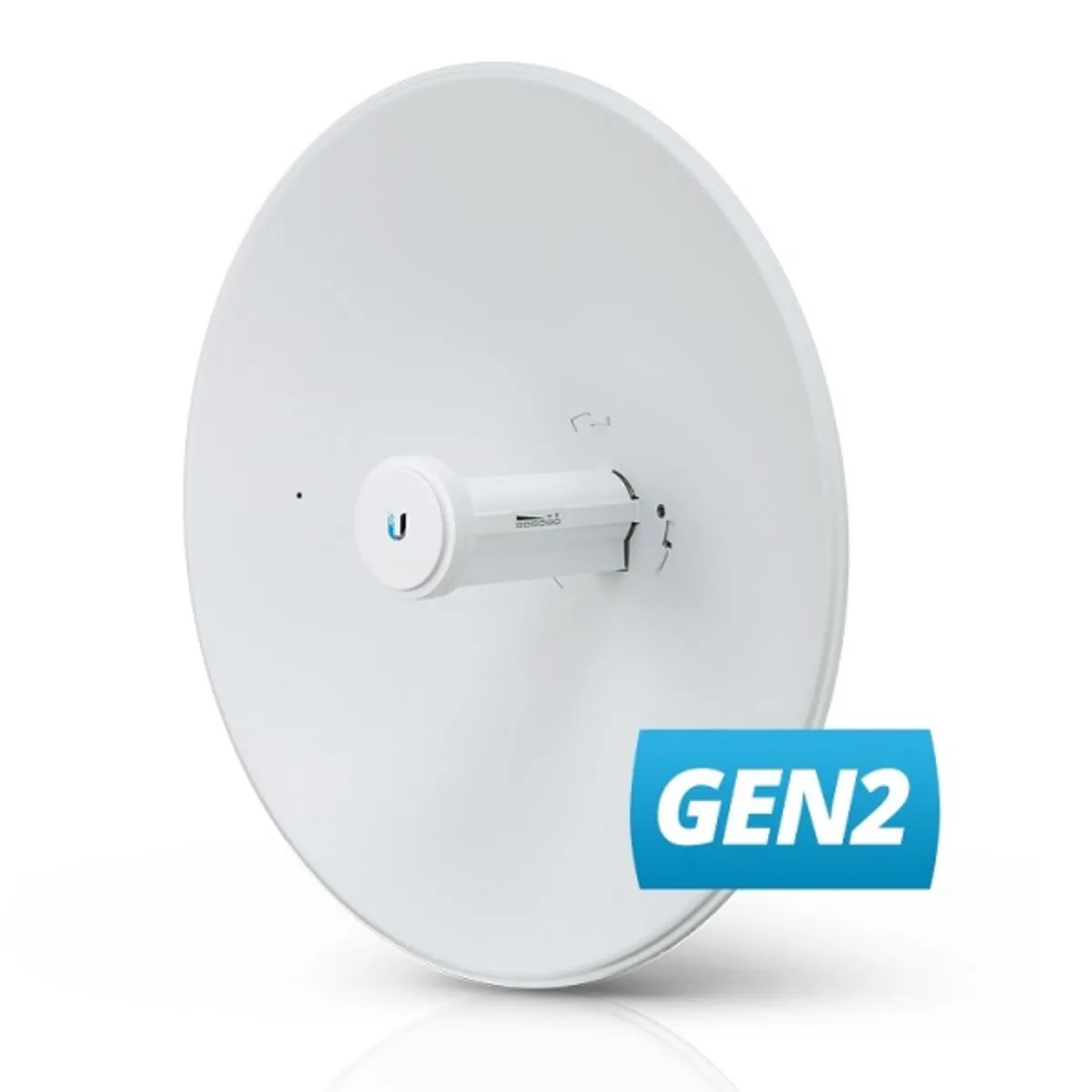

Ubiquiti PowerBeam 5 AC Gen 2

The PowerBeam (PBE-5AC-Gen2) is a complete outdoor unit 2. generation with 25 dBi MIMO 2x2 antennas for the 5 GHz band. It is suitable as a client unit or for PtP connections. The unit supports the 802.11ac standard and a throughput of 450+ Mbps.

PowerBeam 5AC-Gen2 is from 2. generation of airMAX AC devices that have a dedicated radio for wireless access to the unit and the ability to set it up in the UNMS app for mobile devices. The UNMS application also helps with the orientation of the connection and will significantly speed up its installation.

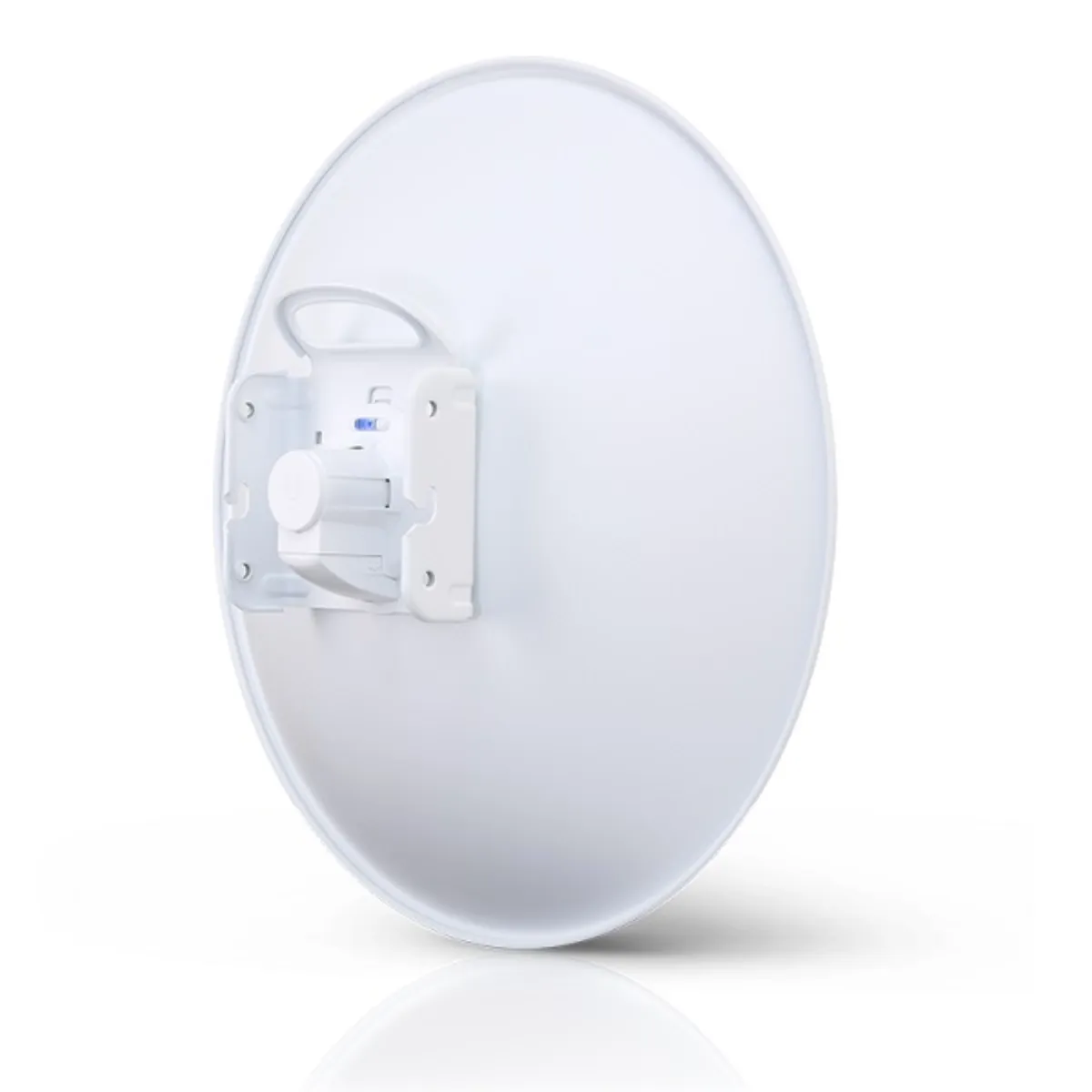

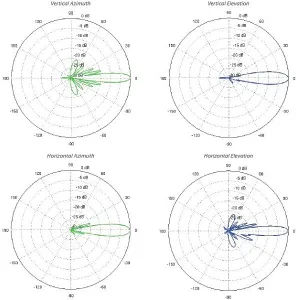

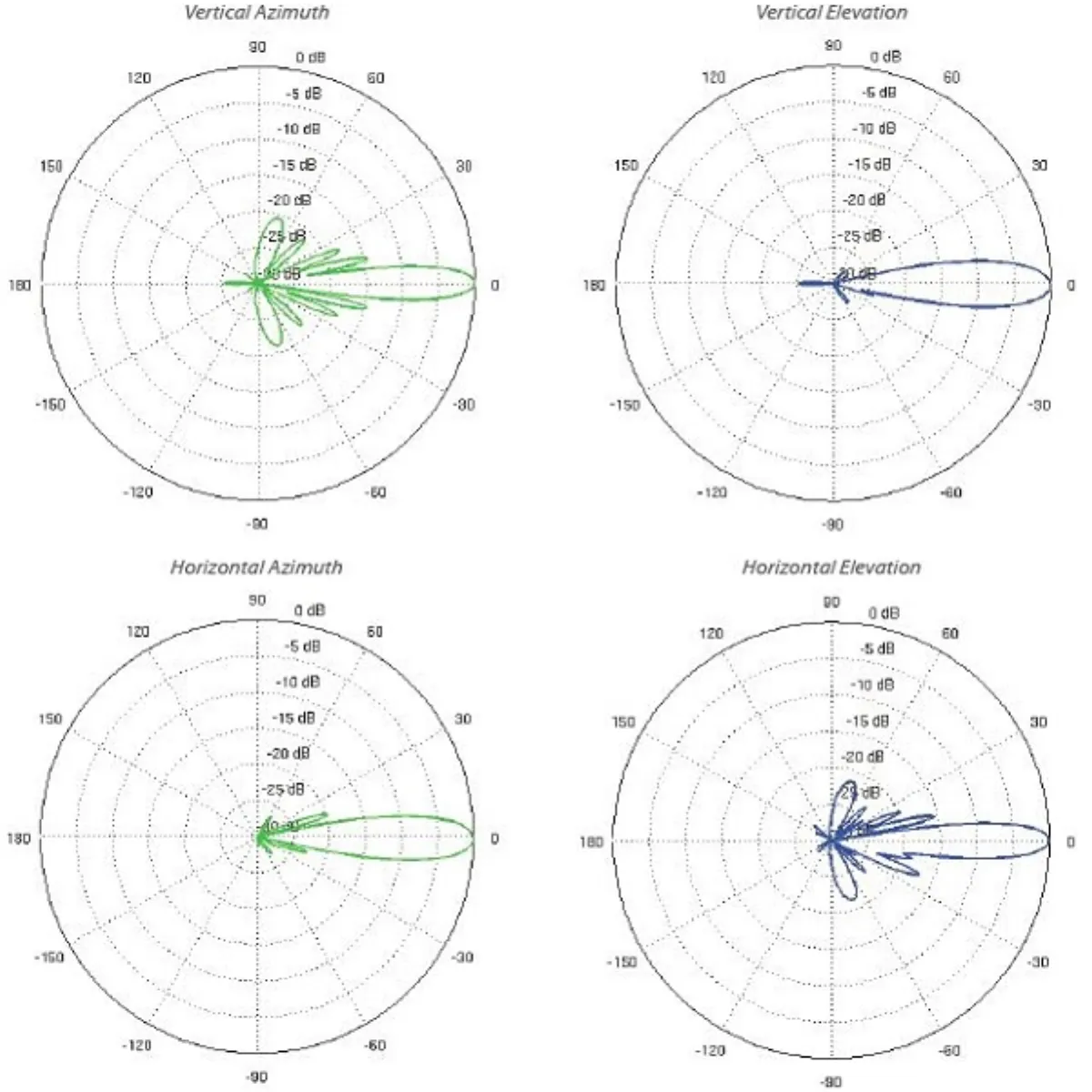

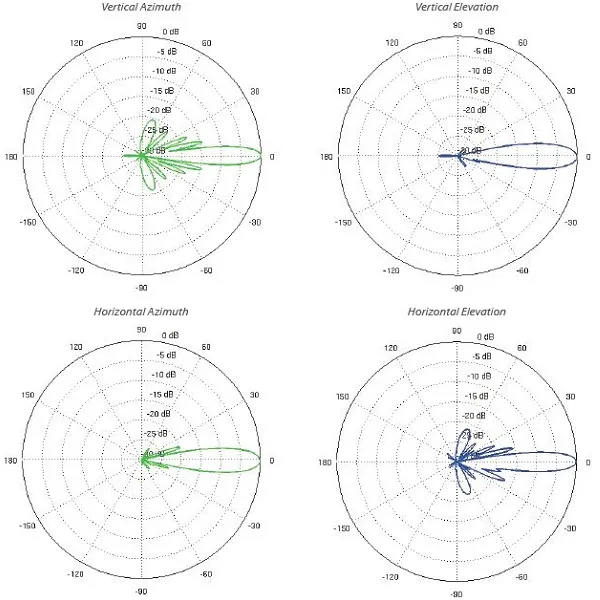

The antenna system consists of two antennas (MIMO) with horizontal and vertical polarization. PowerBeam use patented InnerFeed technology for quick installation of the radiator. The PowerBeam 5AC-Gen2 has newly improved surge protection and a robust bracket with a handle for easy mounting.

For high transfer rates, the unit uses the 802.11ac standard and AirMAX (TDMA) technology to achieve low latencies.

Web administration is very simple and clear. You can set e.g.:

• AP, client or WDS mode
• traffic shaping
• QoS
• transparent bridge or routing between WAN and LAN, without NAT or with NAT
• signal strength, which should correspond to a specific signaling LED
• output power up to 25 dBm

In bridge and WDS mode, the device transparently supports IPv6 transmissions.

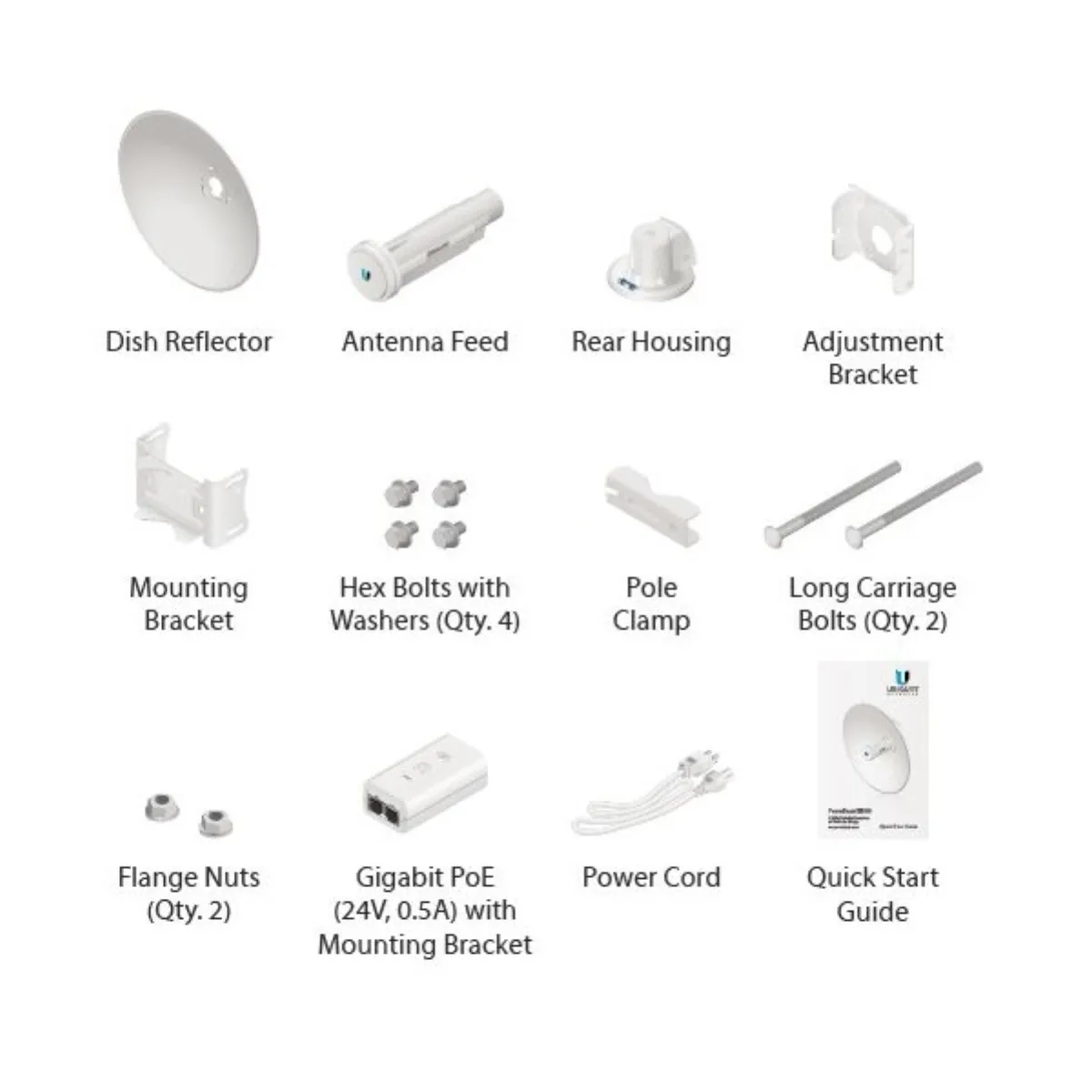

Gbit power PoE injector 24 V (0.5 A) is included in the package.

Frequency: 5 GH

Antenna gain: 25 dBi

Transmission speed: up to 450 Mb/s

Ports: 1x RJ-45
