Ubiquiti PowerBeam M5 300 - AP client 5GHz antenna 22dBi MIMO2x2 airMAX 1x RJ45 PoE 24V
UBIQUITI | PBE-M5-300 | 810354022616
On stock 49 pcs.
Price of goods is 71.33 €.
Weight of goods is 0.607 Kg.
Actual in cart 0 pcs.

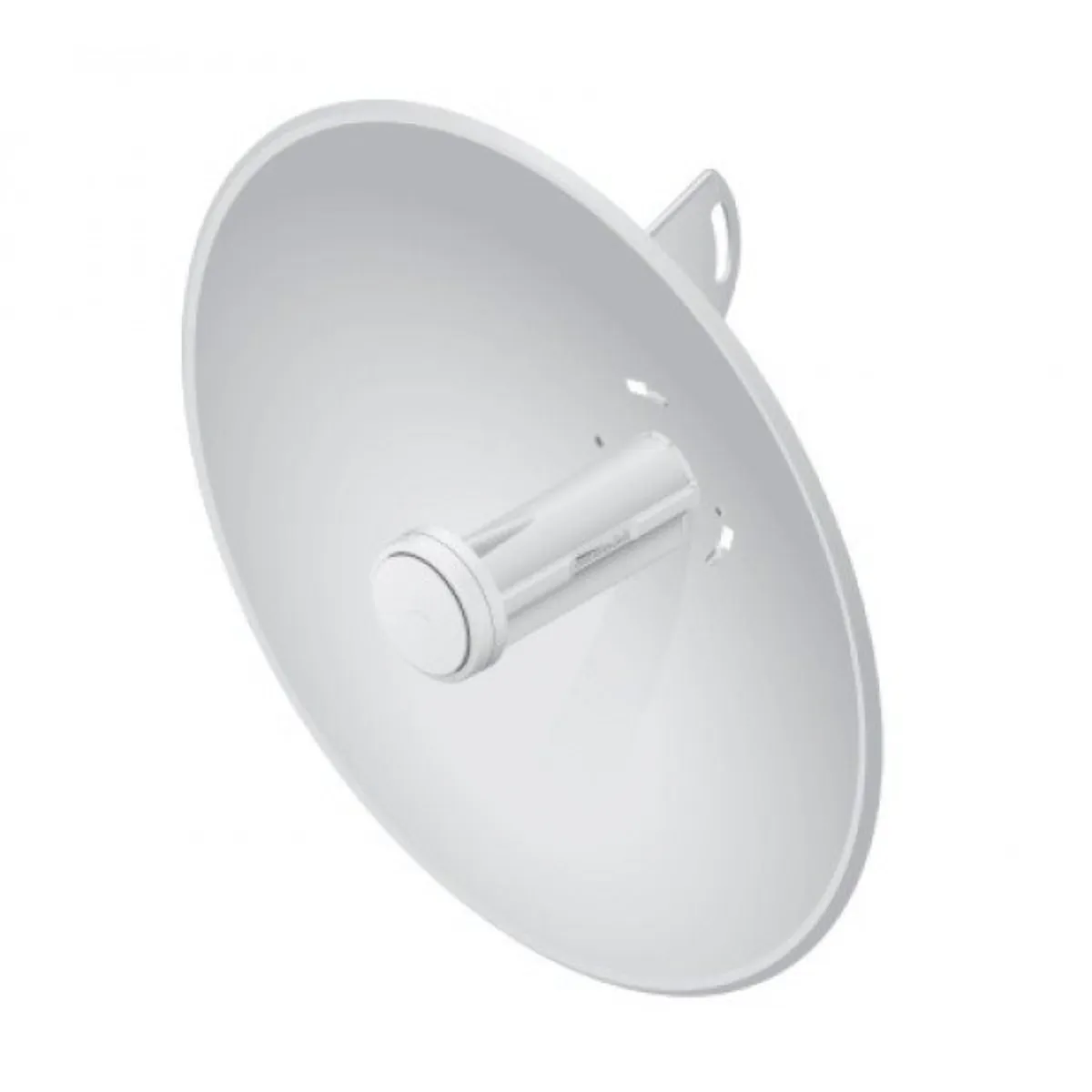

Ubiquiti PowerBeam M5 300
PowerBeam (PBE-M5-300) is a powerful complete outdoor unit including a 22 dBi MIMO 2x2 antenna for the 5 GHz band suitable for PtP connections. The unit enables communication at up to 150 Mbps.
The PowerBeam M5 300 is a direct replacement for the NanoBridge M5 22 dBi units. PowerBeam uses a new antenna design for greater resistance to interference, has a better design for easy installation. The material of the unit uses GEOMET technology for high corrosion resistance. For high transfer rates, the unit uses the 802.11a/n standard and AirMAX (TDMA) technology to achieve low latencies.

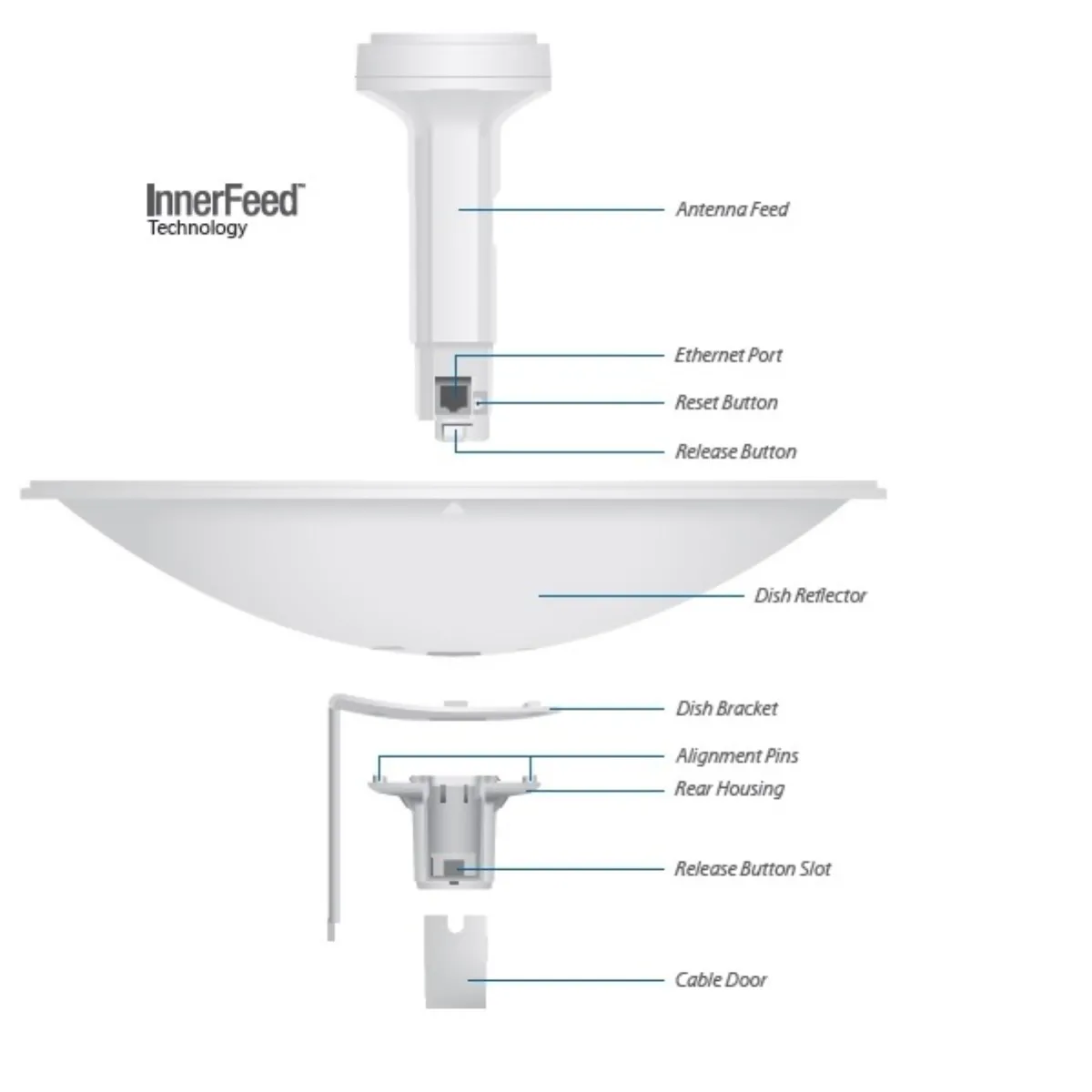

The antenna system consists of two antennas (MIMO) with horizontal and vertical polarization, which use the patented InnerFeed technology to achieve the best characteristics while maintaining a good price. A big advantage is ESD/EMP protection against overvoltage on both wireless and Ethernet parts up to up to 24 kV!
Web administration is very simple and clear. You can set e.g.:
- AP, client or WDS mode
- traffic shaping
- QoS
- transparent bridge or routing between WAN and LAN, without NAT or with NAT
- signal strength, which should correspond to a specific signaling LED
- output power up to 26 dBi
In bridge and WDS mode, the device transparently supports IPv6 transmissions.

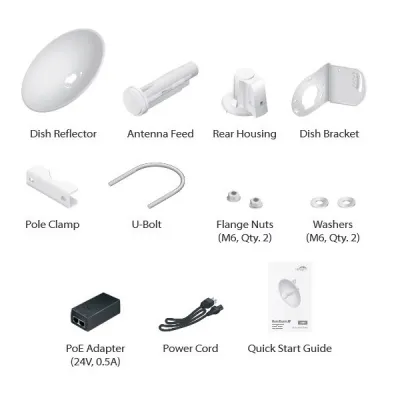

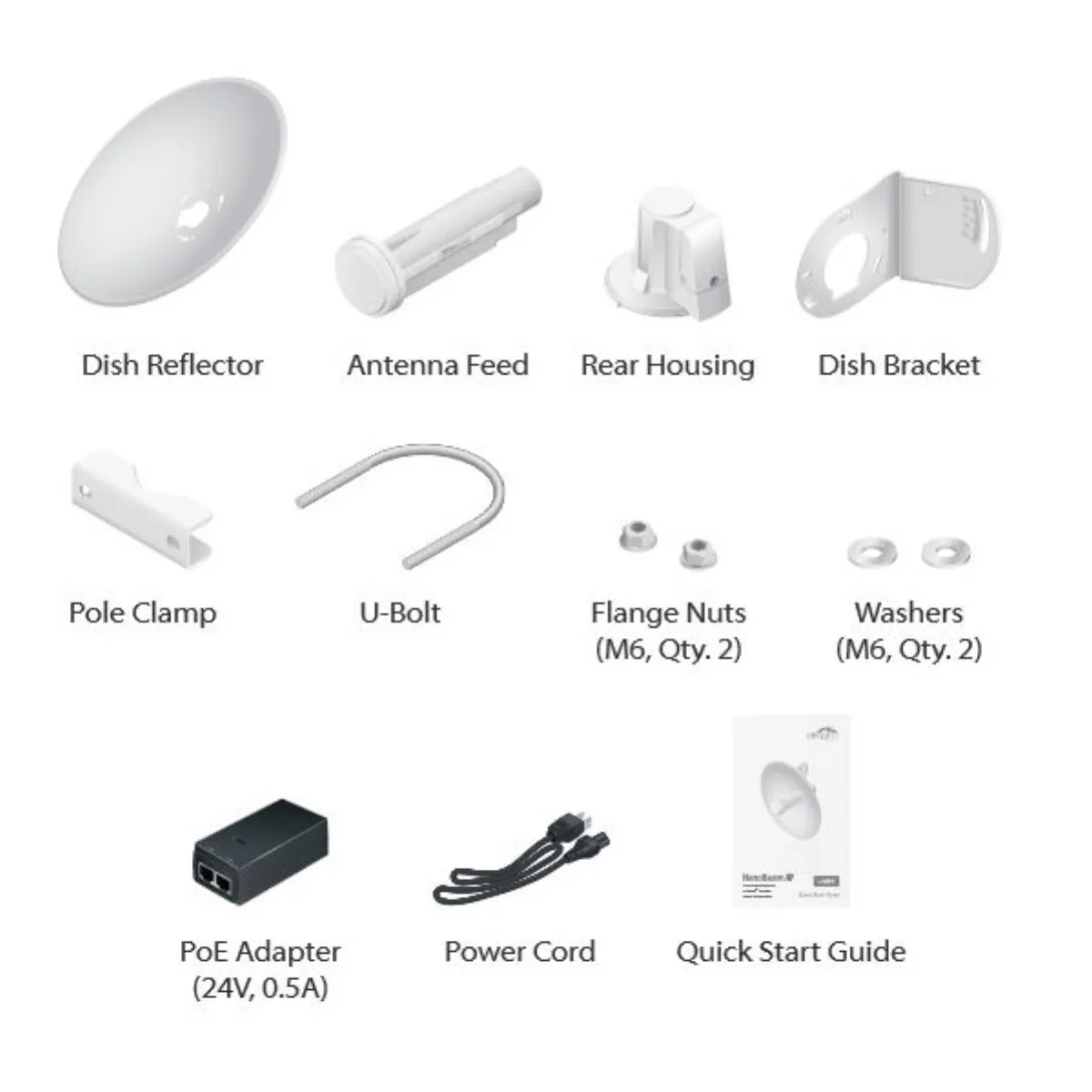

The package also includes a 24 V PoE power source.
Wi-Fi standard: 802.11a/n
CPU frequency: 560 MH
Number of cores: 1
RAM memory: 64 M
Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna
- 300 mm
- 22 dBi
Dimensions: 325 x 325 x 256 mm
Weight: 1203g
| Name | Value | |
|---|---|---|
| Interface | LAN, Wi-Fi | |
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Weight, brutto [kg] | 1,203 | |
| Color | white | |
| Dimension [mm] | 325 × 325 × 256 mm | |
| Maximum operating temperature [°C] | 70 | |
| Port speed | 100 Mb/s | |
| Minimum operating temperature [°C] | -40 | |
| Design | on the column | |
| Conformity | CE, FCC, IC | |
| Chipset | Atheros | |
| Consumption [W] | 6 | |
| Depth [mm] | 256 | |
| Width [mm] | 325 | |
| Transmission speed [Mbps] | 150 | |
| Standards | 802.11a/n | |
| Max. output power [dBm] | 26 | |
| Memory size [MB] | 64 | |
| Modulation | OFDM, QAM | |
| Default IP | 192.168.1.20 | |
| Bridge mode | Yes | |
| Wi-Fi standard | 802.11a/n | |
| Sensitivity [dBm] | -96 | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Default password | UBNT | |
| The default name | UBNT | |
| Indoor use | No | |
| Operating mode | AP, Client, WDS | |
| DHCP | Yes | |
| Processor | Atheros MIPS 74Kc, 560 MHz | |
| Gain [dBi] | 22 | |
| Output to ext. the antenna | No | |
| Horizontal beam angle [°] | 8 | |
| Vertical beam angle [°] | 8 | |
| Polarization | horizontal and vertical | |
