Ubiquiti PowerBeam M5 400 - AP client 5GHz antenna 25dBi MIMO2x2 airMAX 1x Gbit RJ45 PoE 24V
UBIQUITI | PBE-M5-400 | 810354022623
On stock 37 pcs.
Price of goods is 84.82 €.
Weight of goods is 2.1 Kg.
Actual in cart 0 pcs.

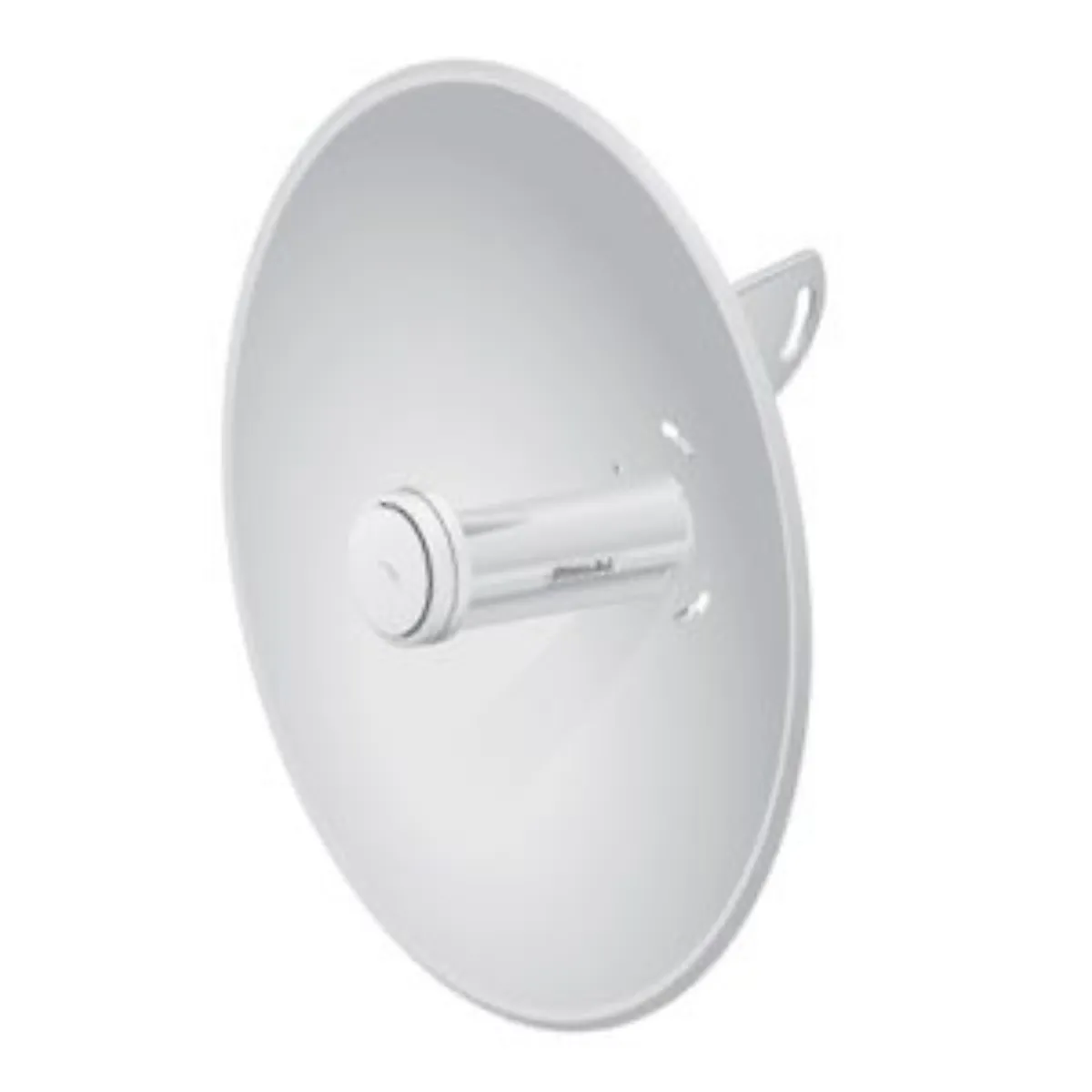

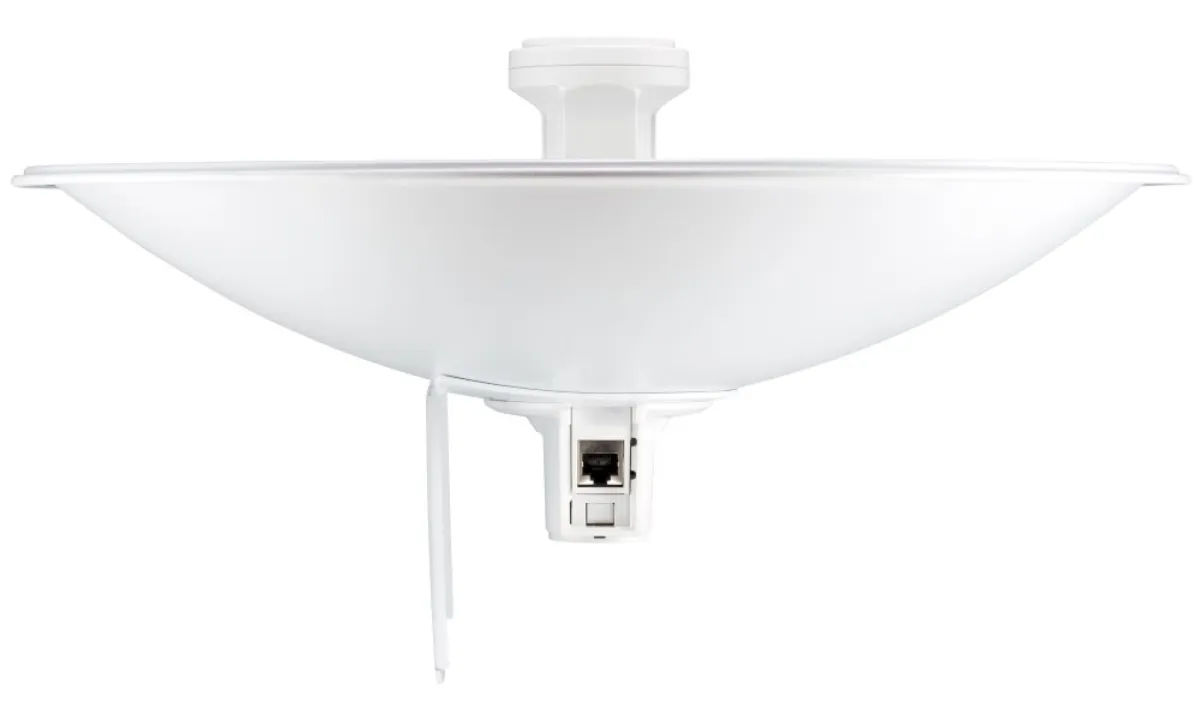

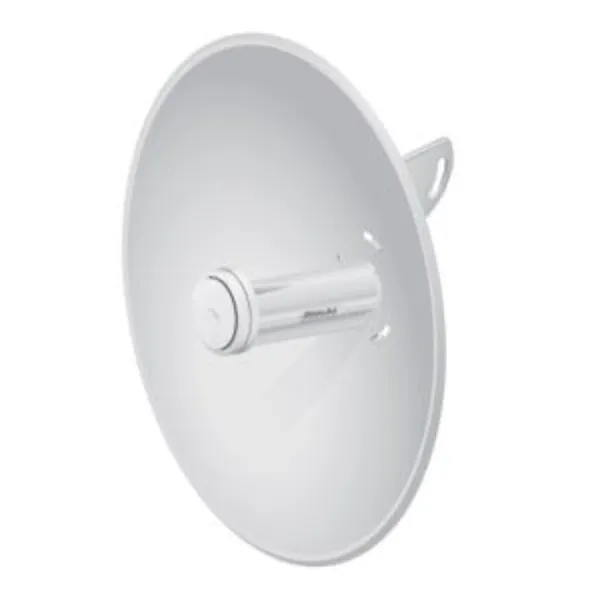

Ubiquiti PowerBeam M5 400
PowerBeam (PBE-M5-400) is a powerful complete outdoor unit including 25 dBi MIMO 2x2 antenna for 5 GHz band suitable for PtP connections. The unit enables communication at up to 150 Mbps.
The PowerBeam 400 uses a new antenna design for greater resistance to interference, has a better design for easy installation and is equipped with Gigabit Ethernet. The material of the unit uses GEOMET technology for high corrosion resistance. For high transfer rates, the unit uses the 802.11a/n standard and AirMAX (TDMA) technology to achieve low latencies.

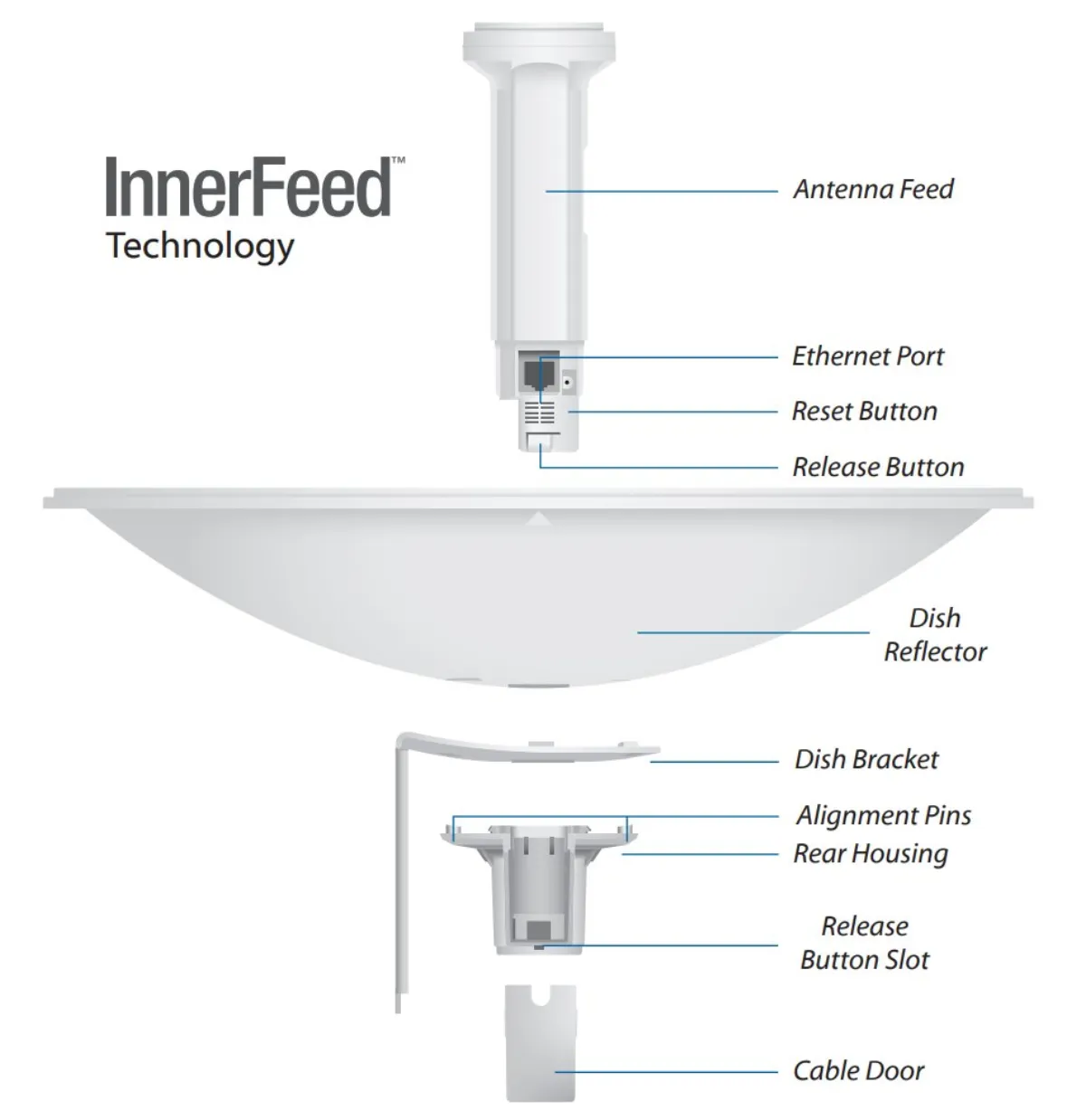

The antenna system consists of two antennas (MIMO) with horizontal and vertical polarization, which use the patented InnerFeed technology to achieve the best characteristics while maintaining a good price. A big advantage is ESD/EMP protection against overvoltage on both wireless and Ethernet parts up to up to 24 kV!
Web administration is very simple and clear. You can set e.g.:
- AP, client or WDS mode
- traffic shaping
- QoS
- transparent bridge or routing between WAN and LAN, without NAT or with NAT
- signal strength, which should correspond to a specific signaling LED
- output power up to 26 dBi
In bridge and WDS mode, the device transparently supports IPv6 transmissions.

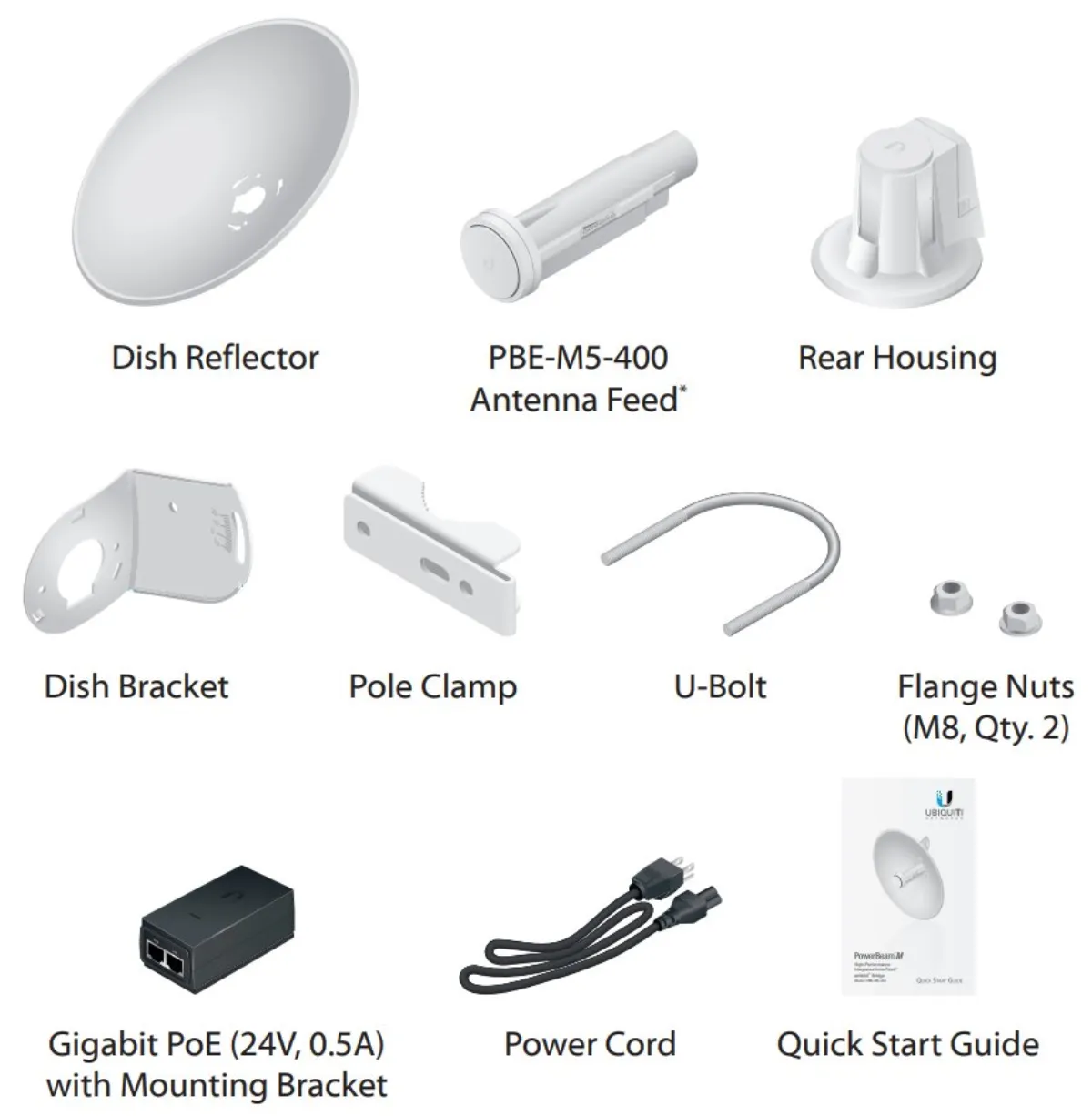

The package also includes a Gbit 24 V/0.5 A PoE power source.
Wi-Fi standard: 802.11a/n
CPU frequency: 560 MH
Number of cores: 1
RAM memory: 64 M
Ports: 1 x GbE RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna
- 400 mm
- 25 dBi
Dimensions: 420 x 420 x 275 mm
Weight: 1753 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 1,753 | |
| Dimension [mm] | 420 × 420 × 275 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 70 | |
| Default password | UBNT | |
| Processor | Atheros MIPS 74Kc, 560 MHz | |
| Interface | LAN, Wi-Fi | |
| Default IP | 192.168.1.20 | |
| Standards | 802.11a/n | |
| Repeater mode | No | |
| Chipset | Atheros | |
| Modulation | OFDM, QAM | |
| Width [mm] | 420 | |
| Operating mode | AP, Client, WDS | |
| Vertical beam angle [°] | 8 | |
| Depth [mm] | 275 | |
| DHCP | Yes | |
| Conformity | CE, FCC, IC | |
| Memory size [MB] | 64 | |
| Horizontal beam angle [°] | 8 | |
| Polarization | horizontal and vertical | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Sensitivity [dBm] | -96 | |
| Max. output power [dBm] | 26 | |
| The default name | UBNT | |
| Gigabit LAN | Yes | |
| Output to ext. the antenna | No | |
| Transmission speed [Mbps] | 150 | |
| Gain [dBi] | 25 | |
| Port speed | 1 Gb/s | |
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Design | on the column | |
