Ubiquiti Rocket 5AC Prism Gen2 - AP 5GHz airMAX AC airPrism GPS 3x RSMA 1x Gbit RJ45 PoE 24V
UBIQUITI | RP-5AC-Gen2 | 817882020268
On stock 33 pcs.
Price of goods is 221.87 €.
Weight of goods is 1.071 Kg.
Actual in cart 0 pcs.

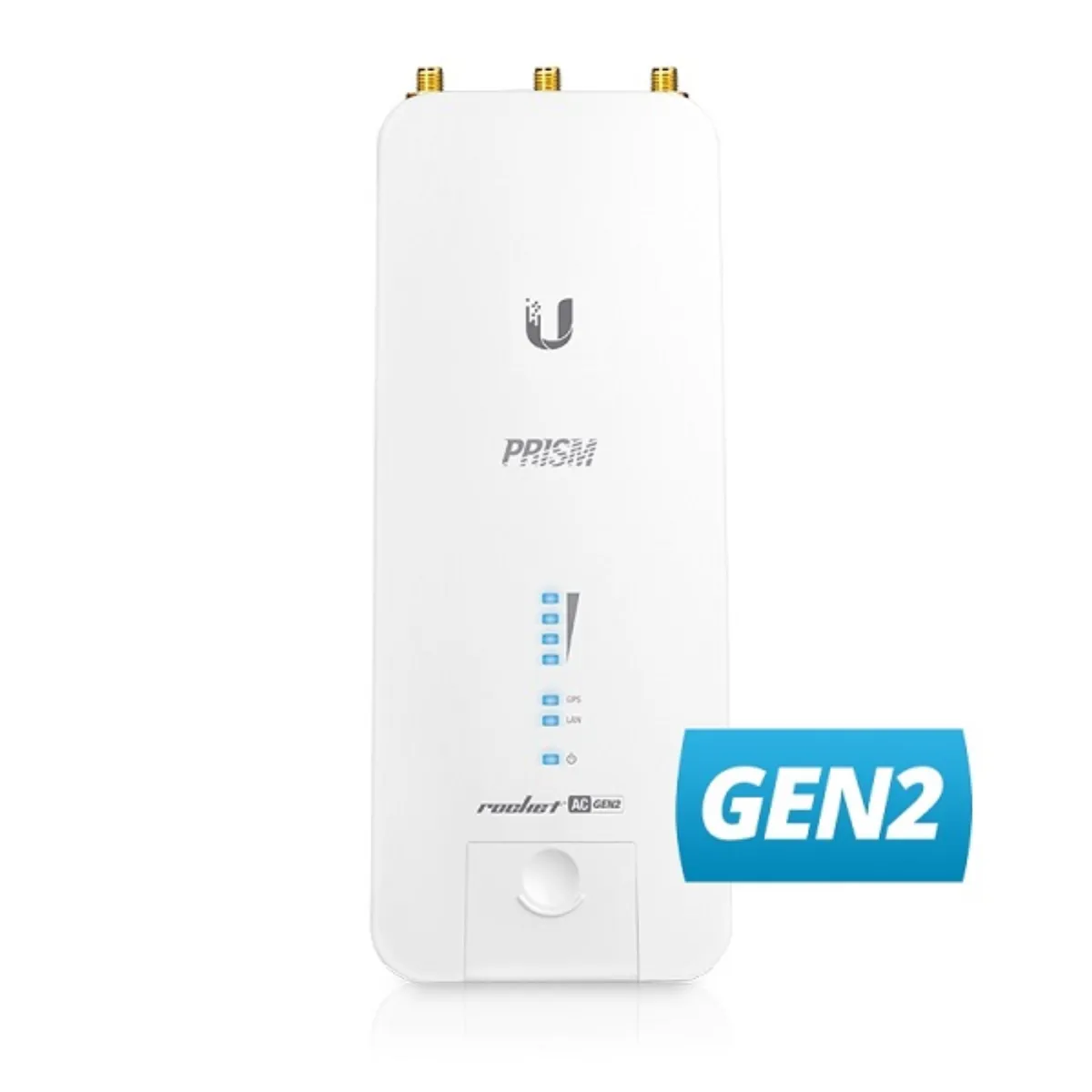

Ubiquiti Rocket Prism 5AC Gen2
Rocket (RP-5AC-Gen2) is a powerful outdoor unit of the second generation for the 5 GHz band intended as an access point for client devices or for backbone PtP links. The unit supports a throughput of up to 500 Mbps.

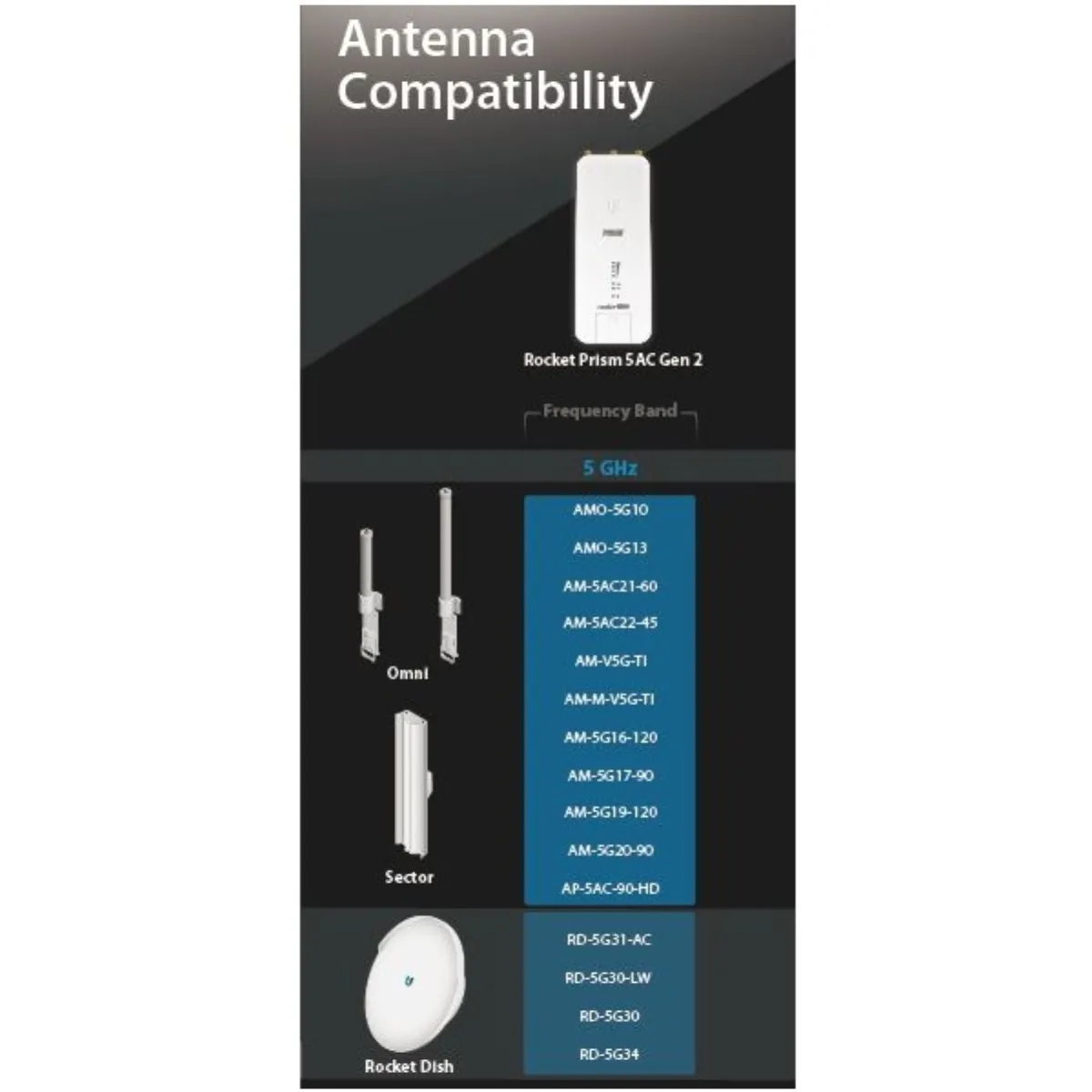

The output of the Rocket 5AC-Prism is 2 RSMA connectors, which are used to connect an omnidirectional, sector or parabolic antenna 2x2 MIMO. The third RSMA connector is intended for connecting a GPS module for GPS synchronization. Special cast aluminum construction improves electromagnetic shielding of the unit.
Thanks to the patented Ubiquiti airPrism® technology, the Rocket 5AC achieves maximum throughput even in noisy areas. Revolutionary filtering of signals and isolation of unwanted channels leads to an increase in connection capacity. The advantage is a high transmission speed thanks to the 802.11ac standard and modulation up to 256QAM
The Rocket Prism 5AC-Gen2 has improved surge protection that protects the device against electrostatic discharge.
The Rocket Prism 5AC-Gen2 is from the second generation of airMAX AC devices that have a dedicated radio for wireless access to the unit and the ability to set it up in the UNMS mobile app. The UNMS application also helps with the orientation of the connection and will significantly speed up its installation.
The AirOS system is intuitive and also displays a constellation diagram and SNR progress in real time.
Rocket Prism 5AC-Gen2 supports
- AP mode, client
- VLAN, QoS
- Ping Watchdog, Web Server, SNMP, SSH Server, Telnet
- DHCP, NAT, Bridging, Routing
- set the output power up to 28 dBm (depending on the country of use)

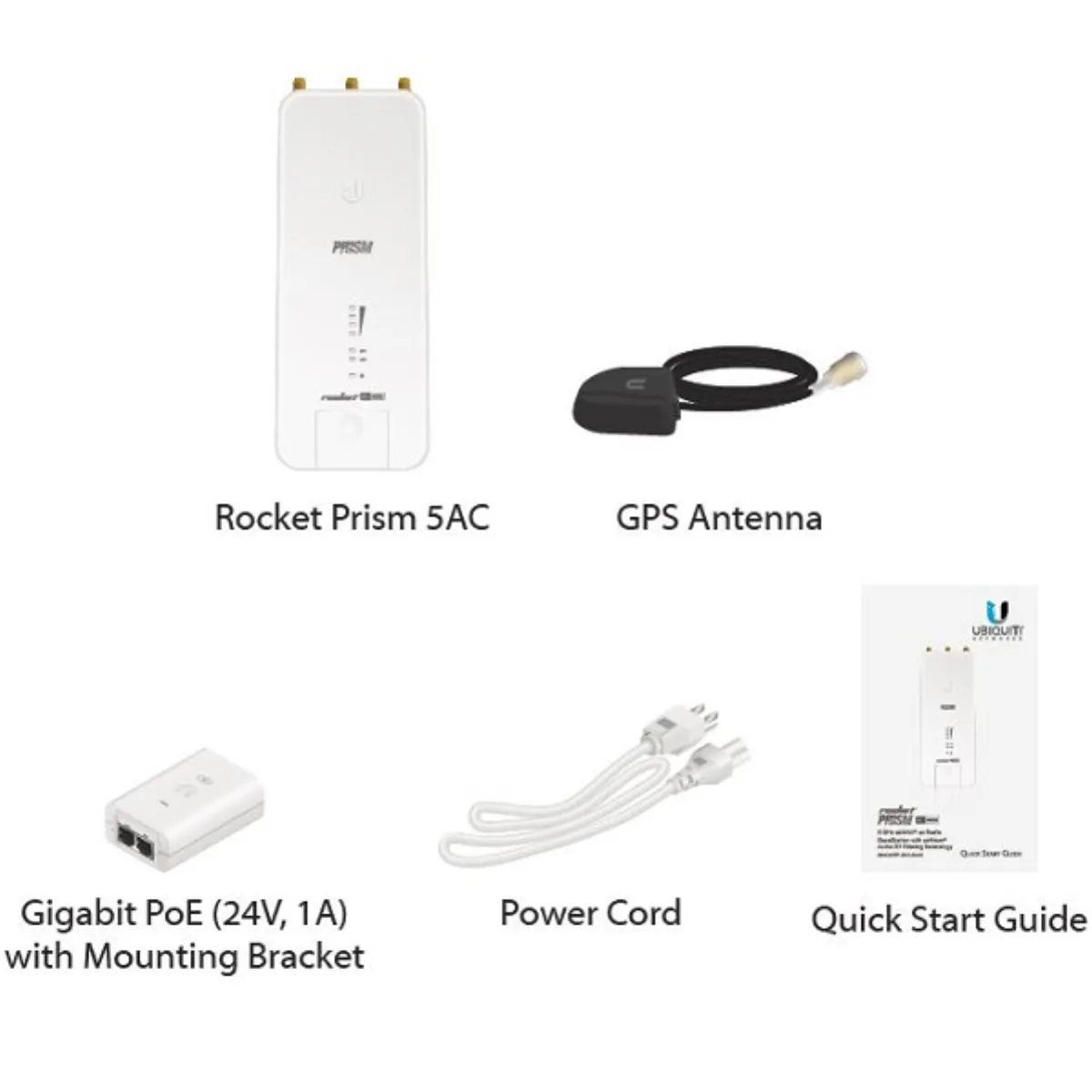

The package also includes a 24V/1A gigabit POE adapter
GPS synchronization is supported in firmware 8.3.0 and higher.
Data transfer speed: 500 Mbps
Ports
- 3 x RSMA antenna connector
- 1 x RJ-45
Frequency: 2412-2472 MHz / 5150-5875 MHz,
Security: WPA2 AES
PoE support: yes
Dimensions: 88 x 40 x 230 mm
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,4 | |
| Color | white | |
| Dimension [mm] | 88 × 40 × 230 mm | |
| Maximum operating temperature [°C] | 80 | |
| Port speed | 1 Gb/s | |
| Outdoor use | Yes | |
| Conformity | CE, FCC, IC | |
| Consumption [W] | 9,5 | |
| Depth [mm] | 40 | |
| Height [mm] | 230 | |
| Width [mm] | 88 | |
| Transmission speed [Mbps] | 500 | |
| Number of connectable antennas | 2 | |
| Max. output power [dBm] | 28 | |
| Memory size [MB] | 128 | |
| Modulation | BPSK, QPSK, 16QAM, 64QAM, 256QAM | |
| Default IP | 192.168.1.20 | |
| Encryption | WPA2-AES | |
| Power supply [V] | 24 | |
| Wi-Fi standard | airMAX AC | |
| Sensitivity [dBm] | -96 | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| The default name | UBNT | |
| Indoor use | No | |
| Operating mode | AP, Client | |
| Processor | Atheros MIPS 74Kc | |
| NAND [MB] | 16 | |
| Output to ext. the antenna | Yes | |
