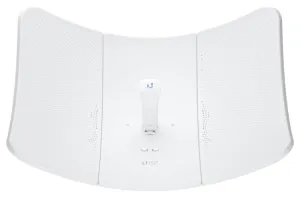

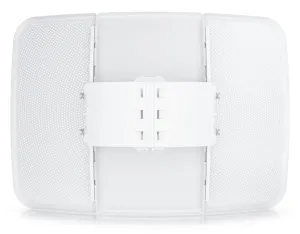

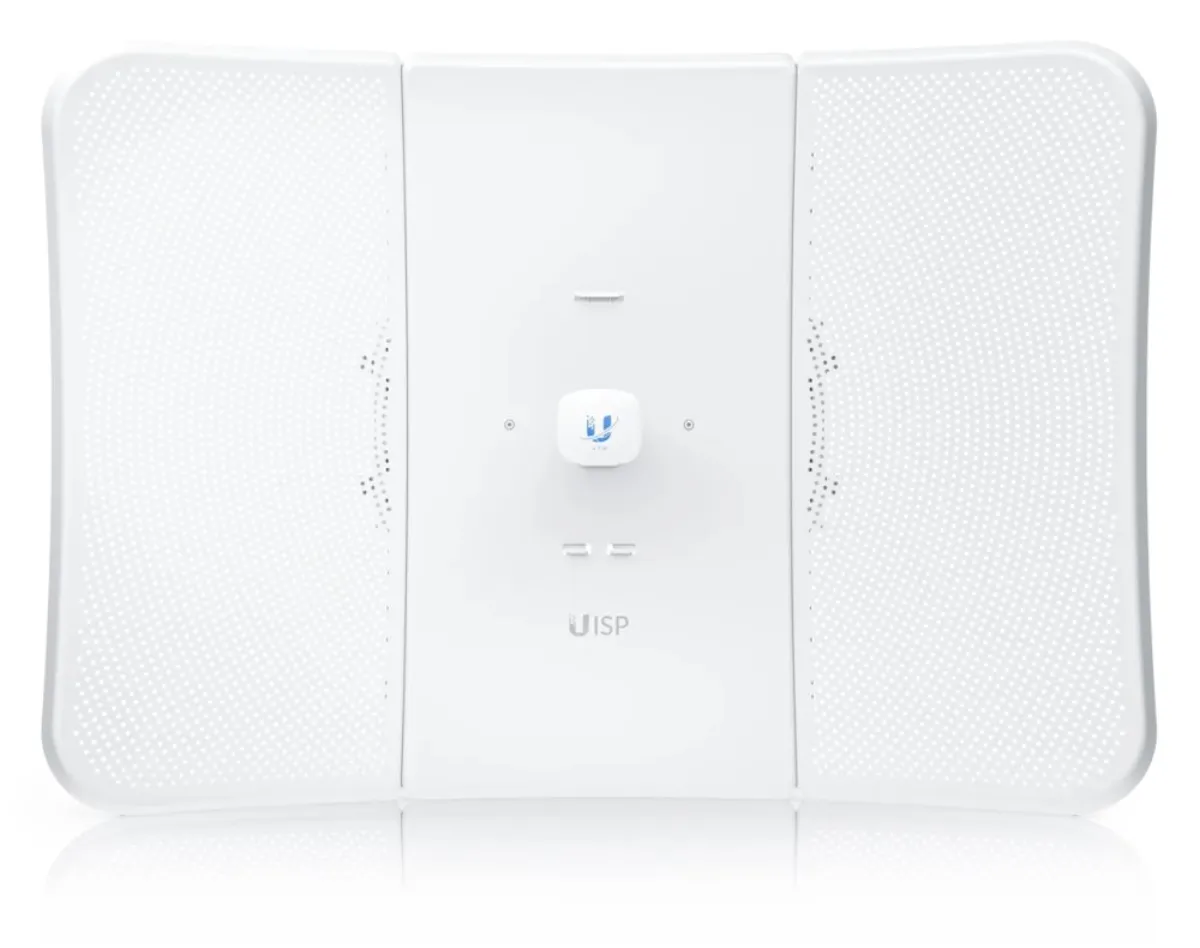

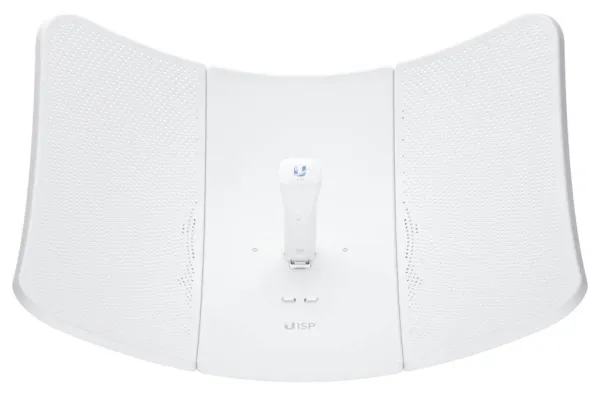

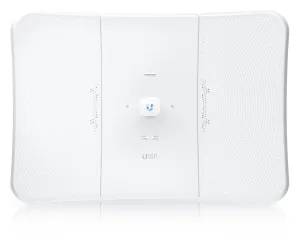

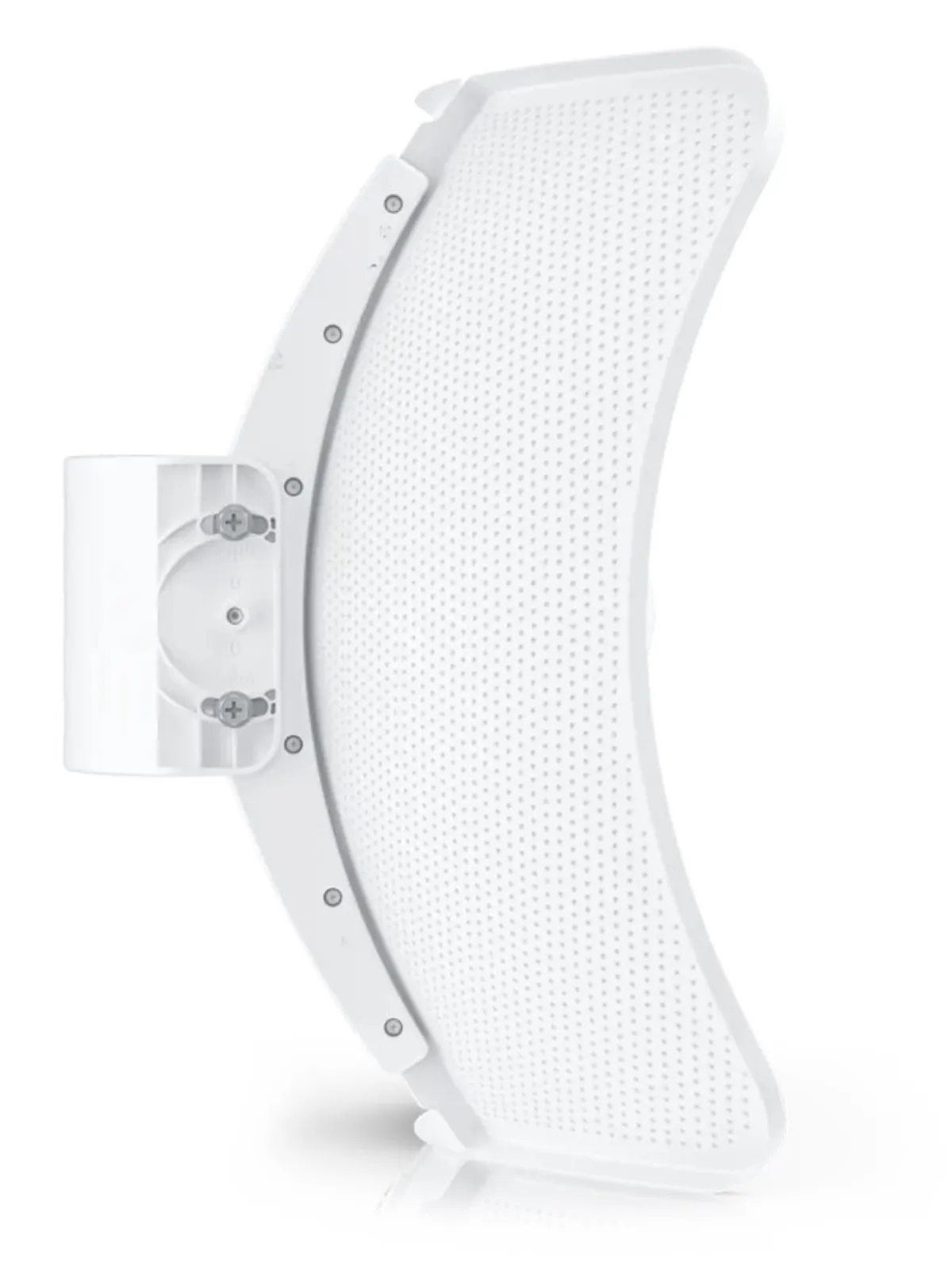

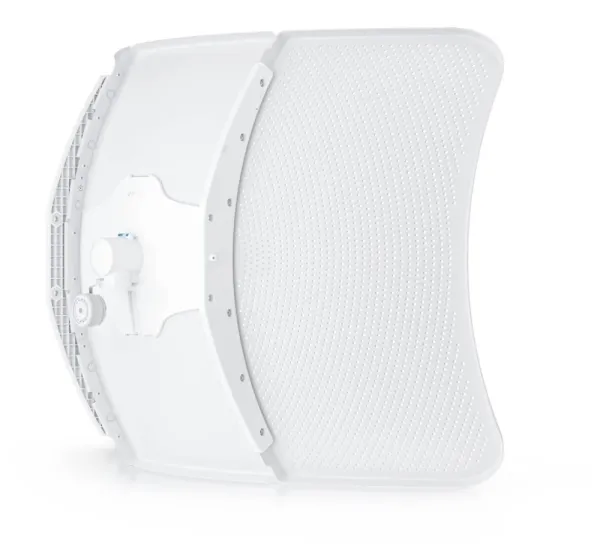

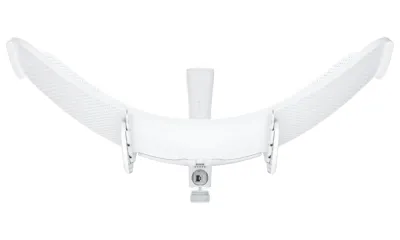

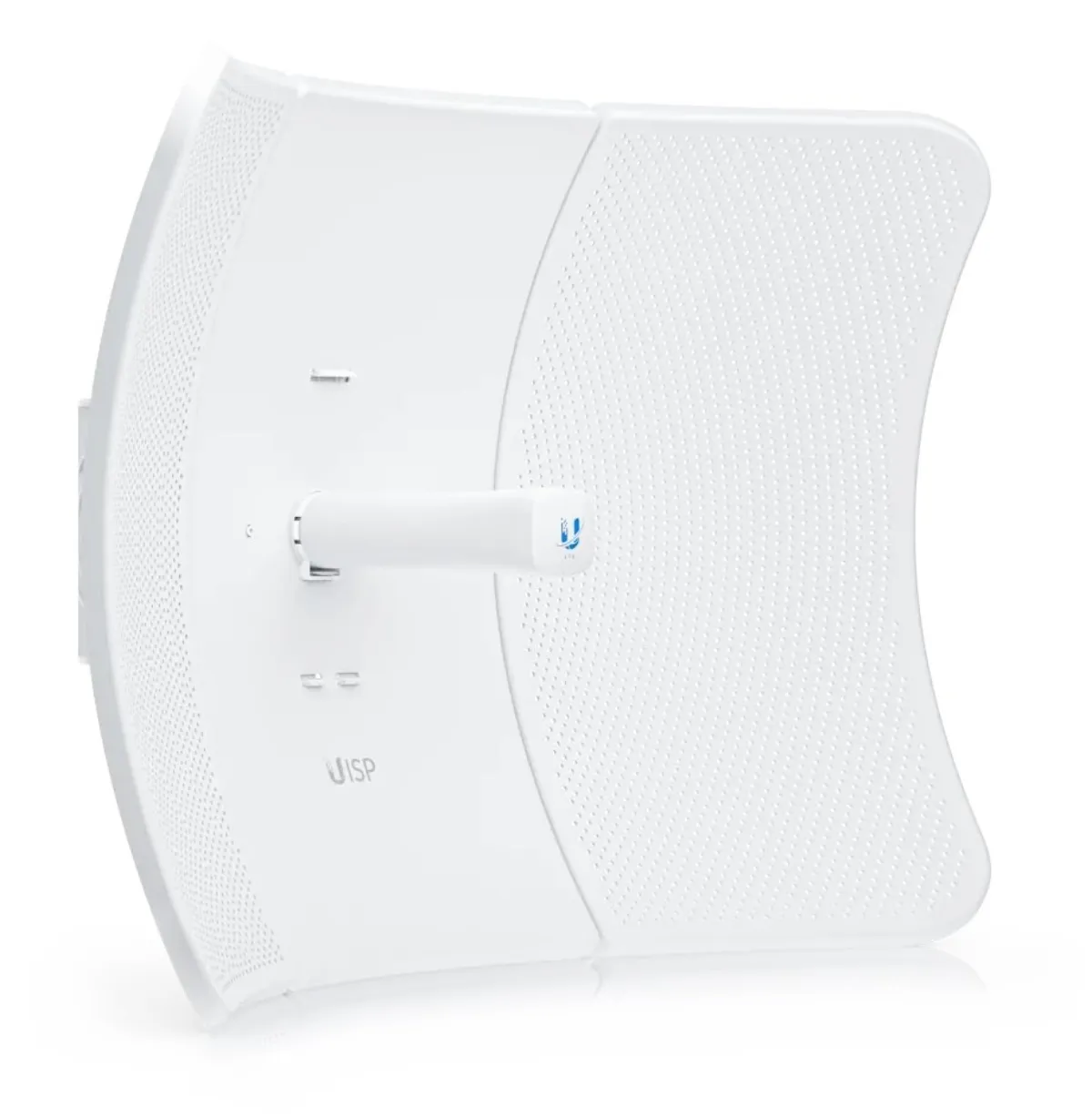

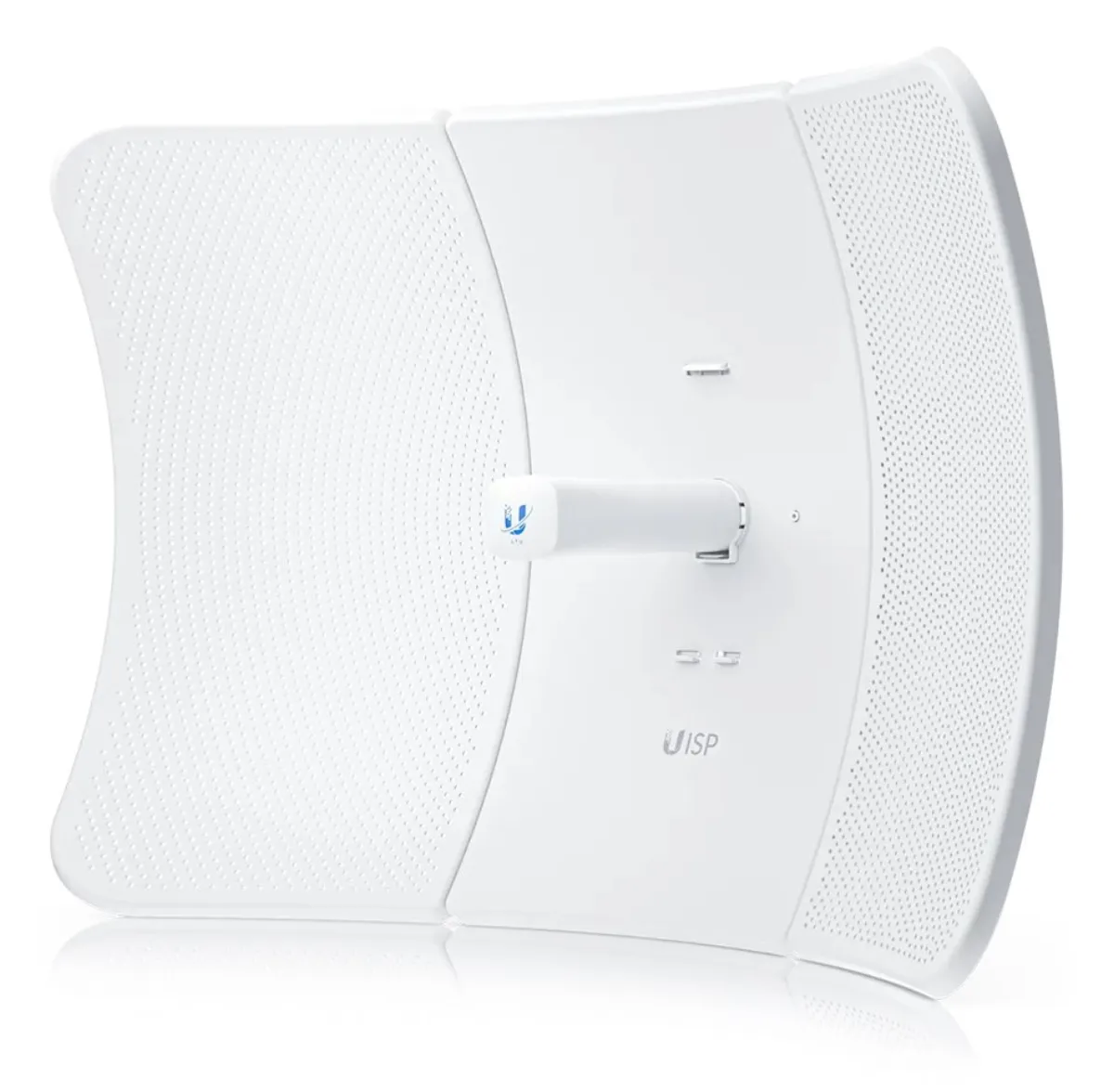

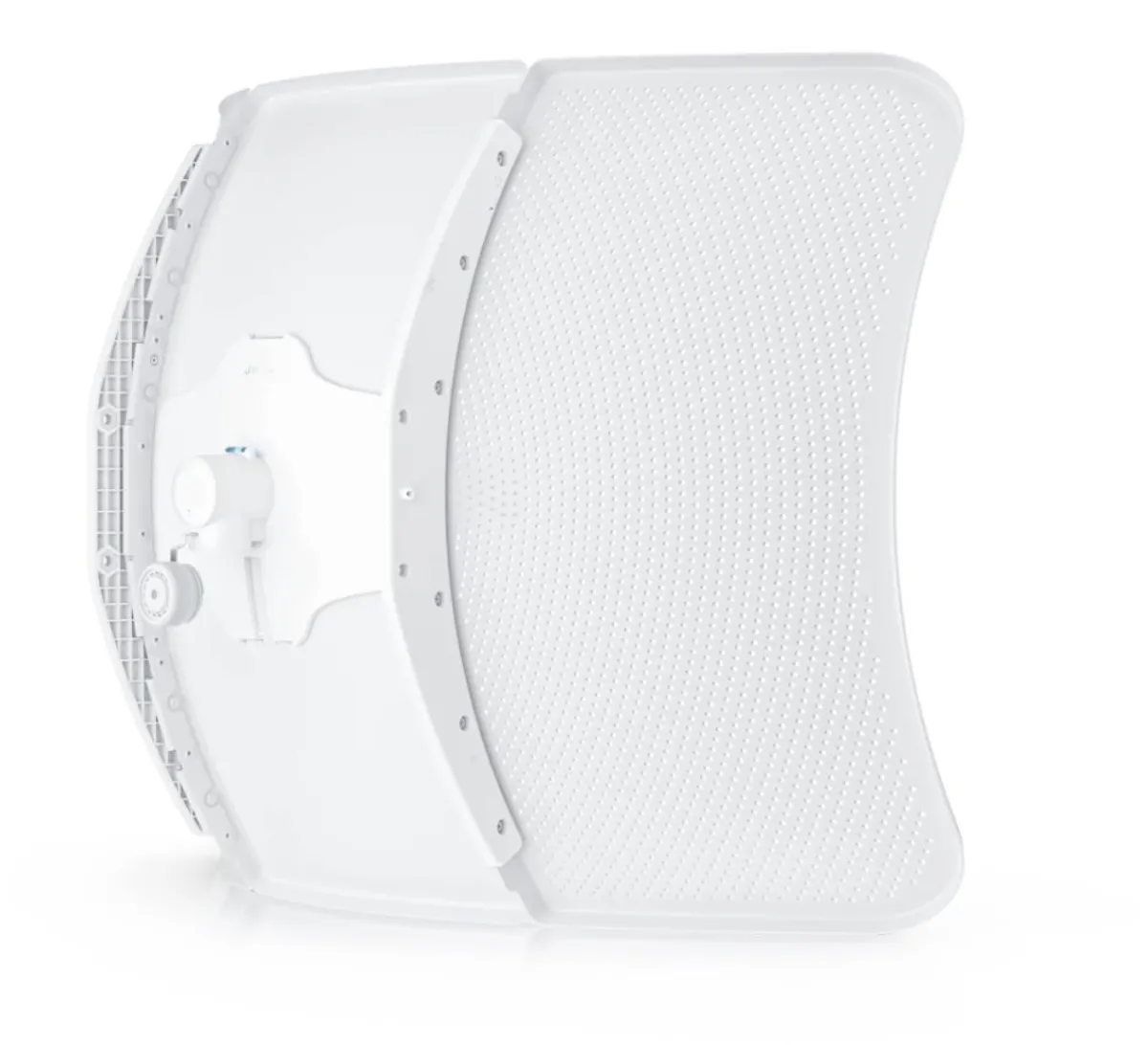

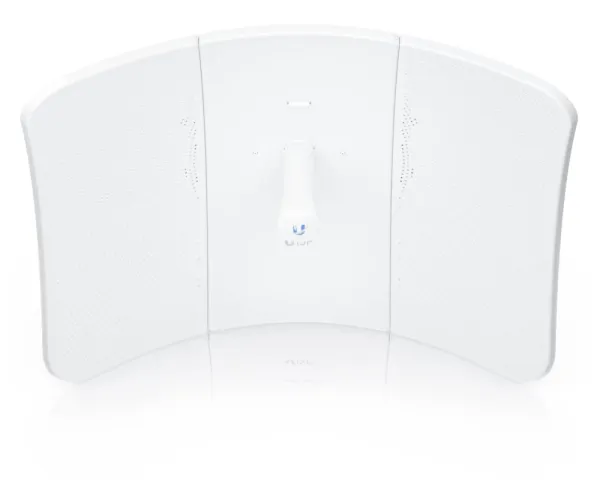

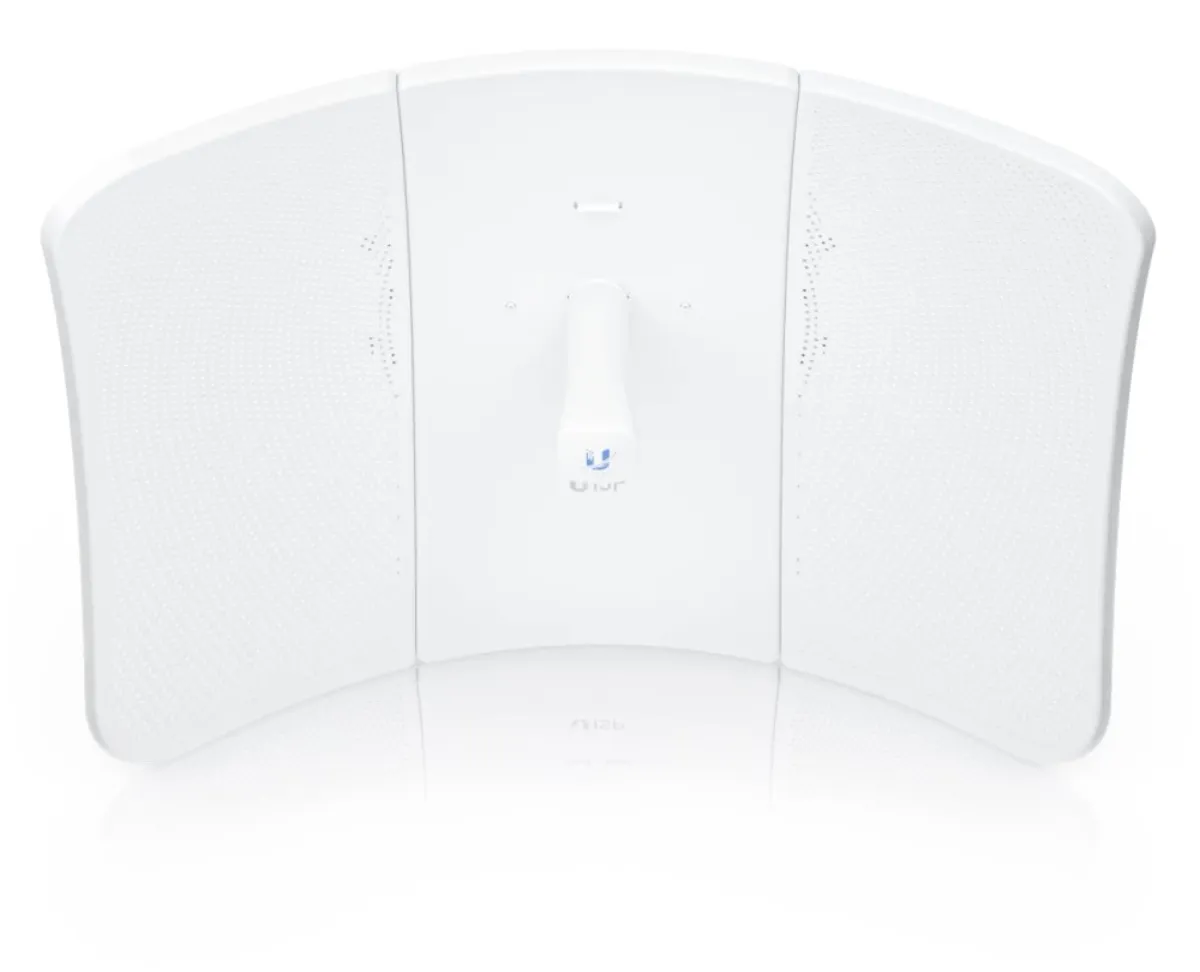

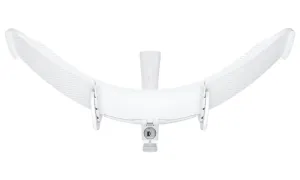

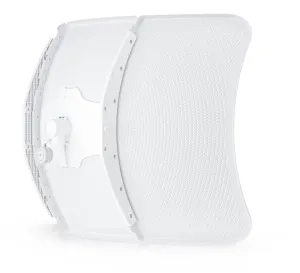

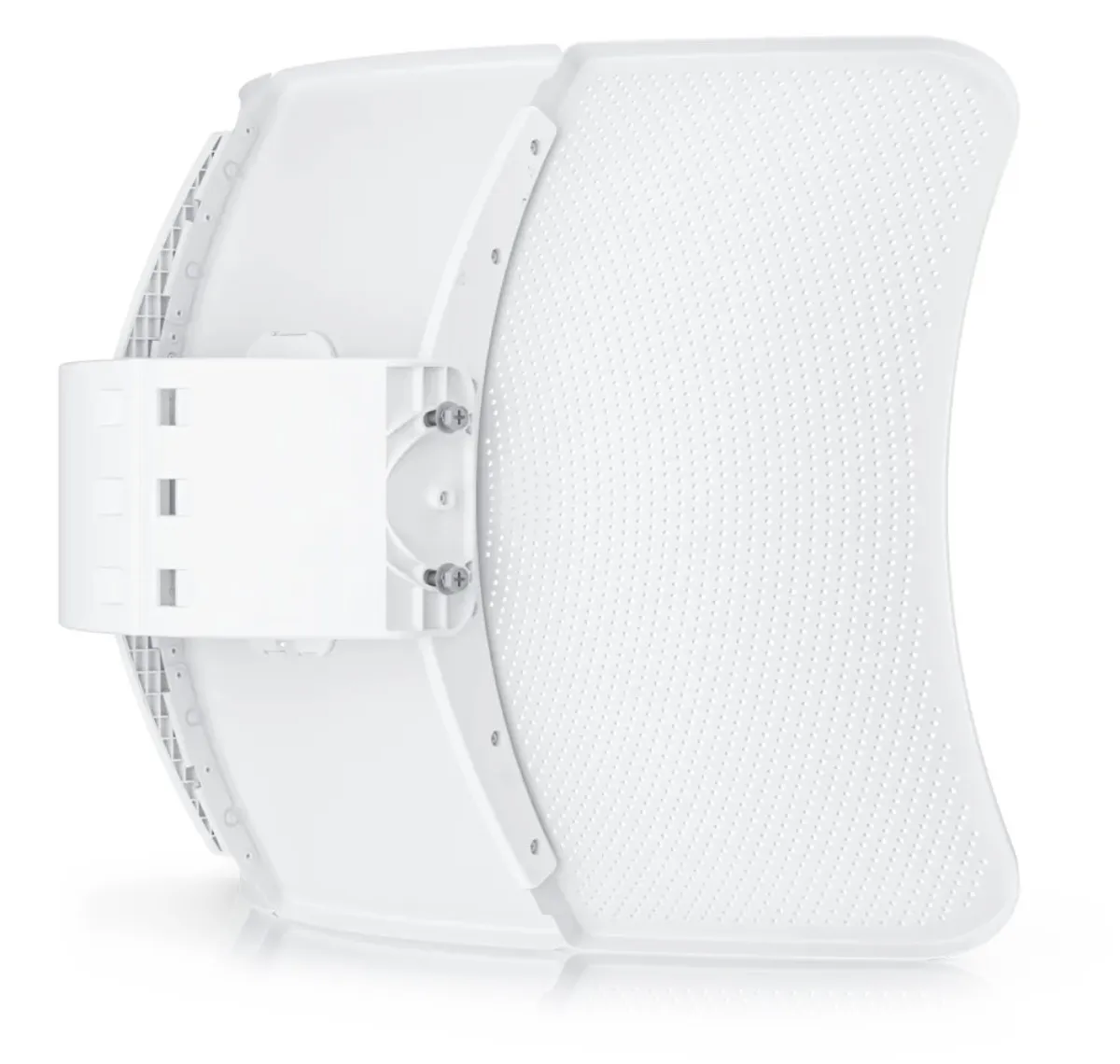

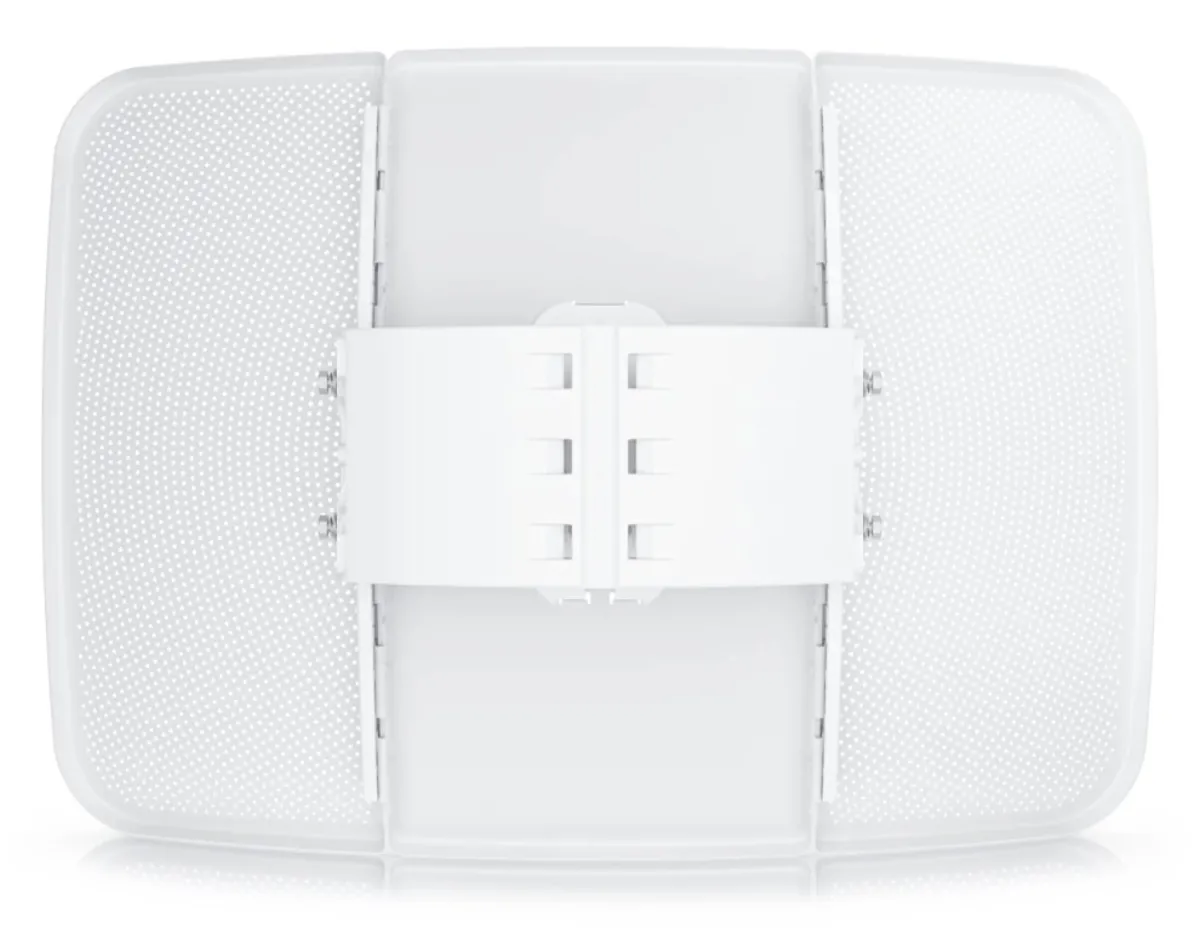

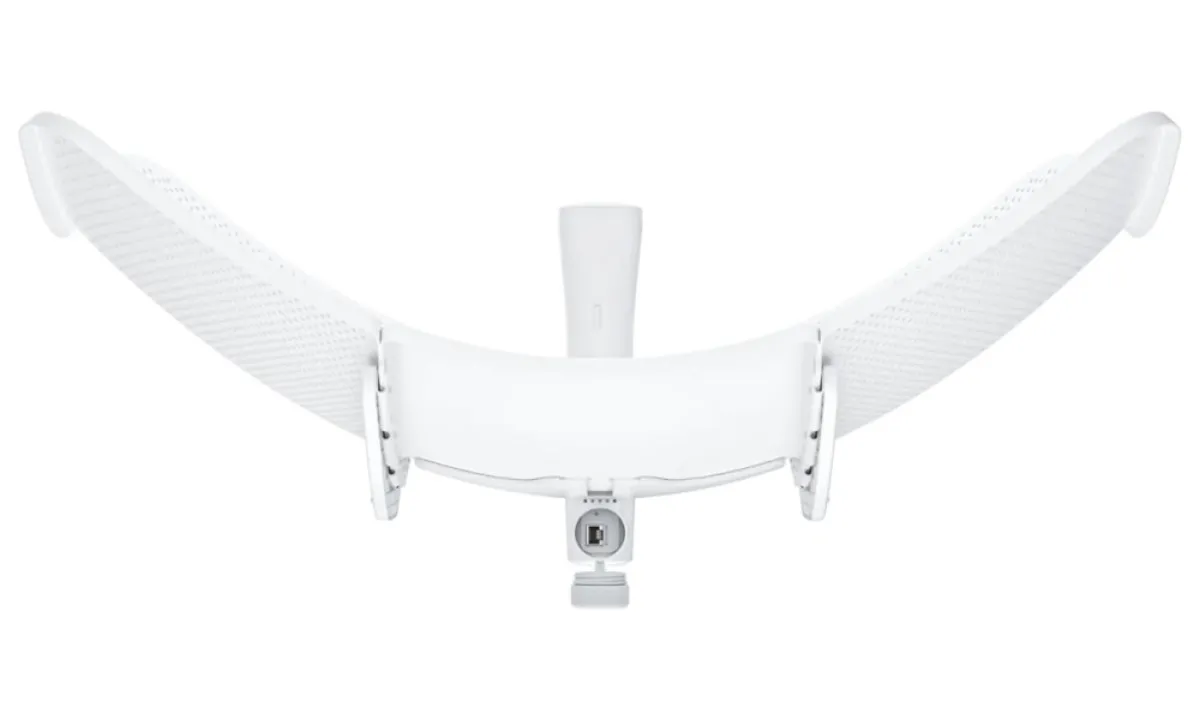

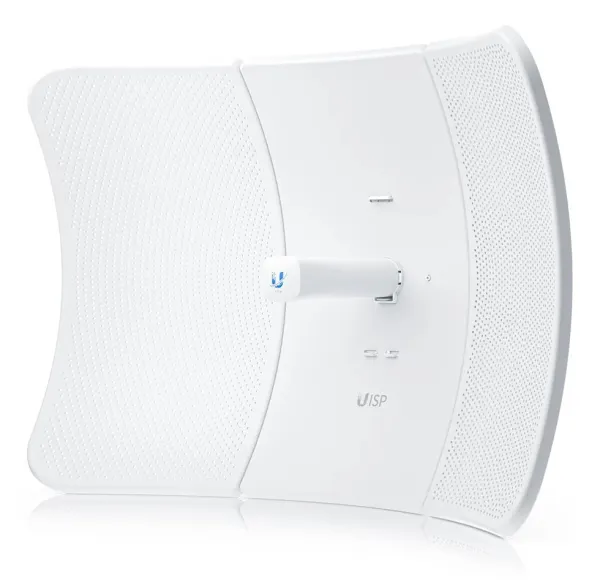

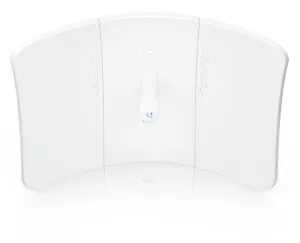

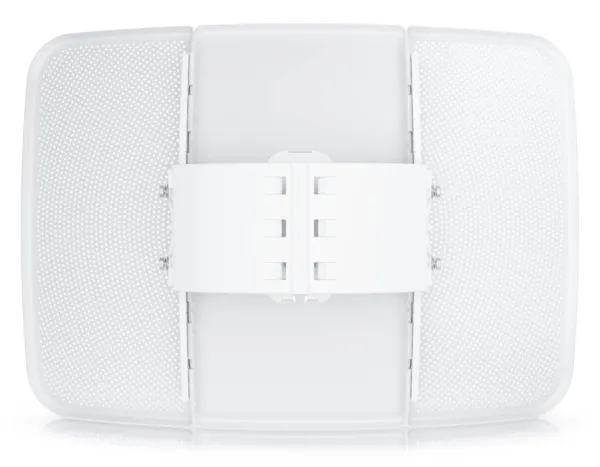

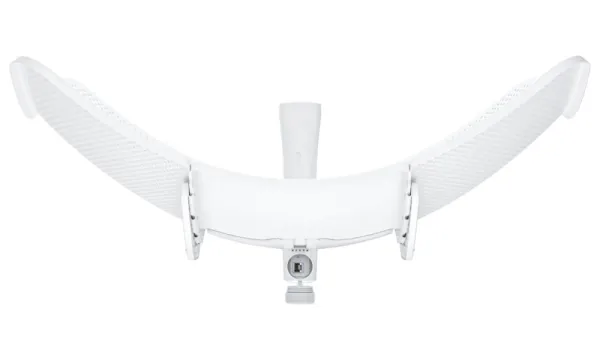

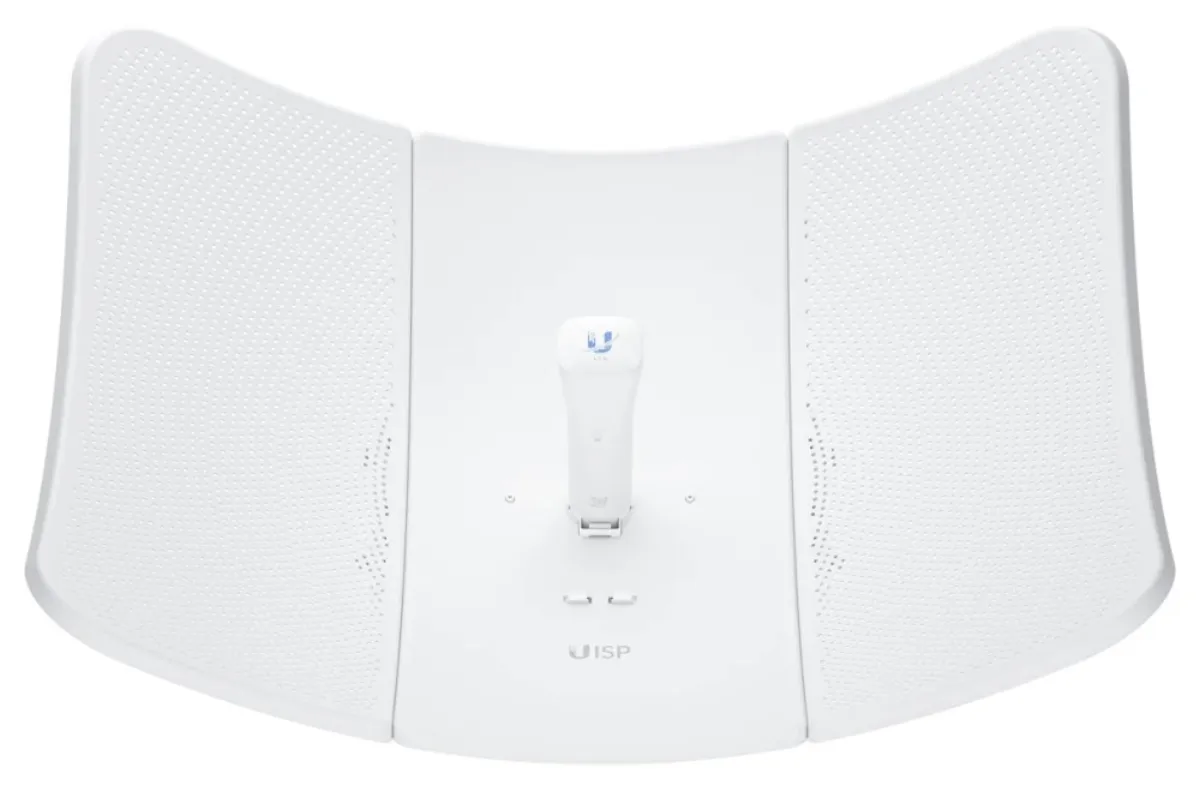

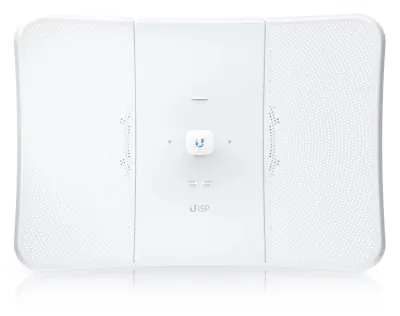

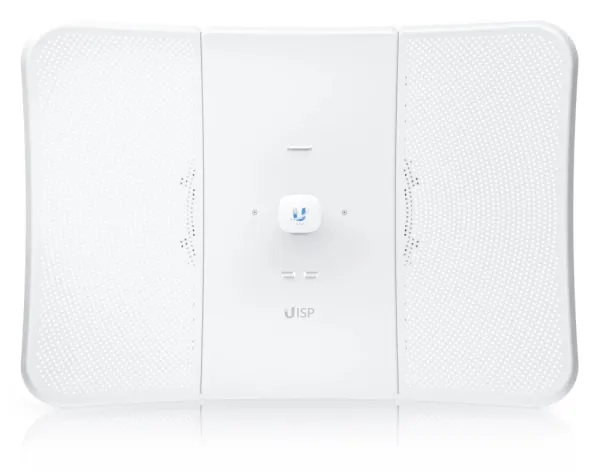

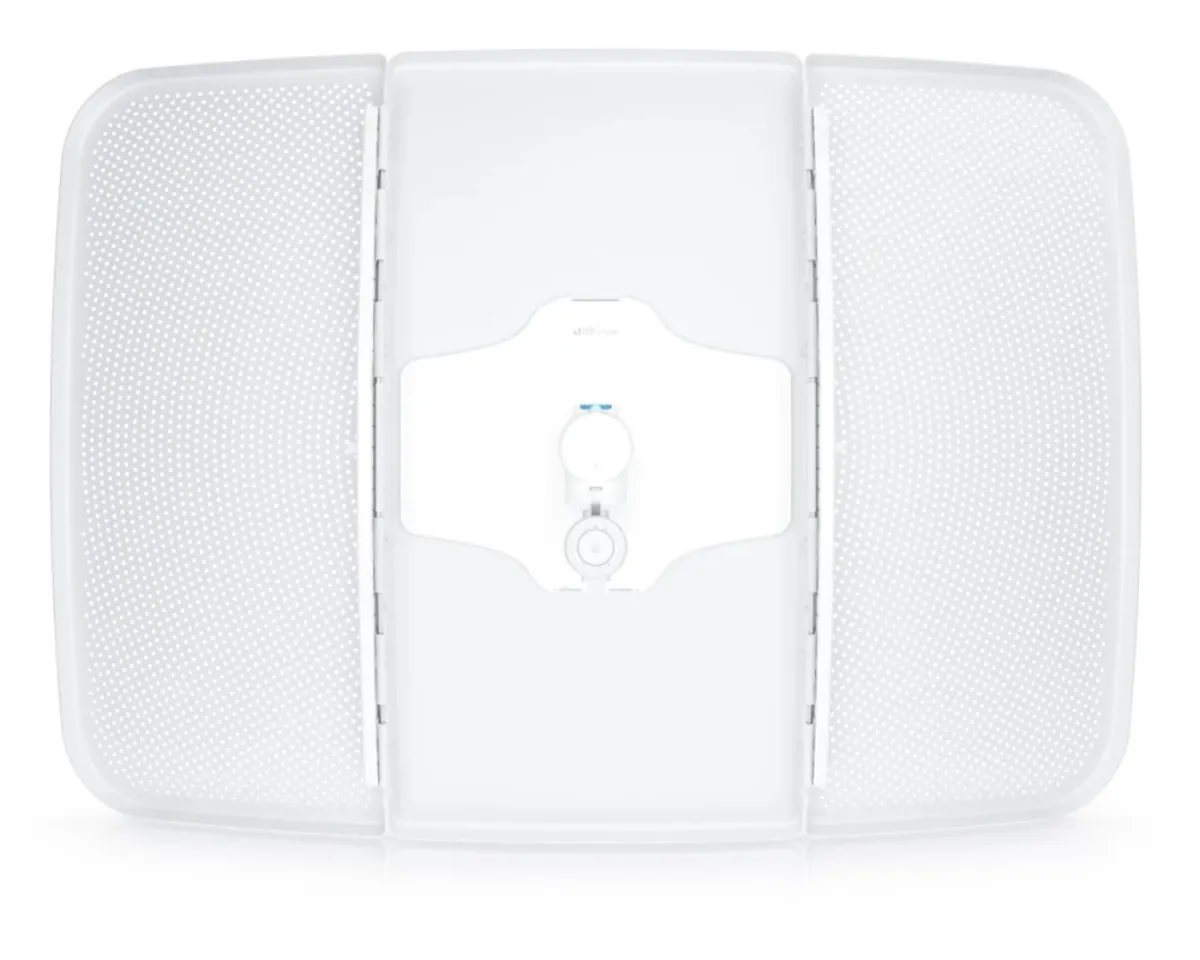

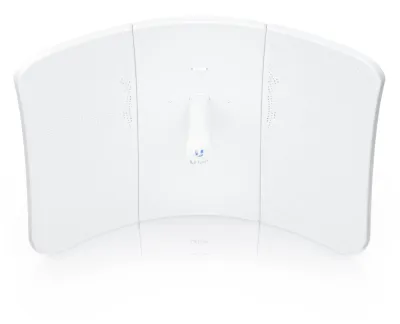

Ubiquiti UISP LTU XR
LTU Extremely Long Range is a high-performance 5 GHz outdoor unit designed for PtMP connections (Point-to-multipoint). It is compatible with the client station (Base Station) Rocket LTU. Range up to 35 km, gain 29 dBi and throughput up to 550 Mbps.
Proprietary LTU technology is not limited by Wi-Fi 802.11\ standards. This is Ubiquiti's own chipset, thanks to which the LTU unit achieves high TCP/IP throughput with support for 1024 QAM modulation and flexible bandwidth (10/20/30/40/50 MHz). The LTU XR also allows independent configuration of transmit and receive channel frequencies anywhere within its radio band to avoid local interference and ensure superior performance for clients. In addition, the unit is equipped with a Bluetooth management interface, so it can be easily set up and configured using the UISP Mobile app.
Features
- Proprietary Ubiquiti LTU Core processor
- PtMP CPE
- 1024 QAM modulation
- Channel width flexibility (10/20/30/40/50 MHz)
- Central configuration management from the access point
- Support router mode
- Quick setup via Bluetooth using the UISP Mobile app
- Integrated GPS
- Connection planning support through ISP Design Center
- Range up to 35 km
- For Rocket LTU outdoor unit (BaseStation radio).
The LTU XR can use different frequencies for TX and RX, thus avoiding ambient interference.

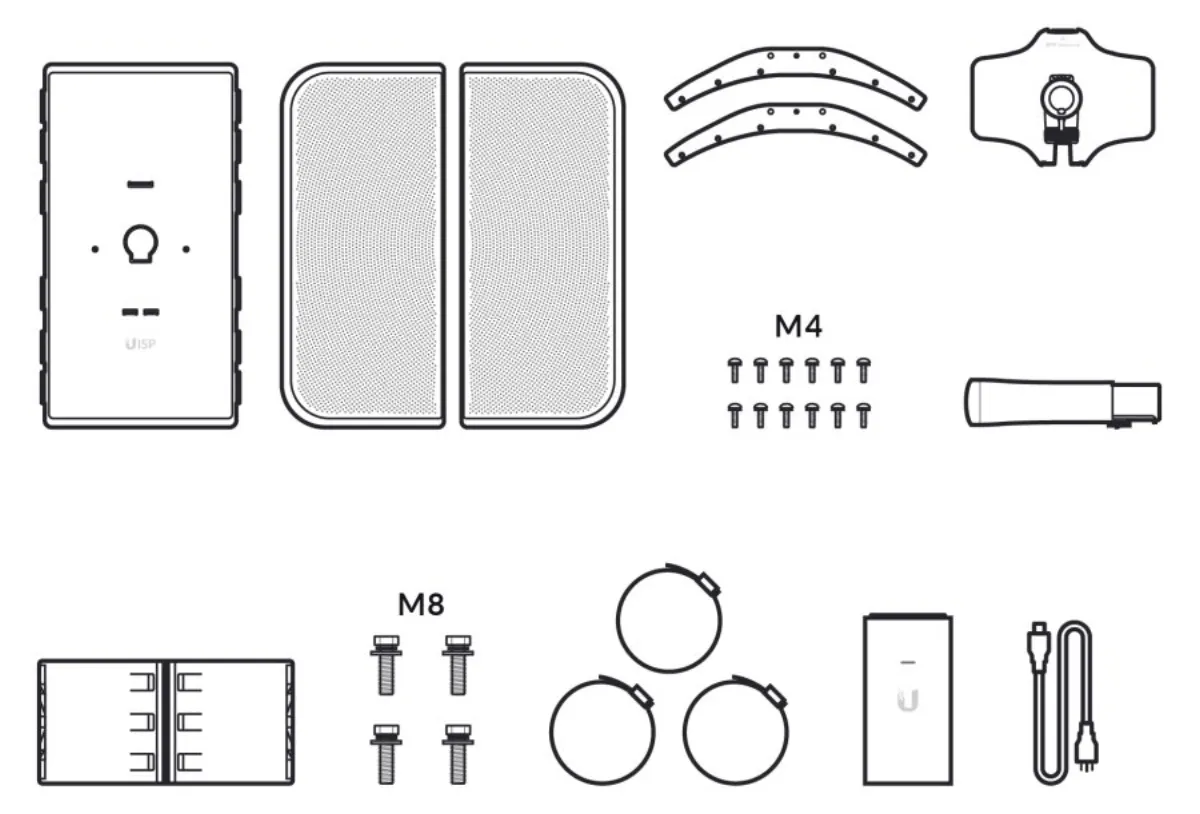

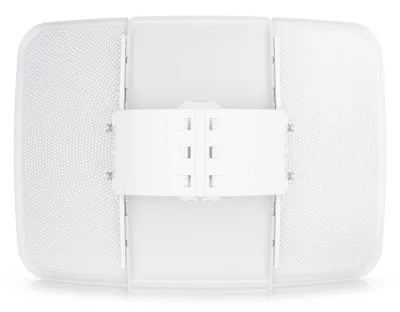

The package includes a Gigabit PoE injector 24 V (0.5 A) and a pole holder.
Frequency: 5 GHz (5.15 to 5.95 GHz
Throughput: 550 Mbps
Interface
- 1x GbE RJ-45
- LTU
Gain: 29 dBi
Radiation angle
- Horizontal polarization: 5.5° (3 dB) / 7.5° (6 dB)
- Vertical polarization: 5.5° (3 dB) / 7.5° (6 dB)
- Elevation: 5.5° (3 dB) / 7.5° (6 dB) Range: 35 km
PoE
- yes
- passive (24 V)
Weather resistance: IPX6
Weight: 3.2 kg
Dimensions: 747 x 525 x 347 mm
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 3,2 | |
| Dimension [mm] | 747 × 525 × 347 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 55 | |
| Default password | UBNT | |
| Router mode | Yes | |
| LED indication | Yes | |
| Interface | LAN, LTU | |
| Default IP | 192.168.1.20 | |
| Modulation | 1024 QAM | |
| Operating mode | PtMP (Point-to-Multipoint) CPE | |
| Vertical beam angle [°] | 7,5 | |
| Conformity | CE, FCC, IC | |
| Power supply [V] | 24 | |
| Degree of coverage | IPX6 | |
| Horizontal beam angle [°] | 7,5 | |
| Encryption | WPA2-PSK (AES) | |
| Polarization | H / V | |
| Wi-Fi frequency | 5150 - 5950 MHz | |
| Max. output power [dBm] | 25 | |
| The default name | UBNT | |
| Consumption [W] | 8,5 | |
| Transmission speed [Mbps] | 900 | |
| Gain [dBi] | 29 | |
| Port speed | 1 Gb/s | |
| Design | on the column | |
