Ubiquiti UISP Switch Plus - 4x 2.5GbE 4x SFP+ fanless 4x PoE Out 27V (PoE budget 160 W)
UBIQUITI | UISP-S-Plus | 8592457259756
On stock 2 pcs.
Price of goods is 414.11 €.
Weight of goods is 4 Kg.
Actual in cart 0 pcs.

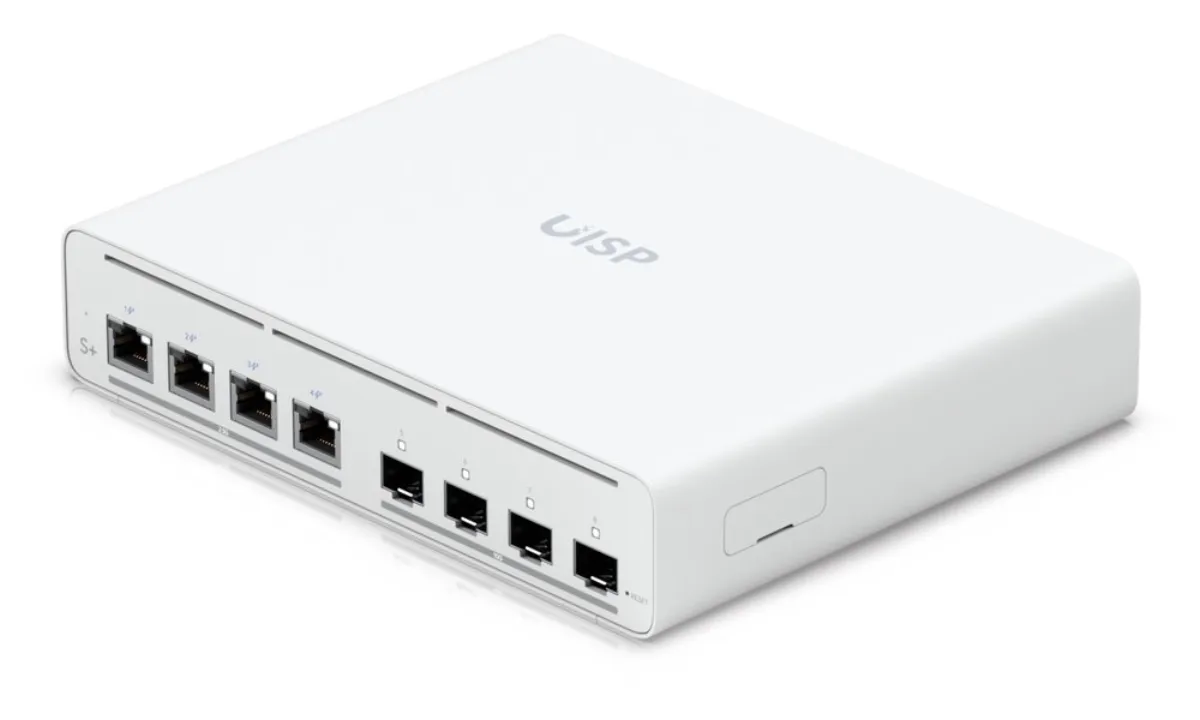

Ubiquiti UISP Switch Plus
8-port L2 PoE switch designed primarily for ISPs. The switch has a capacity of 100 Gbps, a routing speed of 74.4 Mpps and a total unblocked throughput of 50 Gbps. The total PoE power supply capacity of the switch is 160 W. The Switch can also be fixed to the wall, thanks to the included bracket.

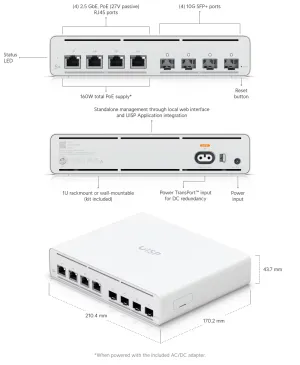

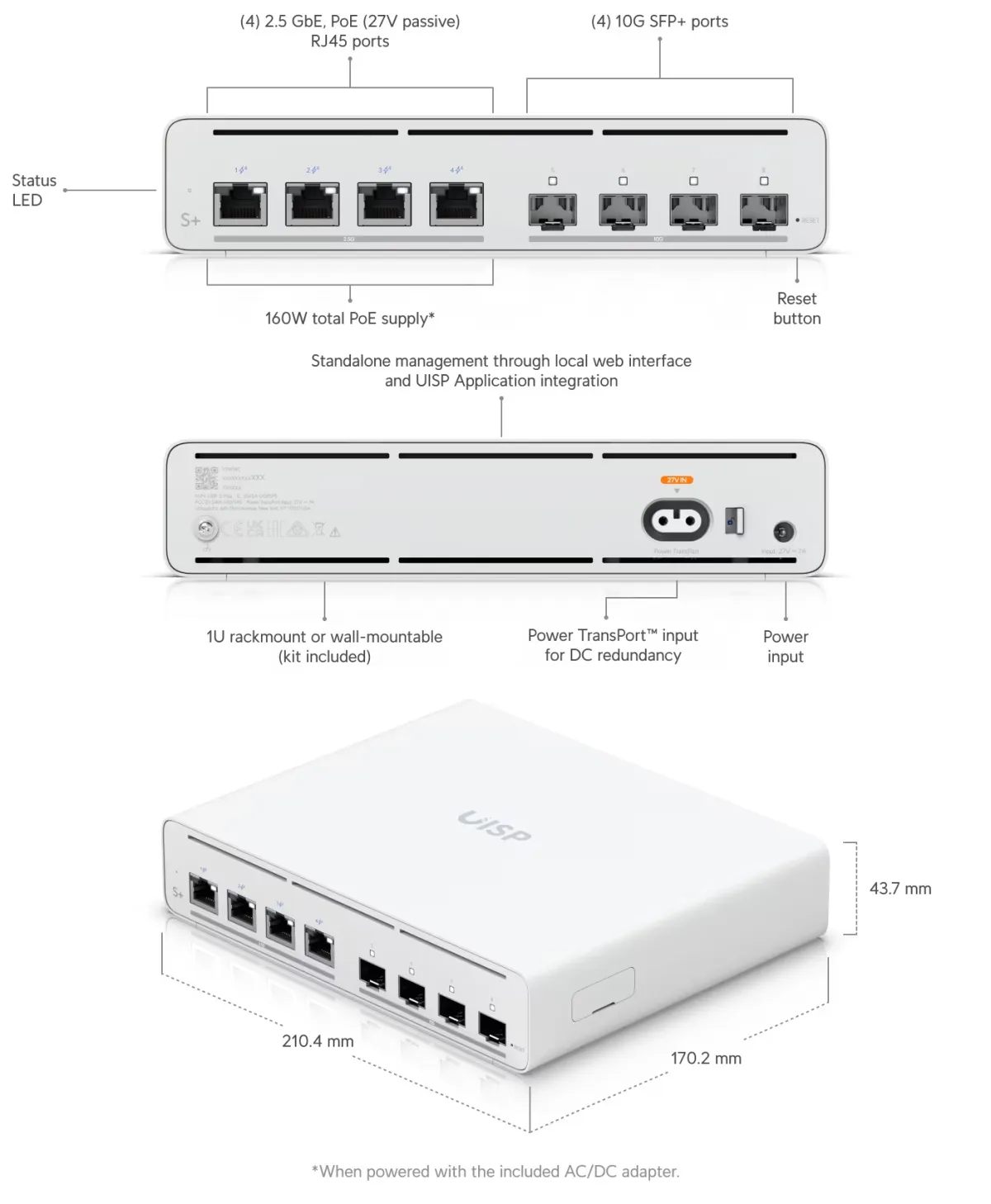

- 4x 2.5GbE RJ-45 port, passive PoE output 27 V
- 4x 10G SFP+ slot
- 160 W (27 V) total PoE capacity*, 20 W/port (2 pairs) / 40 W/port (4 pairs)
- Fanless - cooling without a fan for silent operation
- Port isolation, rate limiting and DHCP snooping

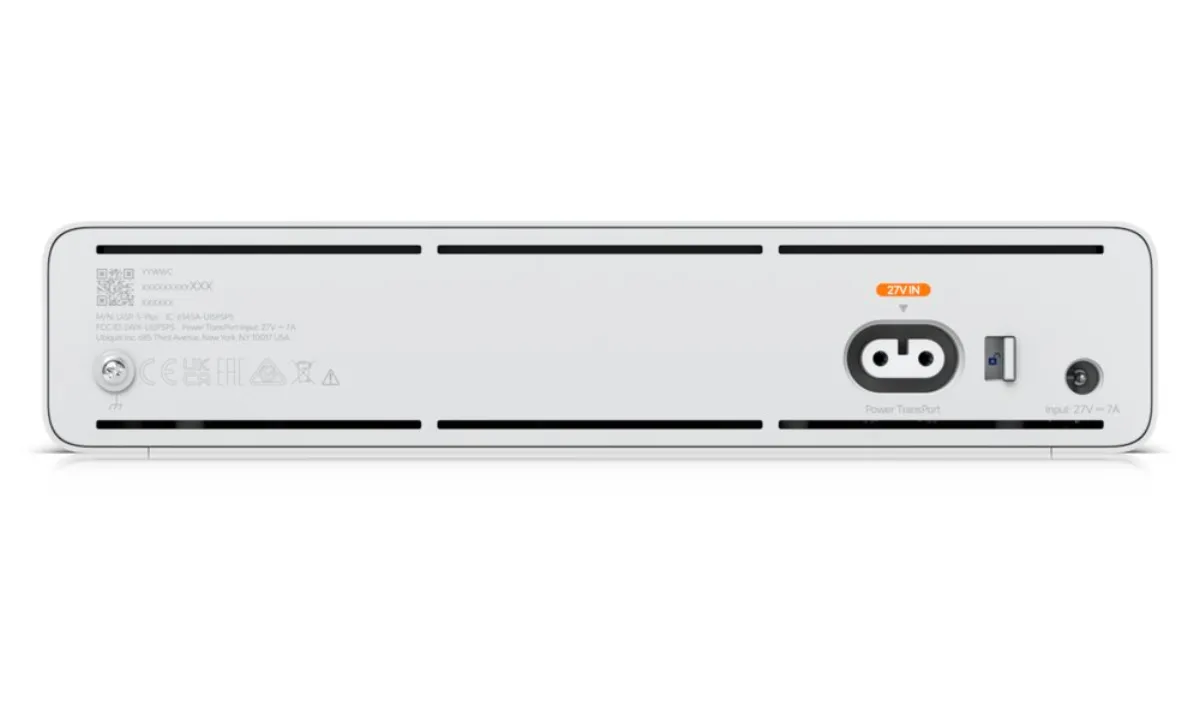

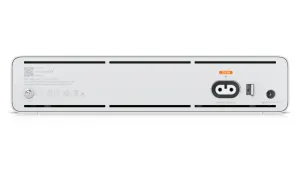

- Power TransPort input for DC redundancy
- Possibility of mounting on a table, on a wall (mounting kit included), 1U rack or in an outdoor environment**
- Management through its own local web interface or using Bluetooth technology and UISP mobile application
*When powered using the supplied AC/DC adapter. **If enclosed in UISP Box Plus (sold separately).

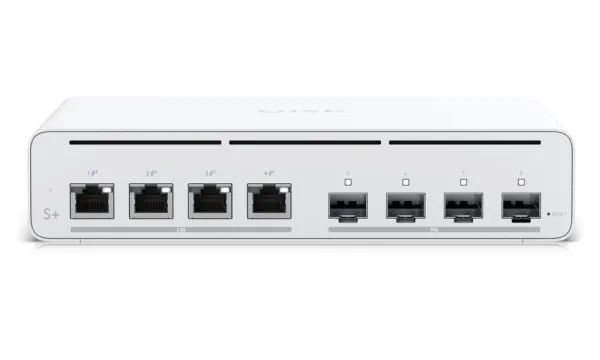

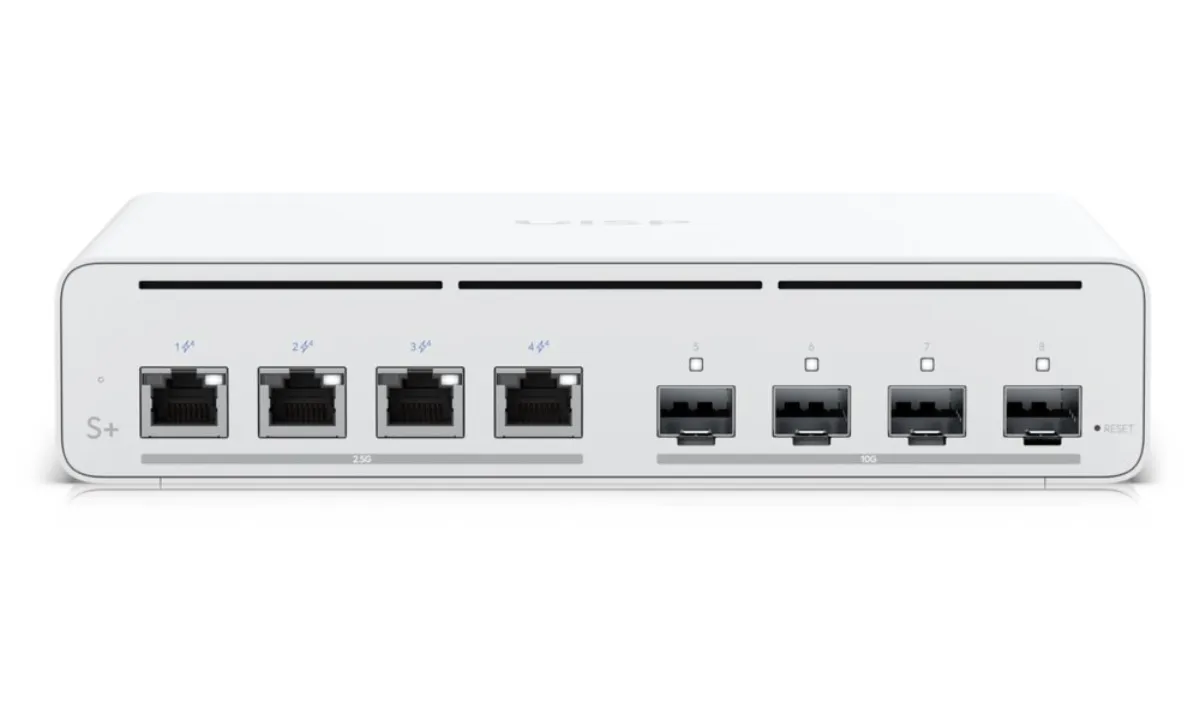

Ports
- 4x 2.5GbE RJ-45
- 4x 10G SFP
Switch capacity: 100 Gbps
Routing Speed: 74.4 Mpps
PoE support
- yes
- passive
- 4x up to 40 W (160 W PoE budget)
Dimensions: 210.4 x 170.2 x 43.7 mm
Weight: 1.75 kg
| Name | Value | |
|---|---|---|
| Input voltage [V] | 24 - 28 (DC) | |
| Color | white | |
| Dimension [mm] | 210,4 × 170,2 × 43,7 mm | |
| Minimum operating temperature [°C] | -10 | |
| Maximum operating temperature [°C] | 50 | |
| Conformity | CE, FCC, IC | |
| MicroSD card support | No | |
| SFP+ count | 4 | |
| Port speed | 2,5 Gb/s + 10 Gb/s | |
| Fanless | Yes | |
| PoE output | pasive | |
| Outdoor use | No | |
| Management | Yes | |
| Device power supply | external adapter | |
| Bus capacity (GBps) [Gbps] | 100 | |
| Design | on the wall | |
| PoE output count | 4 | |
| OSI Layer | L2 | |
