Ubiquiti UniFi AC In-Wall - AP 2.4GHz (300Mbps) + 5GHz (867Mbps) 3x Gbit RJ45 internal PoE 802.3at (without PoE injector)

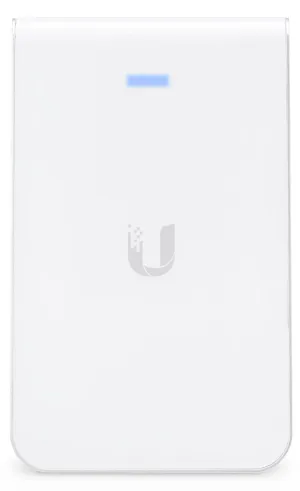

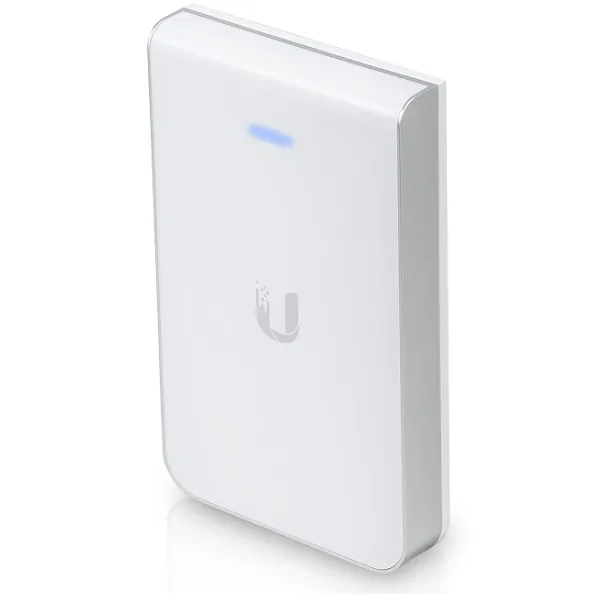

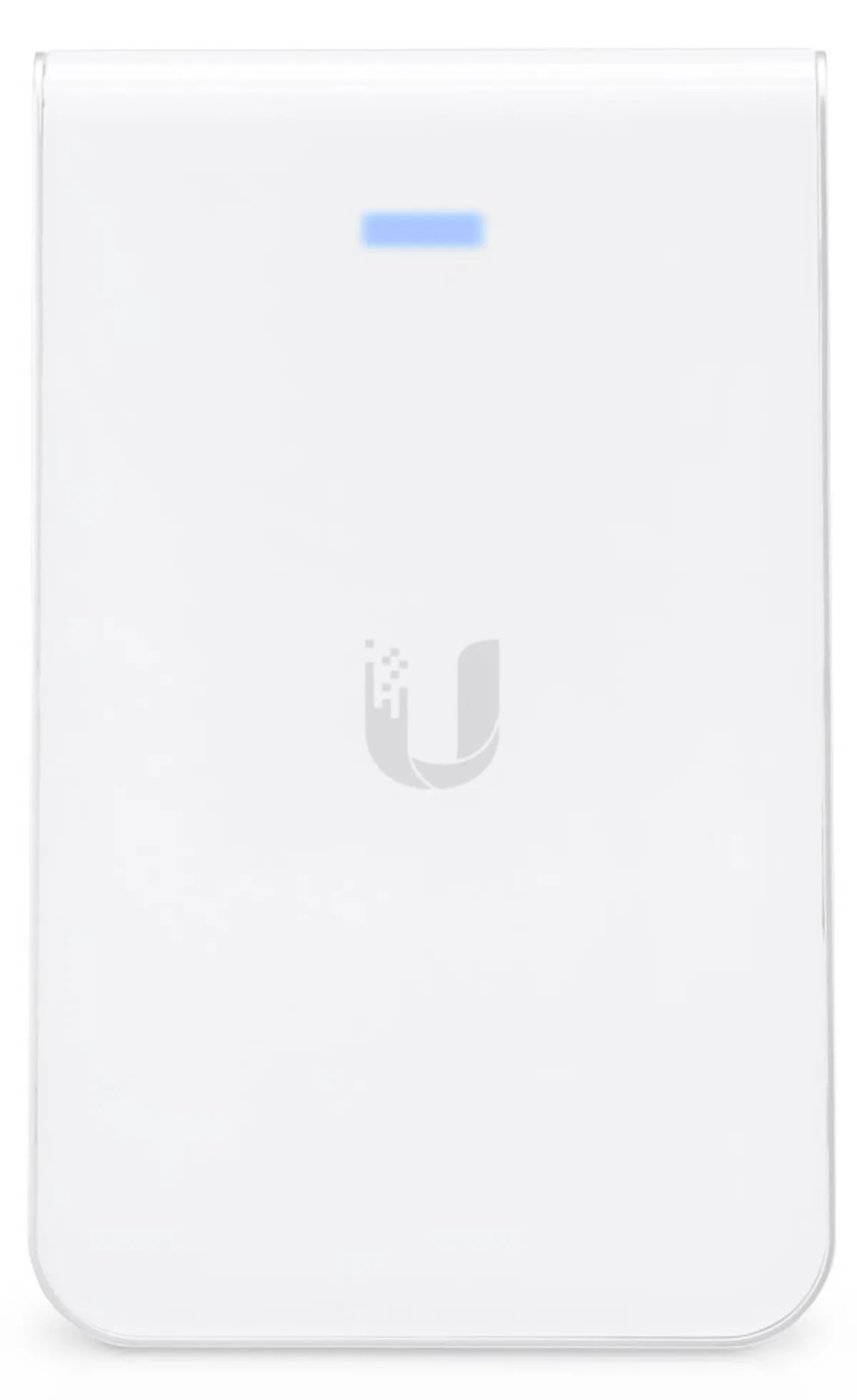

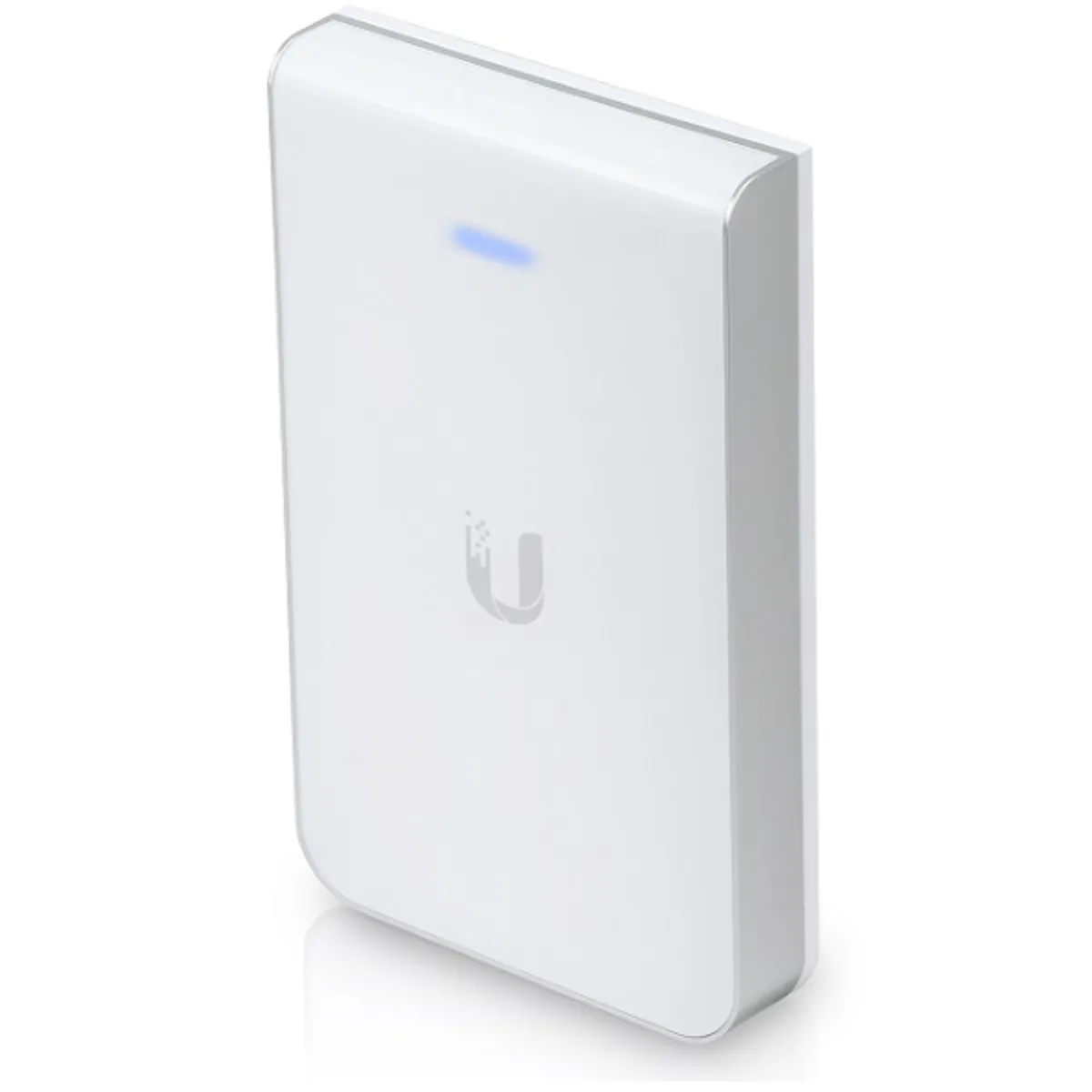

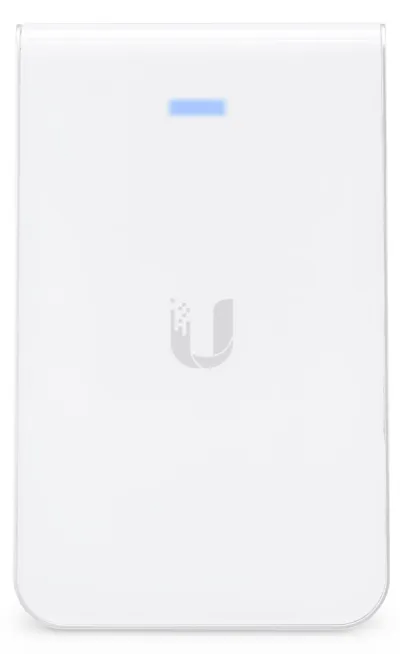

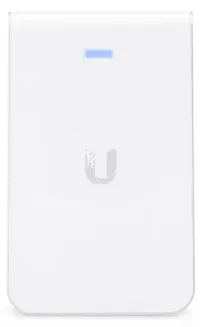

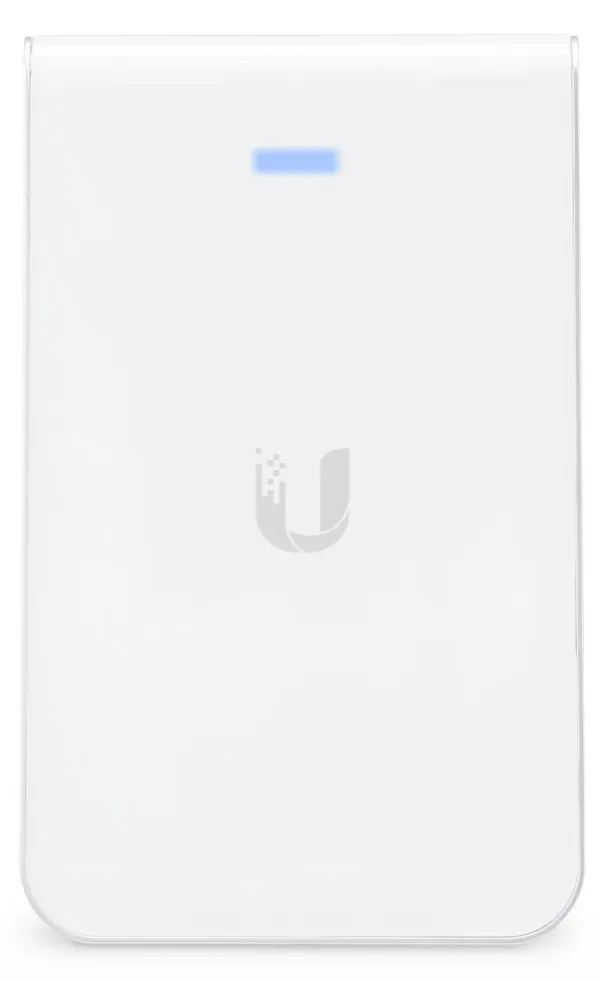

Ubiquiti UniFi AP AC In-Wall

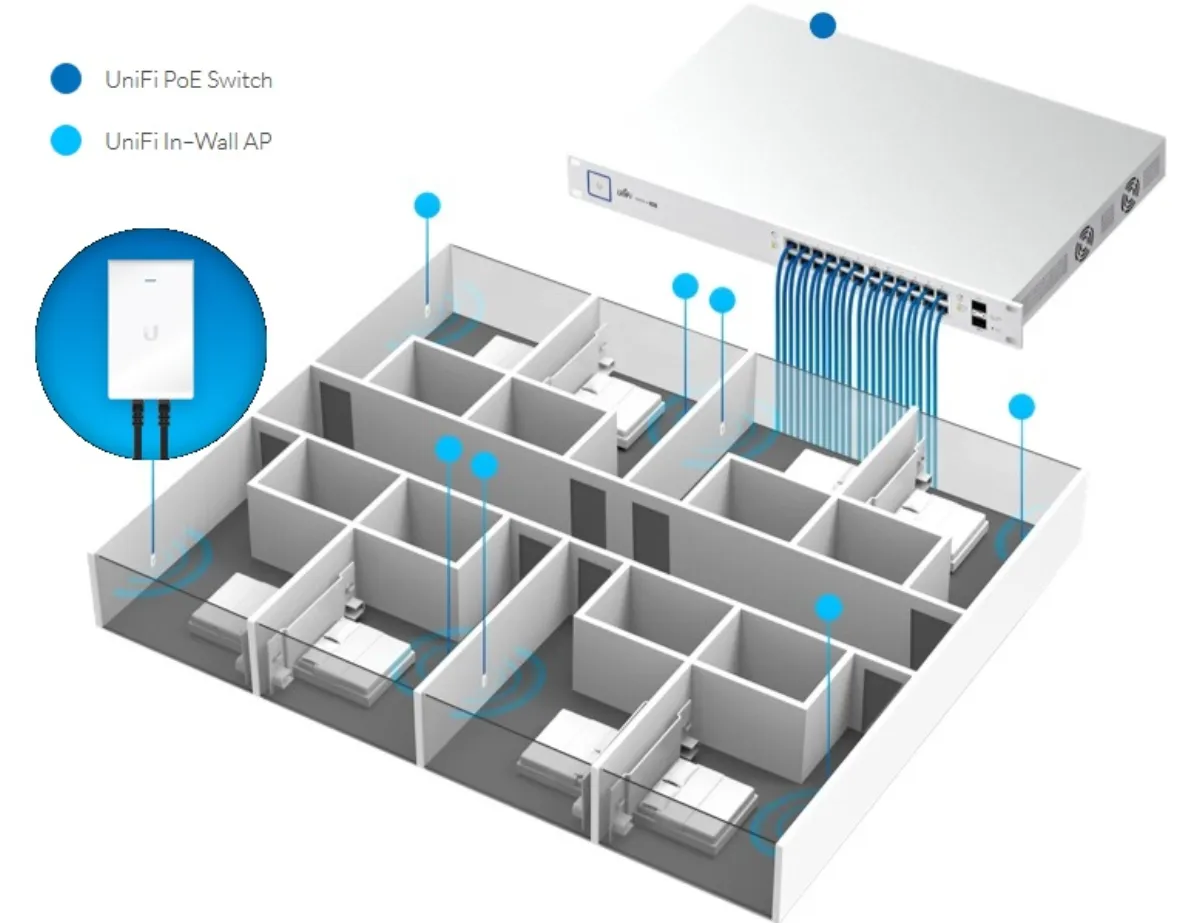

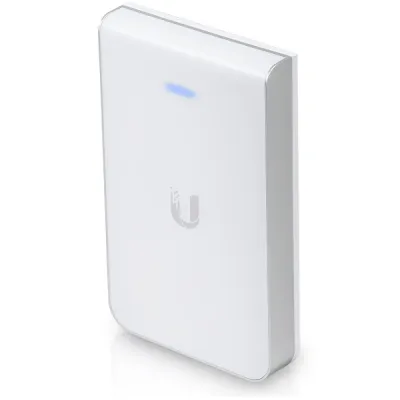

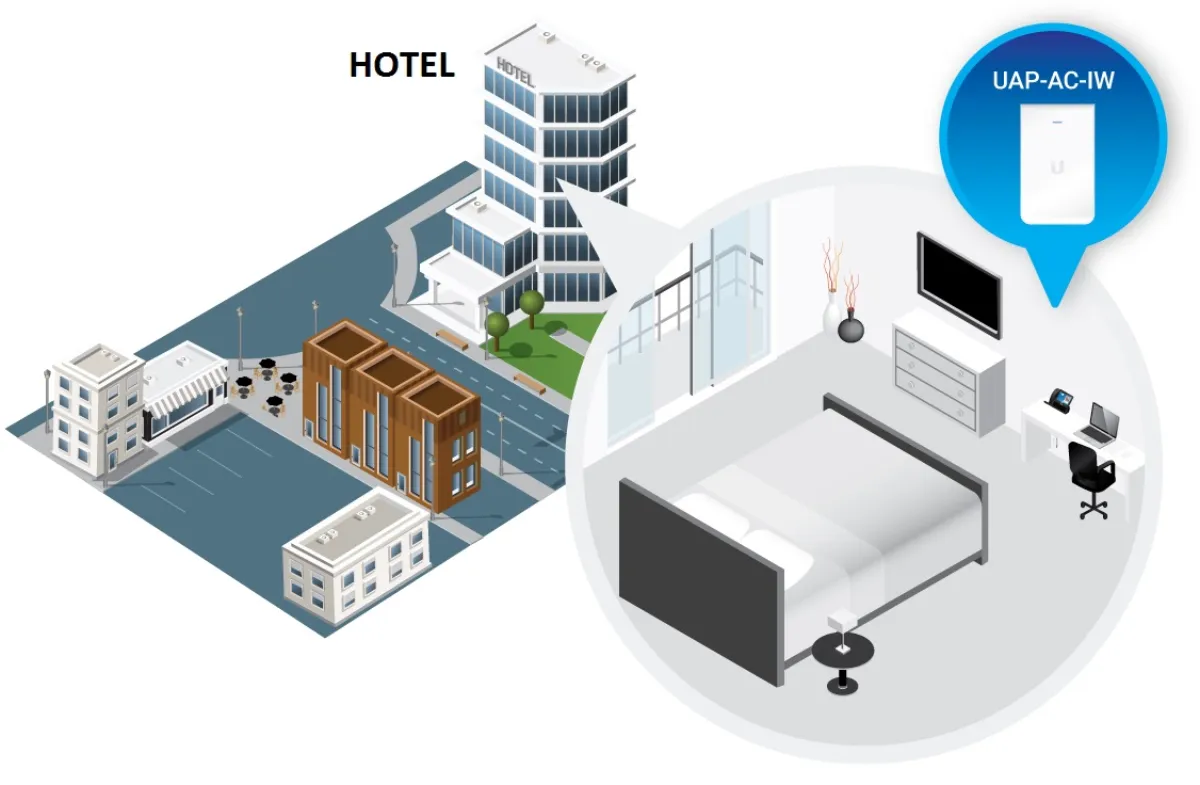

The UniFi AC In-Wall is a small AP working in the 2.4 GHz and 5 GHz bands, suitable for installation on the wall instead of a data socket. Ideal for covering administrative buildings, hotel rooms, student dormitories with a Wi-Fi signal with a throughput of up to 1167 Mbps. The UniFi AC In-Wall is part of the Ubiquiti Enterprise networks system and transforms a data socket into a 2.4/5 GHz access point for hotel guests, tenants, students or employees.

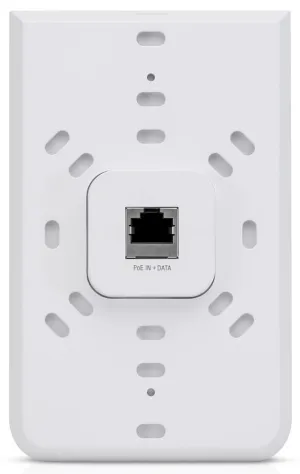

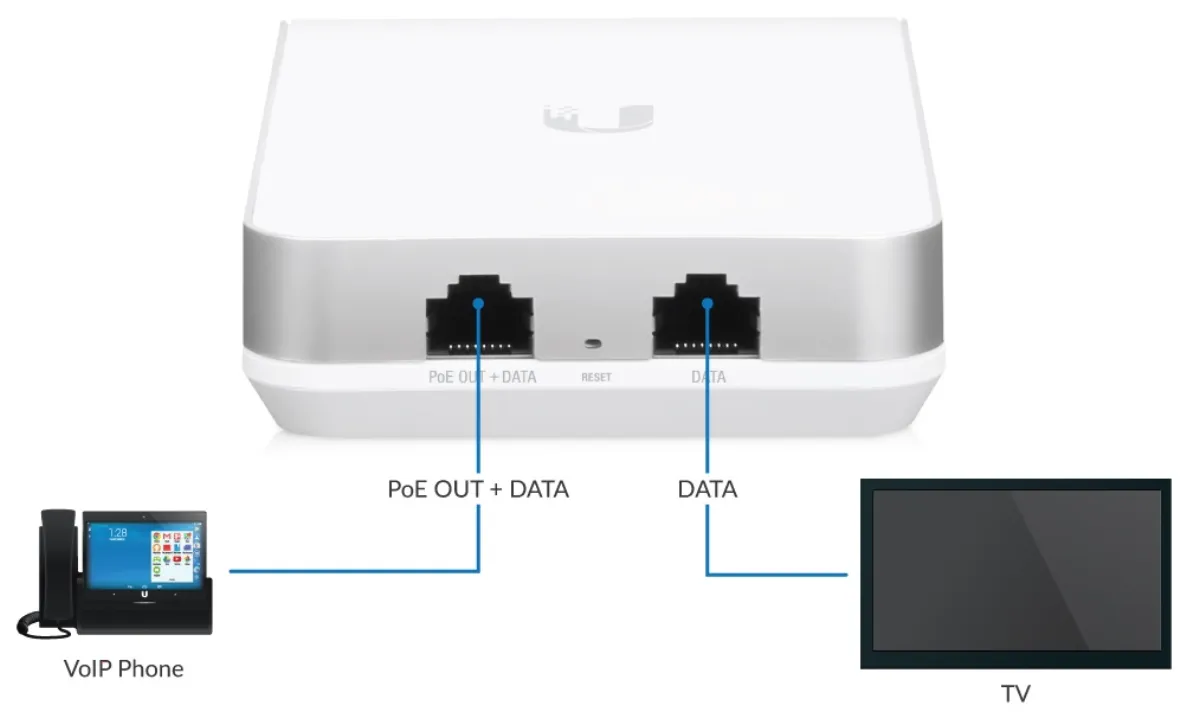

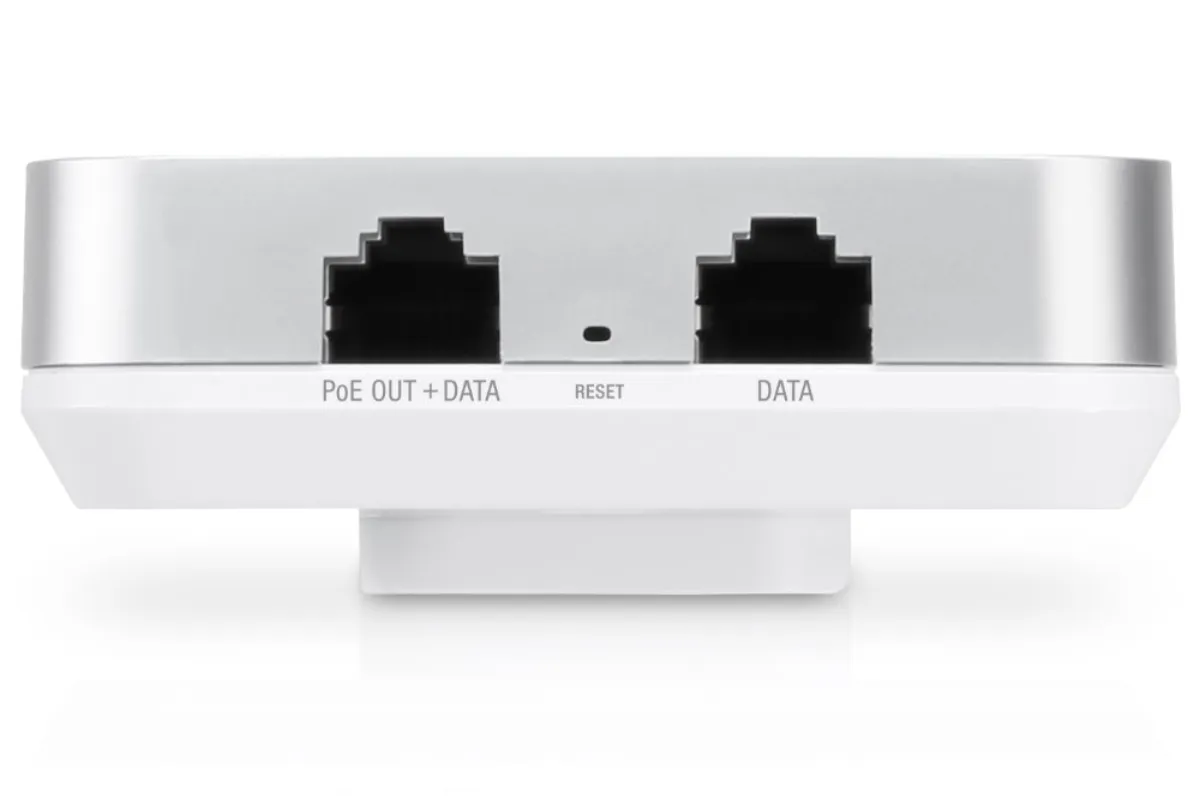

The UniFi AC In-Wall unit has three Gigabit Ethernet ports. The input port is used for power supply from the PoE+ 802.3at switch. The two output ports can be used as a standard data socket with the possibility of powering one device that supports active PoE according to the 802.3af standard. For example, a VoIP phone, a security camera or another AP.

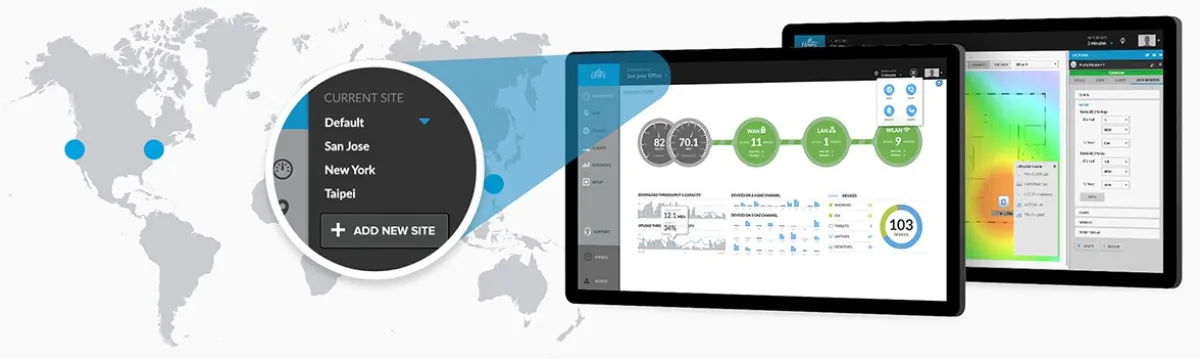

The UniFi AC In-Wall has two integrated 1 dBi antennas (2.4 GHz) and 2 dBi antennas (5 GHz). UniFi APs are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.

Advantages of the UniFi system

• Multiple SSIDs with different type of security
• Unlimited possibility to expand the system with other UniFi devices
• No license fees
• Speed limiting according to SSID
• Advanced AirTime Fairness and Band Steering functions
• RF scan of the surrounding environment
• Guest account
• Billing system - use of an external server, definition of vouchers, direct payments via PayPal
• Load Balance - switching clients to less busy UniFi
• Support for the 802.3at power supply standard
• VLAN support

UniFi AC In-Wall supports 802.3af/at power.

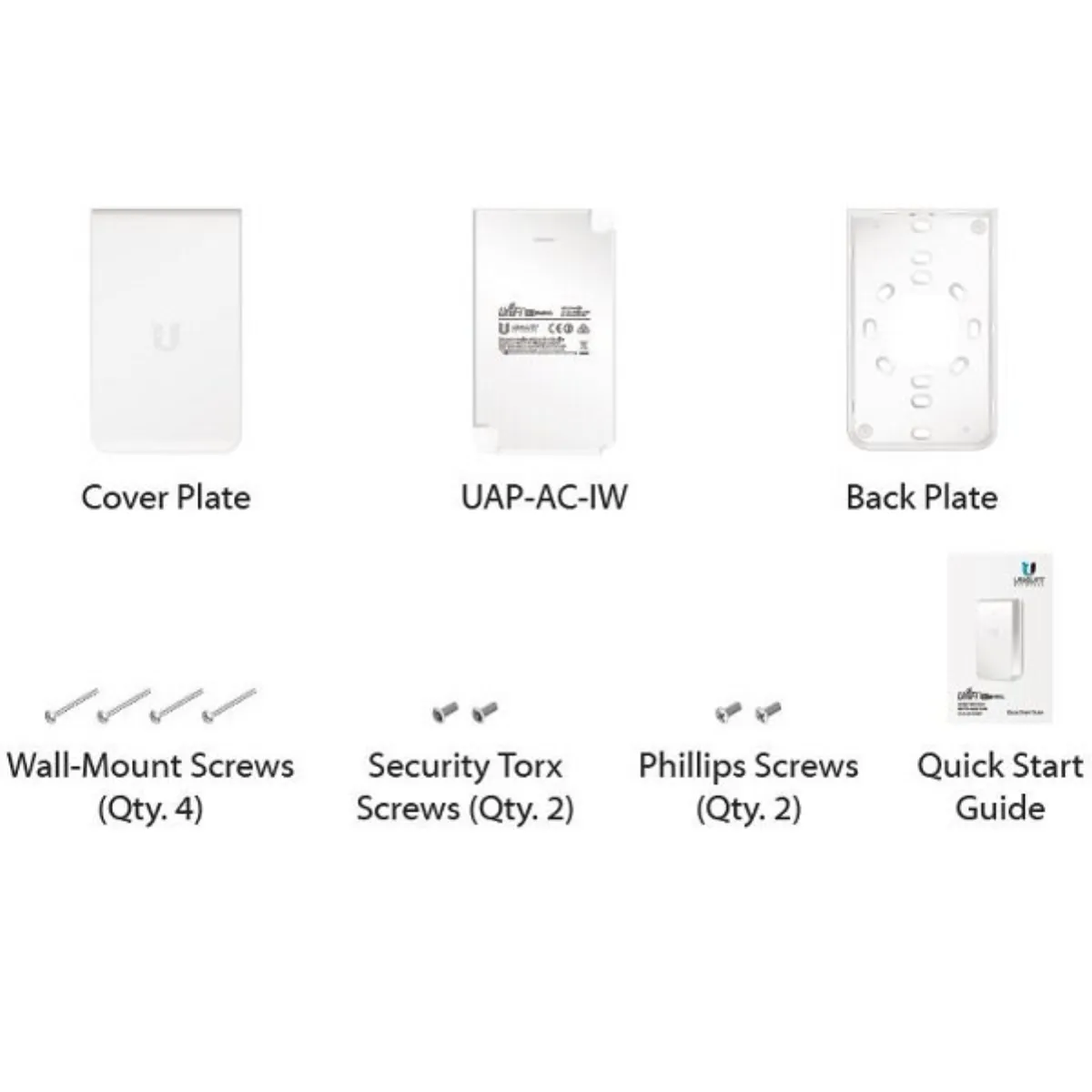

The package does not include a PoE injector

The UniFi AC In Wall model meets all requirements for use in the WiFi4EU project of the European Commission. See WFA Certification in the documents under the product description.

Wi-Fi Standard: IEEE 802.11a/b/g/n/ac

Data transfer speed

• 2.4 GHz - 300 Mbit/s
• 5 GHz - 867 Mbit/s

Ports

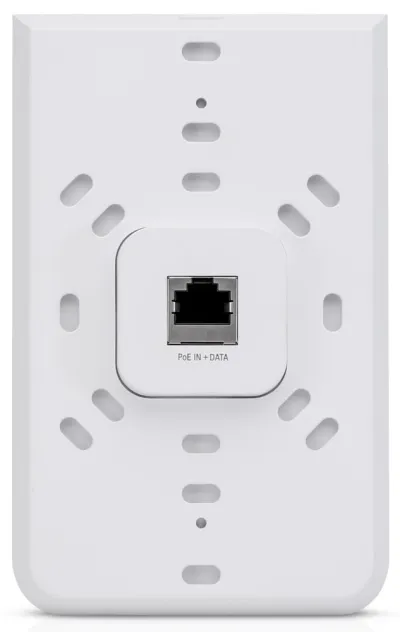

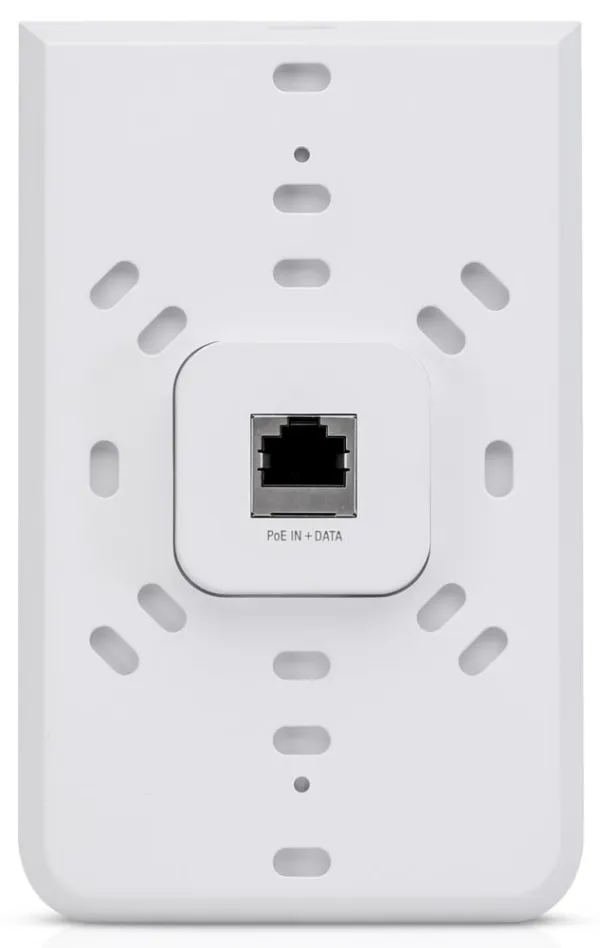

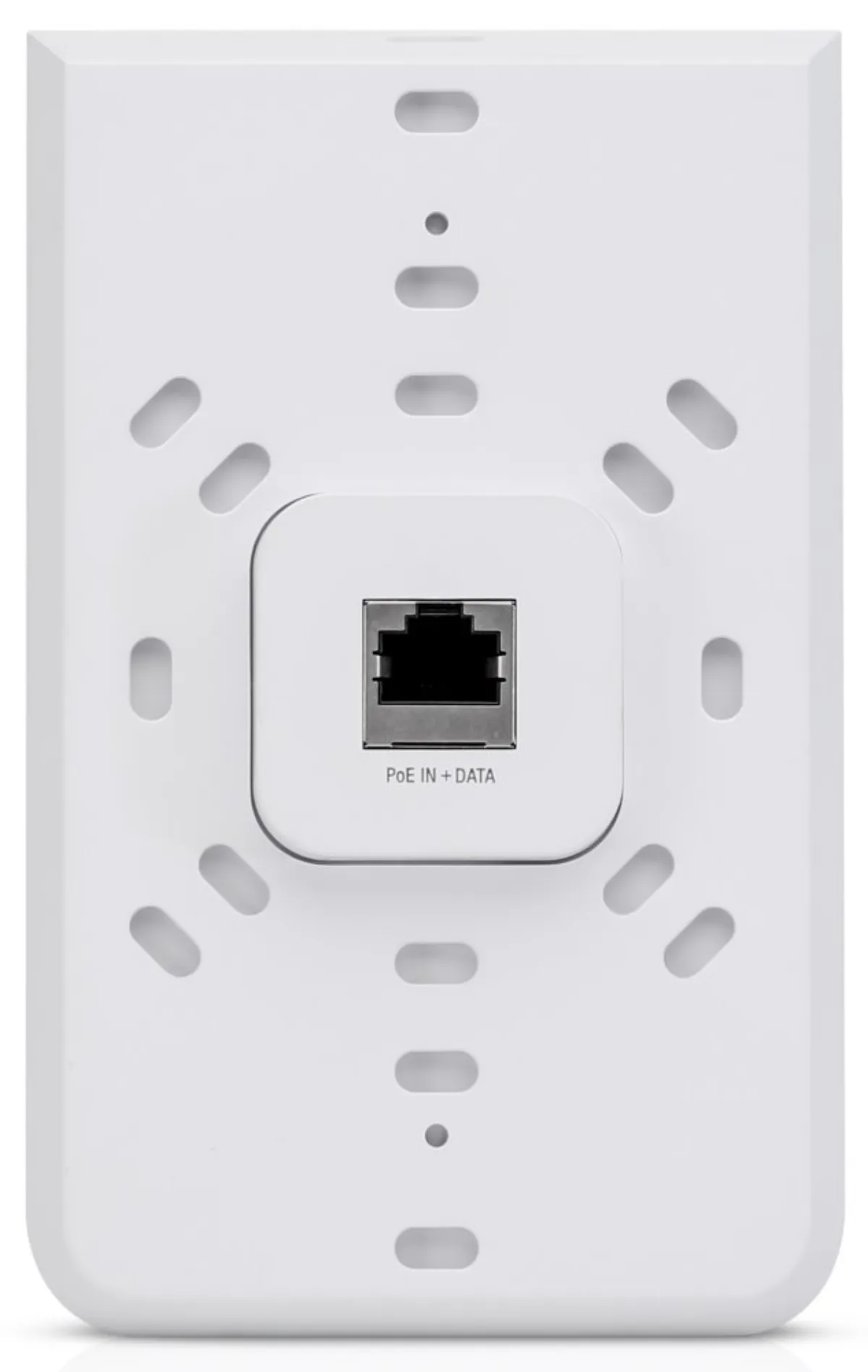

• 1 x RJ-45 PoE input
• 1 x RJ-45 PoE output
• 1 x RJ-45 data

Frequency

• 2.4 GHz
• 5 GHz

Security

• WEP
• WPA-PSK
• WPA-Enterprise
• WPA
• WPA2
• TKIP
• AES

PoE support: yes

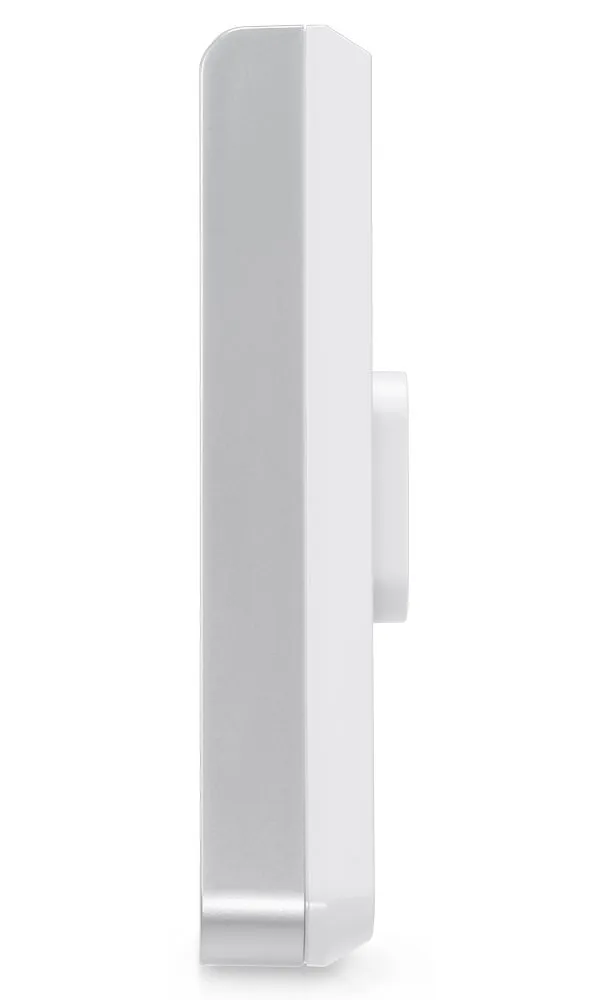

Dimensions: 139.7 x 86.7 x 25.75 mm
