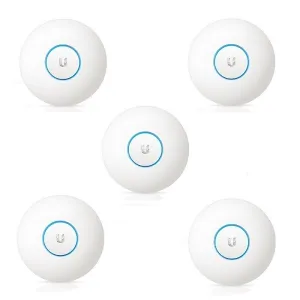

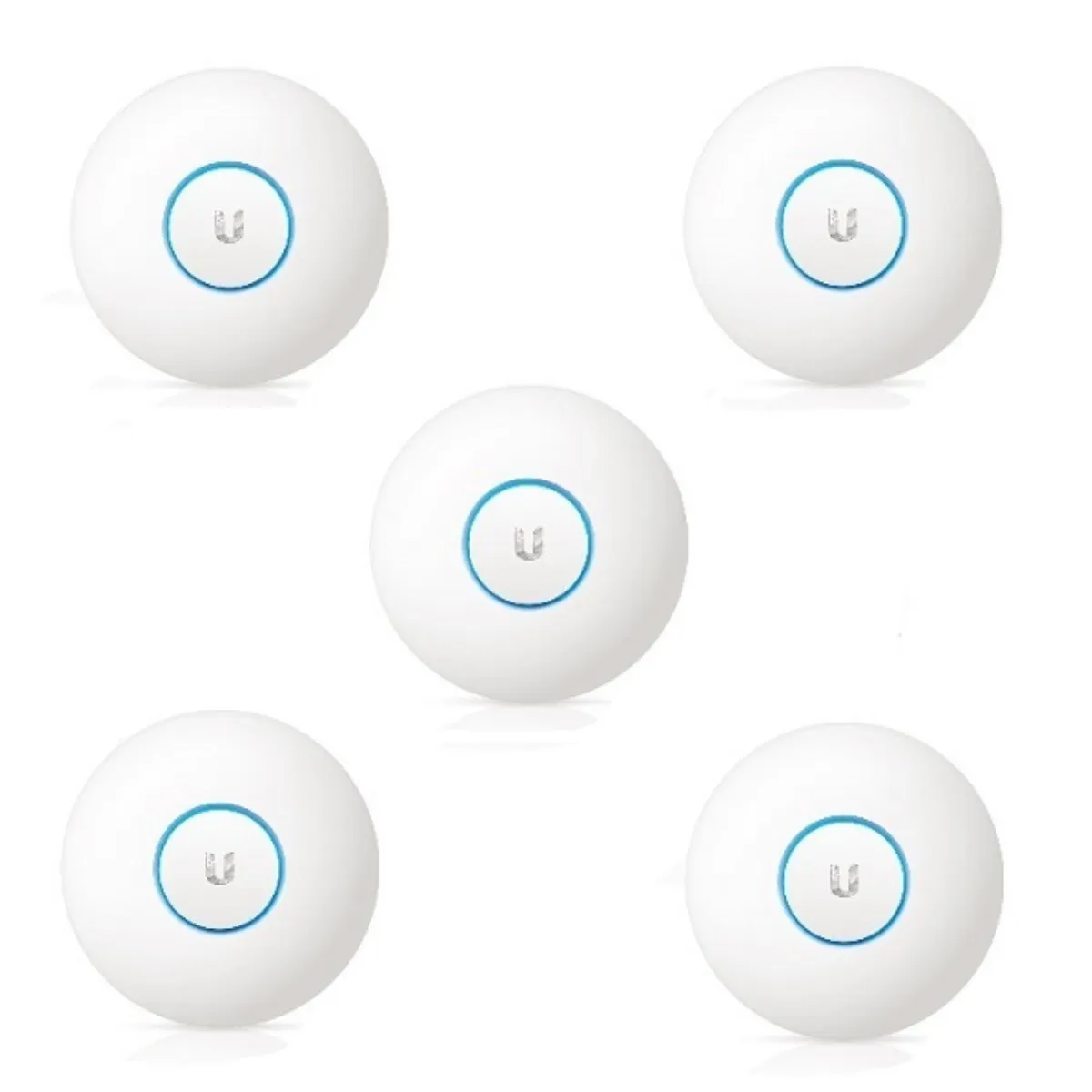

Ubiquiti UniFi AC Lite 5 - AP 2.4GHz (300Mbps) + 5GHz (867Mbps) - set of 5 pcs (without PoE injectors)
UBIQUITI | UAP-AC-LITE-5 | 810354025440
Price of goods is 365.96 €.
Weight of goods is 1.751 Kg.
Actual in cart 0 pcs.
Ubiquiti UniFi AP AC Lite
More advantageous set of 5 pcs! The package comes without POE 24V GigE sources
The UniFi AC Lite unit (UAP-AC-LITE) is a Wi-Fi AP with support for both 2.4 and 5 GHz frequency bands and a transmission speed of up to 1167 Mbps. The advantage is its small size, making it ideal for business or home use.
UniFi AC Lite is a well-designed indoor hotspot solution using the 802.11a/b/g/n/ac standard. It is equipped with a MIMO 2×2 antenna system in the form of two integrated 3 dBi antennas. The AP can be connected up to a distance of 122 m. The advantage is the inconspicuous design, the Lite version is 25% smaller than the classic UniFi.
UniFi APs are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.
Another benefits
- Common SSID or multiple SSIDs with different types of security
- Speed limiting according to SSID
- Hotspot
- Guest account
- Billing system - use of an external server, definition of vouchers, connection with the payment portal
- Load Balance - switching clients to less busy UniFi
- Spectral analysis
- VLAN support
The unit supports passive PoE 24V and active PoE 802.3af power supply.
Standard: 802.11 a/b/g/n/ac
Antenna: 2 x 3dBi integrated dual-band antenna
Operating frequency: 2.4 GHz/ 5 GHz
2.4/5 GHz data transfer rate: 300/867 Mbps
PoE: 24V passive PoE and active PoE 802.3af
Ports: 1 x 10/100/1000 Ethernet
Dimensions: 160 x 160 x 31.4 mm
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 160 × 160 × 31,45 mm | |
| Maximum operating temperature [°C] | 70 | |
| Minimum operating temperature [°C] | -10 | |
| Transmission speed [Mbps] | 1167 | |
| Modulation | BPSK, QPSK, 16-QAM/64-QAM | |
| Max. output power [dBm] | 20 | |
| Wi-Fi standard | airMAX AC | |
| Height [mm] | 160 | |
| Antenna design | internal | |
| Width [mm] | 160 | |
| Indoor use | Yes | |
| Repeater mode | No | |
| Encryption | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) | |
| Consumption [W] | 6,5 | |
| Gain [dBi] | 3 | |
| Conformity | CE, FCC, IC | |
| Power supply [V] | 24 | |
| DHCP | Yes | |
| Depth [mm] | 31,45 | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Port speed | 1 Gb/s | |
| Outdoor use | No | |
