Ubiquiti UniFi AC PRO 5 - AP 2.4GHz (450Mbps) + 5GHz (1300Mbps) - set of 5 pcs (without PoE injectors)
UBIQUITI | UAP-AC-PRO-5 | 810354025464
Price of goods is 653.94 €.
Weight of goods is 3.166 Kg.
Actual in cart 0 pcs.

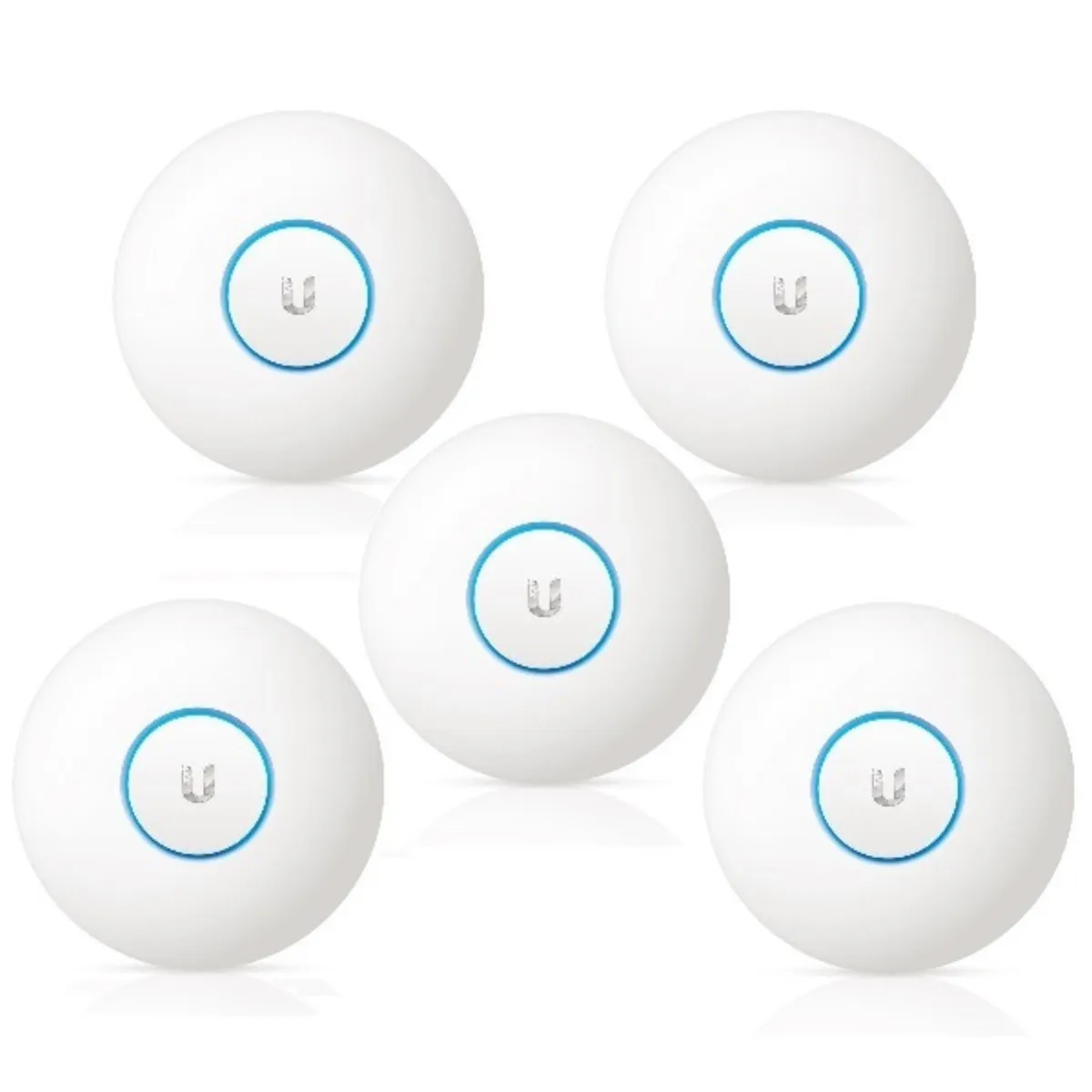

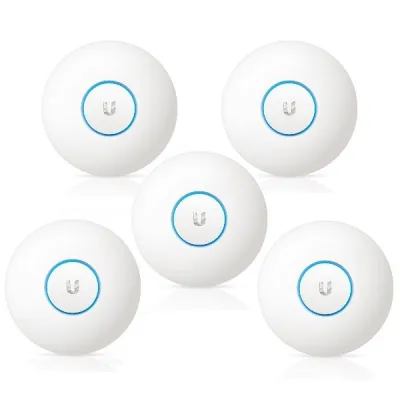

Ubiquiti UniFi AP AC PRO 5 pcs
More advantageous set of 5 pcs! The package is delivered without POE 48V/0.5A GigE sources
The UniFi AC-PRO unit (AP-AC-PRO) is a revolutionary unit from Ubiquiti. It supports a transmission speed of up to 1750 Mbps and frequencies of 2.4 and 5 GHz! In addition, it is a version with support for the latest 802.11ac standard and PoE power supply 802.3af/802.3at.
UniFi AC PRO is a well-designed indoor hotspot solution using the 802.11a/b/g/n/ac standard. It is equipped with a MIMO 3×3 antenna system in the form of two integrated 3 dBi antennas (2.4 GHz and 5 GHz).
The advantage is the durable design also for outdoor installations (Caution: It is not intended for open space. Installation is only possible in a protected environment, for example in a soffit, under a roof, etc.).
The UniFi AC PRO unit has a second Gbit RJ45 port that does not support PoE Out, but can serve as a connectivity bridge for other devices. UniFi APs are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.
Another benefits
- Common SSID or multiple SSIDs with different types of security
- Speed limiting according to SSID
- Hotspot
- Guest account
- Billing system - use of an external server, definition of vouchers, connection with the payment portal
- Load Balance - switching clients to less busy UniFi
- Spectral analysis
- VLAN support
The unit supports active PoE 802.3af/at and passive PoE 48V power supply. PoE injectors are not included in the package.
The UniFi AC PRO model meets all requirements for use in the WiFi4EU project of the European Commission.
To power multiple UniFi AP units, we recommend adding a UniFi switch to your network. The advantage is the management of PoE ports, VLAN support and an overall overview of the topology.
Standard: 802.11 a/b/g/n/ac
Antenna: integrated dual-band 3/3 dBi antenna
Operating frequency: 2.4 GHz/ 5 GHz
2.4/5 GHz data transfer rate: 450/1300 Mbps
PoE: 48 V passive PoE (802.3at/802.3af)
Ports: 2x 10/100/1000 Ethernet
Dimensions: 196.7 x 196.7 x 35 mm
Packaging: 5 pcs
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 0,45 | |
| Dimension [mm] | 196 × 196 × 35 mm | |
| Maximum operating temperature [°C] | 70 | |
| Minimum operating temperature [°C] | -10 | |
| Bridge mode | Yes | |
| Transmission speed [Mbps] | 1750 | |
| Modulation | BPSK, QPSK, 16-QAM/64-QAM | |
| Max. output power [dBm] | 22 | |
| Wi-Fi standard | airMAX AC | |
| Antenna design | internal | |
| Width [mm] | 196,7 | |
| Indoor use | Yes | |
| Repeater mode | No | |
| Encryption | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) | |
| Consumption [W] | 9 | |
| Gain [dBi] | 3 | |
| Maximum performance [W] | 12 | |
| Conformity | CE, FCC, IC | |
| Power supply [V] | 48 | |
| Depth [mm] | 35 | |
| Client mode | No | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Port speed | 1 Gb/s | |
