Ubiquiti UniFi Access Door Hub Hub 4x PoE Out 1x PoE++ In

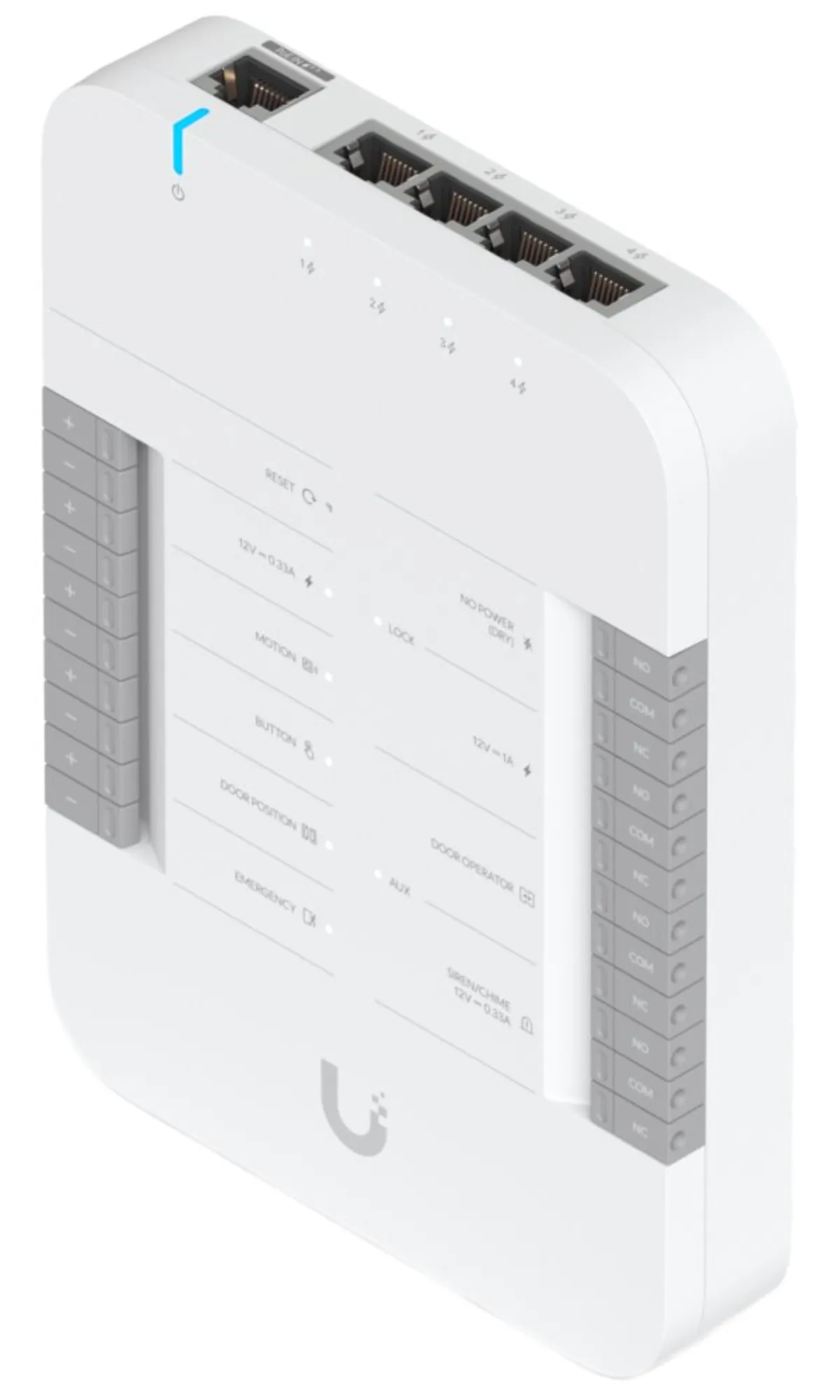

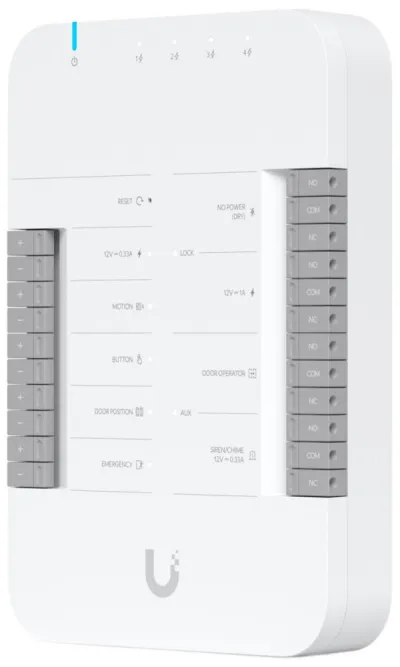

Ubiquiti UniFi Access Door Hub

The UniFi Access Door Hub is an intelligent single-door IP controller that is part of the UniFi Access solution. The universal interface supports most electronic and magnetic locks, and is compatible with 12V accessories (buttons, alarms, motion sensors, etc.). It meets CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1 (Class 1) certifications.

Key Features

Entry and Exit Control

• Supports connection of up to two UniFi Access readers and two UniFi Protect devices (camera or doorbell).

Peripheral Connections

• 2 Lock Outputs: 12V or Dry
• 2 AUX Outputs: for Siren or Automatic Door Opener
• 4 Additional Inputs: for Sensors and Buttons

Power and Connections

• PoE++ with maximum power consumption of 50W (30W without PoE outputs)

• Integrated PoE pass-through port (4 PoE outputs, total 20W)

Safety and Certifications:

• UL 294 (Level I for Destructive Attack, Line Security, Endurance and Standby Power)

• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

• Easy Installation and Operation:

Compact dimensions and lightweight polycarbonate construction. Reset button for quick factory reset.

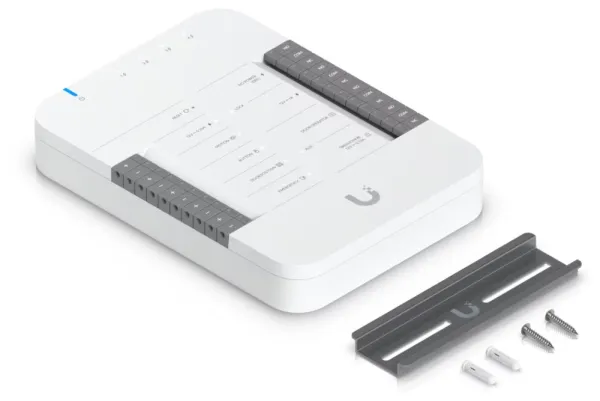

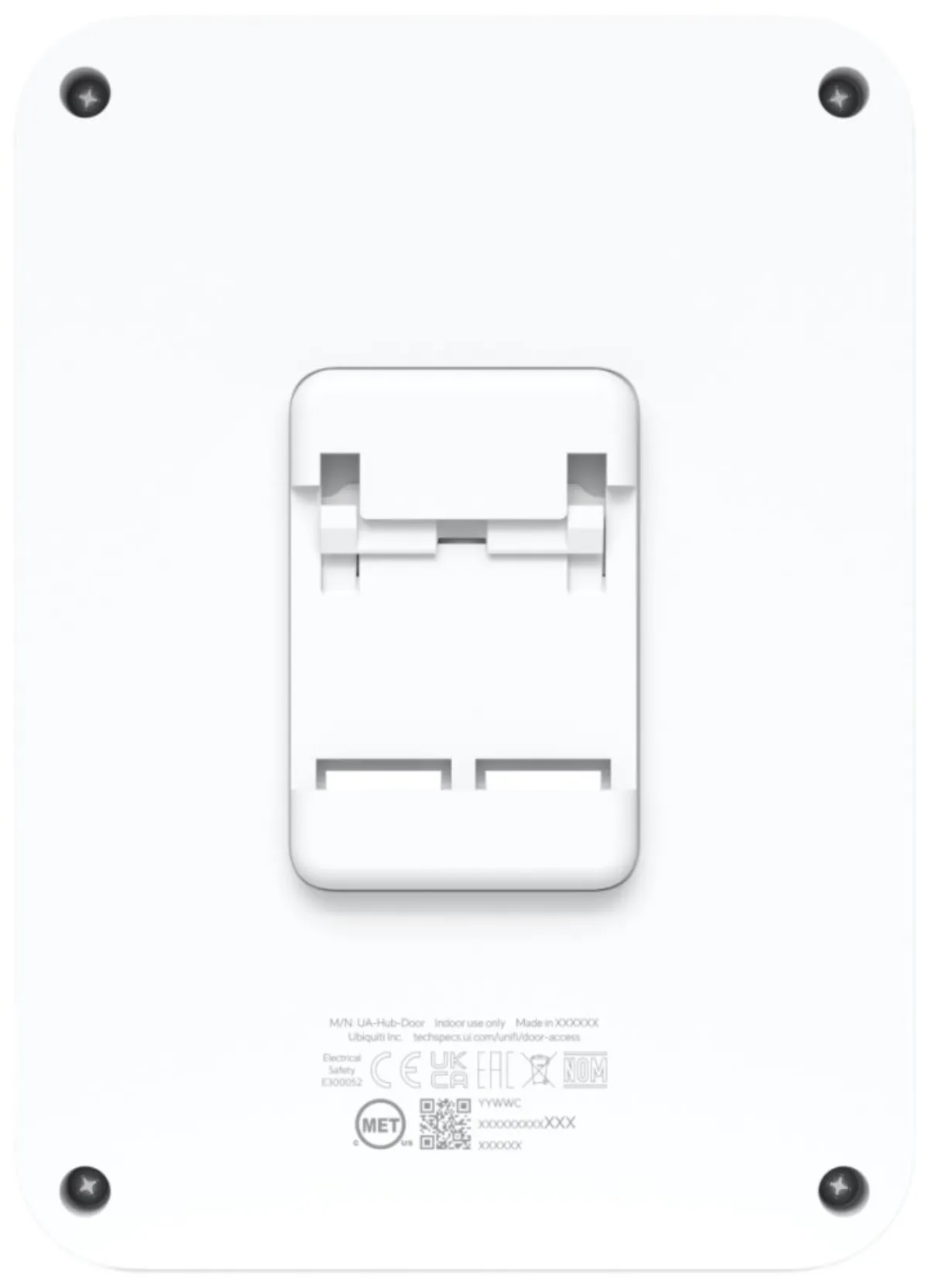

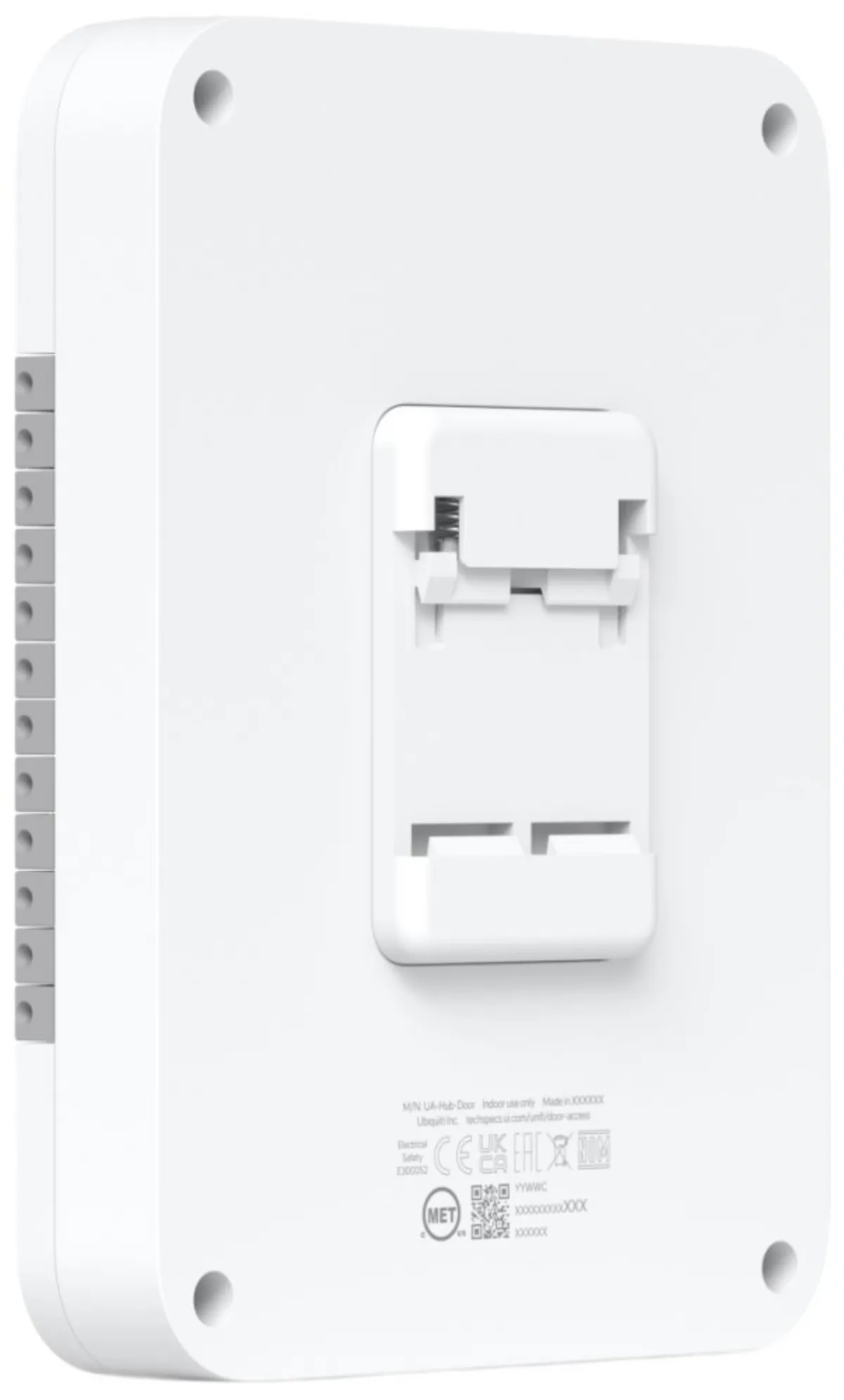

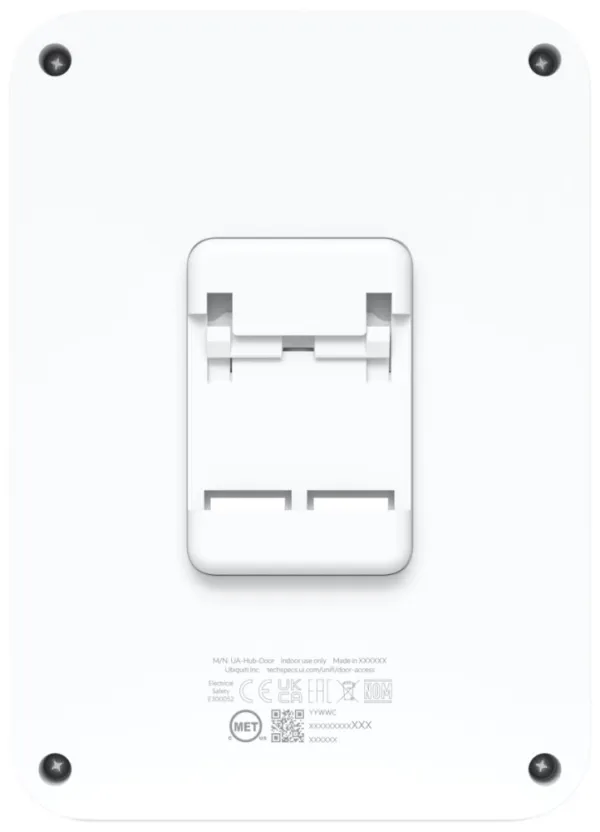

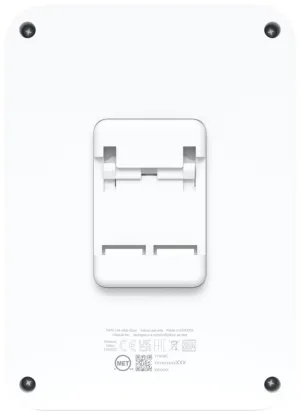

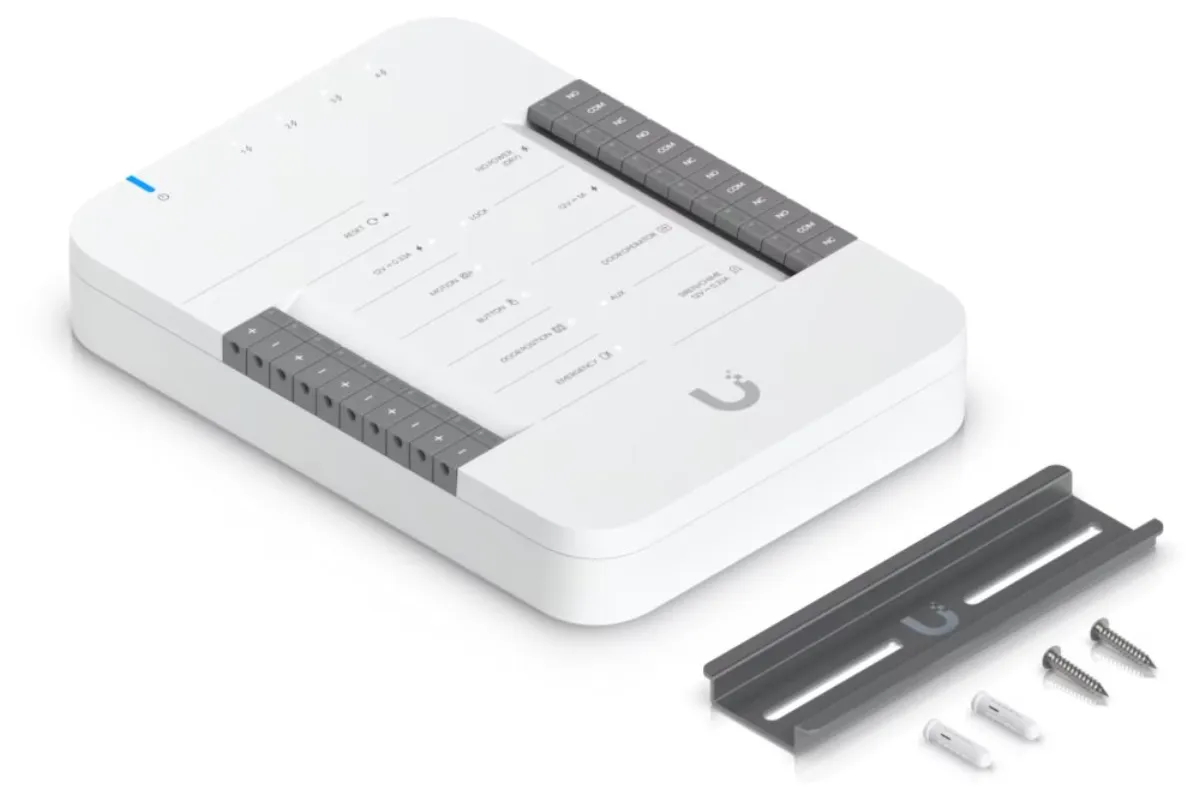

Mounting

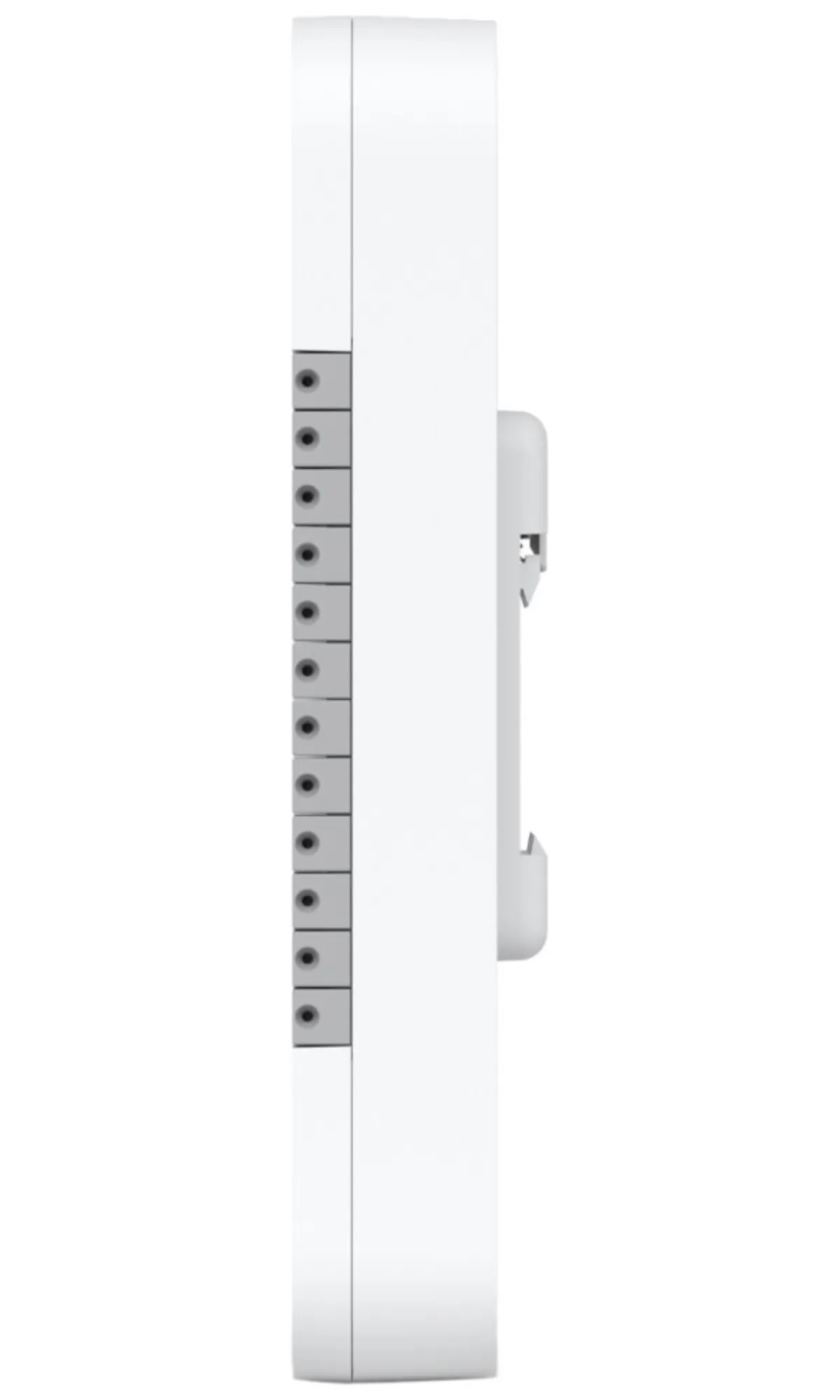

• DIN
• Wall

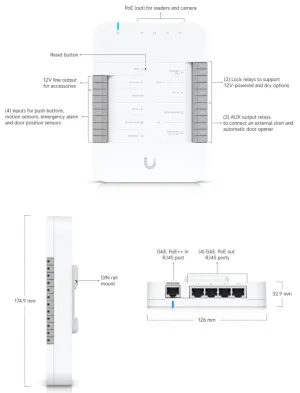

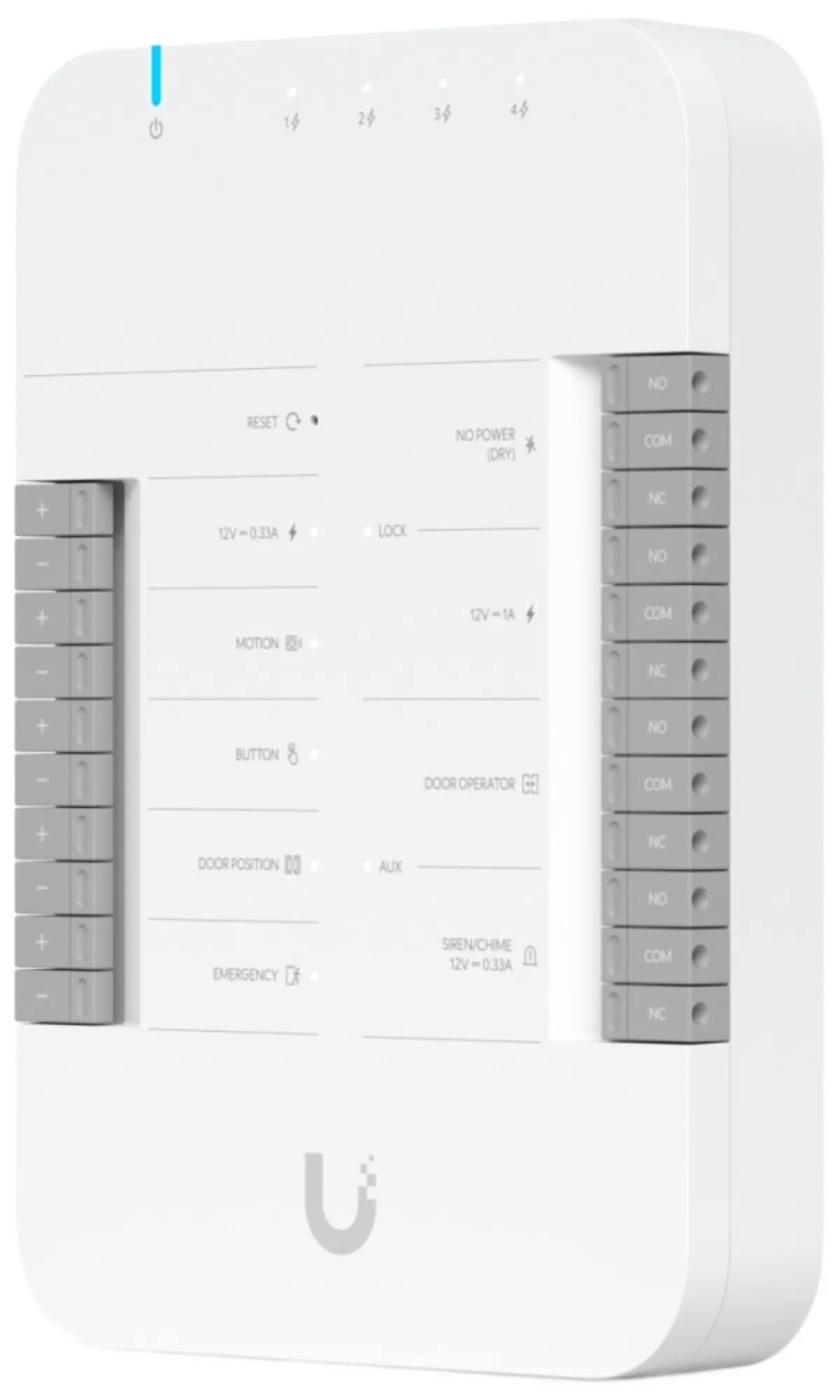

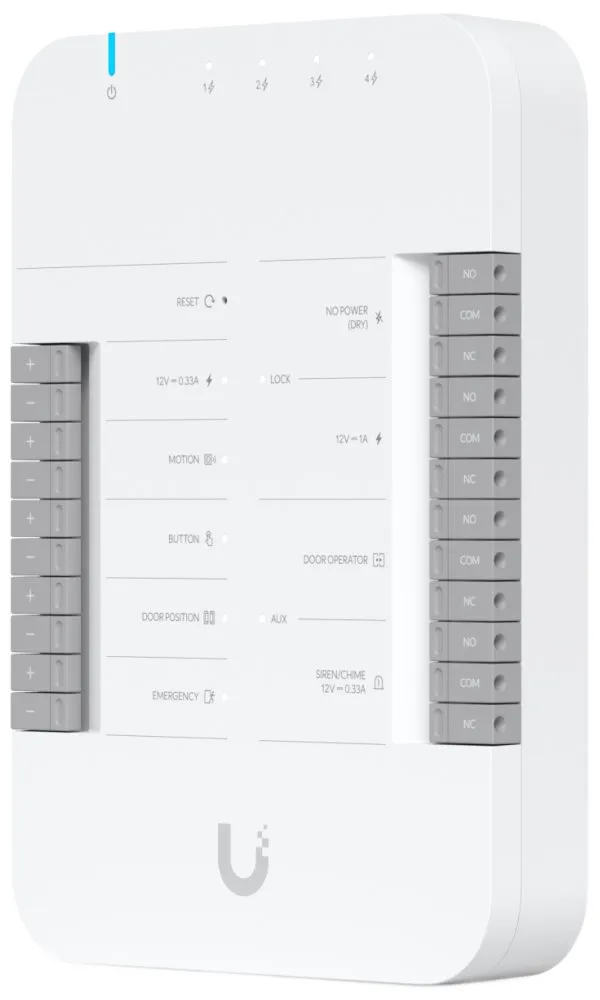

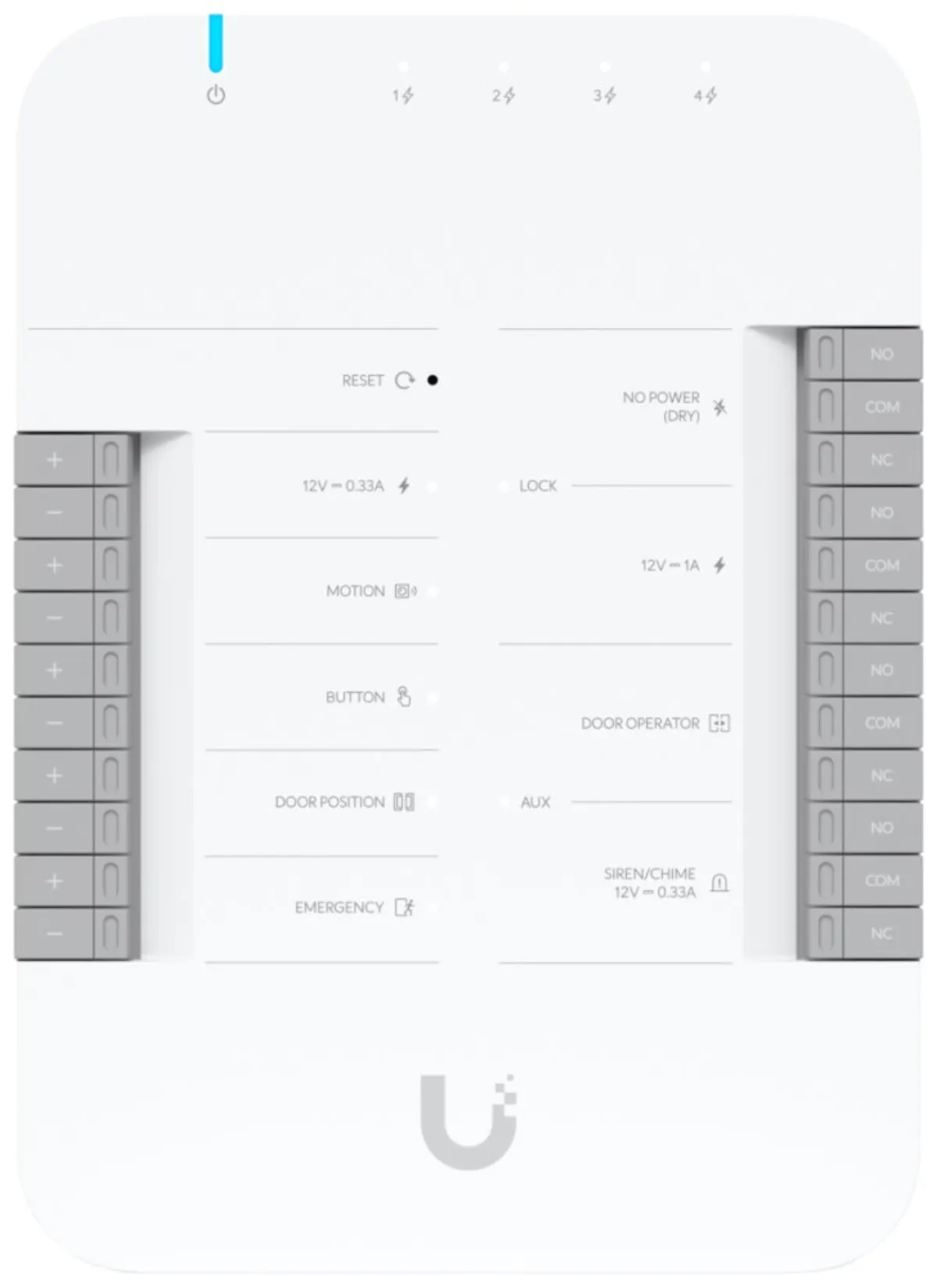

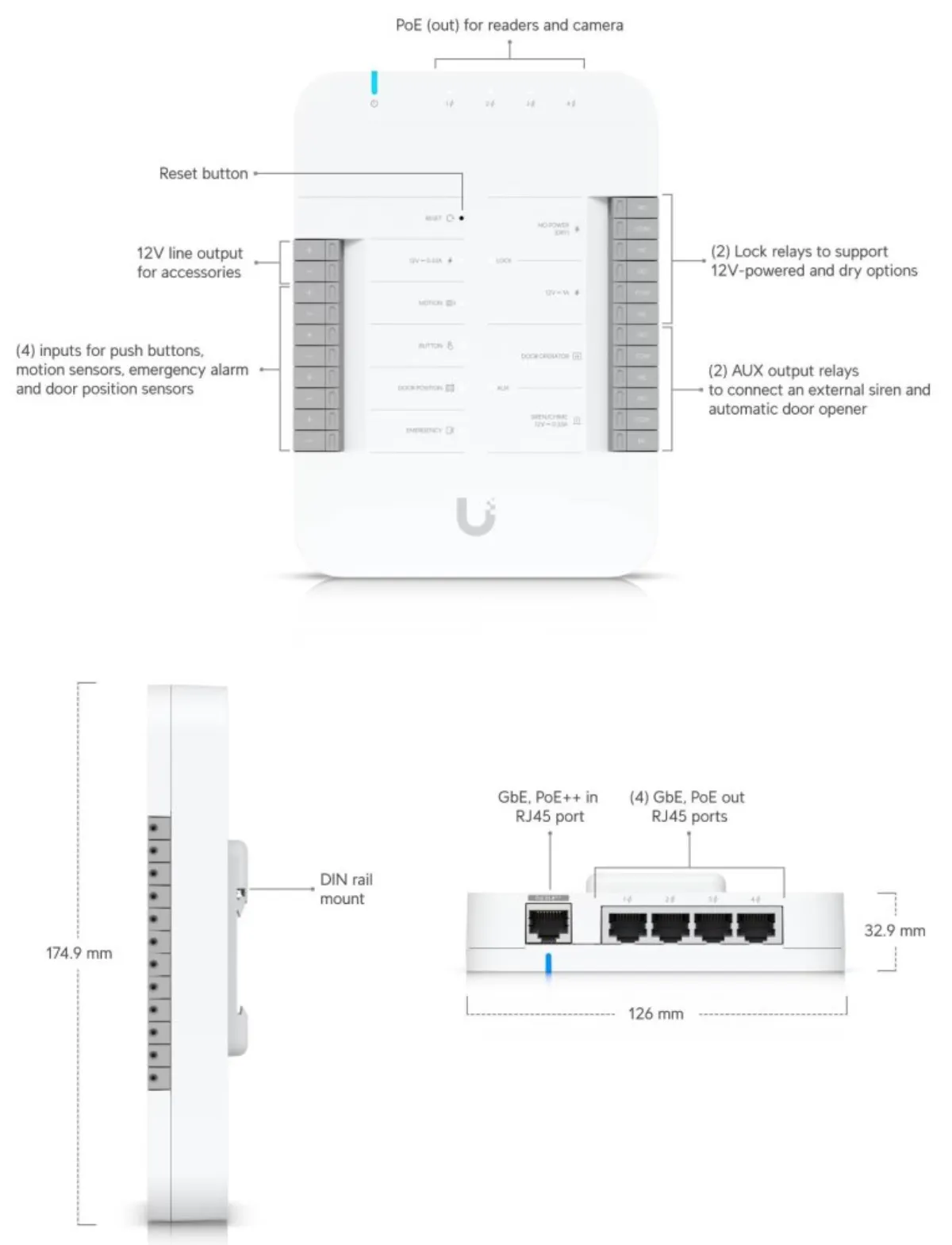

Interface

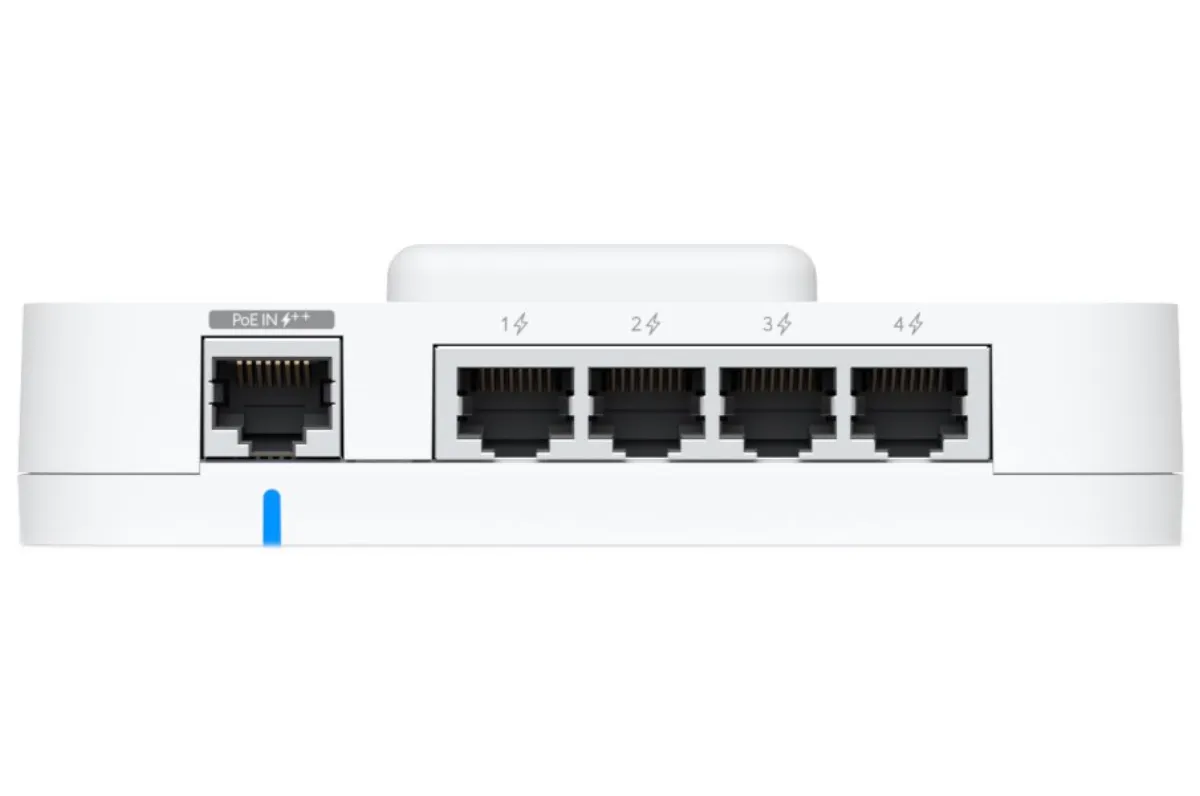

• 5× GbE RJ-45
• 2× Lock output
• 2× AUX output
• 4× Digital input (for sensors and buttons)
• 1× DC 12 V/ 0.33A output

Power

• PoE++ 802.3bt
• Max. power consumption 50 W

Weight: 363 g

Dimensions: 174.9 × 126 × 32.9 mm

PoE cabling requirements

Category 5e cable is the minimum recommended performance category. The performance category used should match the transmission speed required at the installation site. The minimum wire cross-section allowed for the connection between the PSE or power injector and the PD must be 26 AWG (0.13 mm2) for patch cables; 24 AWG (0.21 mm2) for horizontal or riser cable.
