Ubiquiti UniFi Access Gate Access Starter Kit - Set 1x intercom 1x hub 1x PoE++ adapter 2x PoE extender

Ubiquiti UniFi Access Gate Access Starter Kit

The UniFi Access Gate Access Starter Kit allows you to control the entrance (e.g. gate, barrier or gate) using a connected intercom. In addition to communication (video + audio) and manual remote opening, it supports authorization using NFC cards and identification chips, PIN code, QR code and the UniFi Identity mobile application. When paired with a compatible Protect AI camera (not included), you can also use the License Plate Unlock feature, which authorizes access based on license plates with permission to enter.

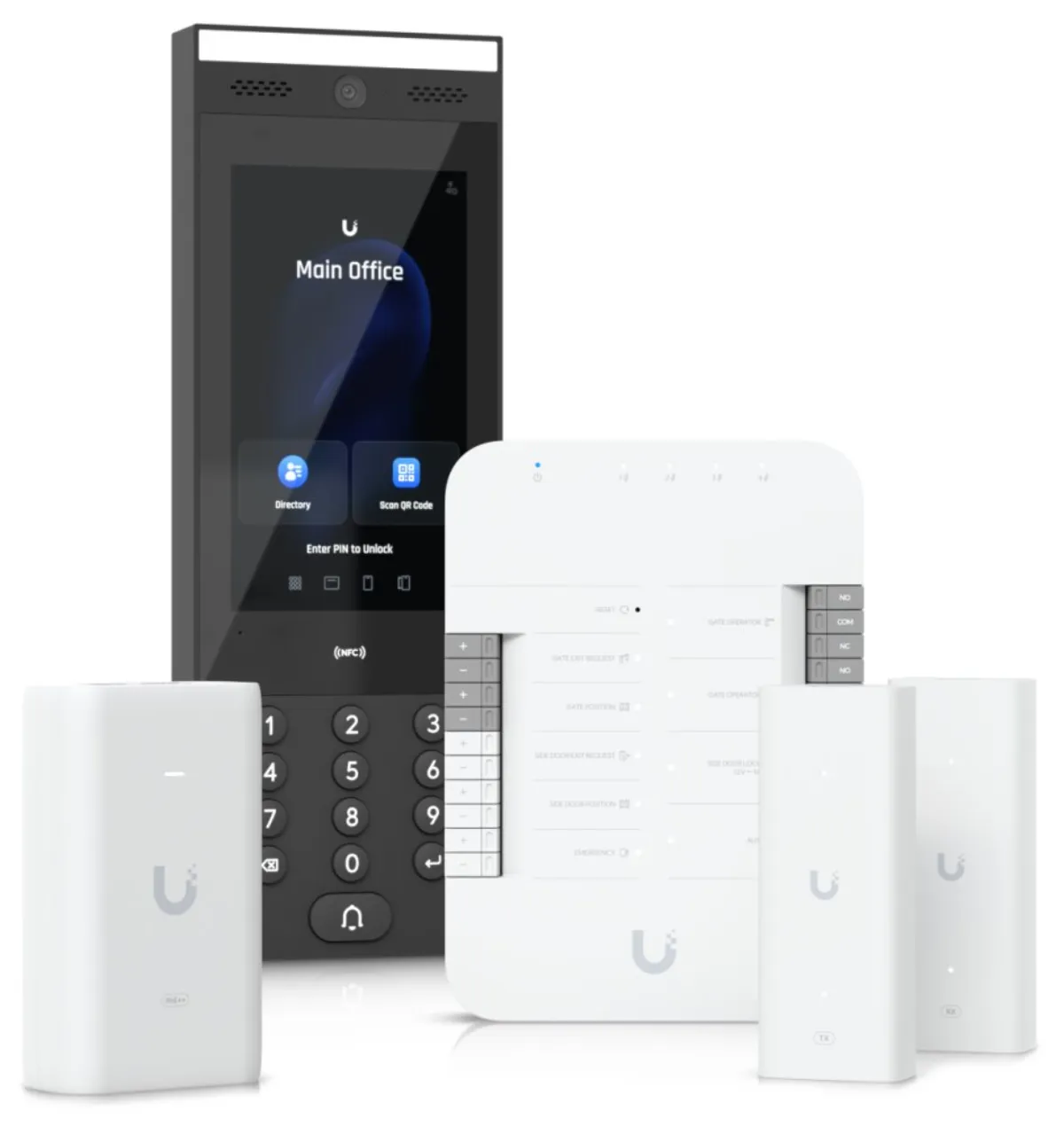

The set includes: 1× intercom (UA-Intercom), 1× hub/controller (UA-Hub-Gate), 1× PoE++ adapter (U-PoE++), 2× two-wire PoE extenders (UACC-Extender-2Wire-PoE-Tx /Rx).

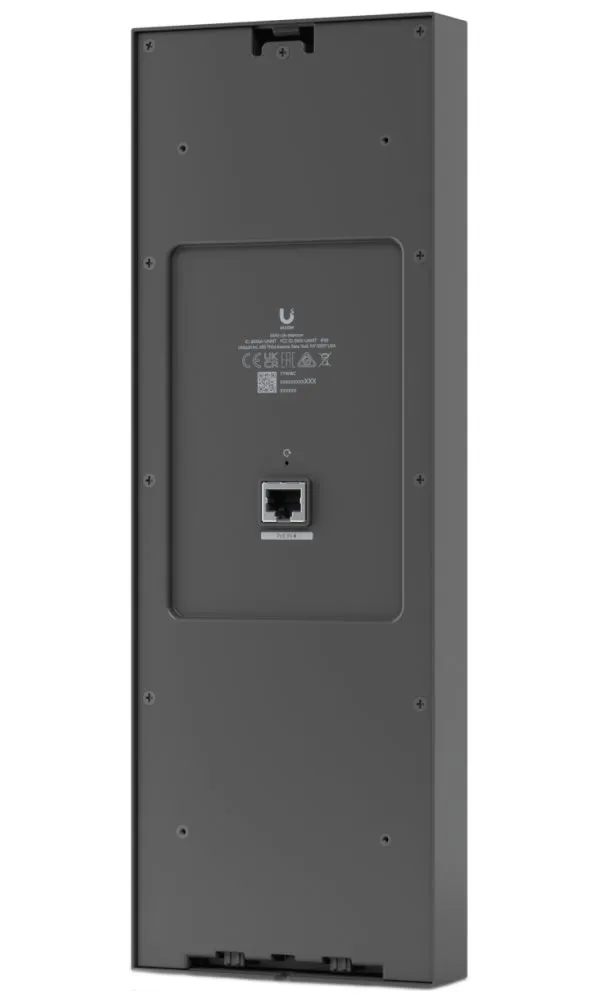

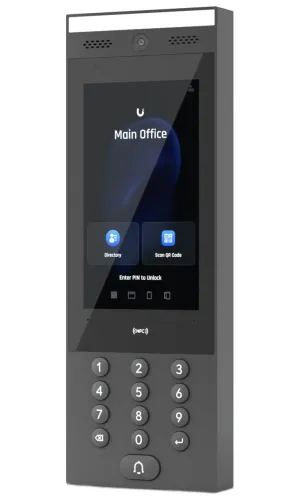

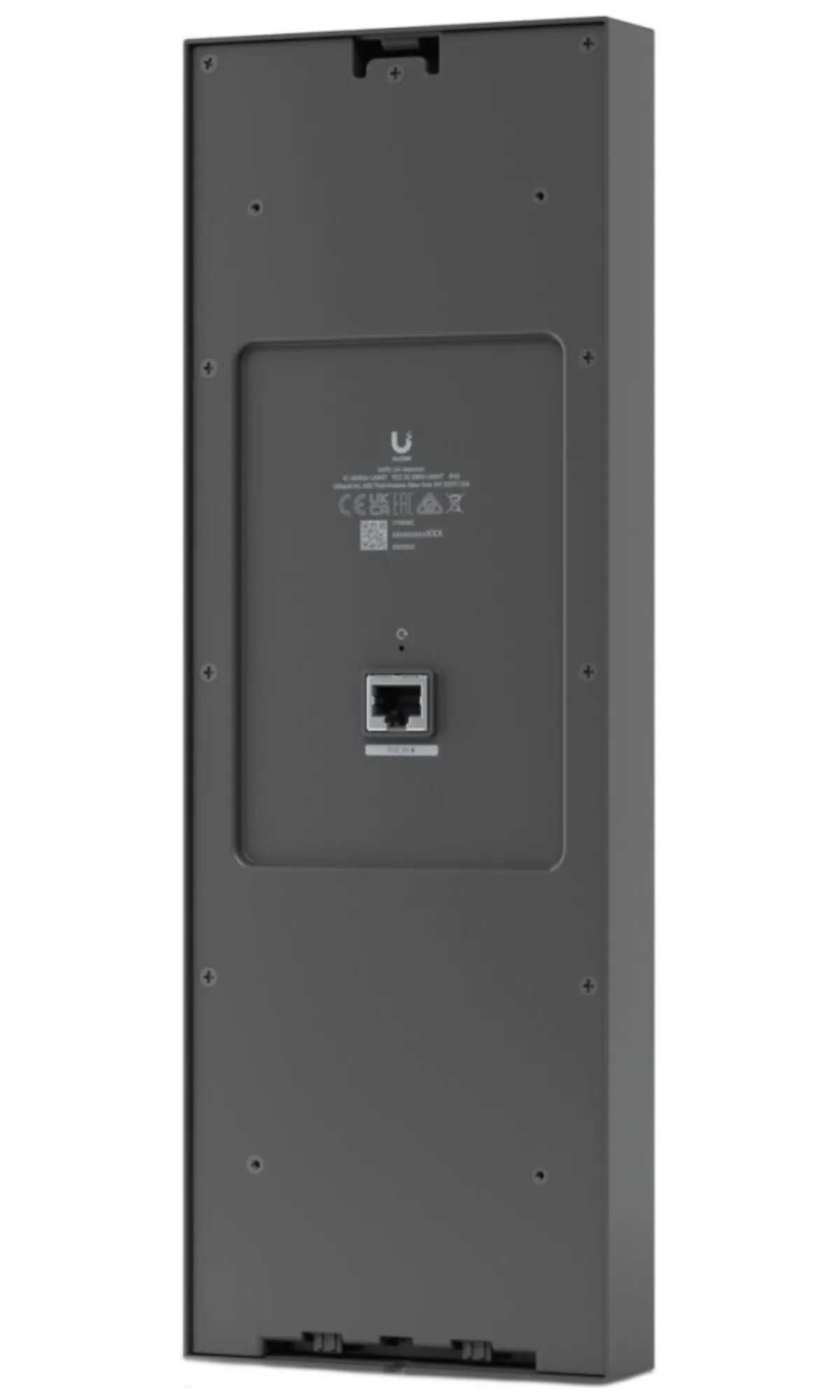

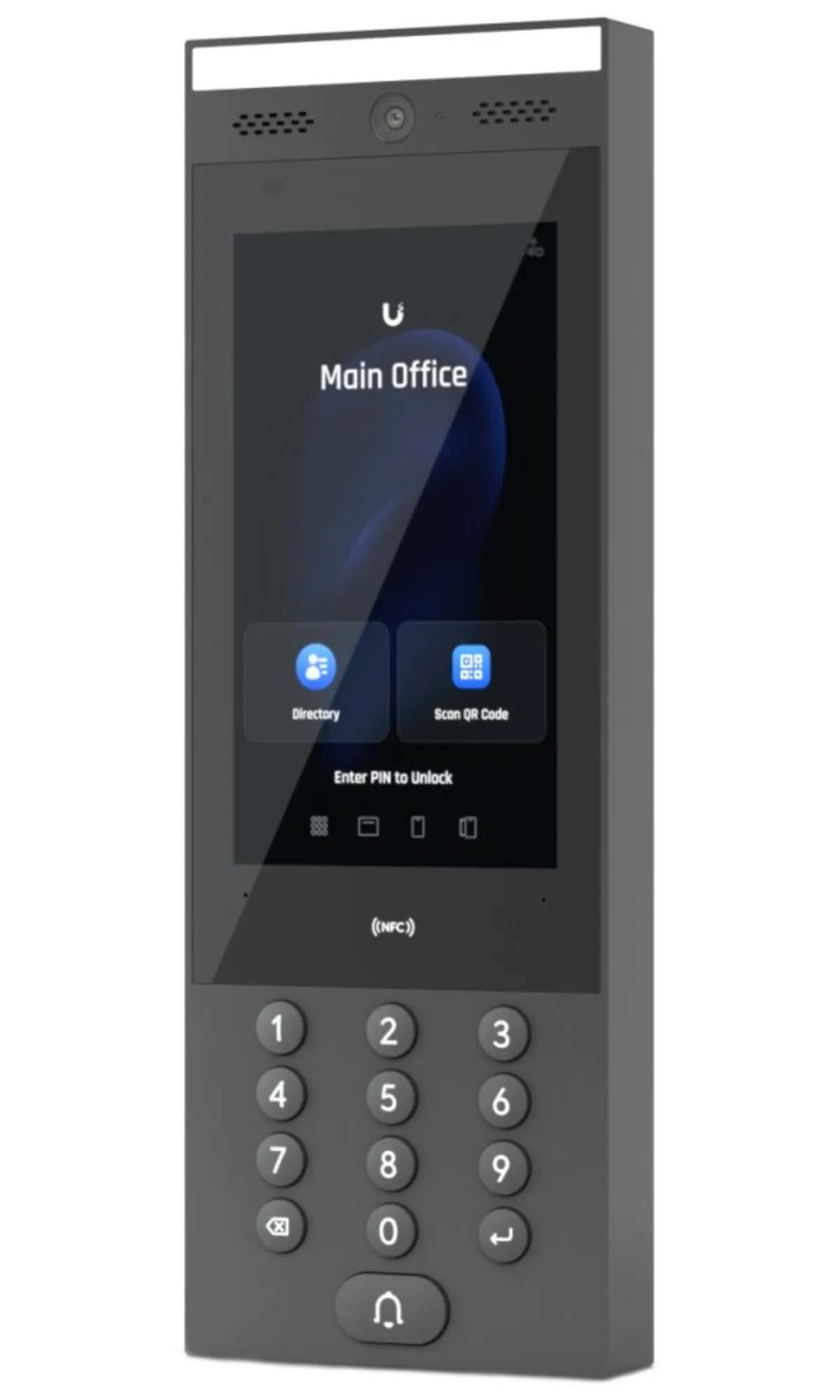

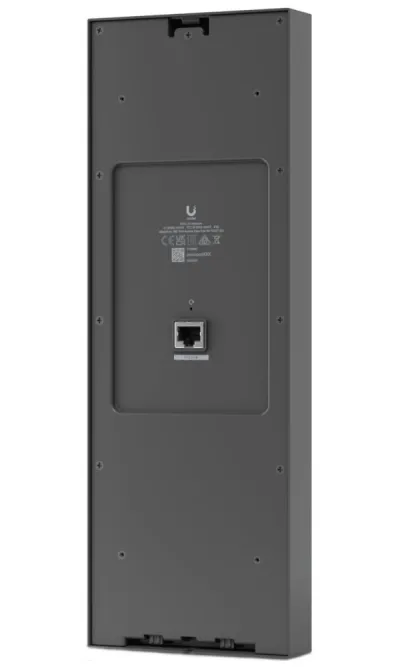

Intercom - Ubiquiti UniFi Access Intercom (UA-Intercom)

• 1× 10/100/1000 Mbps RJ-45
• Bluetooth 4.2
• NFC (13.56 MHz
• Mifare)

Camera

• 8 Mpx
• 3264 × 2448
• LED backlight
• angle of engagement 79.4° horizontally
• 97.5° vertically
• 118.2° diagonally

Display

• yes
• 7" touchscreen
• colorful
• 1024 × 600 px

Keyboard

• yes
• backlit

ID card reader

• yes
• Mifare (13.56 MHz)

Standards

• ISO 14443A
• 14443B
• 15693

Technology

• NFC Tag 1, 2, 3, 4, 5
• MIFARE Classic
• MIFARE Plus
• MIFARE Ultralight
• MIFARE DESFire Power supply: PoE (DC 48 V)

Consumption: up to 13 W

Coverage: waterproof according to IP65

Mounting: directly on the wall

Operating temperature: -30 to +60 °C

Weight: 965 g

Dimensions: 324.8 x 113.7 x 28.3 mm

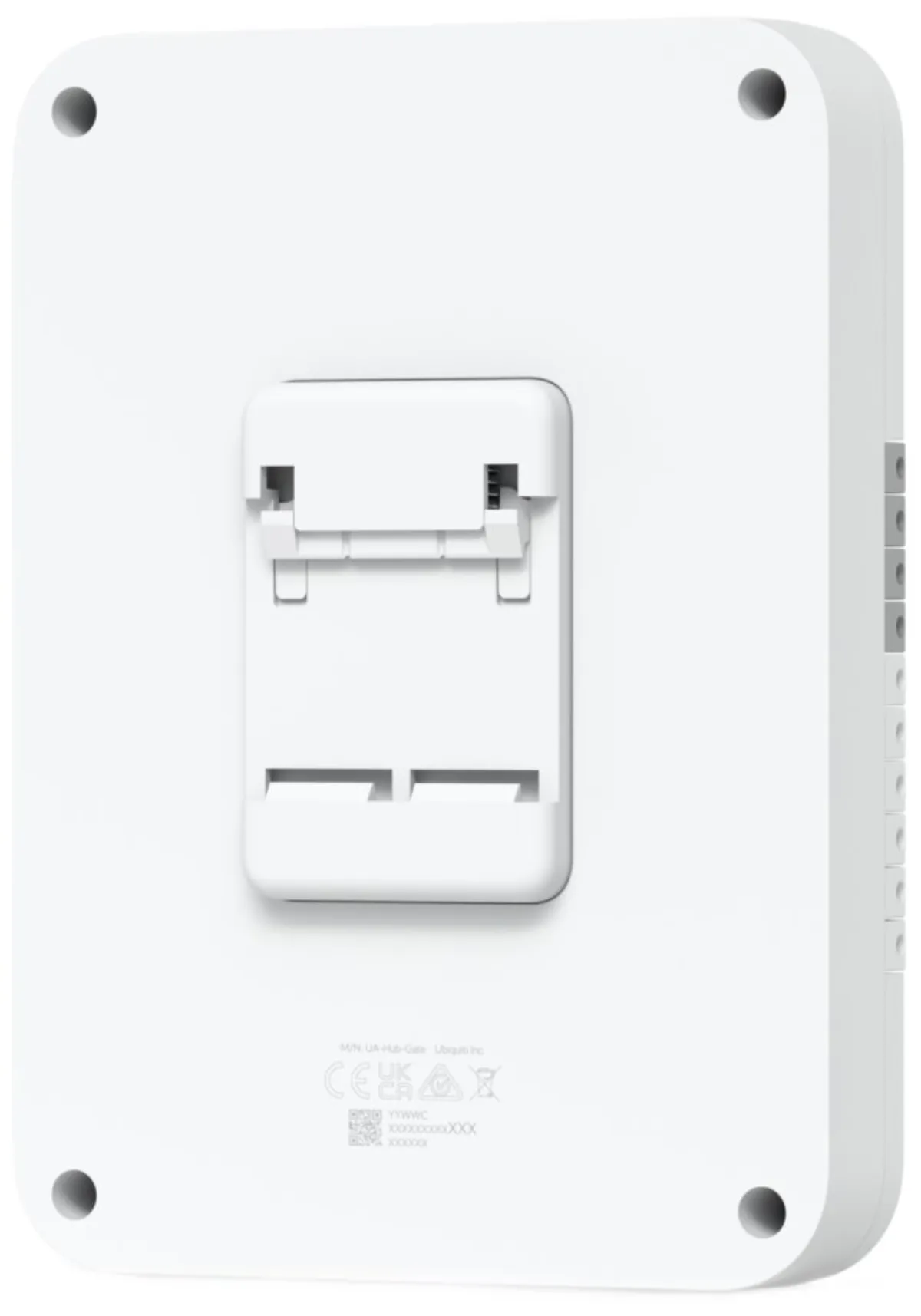

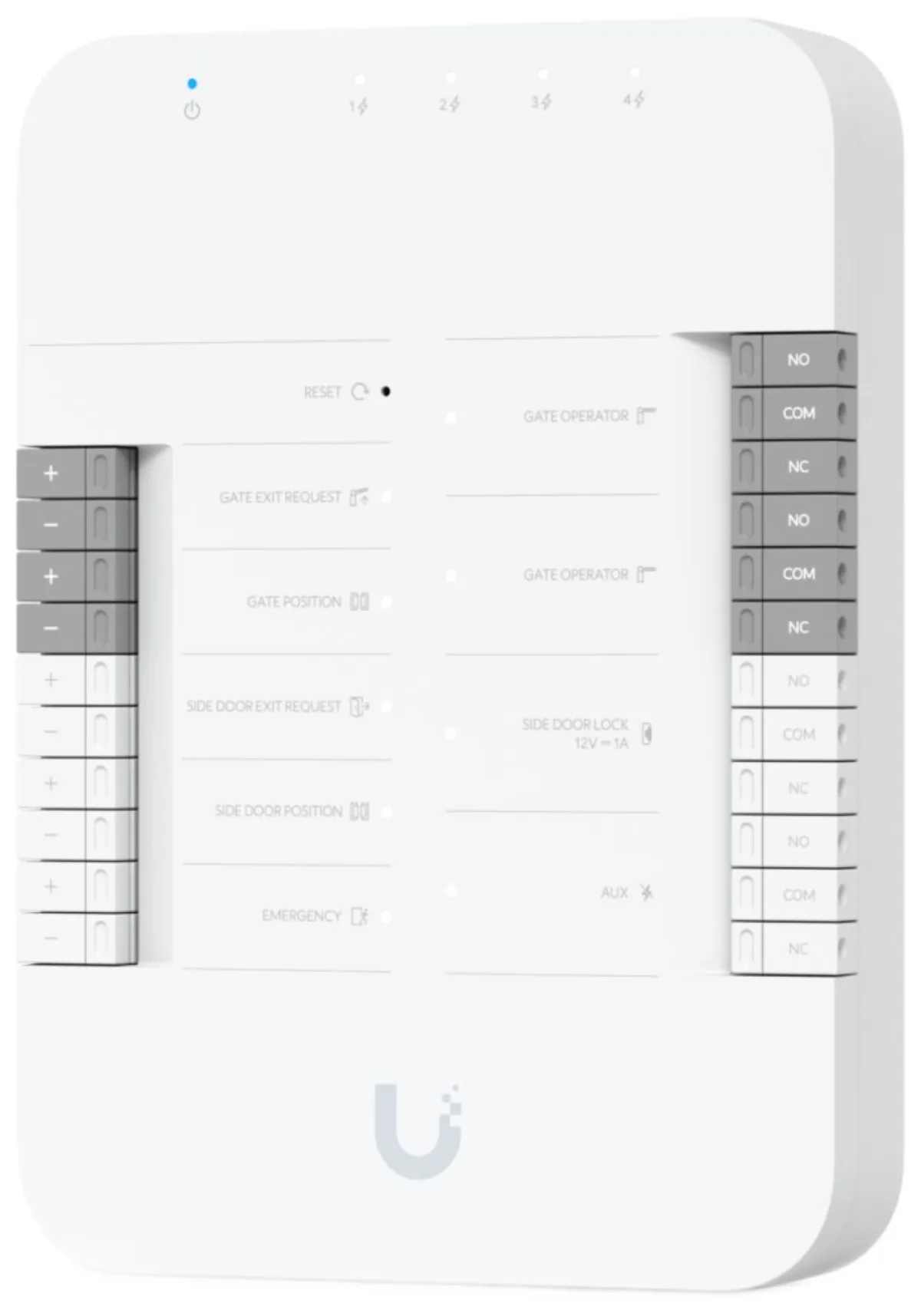

Hub/Controller - Ubiquiti UniFi Access Gate Hub (UA-Hub-Gate)

Mounting: DIN

• 1x reset button
• 1x input for gate opening request
• 1x input for gate position
• 1x input for the request to open the side door
• 1x input for side door position
• 1x emergency input
• 5× 10/100/1000 Mbps RJ-45 (4× PoE output for readers and cameras)
• 2x output relay for the gate controller (potential-free contact)
• 1x AUX output relay for connecting an external siren
• 1x output relay for side door lock (powered by 12 V)

Power supply

• PoE++ 802.3bt
• max. power consumption 50 W

Operating temperature: -30 to +60 °C

Weight: 460 g

Dimensions: 175 x 126 x 26 mm

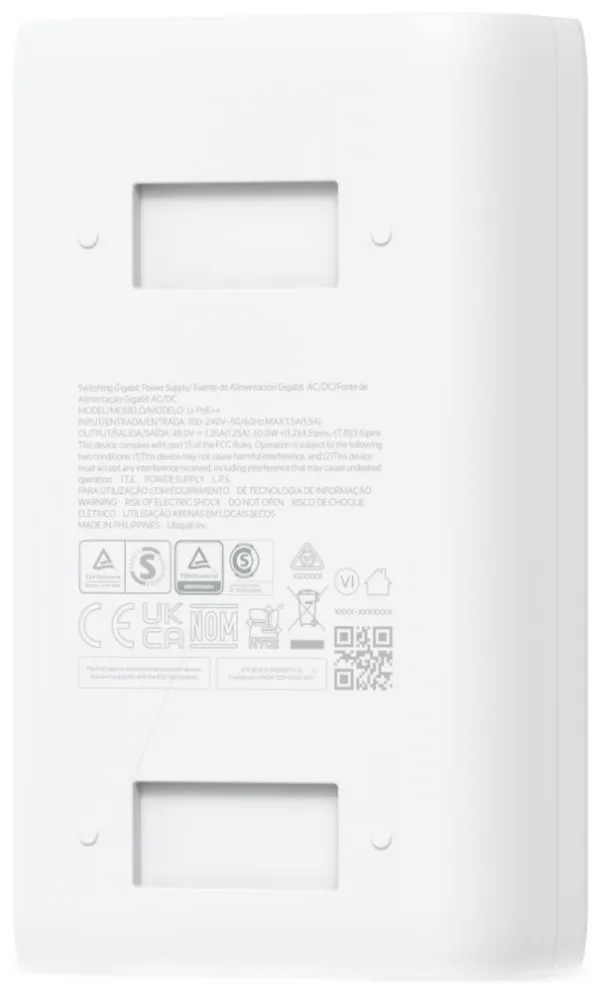

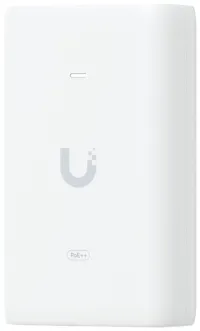

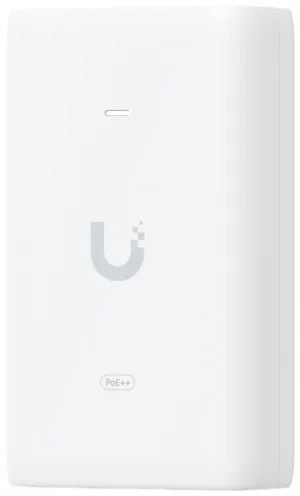

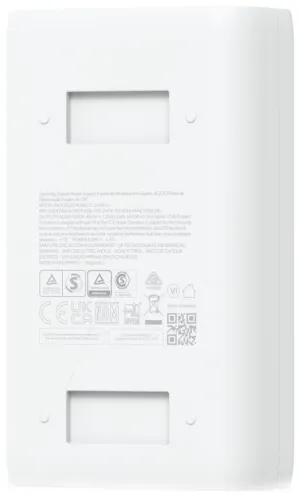

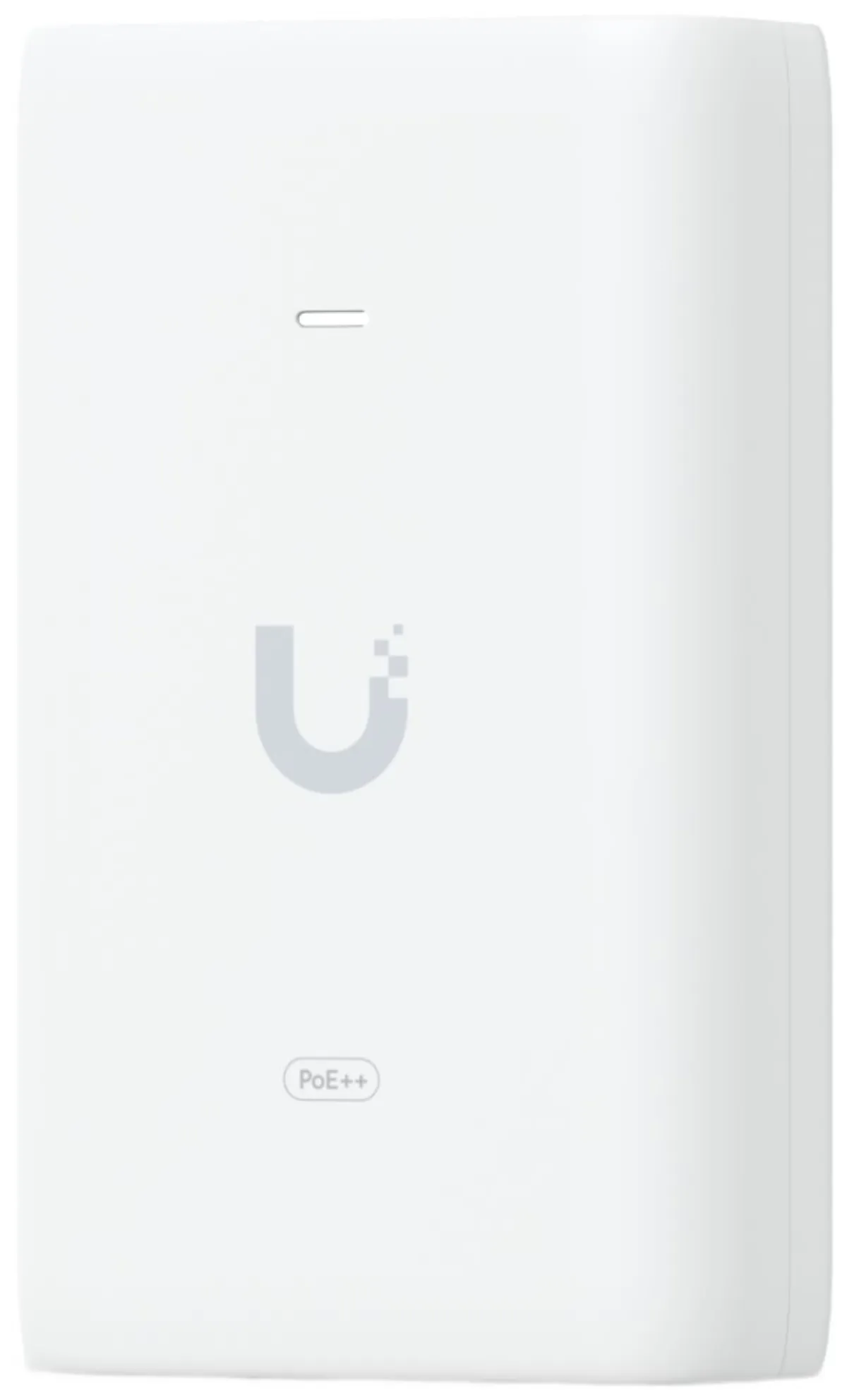

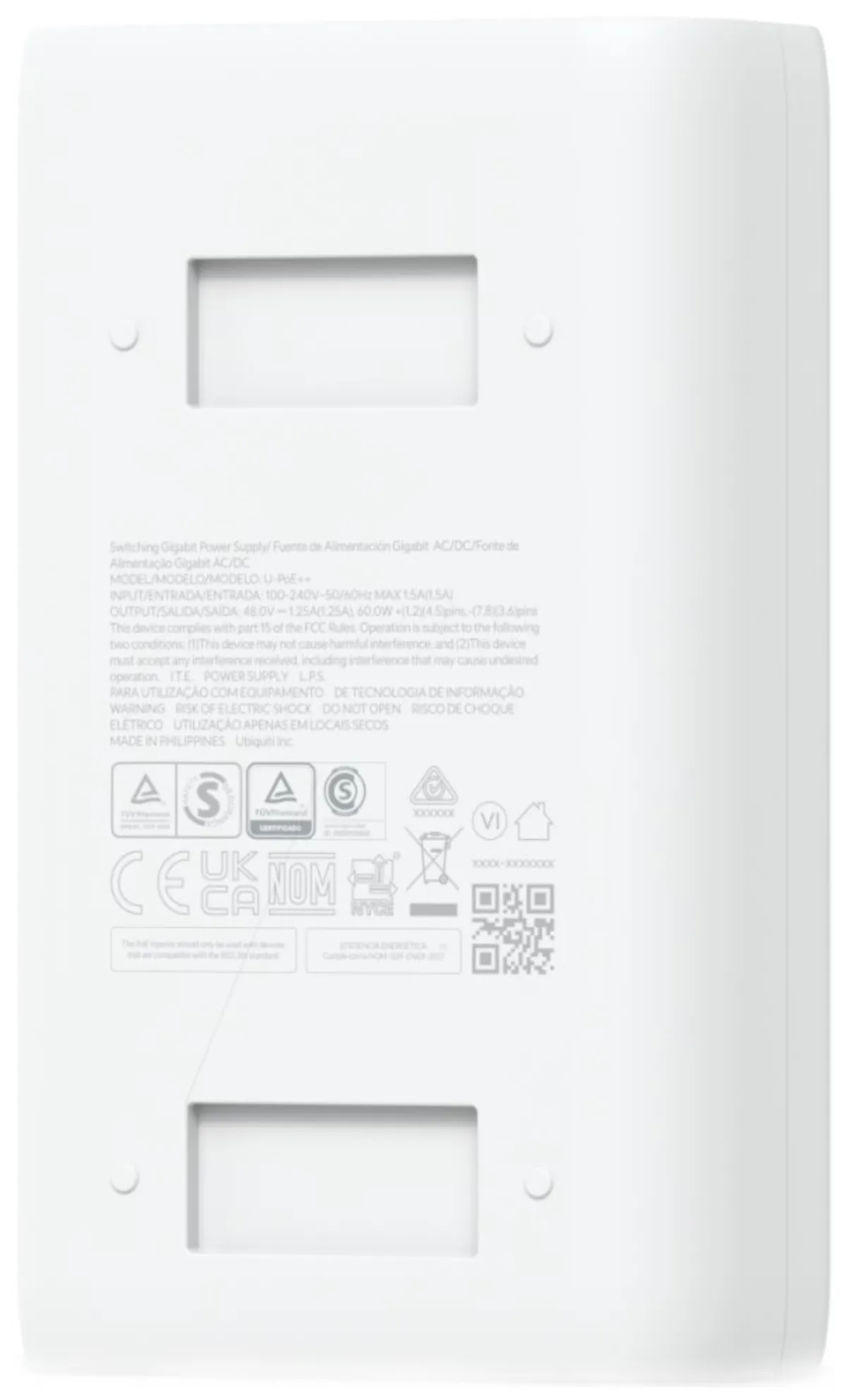

PoE++ adapter - Ubiquiti UniFi PoE++ Adapter (U-PoE++)

Power: 60 W

Output voltage and current

• PoE++ 802.3bt
• 48 V DC (max. 1.25 A)

Power supply: AC 100-240 V (50/60 Hz)

Interface: 2× 10/100/1000 Mbps RJ-45

Operating temperature: 0 to +40 °C

Weight: 210 g

Dimensions: 106 x 63 x 34 mm

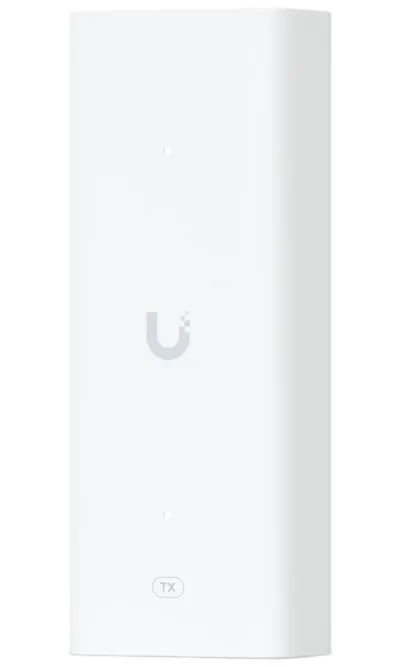

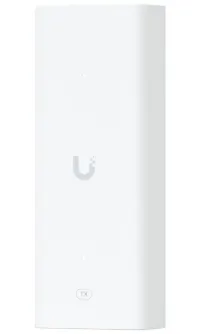

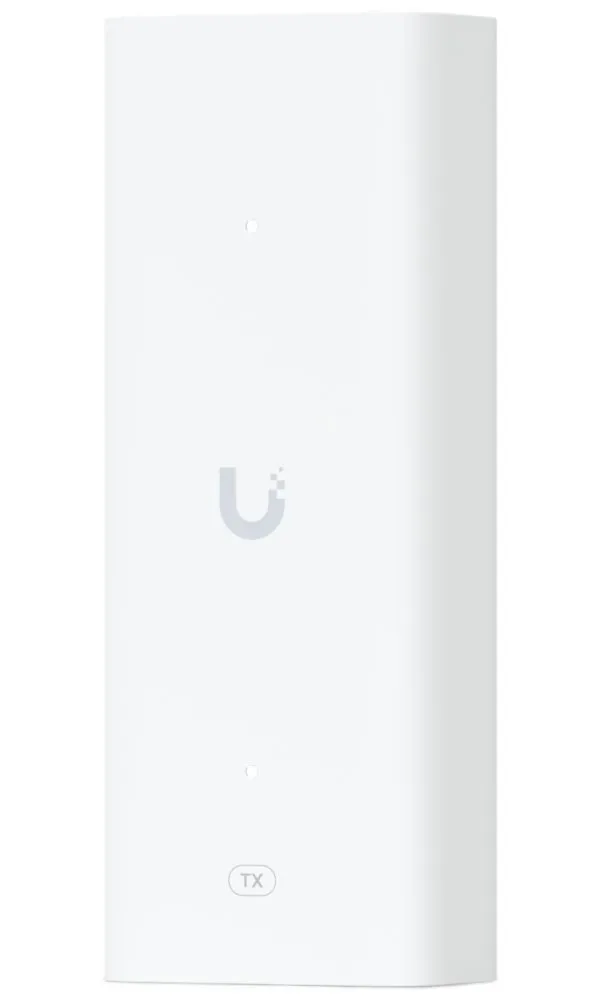

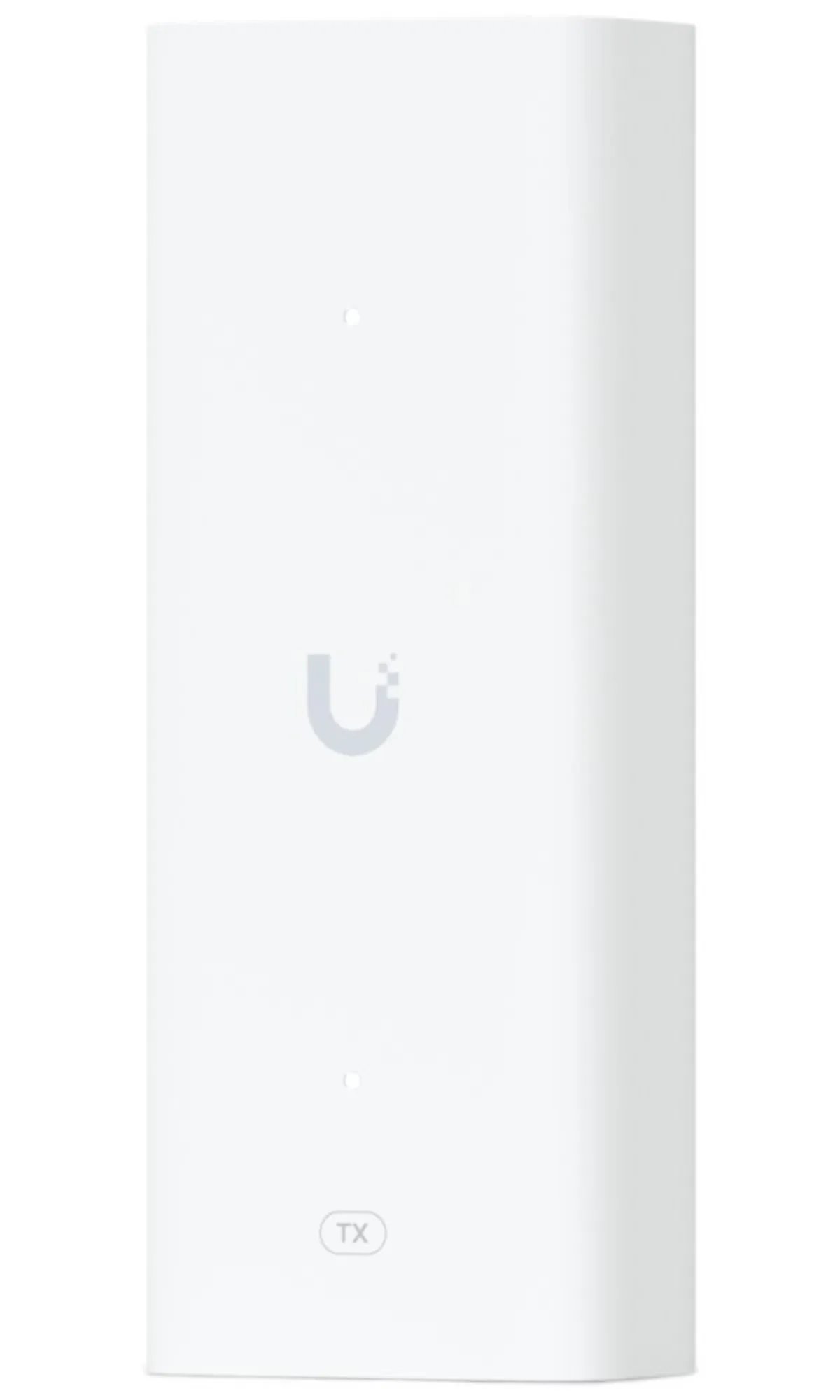

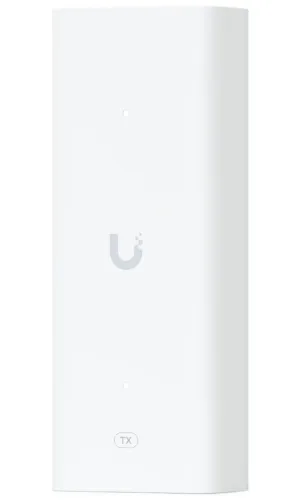

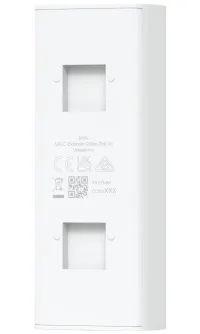

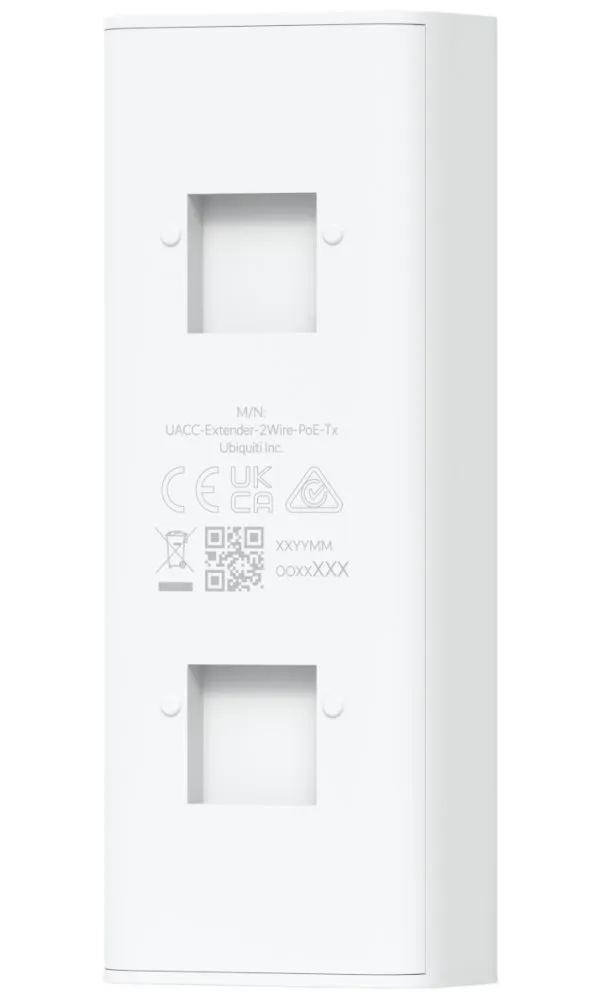

PoE extender - UACC-Extender-2Wire-PoE-Tx/Rx (PoE input)

• 1× 2-wire
• 1× 10/100 Mbps RJ-45

ESD/EMP protection of the extender

• by air ±8 kV
• contact ±4 kV

PoE input

• 1x PoE++
• DC 50V
• max. 1.2 A

LED indication

• yes
• white

Working temperature: -10 to +40 °C

Weight: 77 g

Dimensions: 105 x 40 x 25 mm

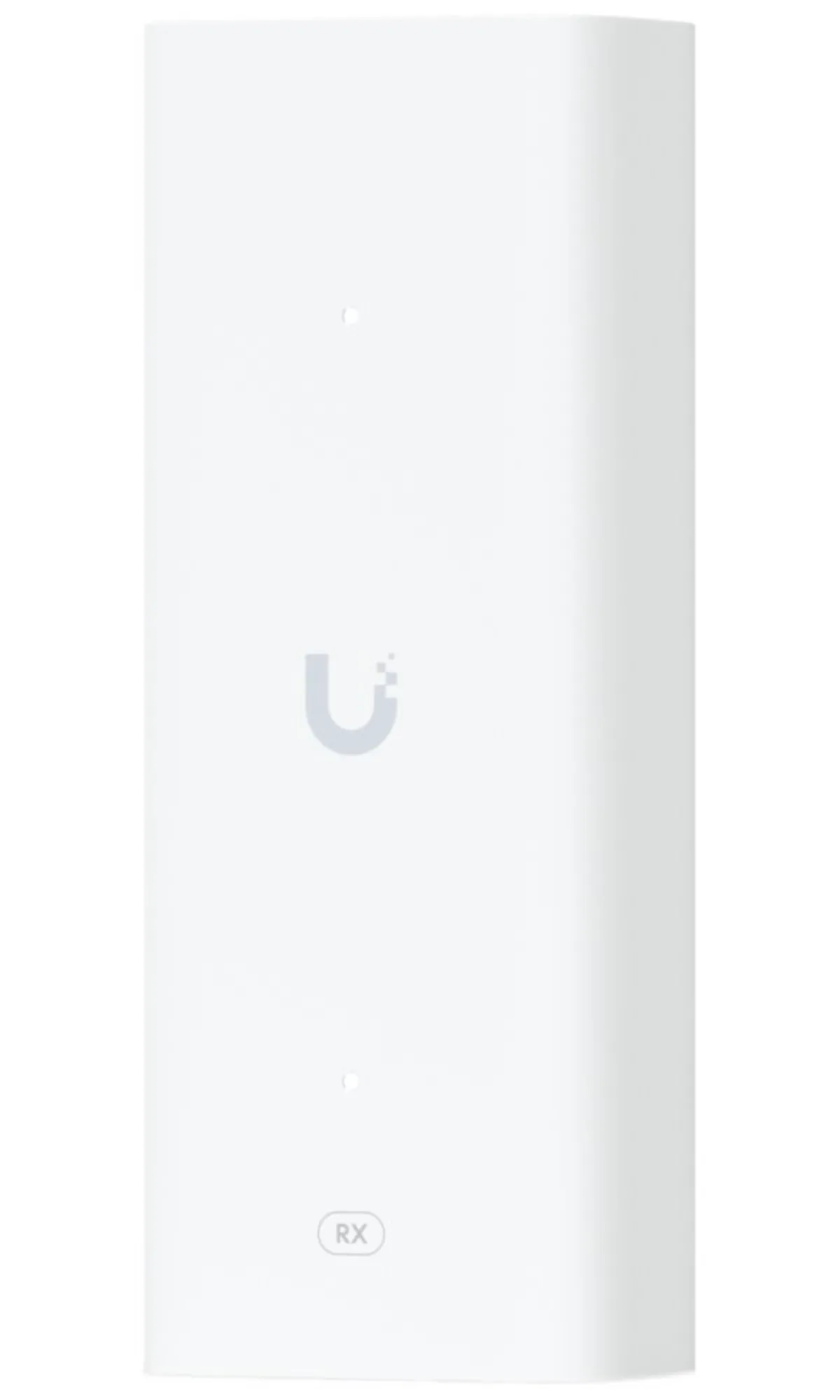

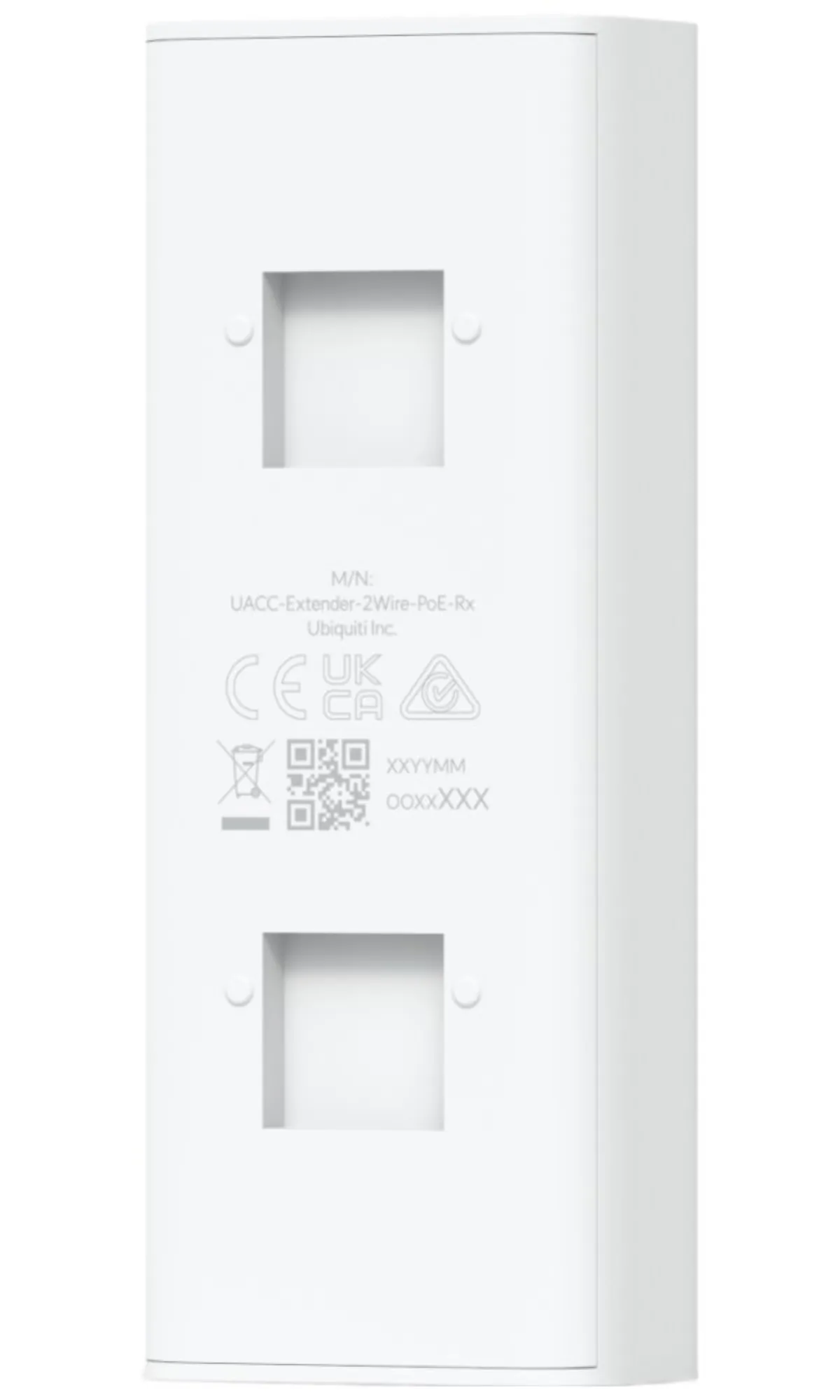

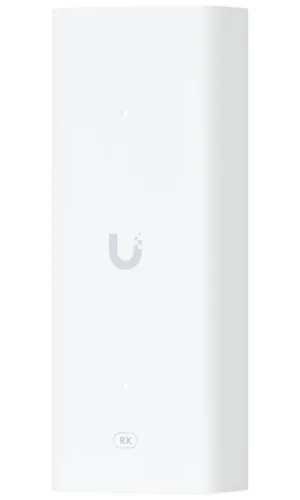

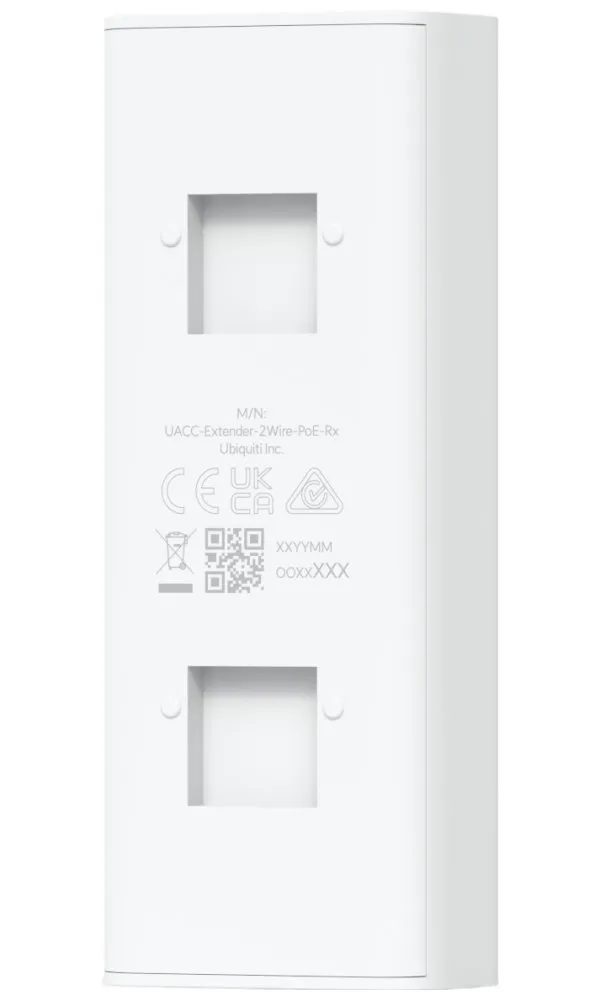

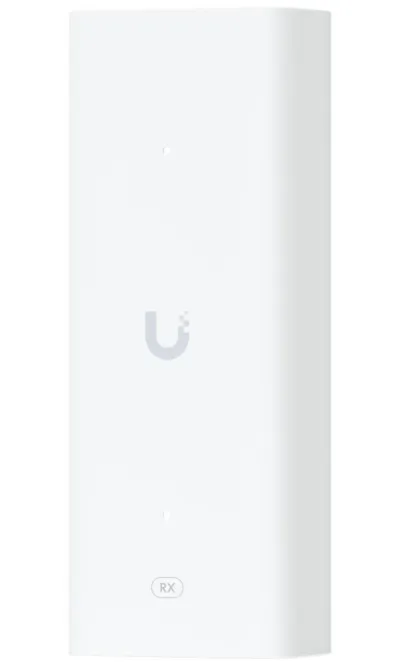

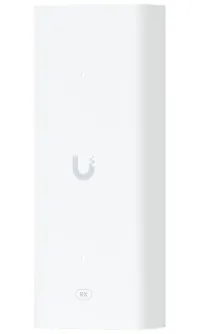

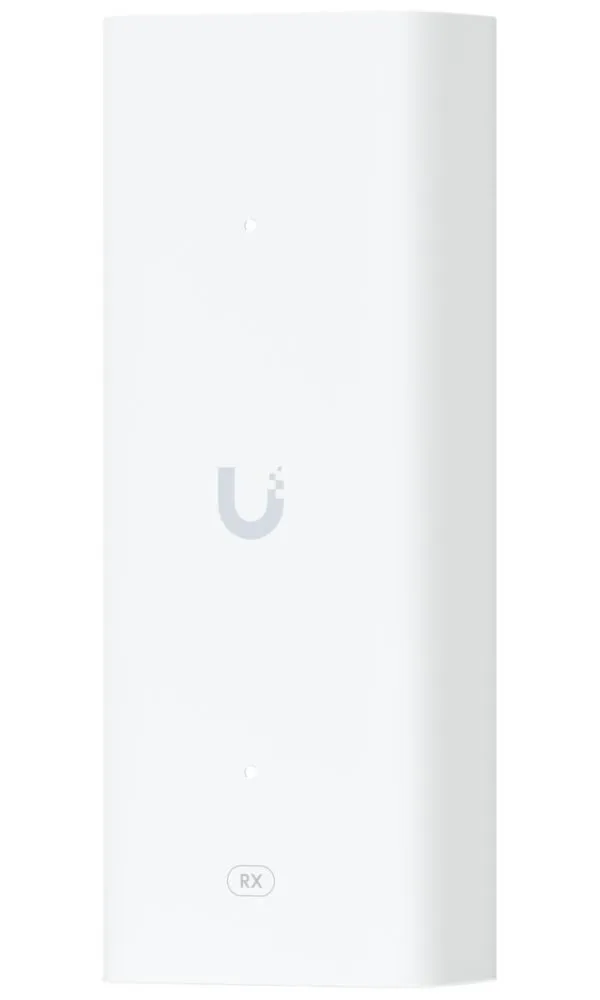

PoE extender - UACC-Extender-2Wire-PoE-Tx/Rx (PoE output)

• 1× 2-wire
• 1× 10/100 Mbps RJ-45

ESD/EMP protection

• by air ±8 kV
• contact ±4 kV

PoE output

• 1× PoE+
• DC 48 V
• 0.72A

LED indication: white

Working temperature: -10 to +40 °C

Weight: 79 g

Dimensions: 105 x 40 x 25 mm
