Ubiquiti UniFi U7 Pro Wall - Wi-Fi 7 AP 2.4 5 6GHz to 10.7 Gbps 1x 2.5GbE PoE+ (without PoE injector)
UBIQUITI | U7-Pro-Wall | 8592457265528
Out of stock.
Price of goods is 199.92 €.
Weight of goods is 0.77 Kg.
Actual in cart 0 pcs.

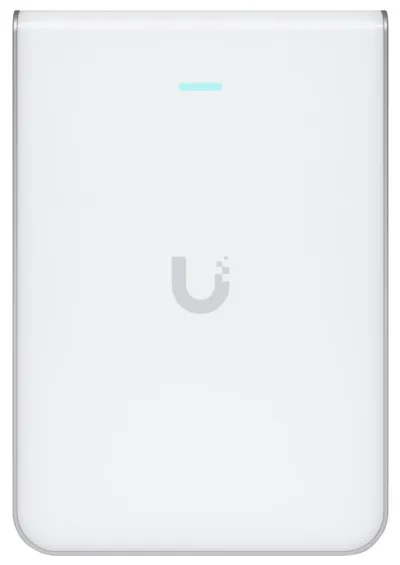

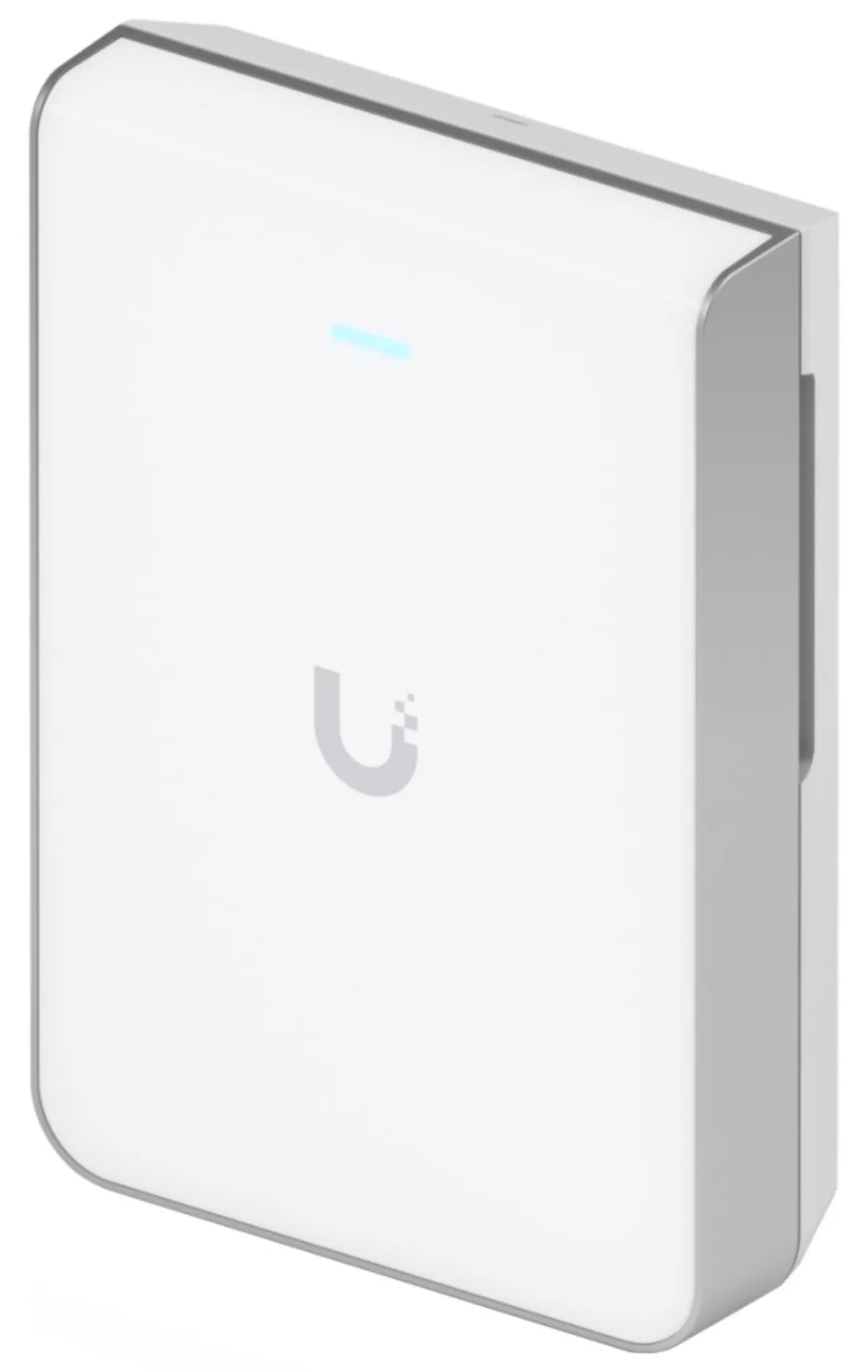

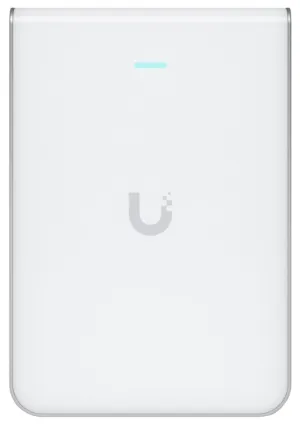

Ubiquiti UniFi U7 Pro Wall

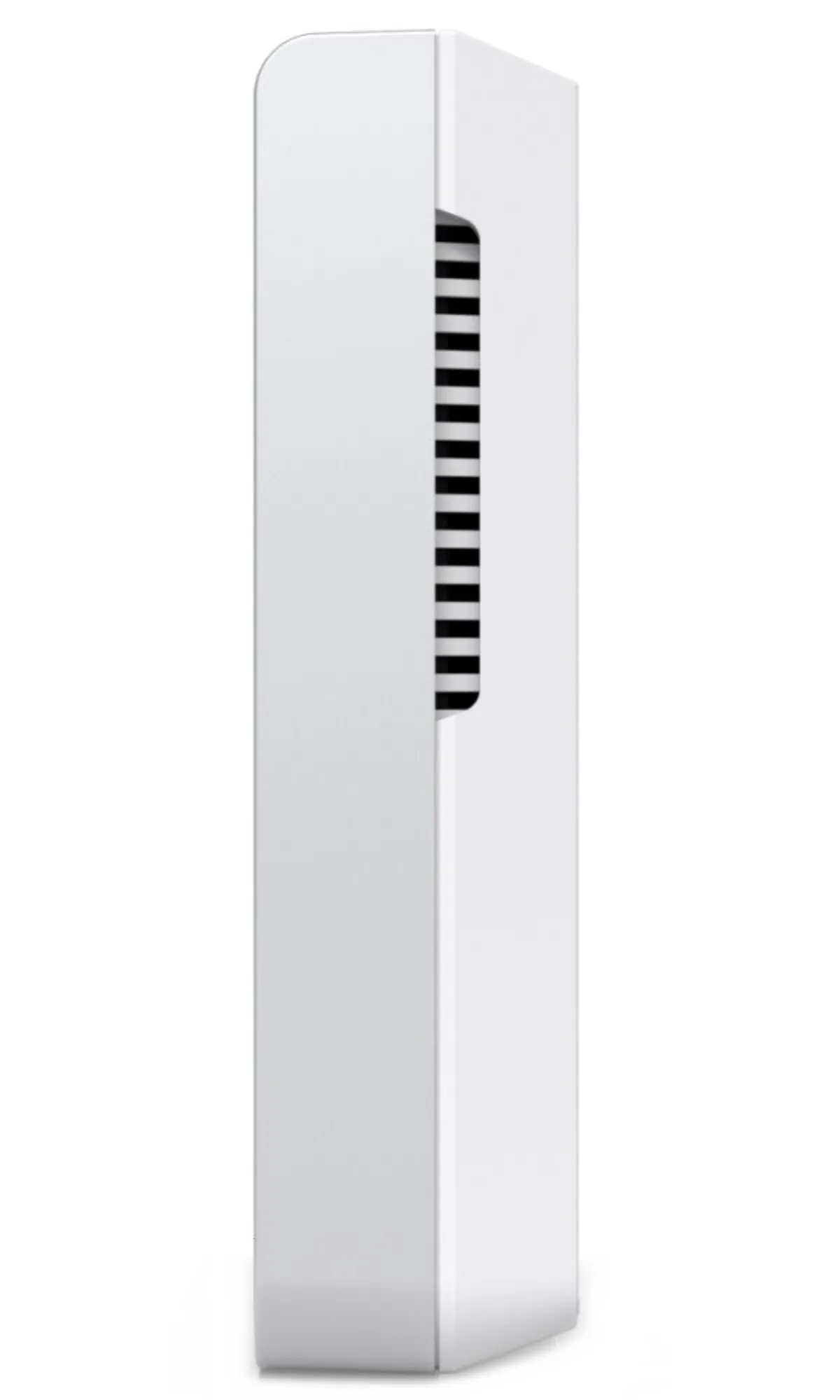

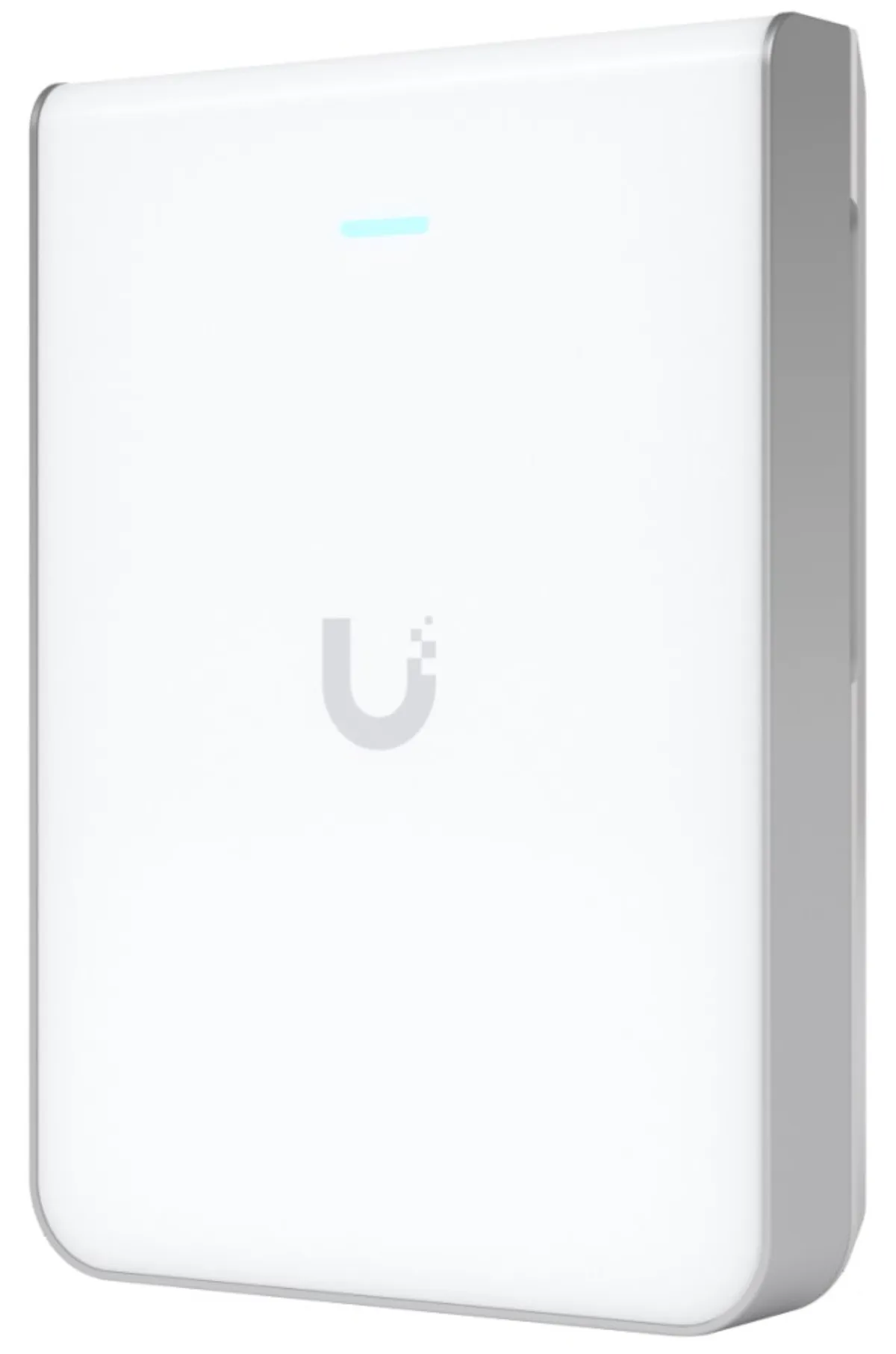

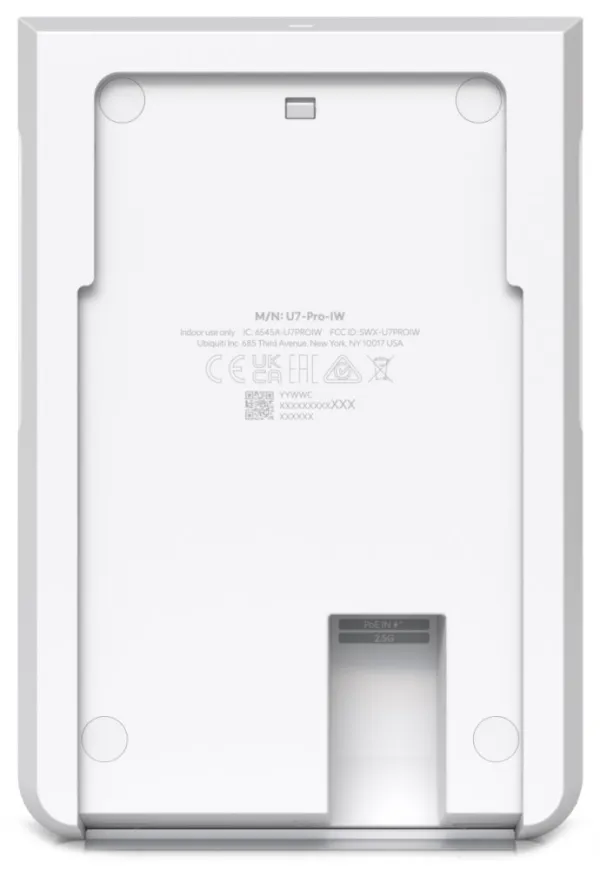

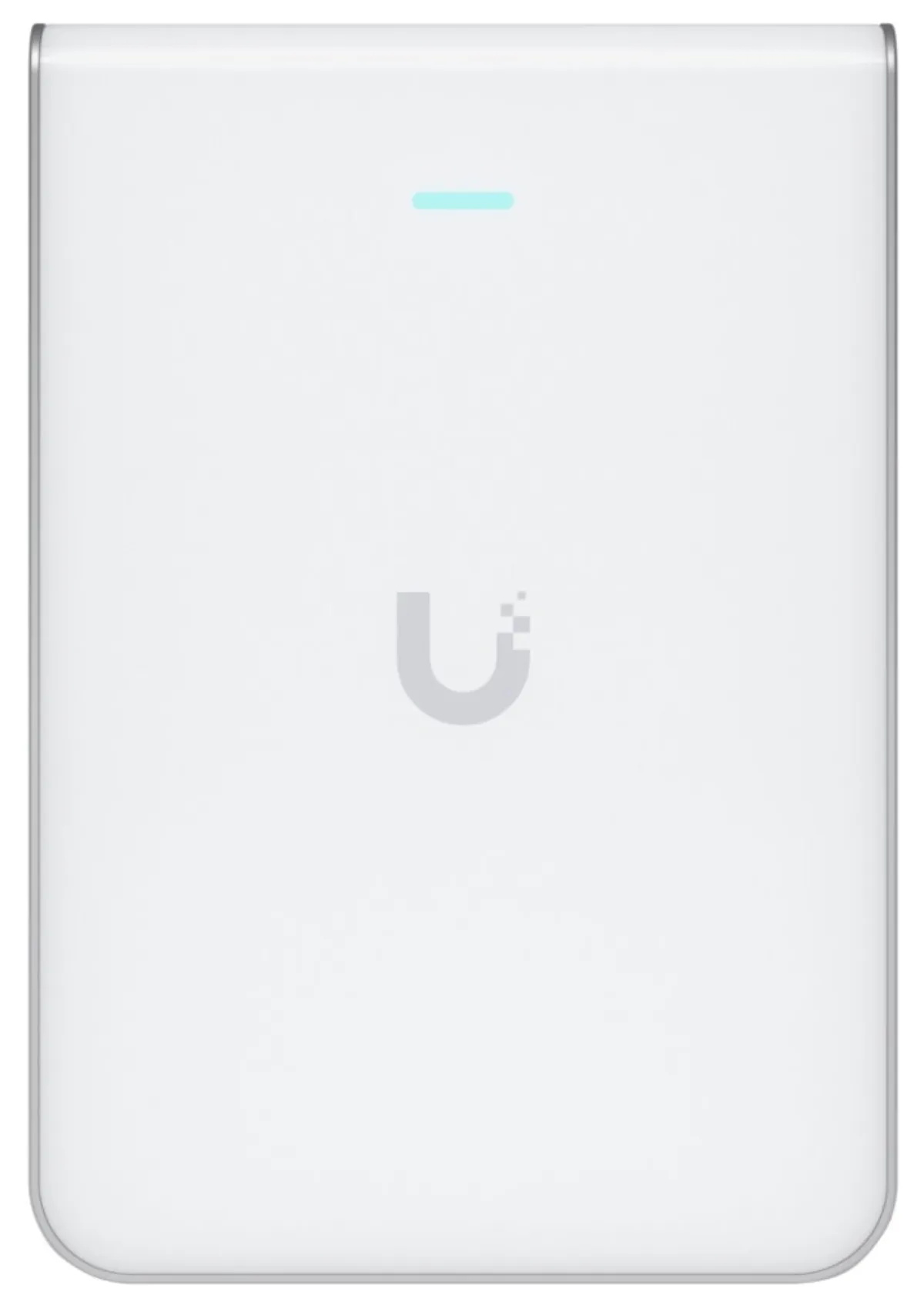

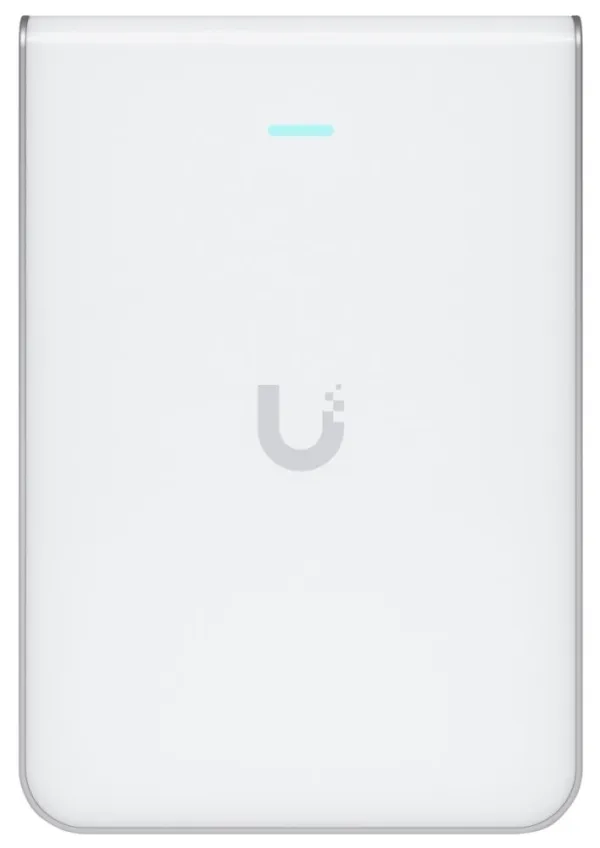

The Ubiquiti UniFi U7 Pro Wall unit is a Wi-Fi 7 AP with support for frequency bands 2.4, 5 and 6 GHz and a transmission speed of up to 5764 Mbps for 6 GHz, 4324 Mbps for 5 GHz and 688 Mbps for 2.4 GHz. The U7 Pro Wall model is characterized by a compact and elegant design with wall mounting (optionally under the plaster or on the table). Supports PoE+ power supply.
Your browser does not support HTML5 video.
UniFi U7 Pro Wall is a well-designed indoor hotspot solution using the 802.11a/b/g/n/ac/ax/be standard. It is equipped with a MIMO 2×2 antenna system in the form of integrated antennas with a gain of 4 dBi/ 5 dBi/ 6 dBi (2.4 GHz/ 5 GHz/ 6 GHz).
- Wi-Fi 7 with 6 GHz support
- 6 data streams
- Covering 140 m2
- WPA3 encryption
- More than 300 connected devices

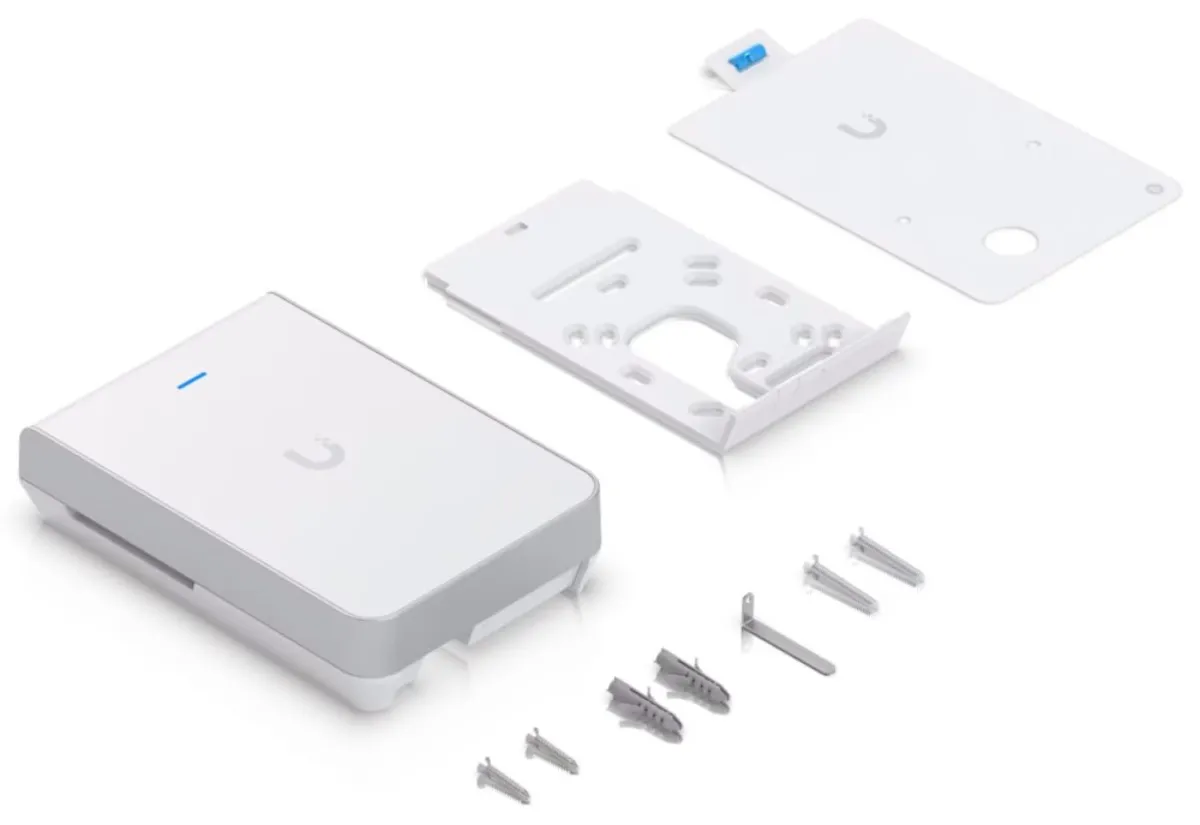

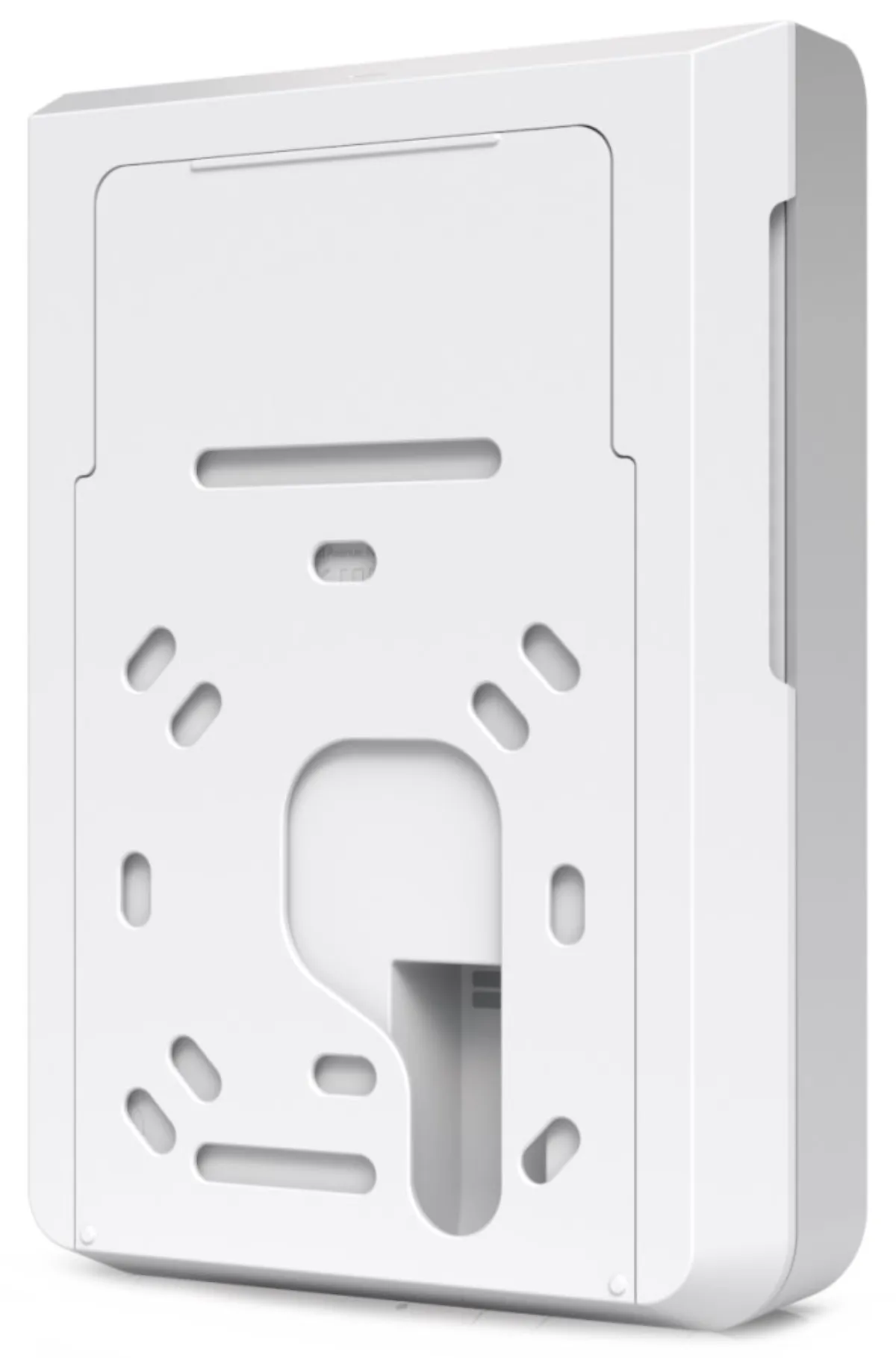

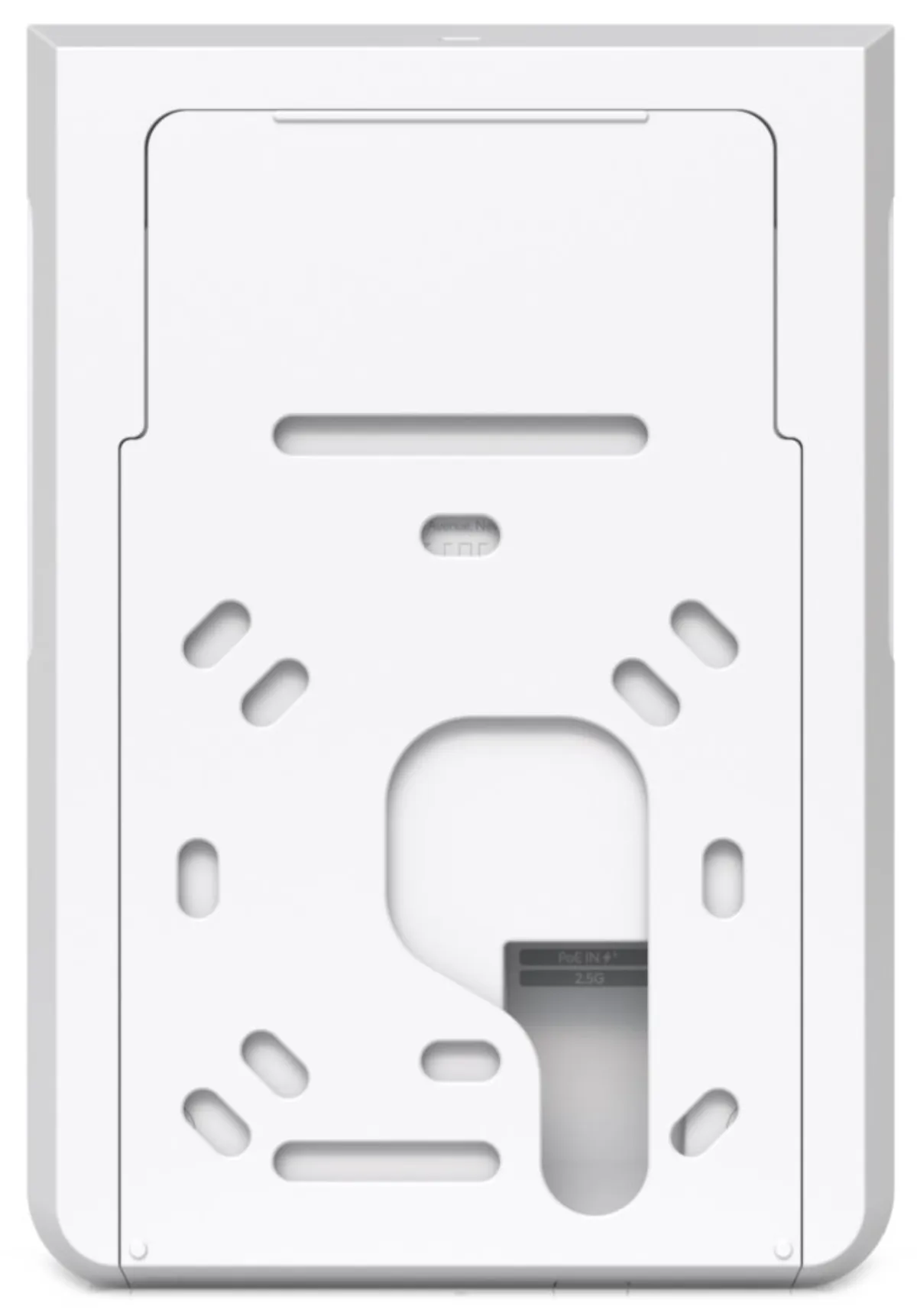

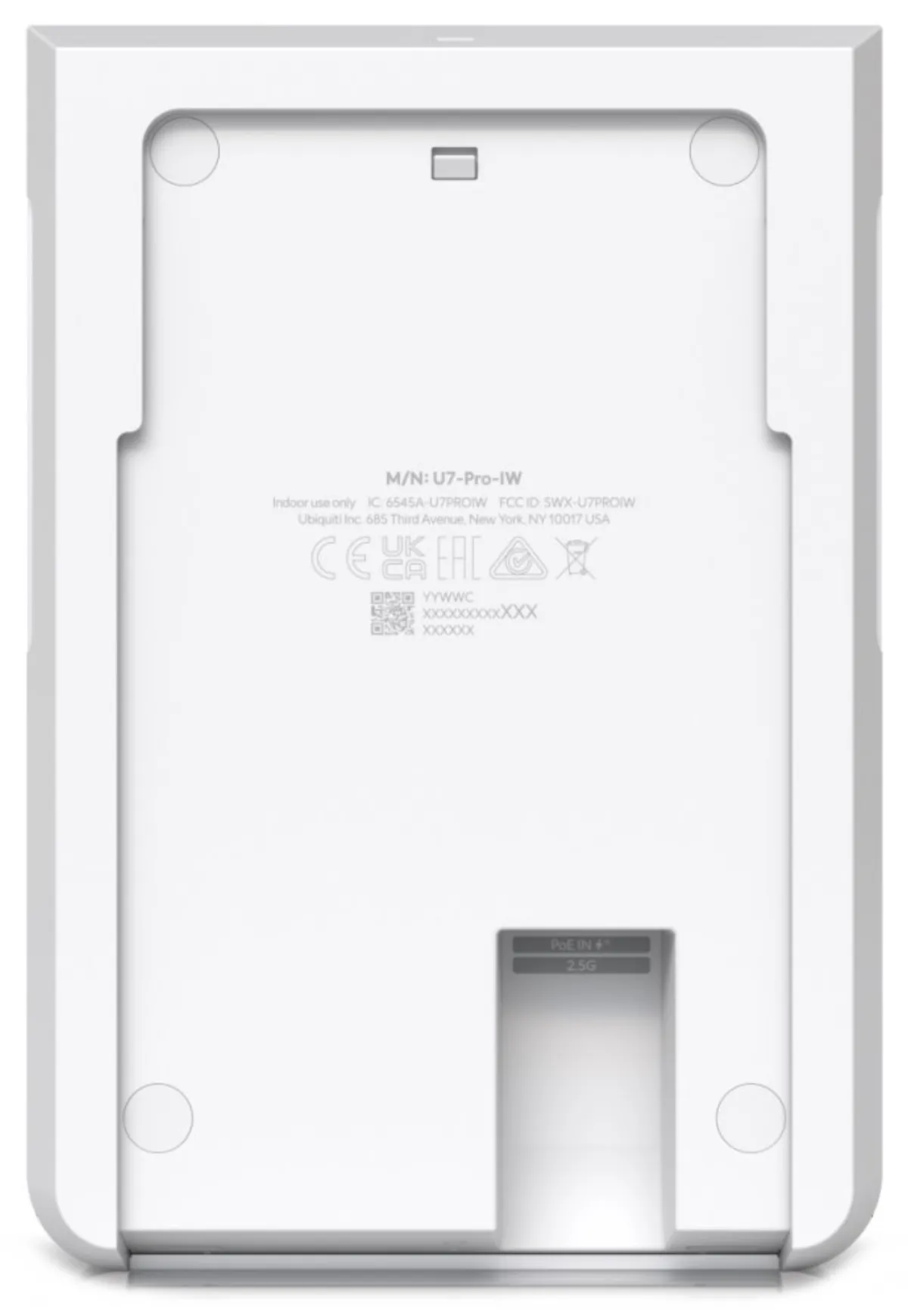

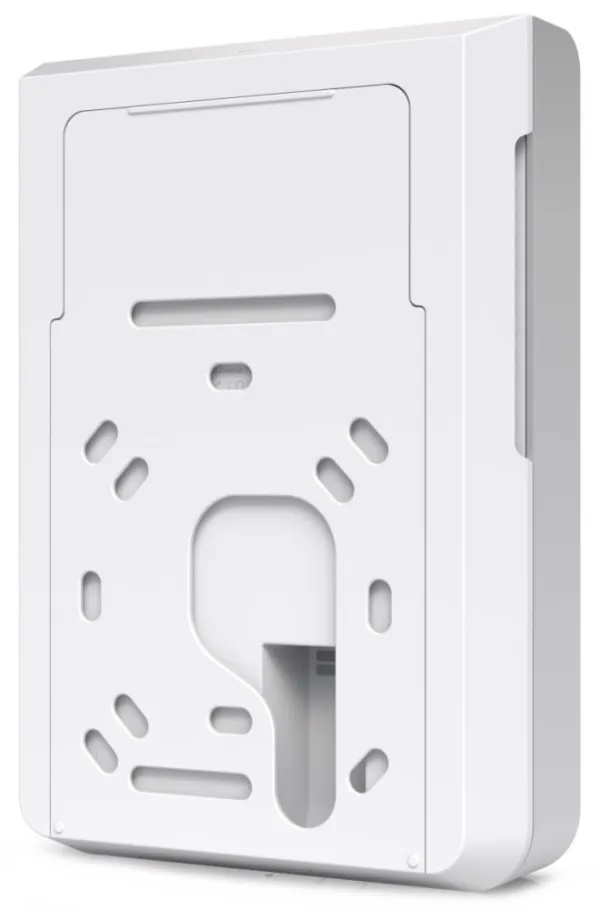

- Mounting on the wall (optionally under the plaster or on the table)
- Powered by PoE+ (802.3at)
- Operating temperature -30 to +60 °C
- Uplink 2.5 GbE
Management with the UniFi Network app: version 8.1 and later.
Standard: 802.11a/b/g/n/ac/ax/be
Antenna
- integrated 3-band antenna
- 4 dBi (2.4 GHz) + 5 dBi (5 GHz) + 6 dBi (6 GHz)
Operating frequency
- 2.4 GHz
- 5 GHz
- 6 GHz
Data transfer speed
- 688 Mbps (2.4 GHz)
- 4324 Mbps (5 GHz)
- 5764 Mbps (6 GHz)
PoE
- yes
- active PoE+ 802.3at
Ports: 1× 2.5 GbE RJ-45
Dimensions: 150 x 103 x 36 mm
Weight: 580 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 0,58 | |
| Dimension [mm] | 150 × 103 × 36 mm | |
| Maximum operating temperature [°C] | 60 | |
| Minimum operating temperature [°C] | -30 | |
| WPA security | Yes | |
| Transmission speed [Mbps] | 5764 (6GHz), 4324 (5GHz), 688 (2,4GHz) | |
| WEP security | No | |
| Max. output power [dBm] | 22 (2,4GHz), 26 (5GHz), 23 (6GHz) | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be | |
| Antenna design | internal | |
| Indoor use | Yes | |
| Encryption | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| Consumption [W] | 22 | |
| Gain [dBi] | 4 (2,4GHz), 5 (5GHz), 6 (6GHz) | |
| Conformity | CE, FCC, IC | |
| Wi-Fi frequency | 2400 MHz/5000 MHz/6000 MHz | |
| Port speed | 2,5 Gb/s | |
| Outdoor use | No | |
| Design | on the wall | |
