Ubiquiti UniFi UBB XG - 60 GHz 5 GHz wireless bridge with 6 Gbps throughput SFP+ port
UBIQUITI | UBB-XG | 810010076120
Price of goods is 1150.83 €.
Weight of goods is 7.3 Kg.
Actual in cart 0 pcs.

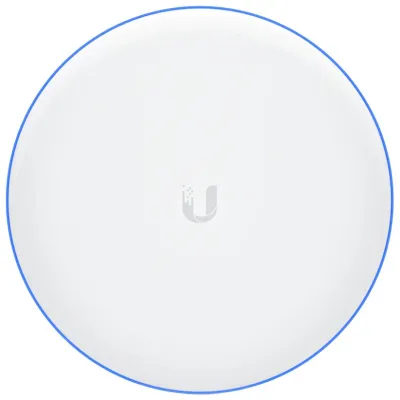

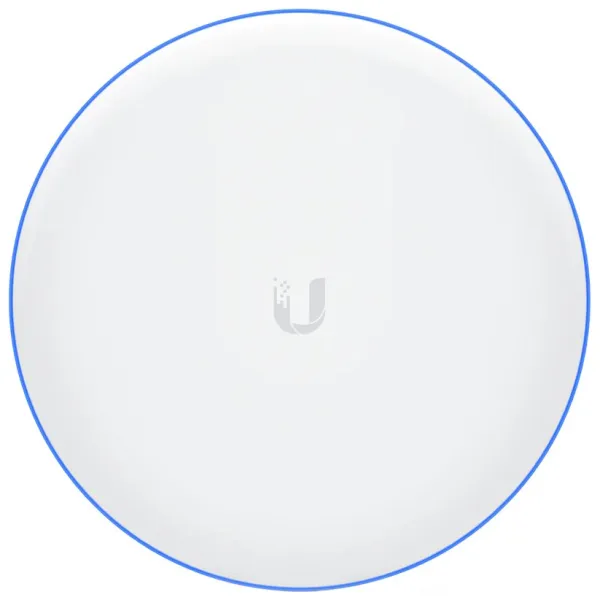

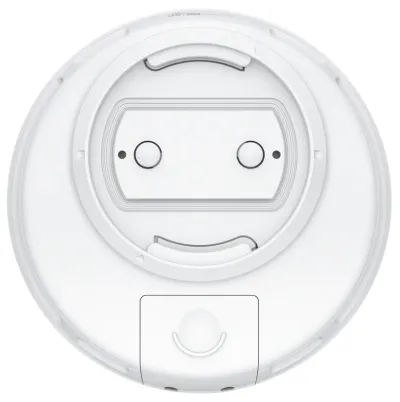

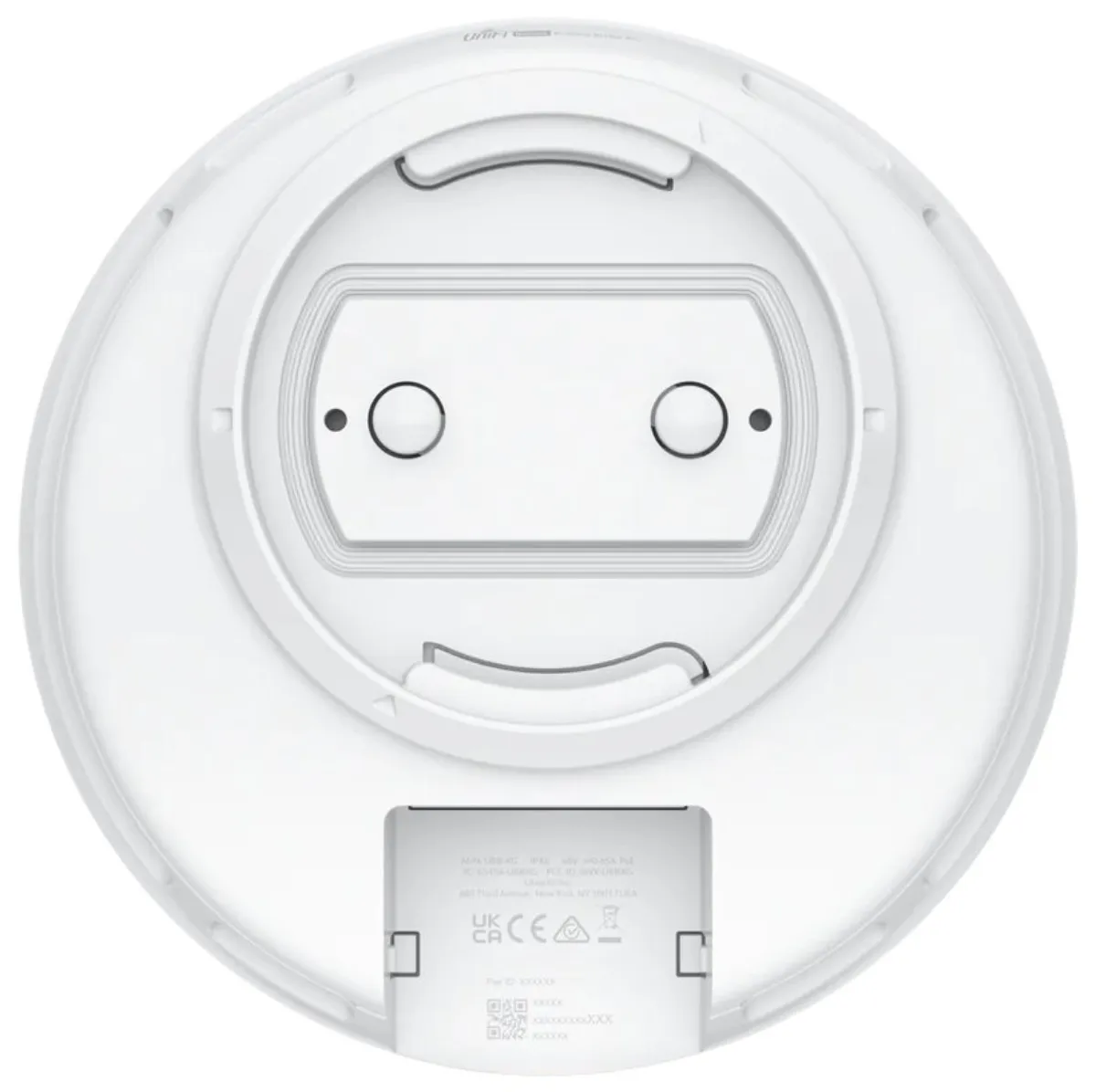

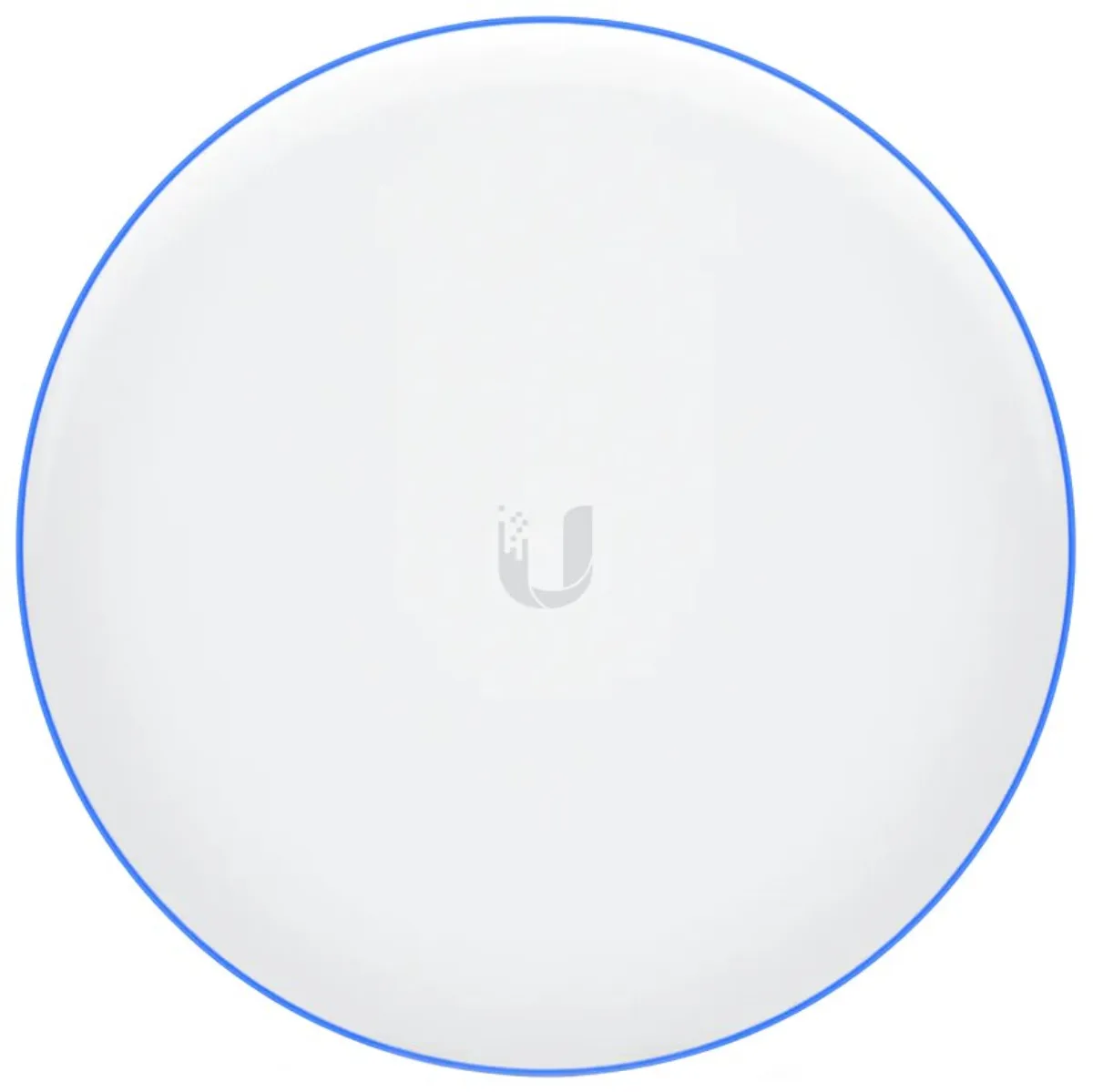

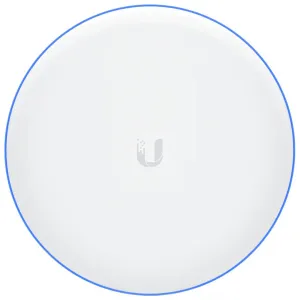

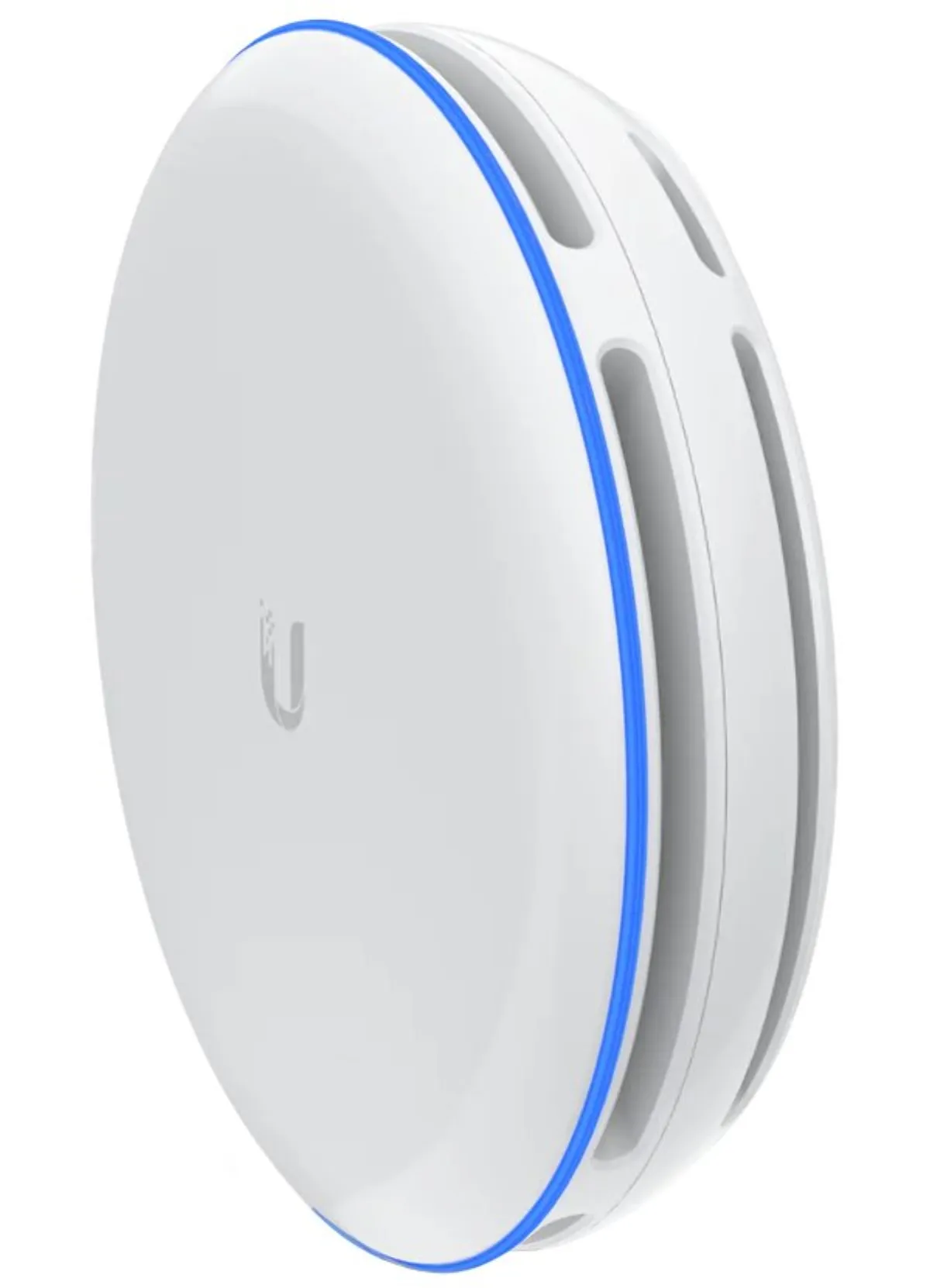

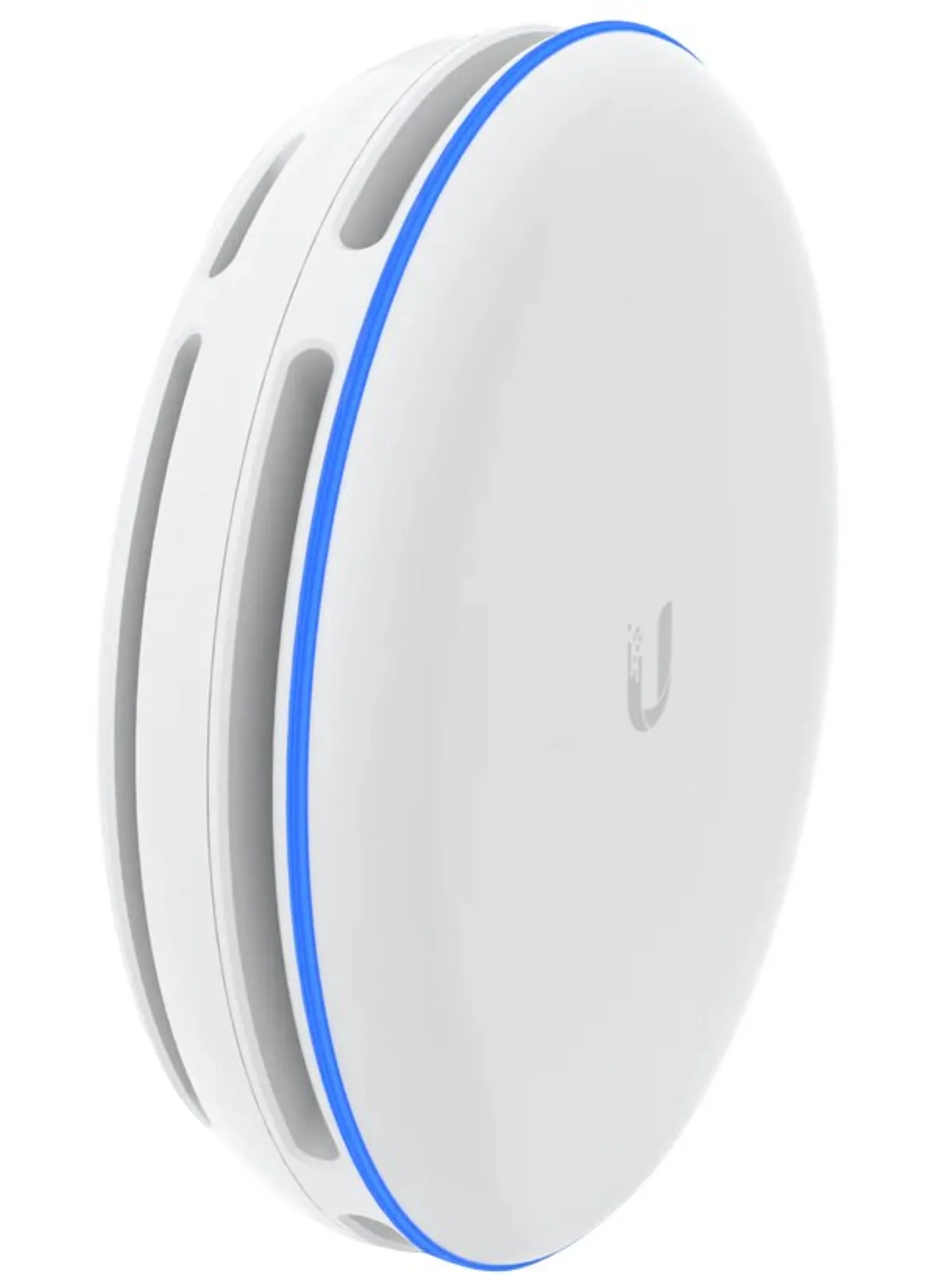

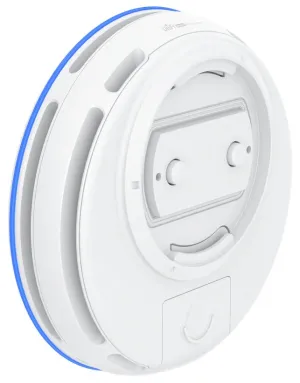

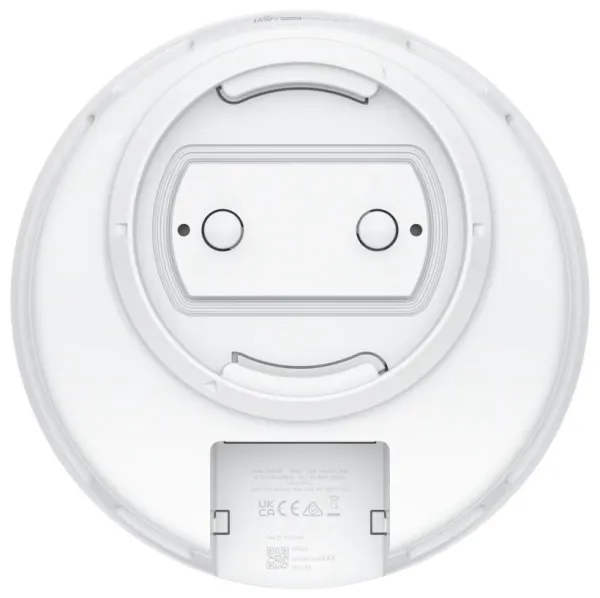

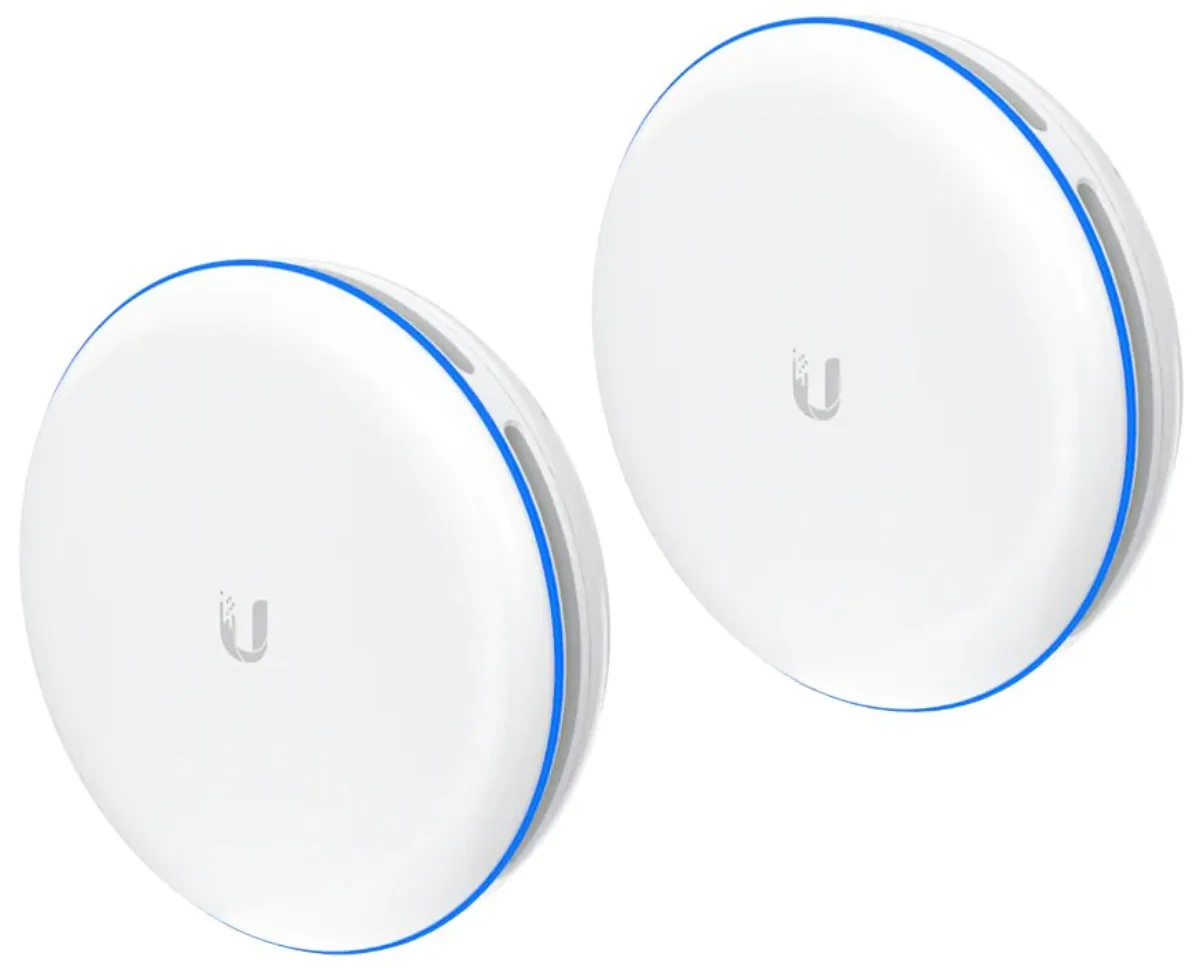

Ubiquiti UniFi UBB XG
UniFi UBB (Building-to-Building Bridge) XG is a Point-to-Point bridge from the UniFi series with a data throughput of 6 Gbps, which works in the 60 GHz band with a backup of 5 GHz. The complete connection is especially suitable for jumps over shorter distances ( up to 500 m), for example between buildings.
The advantage of UniFi UBB XG is the indicator LED system, thanks to which it is possible to easily adjust their angle and position to optimize signal transmission. Other advantages include, for example, Bluetooth management, 10 gigabit SFP+ slot or a robust steel holder that enables precise alignment.
With seamless integration with the UniFi Network app (version 6.3 and above), the UBB XG can be set up in minutes and managed from a central, intuitive interface, making network bridging easier than ever.
Package contents
- 2x UniFi Building Bridge XG
- 2x holder with precise alignment (per pole)
- 2x PoE (48 V/ 0.65 A) adapter
- 2x power cable
Frequency band
- 60 GHz (operating 57-66 GHz)
- 5 GHz backups
Transmission speed: 6 Gb/s (866.6 Mb/s in backup 5 GHz band)

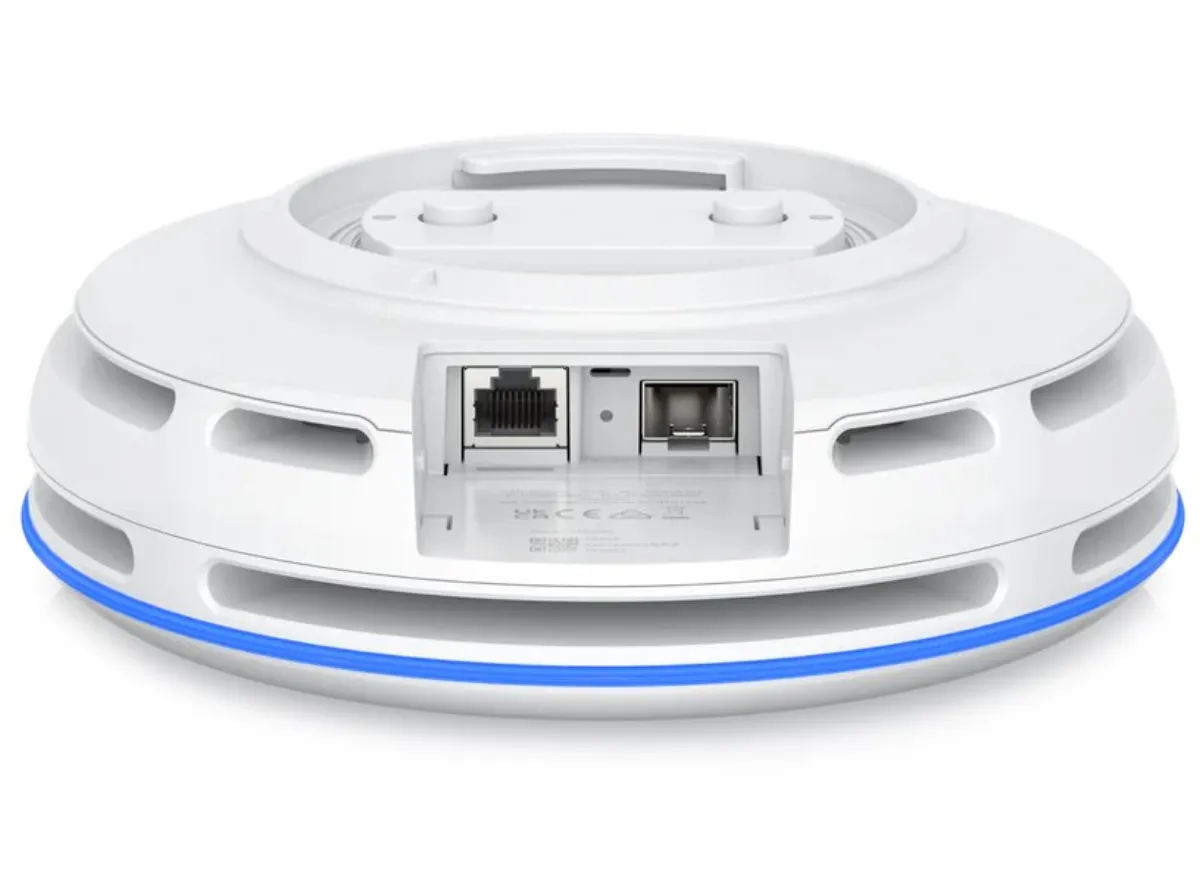

Ports
- 1x GbE RJ-45
- 1x 1/10G SFP+ slot
Antenna gain: 14 dBi
PoE support
- yes
- 802.3bt or passive 48 V (±10%)
Weather resistance: IPX6
Dimensions: 191.8 x 191.8 x 59 mm
Weight: 1.7 kg (2.9 kg with holder)
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 1,7 | |
| Dimension [mm] | 191,8 × 191,8 × 59 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 55 | |
| Wi-Fi standard | 802.11ac | |
| LED indication | Yes | |
| Interface | LAN, SFP+, Wi-Fi, Bluetooth | |
| Standards | 802.11ad/ay, 802.11ac, 802.3bt | |
| Repeater mode | No | |
| Width [mm] | 191,8 | |
| Operating mode | PtP (Point-to-Point) | |
| Depth [mm] | 59 | |
| Conformity | FCC, IC, CE, Terragraph | |
| Power supply [V] | 48 (DC) | |
| Degree of coverage | IPX6 | |
| Encryption | WPA2-AES | |
| Wi-Fi frequency | 5 GHz | |
| Max. output power [dBm] | 40 | |
| Gigabit LAN | Yes | |
| Consumption [W] | 31,2 | |
| Output to ext. the antenna | No | |
| Transmission speed [Mbps] | 6000 (60GHz), 866,6 (5GHz) | |
| Gain [dBi] | 14 | |
| Port speed | 1 Gb/s + 10 Gb/s | |
| Device power supply | PoE active (802.3af) | |
| PoE input | 802.3af | |
| Design | on the column | |
