Victron BlueSolar 100 20 MPPT controller 12 24 48V
VICTRON | SCC110020170R | 8719076049845

Price of goods is 69.19 €.
Weight of goods is 0.54 Kg.
Actual in cart 0 pcs.

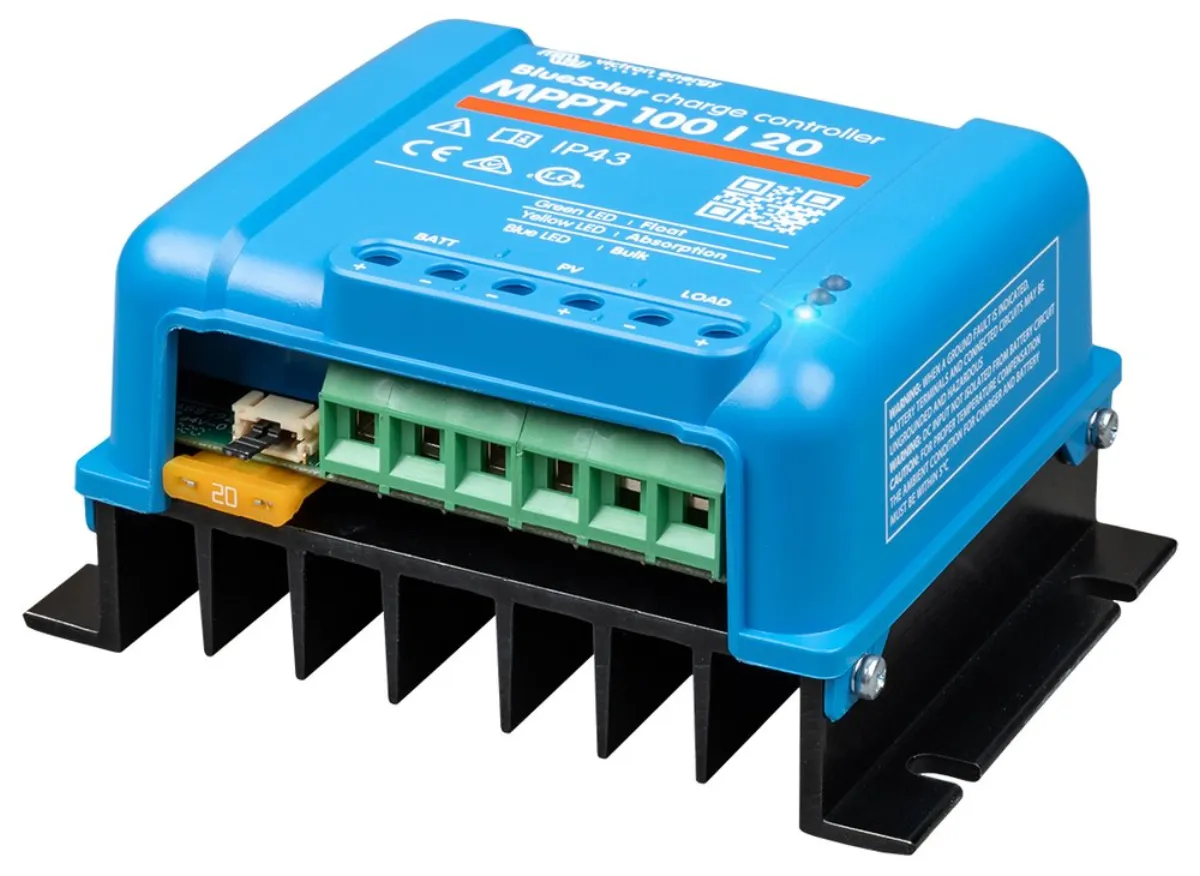

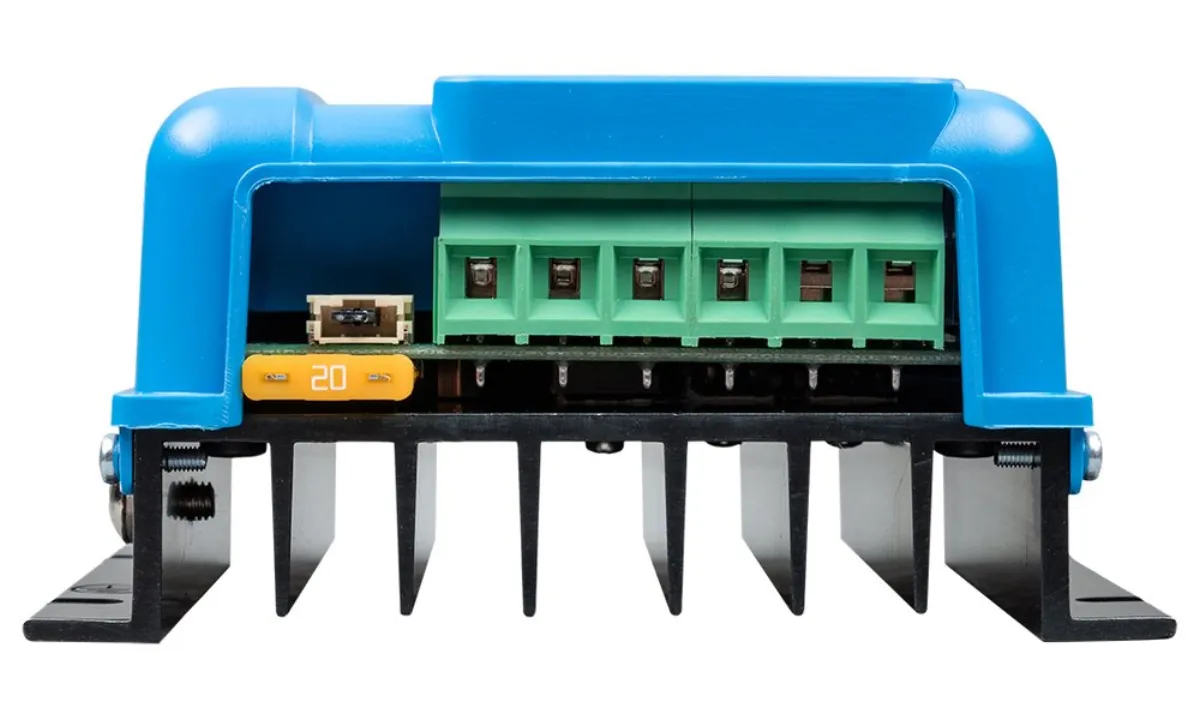

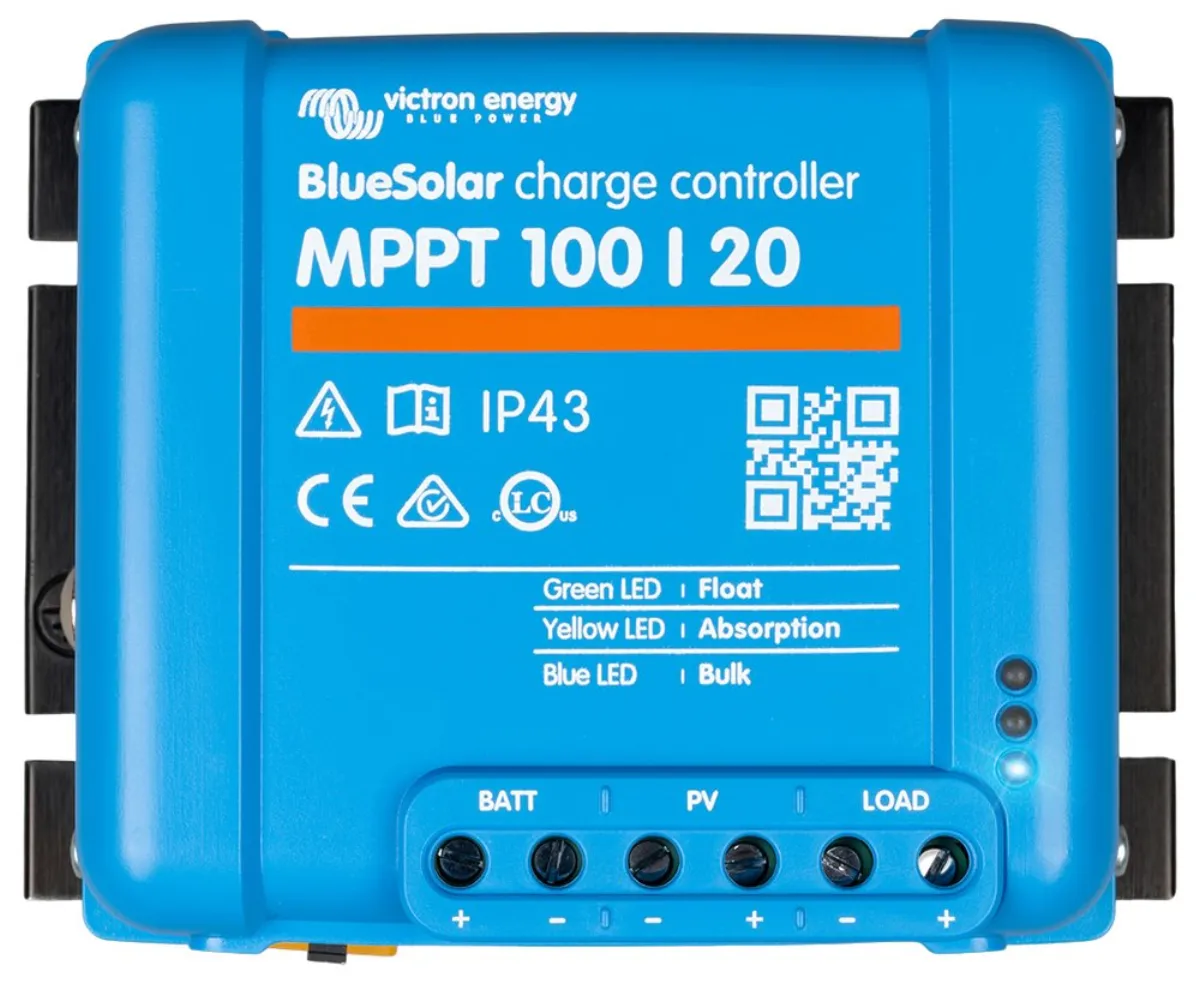

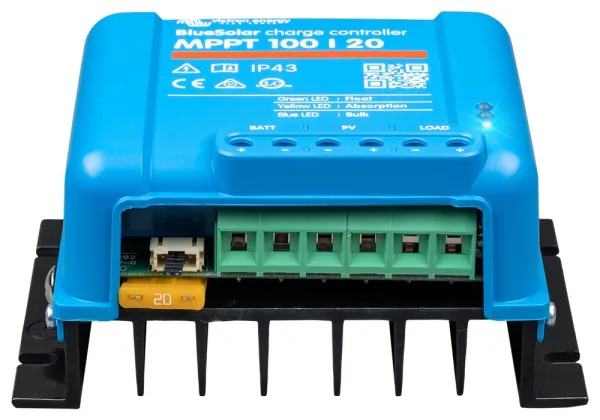

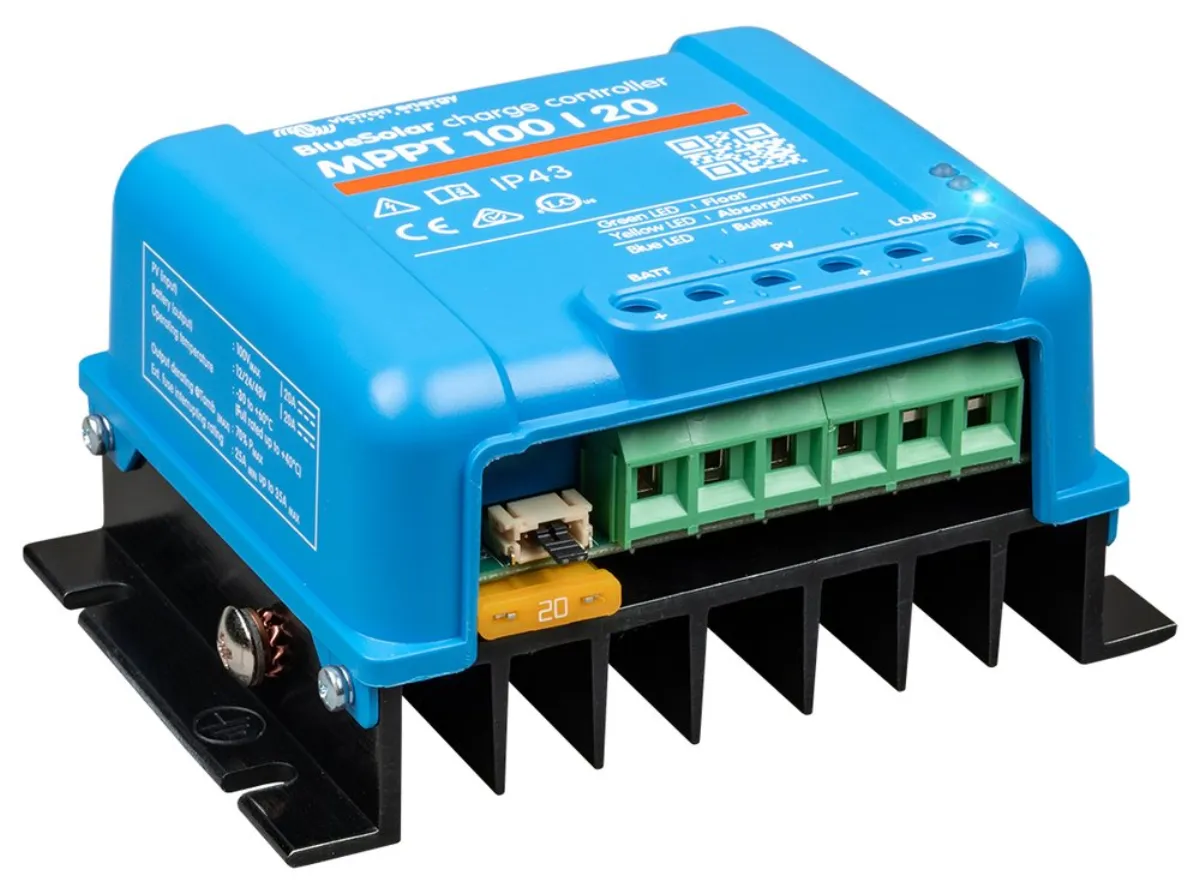

Victron BlueSolar 100/20 MPPT
Robust and fast MPPT controller for demanding conditions with panel voltage up to 100 V, maximum charging current 20 A. Battery 12/24/48 V, PV max. 290/580/1160 Wp.
The BlueSolar solar controller processes energy from solar panels and stores it in batteries, maximizes solar gains, intelligently maintains battery condition and extends its life. The BlueSolar solar controller can recharge even a deeply discharged battery, because it can operate with a battery voltage of up to 0 volts, provided that the cells are not permanently sulfated or otherwise damaged.
Ultra-fast MPPT technology The controller constantly monitors the voltage and current from the solar panels and, thanks to MPPT technology, gets the most energy from them, which is especially advantageous with variable solar radiation intensity. MPPT technology provides up to 30% more energy gain compared to PWM solar controllers and up to 10% more gain compared to slower MPPT controllers.
Remote monitoring and control
If your installation is connected to the internet via GX, the VRM portal provides access to your devices anytime, anywhere.
Load output
The intelligent Load output function prevents batteries from discharging below threshold values. You can configure the voltage at which BlueSolar disconnects the load, thus preventing excessive battery discharge. The BatteryLife function keeps the battery in good condition and extends its lifespan.
VE.Direct connector
VE.Direct is used to connect to GX, PC or other devices.
- Natural passive cooling
- Automatic battery voltage detection
- Overheating and high temperature derating protection
- Flexible charging algorithm
- Day/night timing and dimming
- Internal temperature sensor compensates for absorption and float charge voltage
- Smart Battery Sense or BMV-712 Smart Battery Monitor can be used to read battery voltage and temperature of one or more BlueSolar controllers
- Deep discharge battery recovery function
- Starts charging even when the battery is completely discharged
- Reconnects to a fully discharged Li-ion battery with integrated disconnect function
Warning: Victron Energy MPPT controllers are not permitted to be used in combination with photovoltaic panel optimizers. Damage to both MPPT controllers and optimizers may occur during use and this damage may not be considered a valid complaint.
Battery voltage: 12/24/48 V (auto-detection)
Charging current: 20 A
Rated PV power, 12 V: 290 W
Rated PV power, 24 V: 580 W
Rated PV power, 48 V: 1160 W
Maximum PV open circuit voltage: 100 V
Maximum short circuit current: 20 A
Efficiency (max.): 98%
Weight: 0.65 kg
Dimensions: 131 × 100 × 60 mm
Name | Value | |
---|---|---|
Input voltage [V] | 100 | |
Weight, brutto [kg] | 0,65 | |
Minimum operating temperature [°C] | -30 | |
Output voltage [V] | 12 / 24 / 48 | |
Width [mm] | 131 | |
Maximum performance [W] | 1160 | |
Rated voltage [V] | 12/24/48 | |
Max. output current [A] | 20 | |
Technology | MPPT |
