Victron BlueSolar 150 45 MPPT controller 12 24 48V

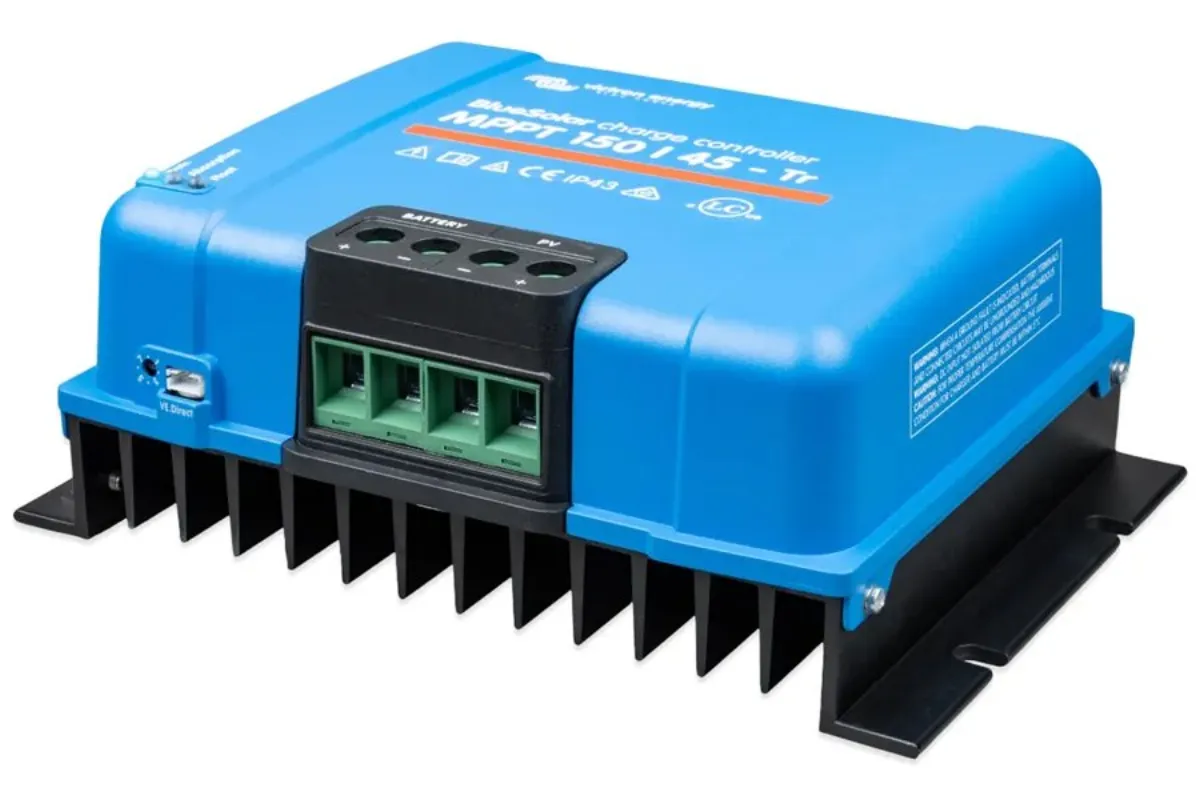

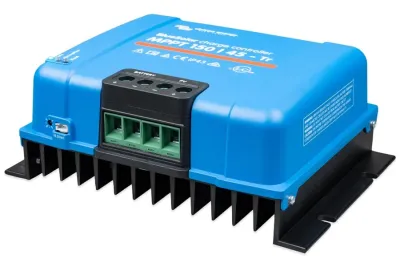

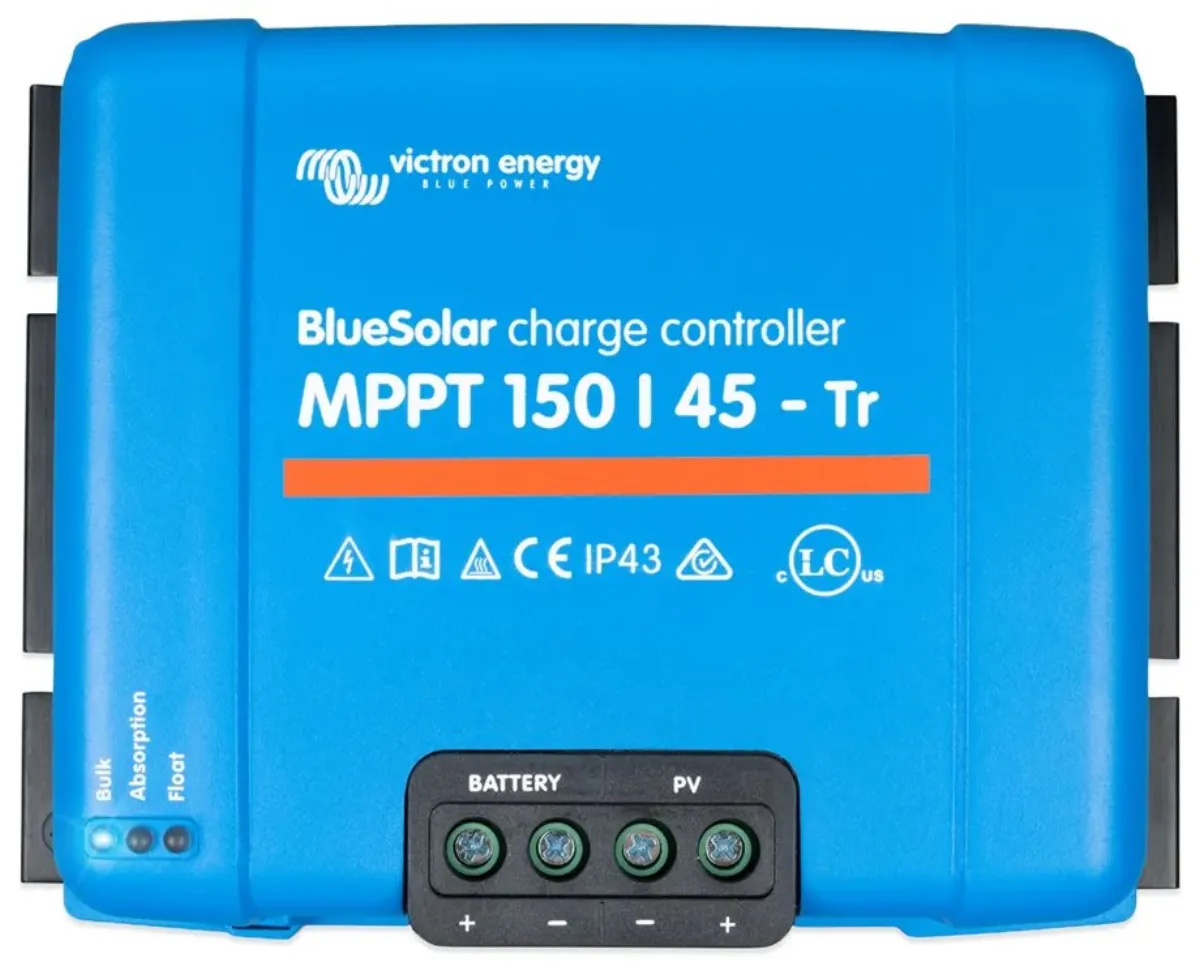

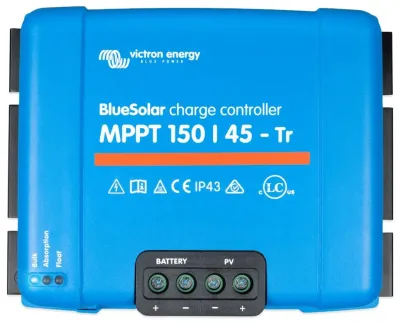

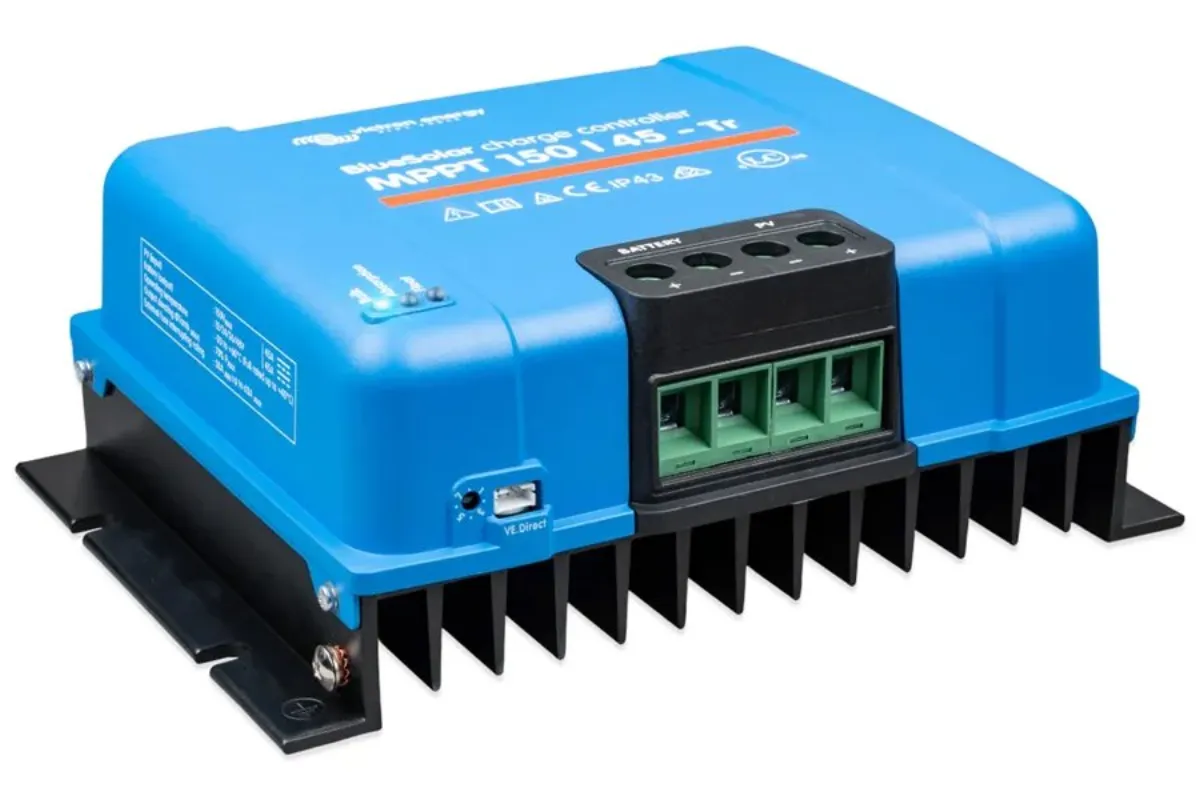

Victron BlueSolar 150/45 MPPT

Robust and fast MPPT controller for demanding conditions with panel voltage up to 150 V, maximum charging current 45 A. Battery 12/24/48 V, PV max. 650/1300/2600 Wp.

The BlueSolar solar controller processes energy from solar panels and stores it in batteries, maximizing solar gains, intelligently maintaining the battery condition and extending its life. The BlueSolar solar controller can recharge even a deeply discharged battery, because it can operate with a battery voltage of up to 0 volts, provided that the cells are not permanently sulfated or otherwise damaged.

Ultra-fast MPPT technology

The controller continuously monitors the voltage and current from the solar panels and uses MPPT technology to extract the maximum energy from them. This ability is especially advantageous with variable solar radiation intensity. MPPT technology allows you to get up to 30% more energy than PWM solar controllers and up to 10% more than slower MPPT controllers.

Remote monitoring and control

If your installation is connected to the Internet via a GX device, the VRM portal provides access to your devices anytime, anywhere.

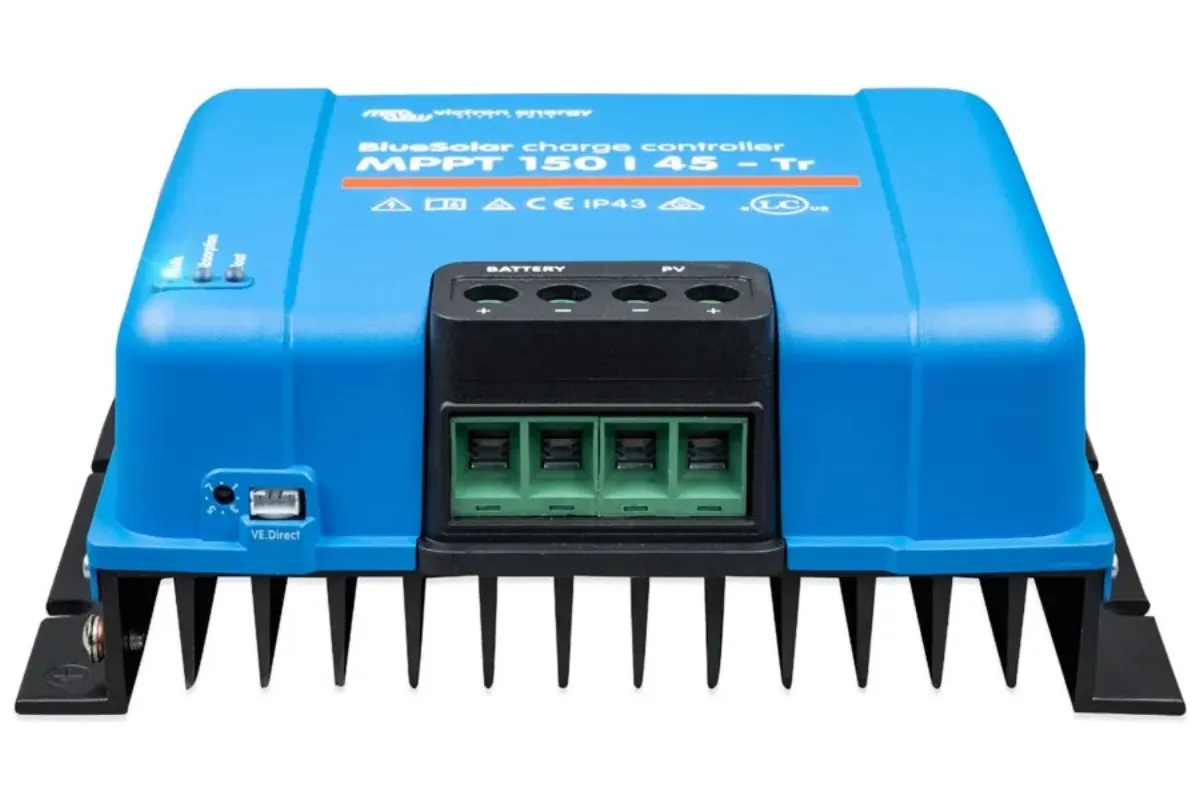

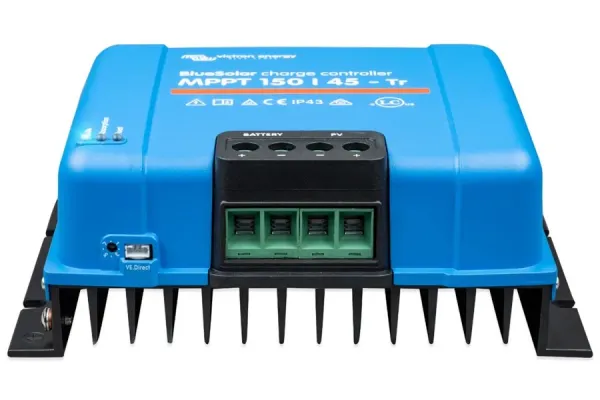

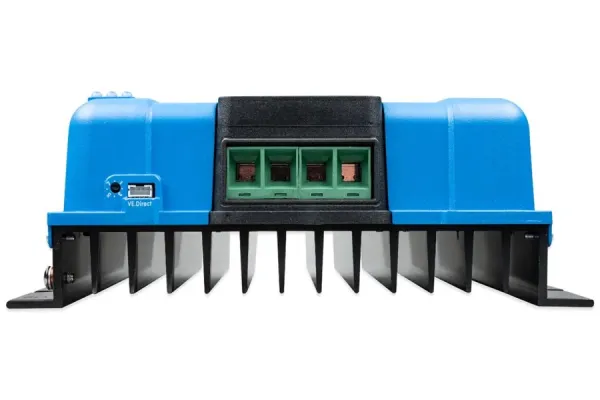

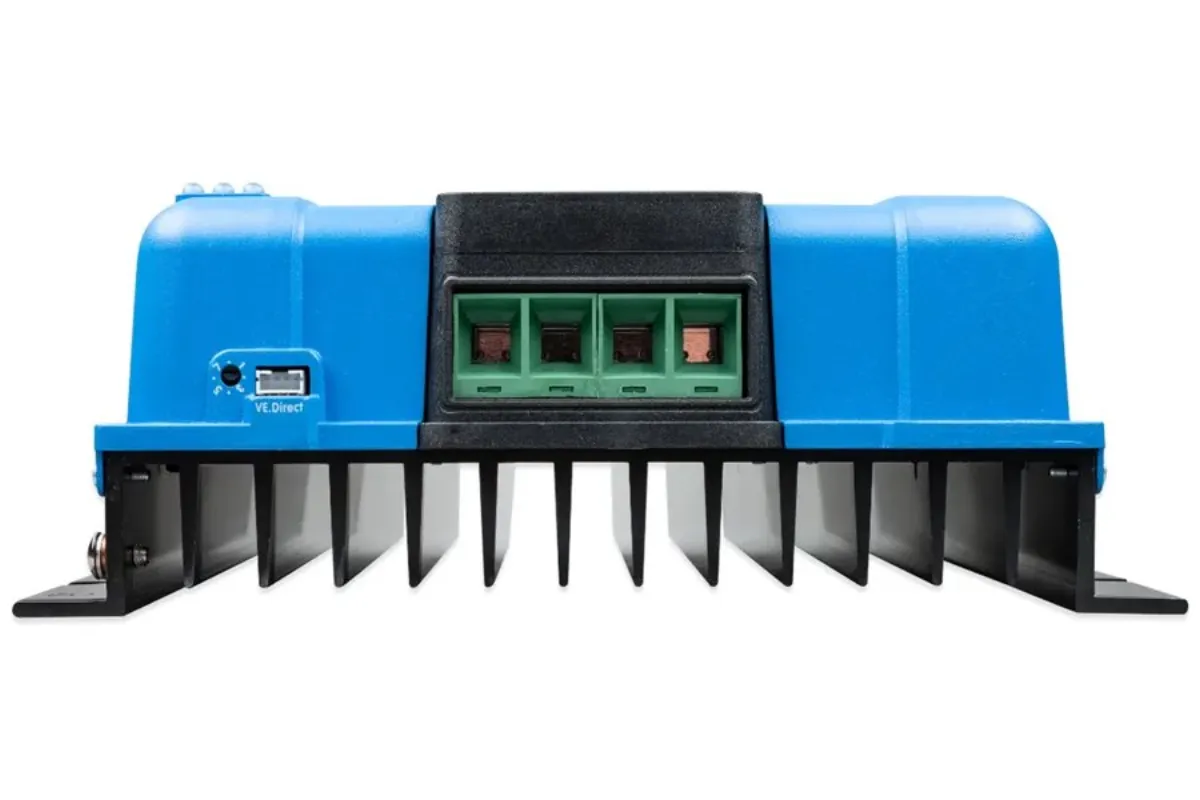

VE.Direct connector

VE.Direct is used to connect to a GX device, PC or other devices.

Excellent conversion efficiency

The controller has excellent conversion efficiency. The maximum efficiency exceeds 98%. One of the advantages of high efficiency is that the controller does not have a cooling fan and the maximum output current is guaranteed up to an ambient temperature of 40 °C (104 °F).

• Natural passive cooling
• Automatic battery voltage detection
• Overheating and high temperature derating protection
• Flexible charging algorithm
• Internal temperature sensor compensates for absorption and float charge temperature
• Deep discharge battery recovery function
• Starts charging even when the battery is completely discharged
• Reconnects to a fully discharged Li-ion battery with integrated disconnect function

Warning: Victron Energy MPPT controllers are not permitted to be used in combination with photovoltaic panel optimizers. Damage to both MPPT controllers and optimizers may occur during use and this damage may not be recognized as a valid complaint.

Battery voltage: 12/24/48 V autodetect (36 V manual - software)

Rated charging current: 45 A

Rated PV power, 12 V: 650 W

Rated PV power, 24 V: 1300 W

Rated PV power, 36 V: 1950 W

Rated PV power, 48 V: 2600 W

Maximum PV voltage (open circuit)

• 150 V absolute maximum under coldest conditions
• 145 V inrush and operating maximum

Maximum short circuit current: 50 A

Efficiency (max.): 98 %

Weight: 1.25 kg

Dimensions: 186 × 130 × 70 mm
