Victron fuse 400A 32V 1pc
VICTRON | CIP136400010 | 8592457261674
Out of stock.
Price of goods is 4.33 €.
Weight of goods is 0.01 Kg.
Actual in cart 0 pcs.

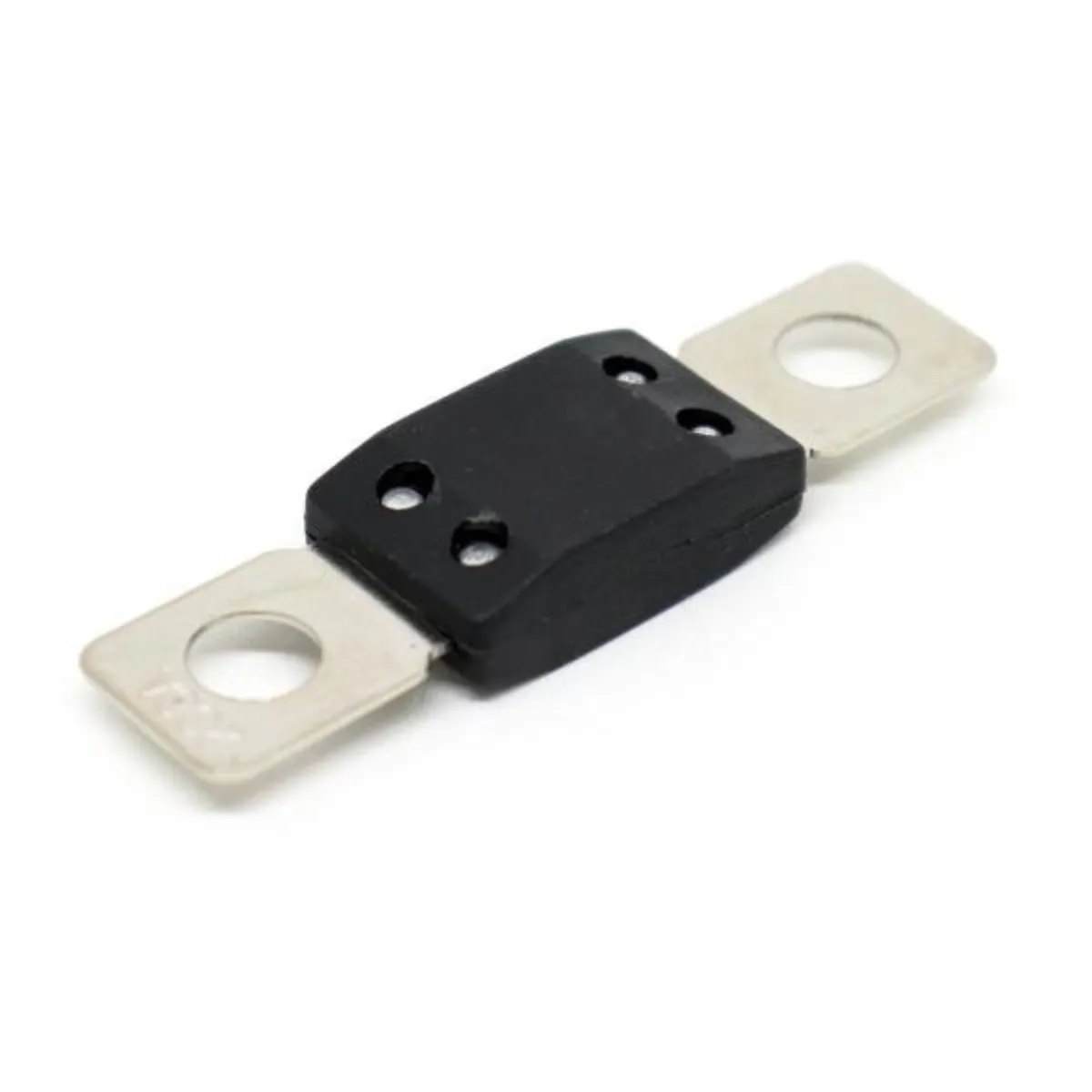

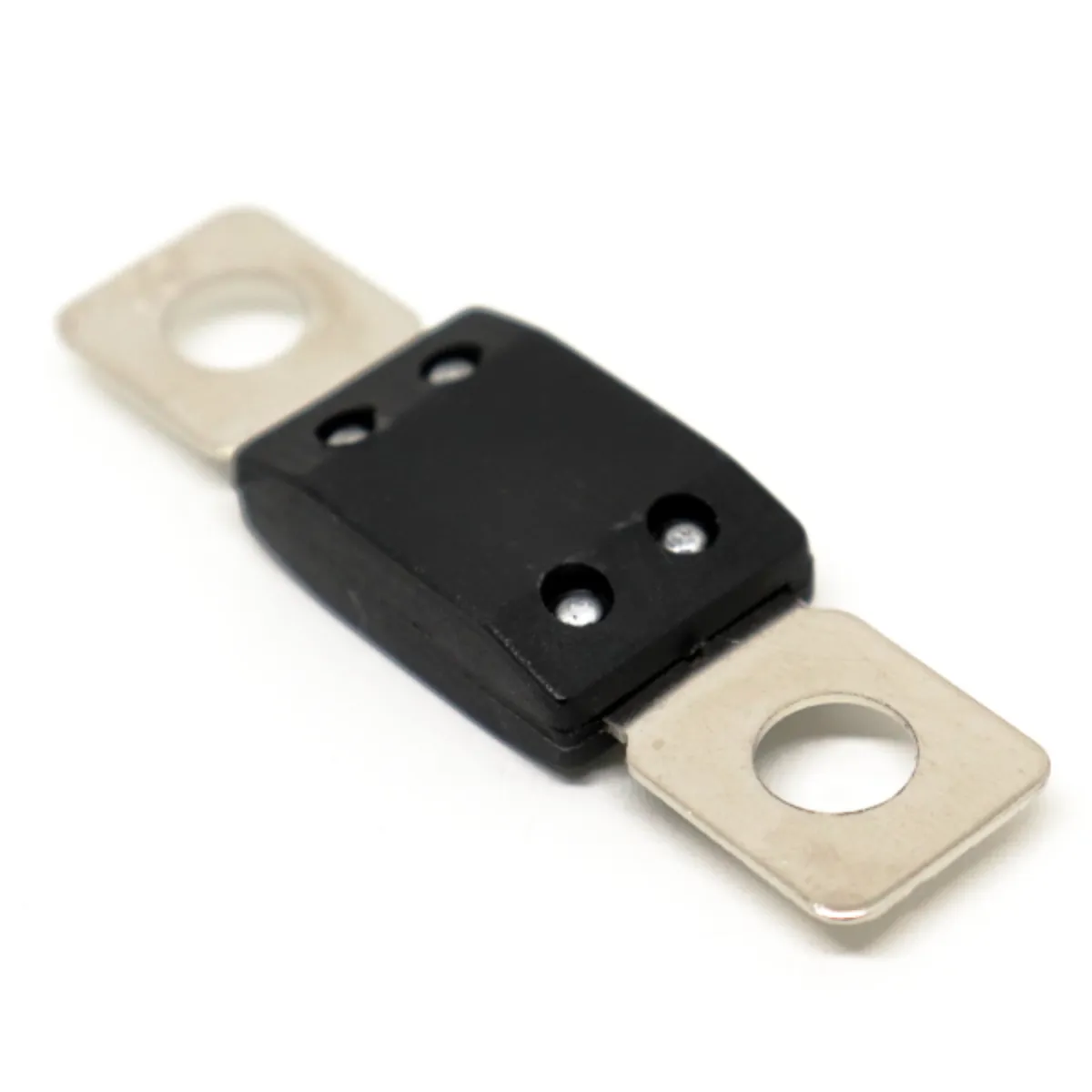

Victron DC MEGA fuse 400 A (32 V)
MEGA-fuse Victron Energy 400 A (32 V) fuse suitable for 12V and 24V DC systems.
The DC MEGA fuse from Victron Energy is designed to provide safe interruption of direct current in solar power systems, battery systems and other high current applications. This fuse is suitable for use with batteries and solar panels.
Rated current and voltage: 400 A (32 V)
Approximate voltage drop: 70 mV
Cold resistance: 0.13 mΩ

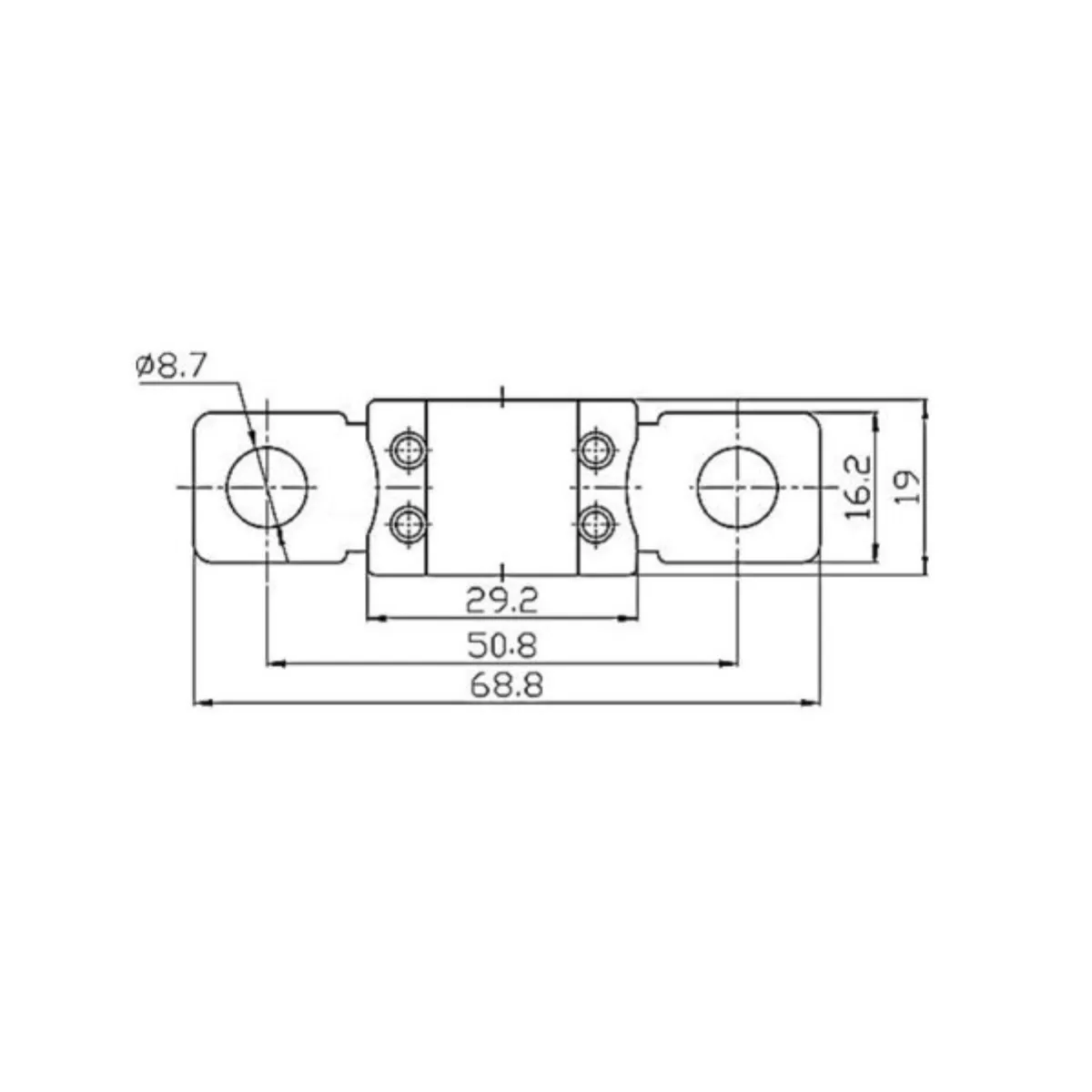

Distance between holes: 50.8 mm
Hole diameter: 8.7 mm
Dimensions: 68.8 x 19 mm
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,1 | |
| Dimension [mm] | 68,8 × 19 mm | |
| Maximum input current [A] | 400 | |
| Rated voltage [V] | 32 | |
