Victron smart battery sensor up to 10m
VICTRON | SBS050150200 | 8719076047919
On stock 9 pcs.
Price of goods is 36.81 €.
Weight of goods is 0.046 Kg.
Actual in cart 0 pcs.

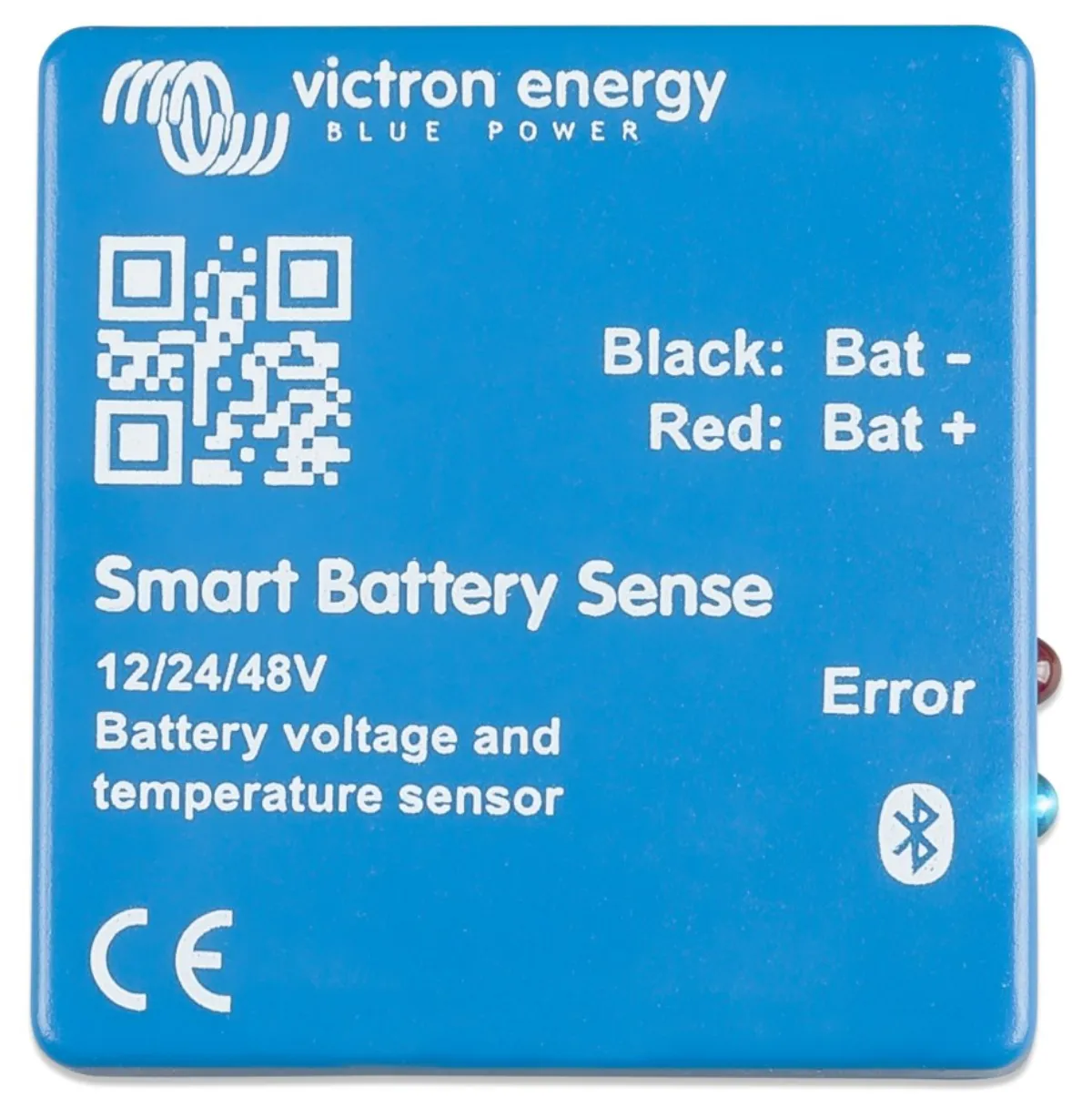

Victron Smart Battery Sense
Smart wireless sensor/battery sensor to transmit battery voltage and temperature information to your Smart MPPT controller (using Bluetooth with a range of up to 10m).
Increases battery charging efficiency
By measuring the voltage directly at the battery supply terminals, errors resulting from voltage loss due to cable resistance are avoided, guaranteeing the correct charging voltage. For lead-acid batteries, the battery temperature data is used to set the charging voltage: cold batteries require an increased charging voltage, while hot batteries require a reduced voltage. For lithium batteries, temperature data is used to prevent charging if the battery temperature is too low: charging lithium batteries near or below freezing causes permanent damage to the cells.
Wireless connection
The connection between the smart battery sensor and one or more chargers is wireless. VE.Smart Network technology (wireless technology based on Bluetooth Smart) is used. The transmitted information can be used simultaneously by one, two or more solar controllers connected to the same 12 V, 24 V and 48 V battery. The Smart Network is set up using the VictronConnect application.
Convenient and simple installation

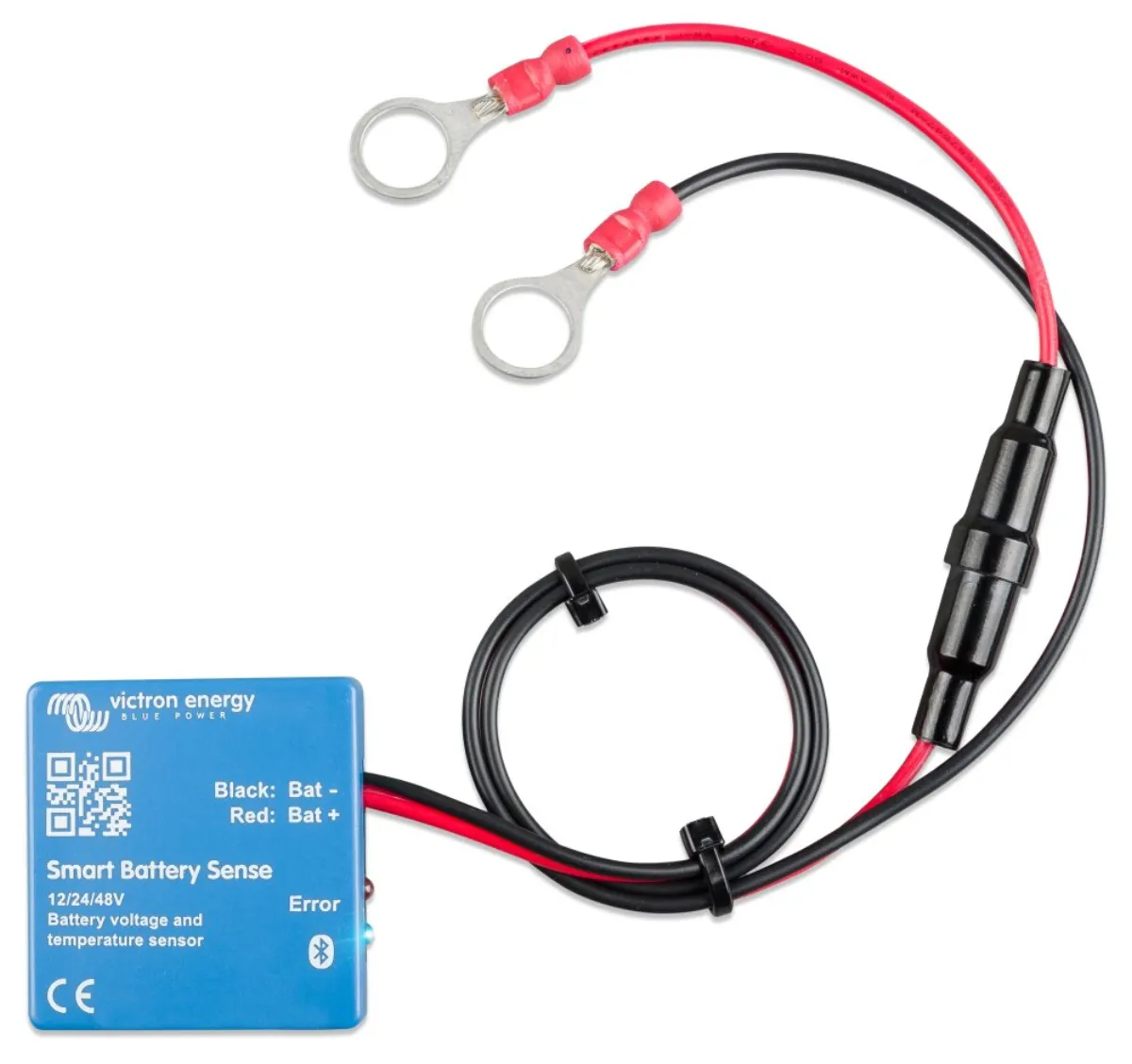

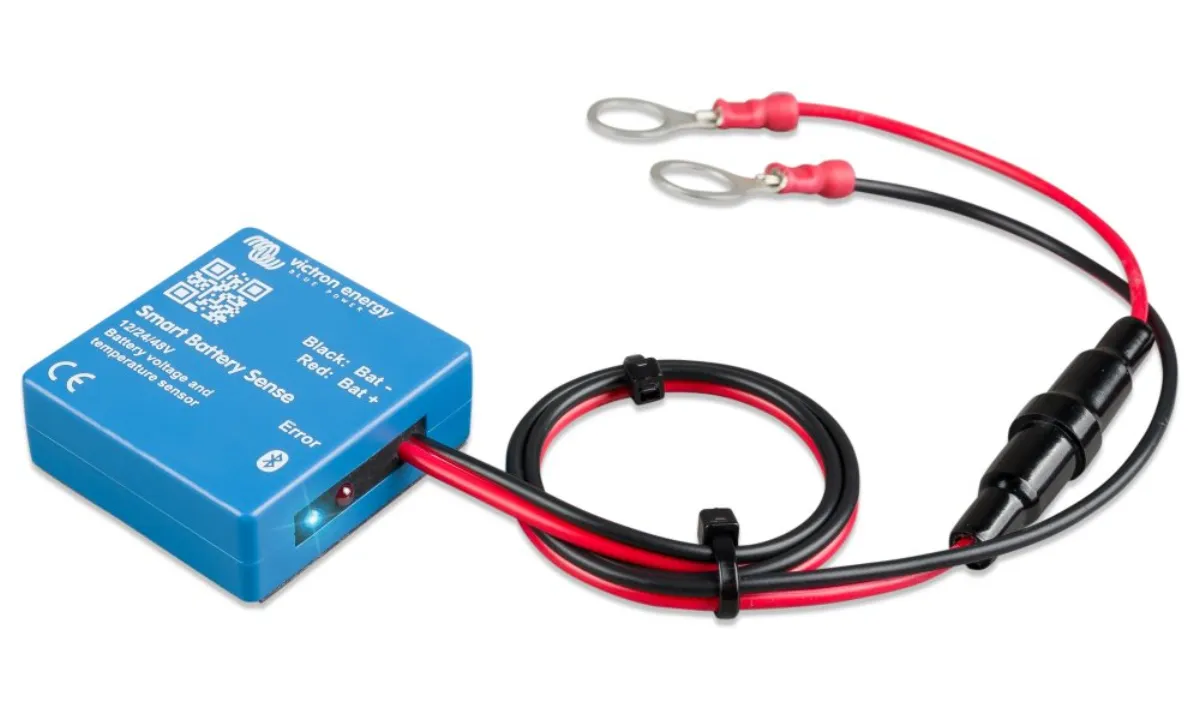

The battery sensor is easy to install and configure. The power cable has an integrated fuse (T1A 250 V) and pre-molded M10 eyelets. Attach the battery sensor directly to the battery using self-adhesive tape.
Operating voltage: 8-60 V (absolute maximum voltage 65 V
Interface
- Bluetooth (2402-2480 MHz)
- 2x M10 cable (45 cm)
Fuse: T1A 250V
Dimensions: 38 x 38 x 14 mm
| Name | Value | |
|---|---|---|
| Dimension [mm] | 38 × 38 × 14 mm | |
| Minimum operating temperature [°C] | -10 | |
| Rated voltage [V] | 12/24/48 | |
