Victron SmartSolar display

Victron SmartSolar Control display

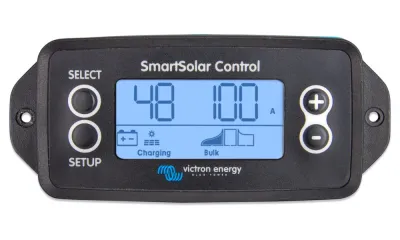

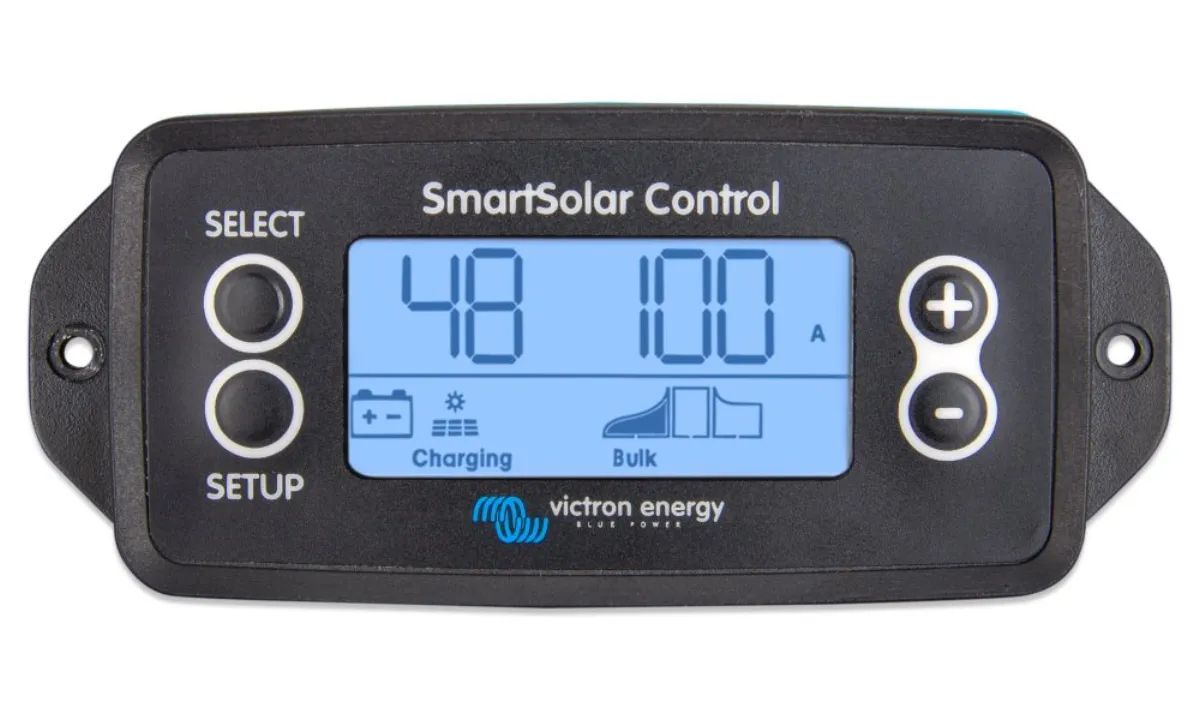

The SmartSolar Control display is a connectable LCD display for SmartSolar/BlueSolar solar controllers. Just remove the rubber seal that protects the plug on the front of the controller and connect the display.

Additional SmartSolar display (plug-in) for MPPT solar controllers of the SmartSolar and BlueSolar series (from model 150/45 and higher). The display is inserted into the connector on the front of the controller and allows you to visualize all operating conditions and perform parameter settings.

Displays current operating data

• charging current
• battery voltage
• charging power
• battery temperature
• temperature of the regulator
• PV current
• PV voltage
• PV power
• error messages
• BMS function

Displays historical data for the last 30 days

• the total amount of energy produced
• last error message
• maximum voltage achieved from PV panels
• maximum battery voltage reached
• daily total amount of energy produced
• daily maximum battery voltage reached
• daily minimum battery voltage reached
• time of day in bulk mode
• time of day in float mode
• daily maximum power
• daily maximum charging current
• daily maximum voltage of PV panels

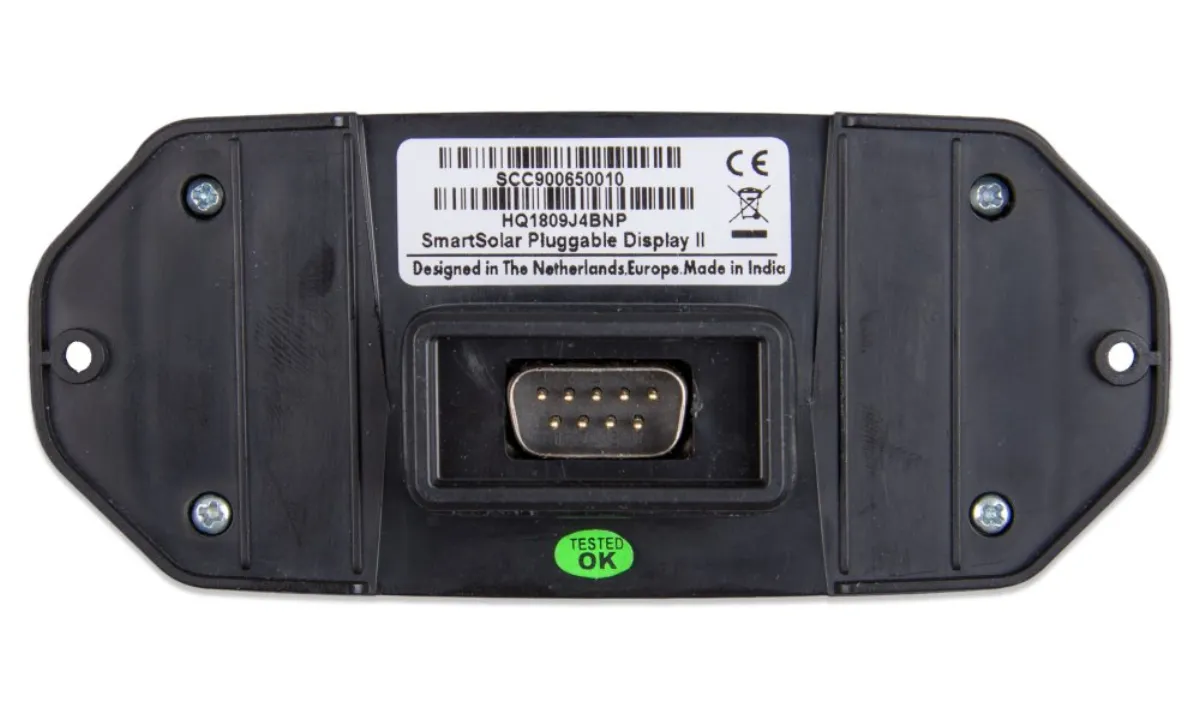

Interface: RS-232 (9pin

Weight: 66 g

Dimensions: 116 x 50 x 25 mm

Compatibility

• SmartSolar MPPT 150/45 to 250/100;
• SmartSolar MPPT 150/70 to 250/100 VE.Can;
• BlueSolar MPPT 150/70 to 250/100 VE.Can;
• or newer models with a port for this display.
