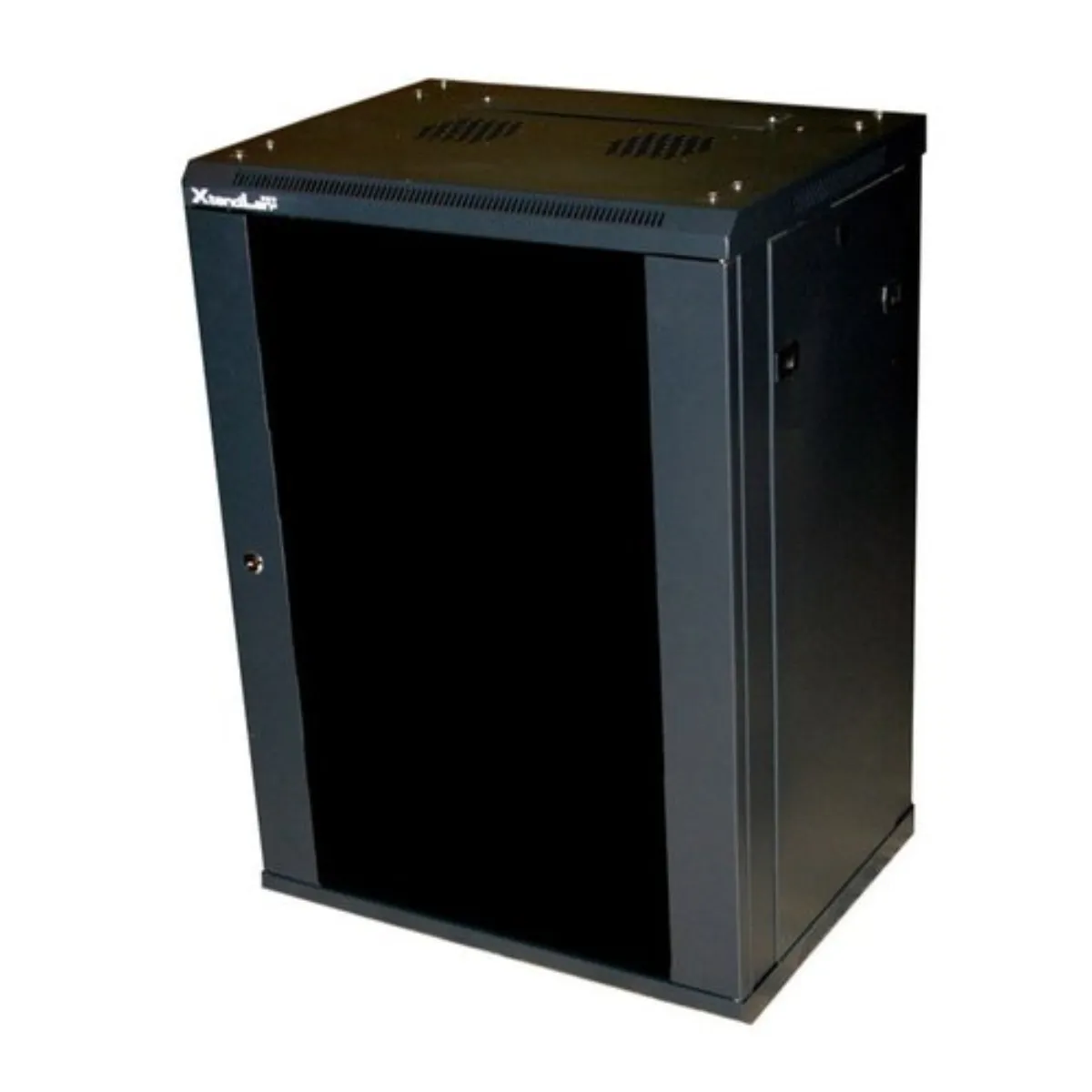

XtendLan 18U 600x450 on the wall one-piece unfolded glass door
XTENDLAN Consumer | WS-18U-64-BL-U | 8592457154280
Out of stock.
Price of goods is 132.05 €.
Weight of goods is 29 Kg.
Actual in cart 0 pcs.
XtendLan WS-18U-64-BL-U
The cabinet is suitable for installing data and telecommunications equipment.
Universal one-piece switchboards are designed for wall mounting. The cabinets are excellently crafted and have an elegant appearance. Their attachment is easy thanks to the included patented mounting panel. They are made of rolled steel, the bearing parts are made of 1.5 mm thick steel, the others from 1.2 mm steel sheet. The design allows a static load of 60 kg. Comes with a mounting kit.
This cabinet is delivered disassembled.
Cabinet format: 19"
Capacity: 18U
Degree of protection: IP20
Dimensions: 600 x 450 x 988 mm (width x depth x height)
packed in one carton
Execution
- door - safety tempered glass, smoked, changeable opening direction, lockable
- back cover - full
- side cover - full, easily removable, can be equipped with a lock
- upper cover - perforated, with positions for two fans
Additional properties
- part of the switchboard are four sliding vertical rails with perforations for attaching the installed devices
- connecting material (cage nuts, washers, screws) is included with the cabinet
- in the lower part of the switchboard there is a grounding point for connecting the grounding wire
- in the upper and lower parts of the switchboard, there are penetrations for cabling and they are covered with plugs
- meets the international standard IEC 60297-2
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 600 × 450 × 988 mm | |
| Outdoor use | No | |
| Height [U] | 18 | |
| Floor plan of the cabinet [mm] | 600 × 450 | |
| Construction | one-piece | |
| Delivered assembled | No | |
