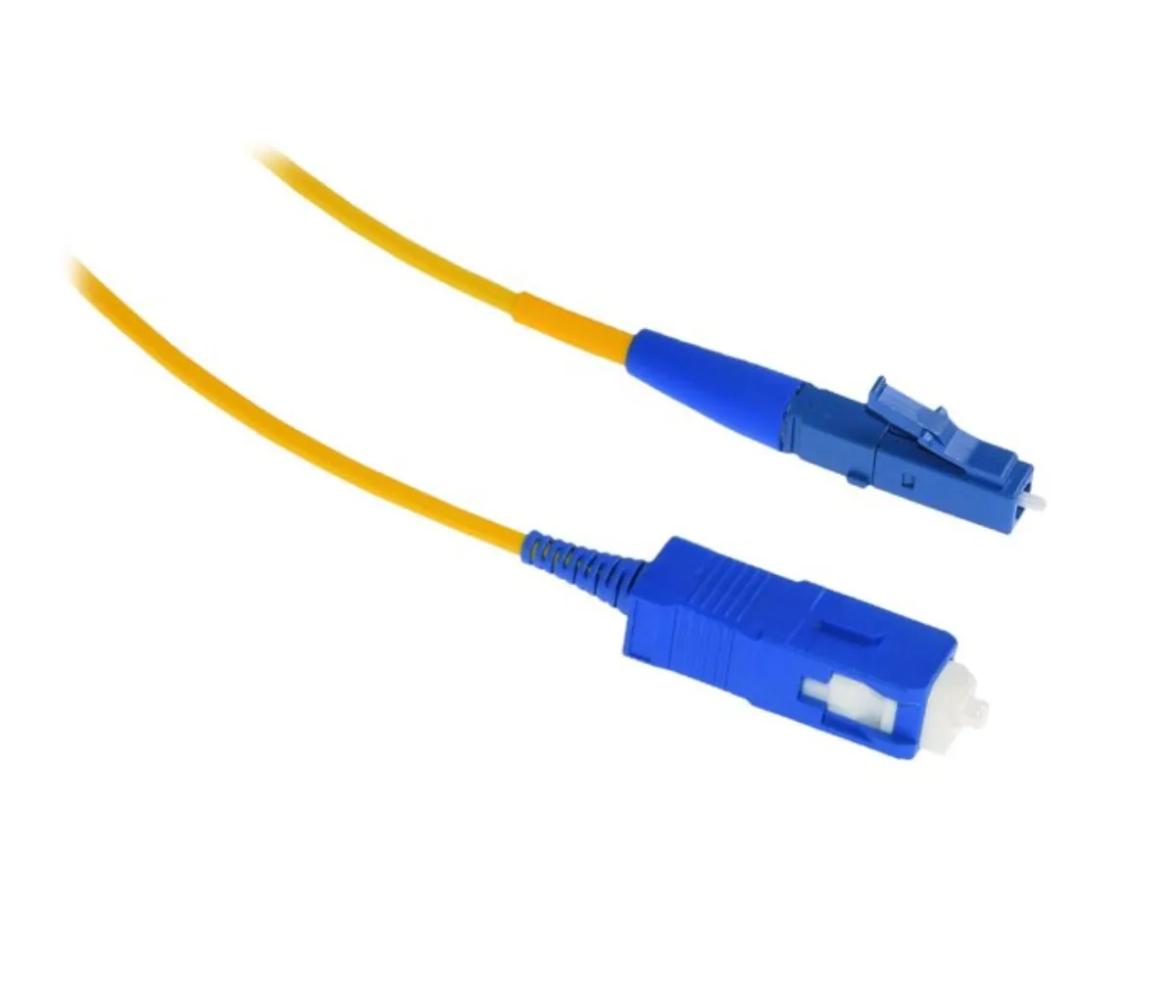

XtendLan FO patch LC-SC 5m 9 125 simplex ultra-flexible G.657.A1 LS0H diameter 2mm short outlet
XTENDLAN Consumer | FOP-LCSC-S-5-9-A1 | 8592457213369
On stock 5 pcs.
Price of goods is 3.05 €.
Weight of goods is 0.026 Kg.
Actual in cart 0 pcs.
XtendLan FOP-LCSC-S-5-9-A1
Optical connecting cable used for connection to a regular optical cable and for connecting individual optical modules. The ultra-flexible optical cable used allows a very small bending radius without signal attenuation. The connector has a shortened outlet cap, which saves approx. 2 cm of depth in a switchboard or other confined space.
Thread type
- 9/125 µm
- singlemode G.657.A1
- fully compatible with OS1 (G.652 all types)
- flexible
- no light attenuation occurs up to a bending radius of 15 mm and less than 1 dB (at 1550 nm) with a bending radius of 7.5 mm
Cable type
- round
- width 2 mm
- surface insulation type LS0H
Number of fibers in the cable (all connected): 1
A-side connector type
- LC
- vertical grinding (/UPC)
- insertion loss (I/L) typically 0.15 dB
- max. 0.3 dB
- reflection attenuation (R/L) better than 50 dB
B-side connector type
- SC
- vertical grinding (/UPC)
- insertion loss (I/L) typically 0.15 dB
- max. 0.3 dB
- reflection attenuation (R/L) better than 50 dB
Cable length: 5 m
| Name | Value | |
|---|---|---|
| Type of optical fiber | singlemode | |
| Connectors | LC/SC | |
| Armored cable | No | |
| Grinding | UPC/UPC | |
| Design | simplex | |
| Optical fiber specification | 9/125um G657A1 | |
| The cable length [m] | 5 | |
