XtendLan MGB-L80C49 mini GBIC SFP LC 80km CWDM 1490nm
XTENDLAN Consumer | XL-MGB-L80C49 | 8592457152521
On stock 1 pcs.
Price of goods is 30.35 €.
Weight of goods is 0.02 Kg.
Actual in cart 0 pcs.

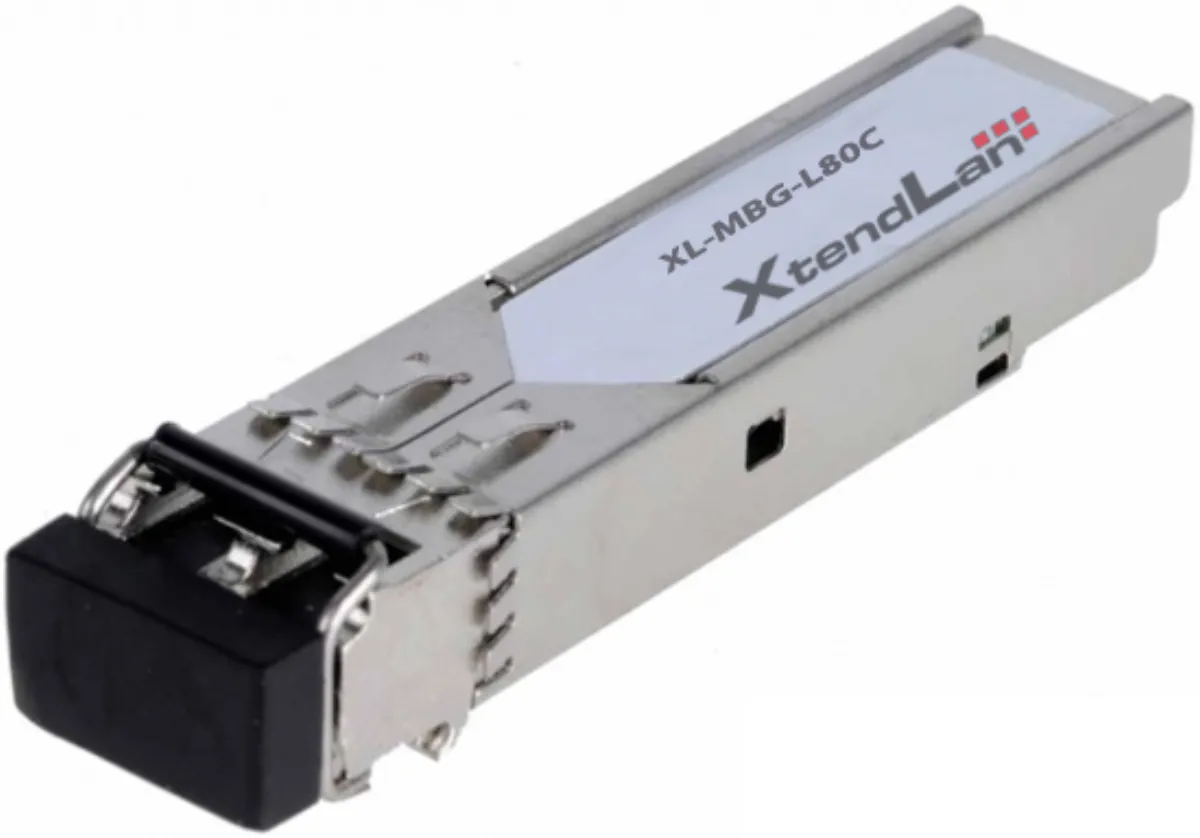

XtendLan MGB-L80C49
Gigabit miniGBIC module (SFP), 1000Base-LX, duplex LC connector, single-mode. Range 80 km. Designed for CWDM systems, wavelength 1490nm. Performance margin of at least 28dB. Support of most manufacturers (Cisco, Dell, Planet, ...)
Small-Form-Pluggable (SFP) miniGBIC conversion Gigabit module. Standard 1000Base-LX, IEEE82.3z. Duplex LC connector, for single-mode fibers. CWDM modules allow multiple wavelengths to be transmitted along an optical fiber (or one pair of fibers). Each module works with a different wavelength with a distance of 20nm. Combining and splitting the optical signal is done on a passive optical splitter/combiner.
The module itself is installed in any switch with miniGBIC (SFP) ports. E.g. GSW-2400, FGSW-4840S, SGSW-2620, WGT/GT-705A, ENW-9607M.
Reliable for a distance of 80km.
When using taps, read the attenuation by inserting and branching.
Module type: SFP
Connector: LC duplex
Wavelength: 1490 nm
Thread Type: Singlemode
Connection range: up to 80 km
Transmission margin: 28 dB
Sensitivity: -24 dBm
Transmission speed: 1.25 Gb/s
| Name | Value | |
|---|---|---|
| Compatibility | Cisco, Dell, Planet and others | |
| SFP module compatibility | CISCO | |
| Diagnostics of DDM | No | |
| Transmit wavelength | CWDM (1450 - 1610 nm) | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 80 km | |
| Medium | 2 threads | |
| Optical connector type | LC | |
| Temperature resistance | common | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Design | CWDM | |
