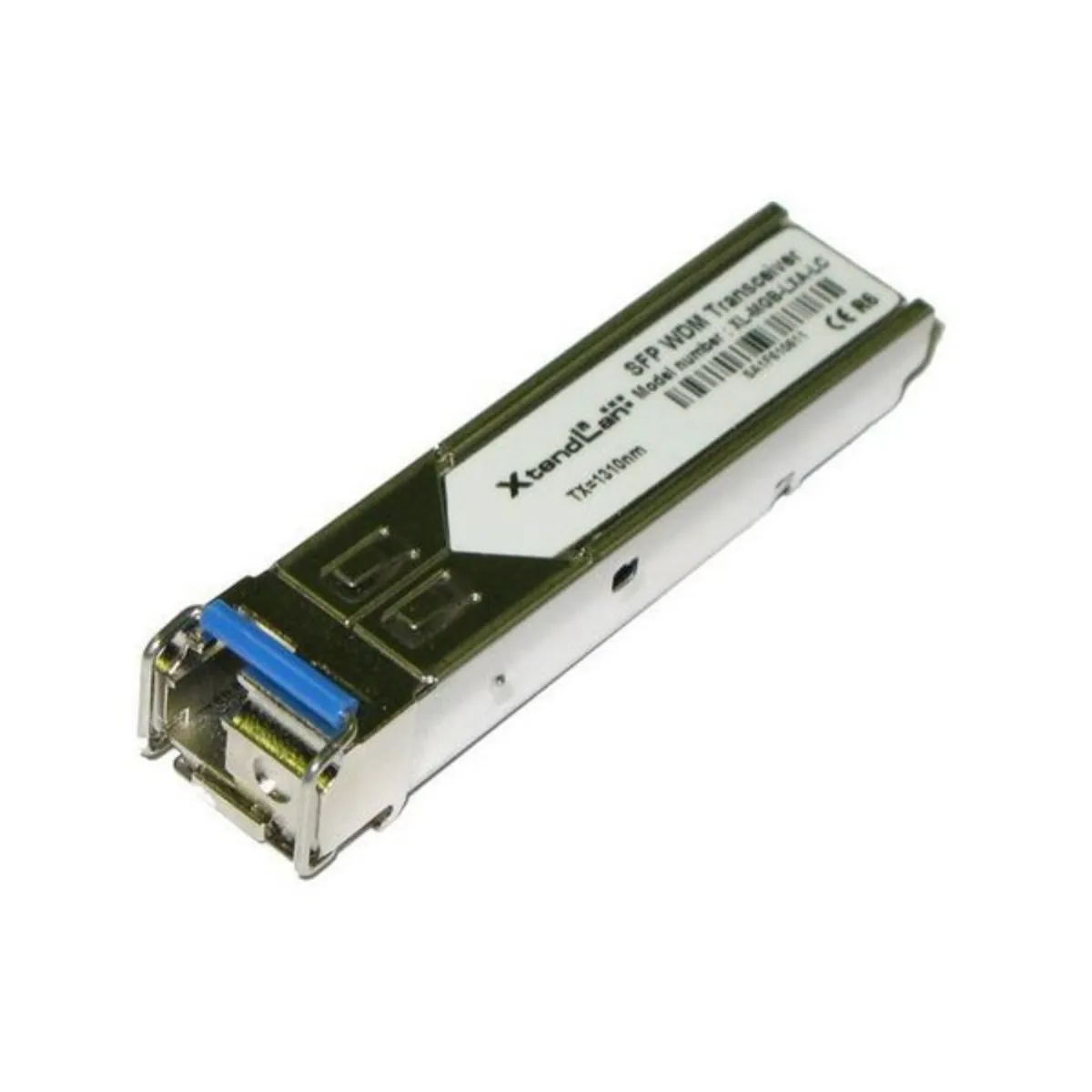

XtendLan mini GBIC SFP LC 1000Base-LX 20km WDM TX1550nm RX1310nm Cisco Planet compatible DMI
XTENDLAN Consumer | XL-MGB-LXBD-LC | 8592457134800
On stock 18 pcs.
Price of goods is 21.83 €.
Weight of goods is 0.023 Kg.
Actual in cart 0 pcs.
XtendLan MGB-LXBD-LC
Gigabit miniGBIC module (SFP), 1000Base-LX, simplex LC connector, single-mode, WDM. Range 20 km. TX 1550nm/RX 1310nm. DMI diagnostics. Cisco, Dell, Planet compatible.
Small-Form-Pluggable (SFP) miniGBIC conversion Gigabit module. Standard 1000Base-LX, IEEE82.3z. Simplex LC connector, for single-mode fibers. It enables two-way communication over a single optical fiber. Expands/converts switch and converter ports with miniGBIC (SFP) slots.
It is equipped with a Digital Monitoring Interface (DMI), in switches and converters equipped with support for this feature, they are able to diagnose the amplitude of the optical signal and other operational parameters of this interface.
For the connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the opposite sides, pairs of modules are usually distinguished by a code representing the A or B side.
Module type: SFP
Connector: LC simplex
Wavelength (transmission/reception): 1550 nm / 1310 nm
Thread Type: Singlemode
Connection range: up to 20 km
Transmission margin: 12 dB
Sensitivity: -21dBm
Transmission speed: 1 Gb/s
| Name | Value | |
|---|---|---|
| Color | silver | |
| Compatibility | Cisco, Dell, Planet and others | |
| SFP module compatibility | DELL | |
| Diagnostics of DDM | Yes | |
| Transmit wavelength | 1550 nm | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 20 km | |
| Medium | 1 thread | |
| Optical connector type | LC | |
| Temperature resistance | common | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Design | WDM | |
