XtendLan mini GBIC SFP SC 1000Base-LX 20km WDM TX1310nm RX1550nm Cisco Planet Compatible DDM
XTENDLAN Consumer | XL-MGB-LXAD | 8592457139126
On stock 28 pcs.
Price of goods is 16.46 €.
Weight of goods is 0.023 Kg.
Actual in cart 0 pcs.

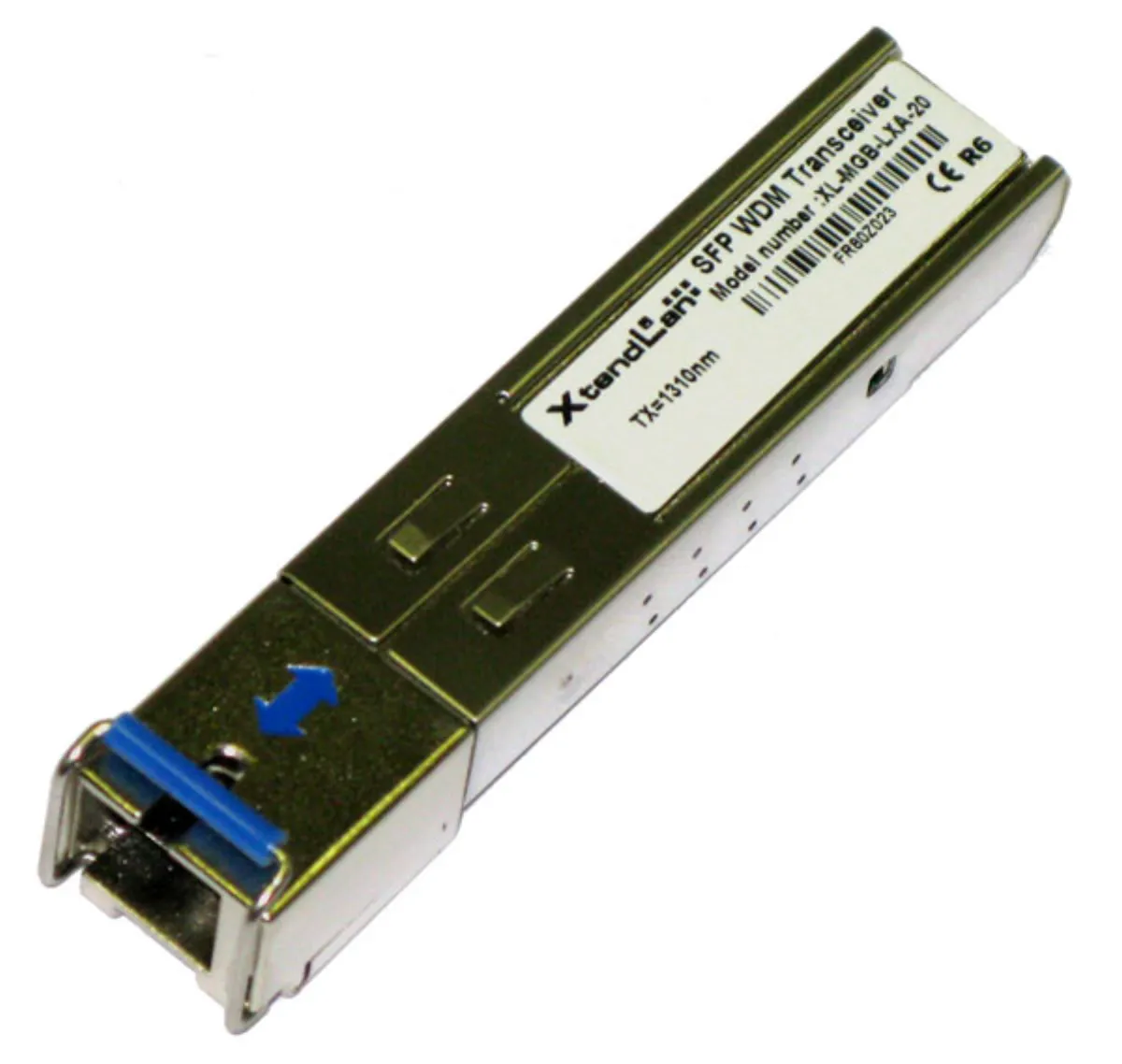

XtendLan MGB-LXAD
Gigabit miniGBIC module (SFP), 1000Base-LX, simplex SC connector, single-mode, can also be used for multimode, WDM. Range 20 km. TX 1310nm/RX 1550nm. Cisco, Dell, Planet compatible. DDM monitoring. Cisco GLC-BX-U-I equivalent.
Small-Form-Pluggable (SFP) miniGBIC conversion Gigabit module. Standard 1000Base-LX, IEEE82.3z. Simplex SC connector, for single-mode fibers. It enables two-way communication over a single optical fiber.
They are equipped with Digital Diagnostic & Monitoring. In switches and converters equipped with DDM support, they are able to diagnose the amplitude of the optical signal.
Expands/converts switch and converter ports with miniGBIC (SFP) slots.
It can also be used for multimode, long-term verified applications on 50/125um fibers with a range of 1km without the use of mode condition cables.
For the connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the opposite sides, pairs of modules are usually distinguished by a code representing the A or B side.
Module type: SFP
Connector: SC simplex
Wavelength (transmitter/receiver): 1310 nm / 1550 nm
Type of fiber: Singlemode / Multimode
Connection range: up to 20 km
Transmission margin: 12 dB
Sensitivity: -21 dBm
Transmission speed: 1 Gb/s
| Name | Value | |
|---|---|---|
| Color | silver | |
| Compatibility | Cisco, Dell, Planet and others | |
| SFP module compatibility | PLANET | |
| Diagnostics of DDM | Yes | |
| Transmit wavelength | 1310 nm | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 20 km | |
| Medium | 1 thread | |
| Optical connector type | SC | |
| Temperature resistance | common | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Design | WDM | |
