XtendLan mini GBIC SFP SC 1000Base-LX 3km WDM TX1310nm RX1550nm Cisco Planet Compatible DDM
XTENDLAN Consumer | XL-MGB-LXAED | 8592457174745
On stock 72 pcs.
Price of goods is 12.22 €.
Weight of goods is 0.414 Kg.
Actual in cart 0 pcs.

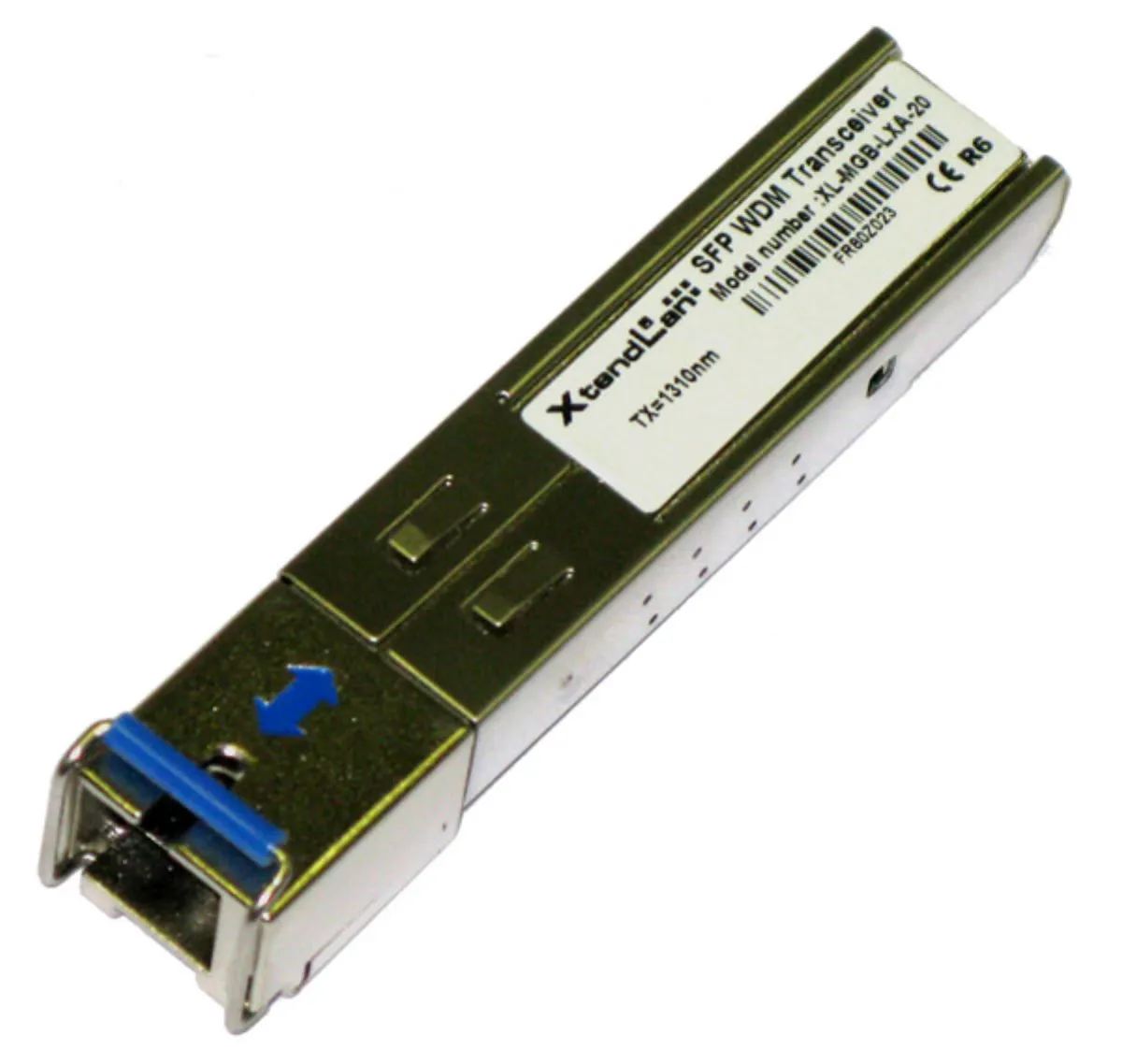

XtendLan MGB-LXAED
Gigabit miniGBIC module (SFP), 1000Base-LX, simplex SC connector, single-mode, WDM. Range 3-10km. TX 1310nm/RX 1550nm. Diagnostics of DDM. Support of most manufacturers (Cisco, Dell, Planet, ...)
Small-Form-Pluggable (SFP) miniGBIC conversion Gigabit module. Standard 1000Base-LX, IEEE82.3z. Simplex SC connector, for single-mode fibers. It enables two-way communication over a single optical fiber.
They are equipped with Digital Diagnostic & Monitoring. In switches and converters equipped with DDM support, they are able to diagnose the amplitude of the optical signal.
Expands/converts switch and converter ports with miniGBIC (SFP) slots.
For the connection between WDM modules, it is necessary to combine the TX/RX wavelengths of the opposite sides, pairs of modules are usually distinguished by a code representing the A or B side.
Module type: SFP
Connector: SC simplex
Wavelength (transmission/reception): 1310 nm / 1550 nm
Thread Type: Singlemode
Connection range: up to 3 km
Transmission margin: 12 dB
Sensitivity: -21 dBm
Transmission speed: 1 Gb/s
| Name | Value | |
|---|---|---|
| Color | silver | |
| Compatibility | Cisco, Dell, Planet and others | |
| Design | WDM | |
| SFP module compatibility | PLANET | |
| Type of optical fiber | multimode | |
| Range [km] | 3 km | |
| Medium | 1 thread | |
| Module type | SFP | |
| Diagnostics of DDM | Yes | |
| Temperature resistance | common | |
| SFP module speed | 1,25 Gbps | |
| Optical connector type | SC | |
| Transmit wavelength | 1310 nm | |
