XtendLan Outdoor switchboard for 19" 11U depth 300mm IP55 gray

XTENDLAN Consumer | WEH-11U-503060 | 8592457191803

On stock 9 pcs.

Price of goods is 141.85 €.

Weight of goods is 18 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

XtendLan WEH-11U-503060

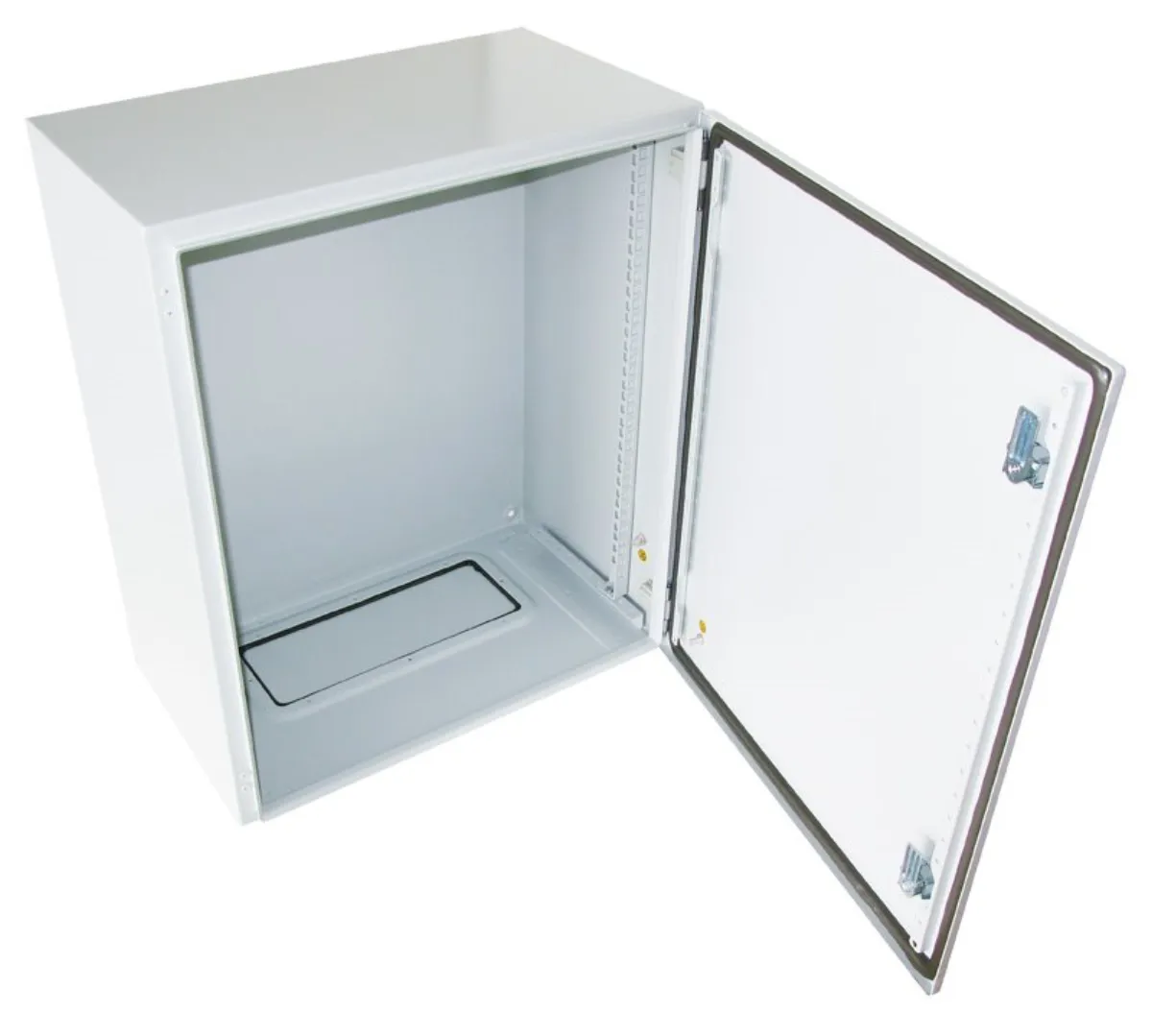

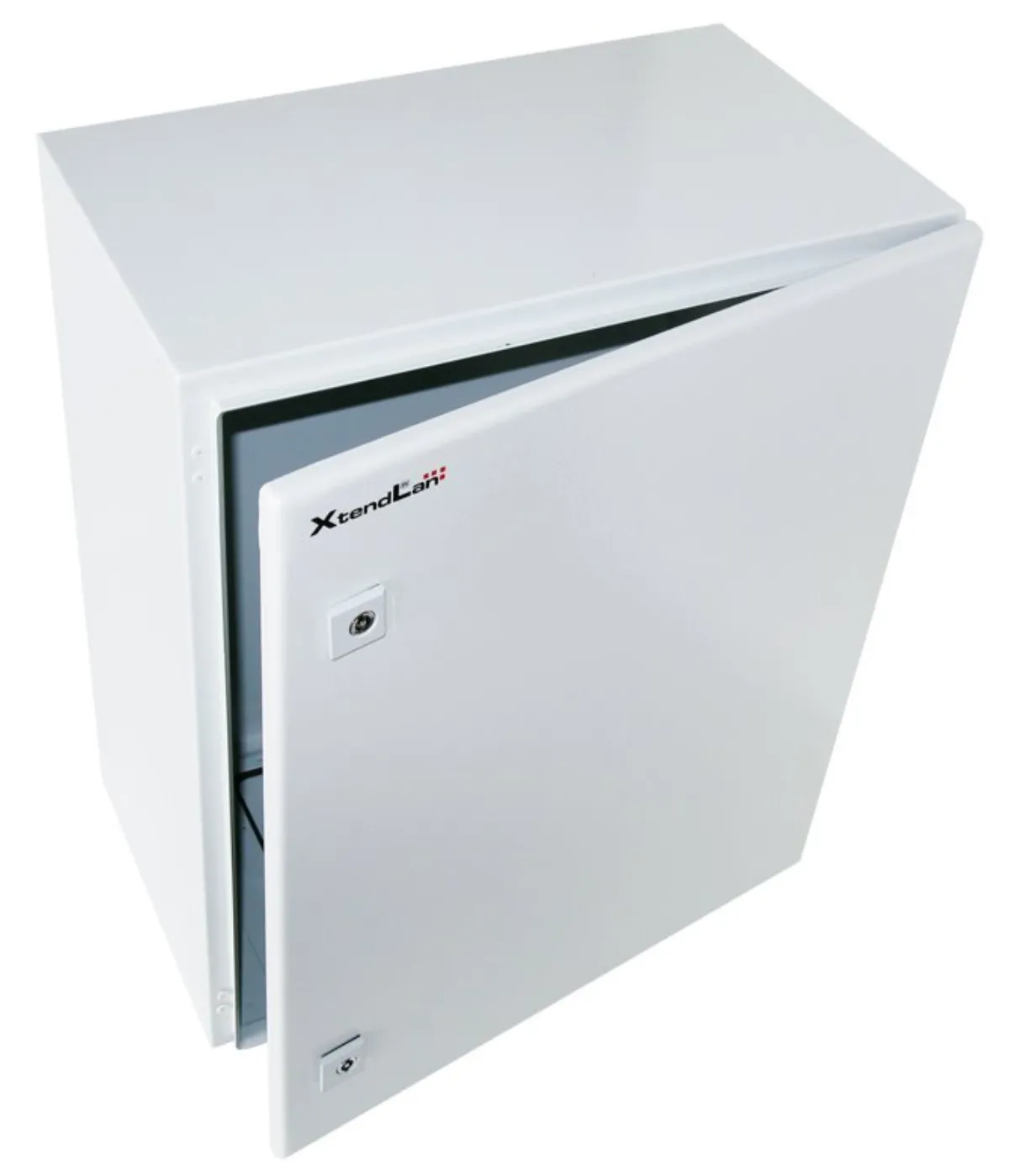

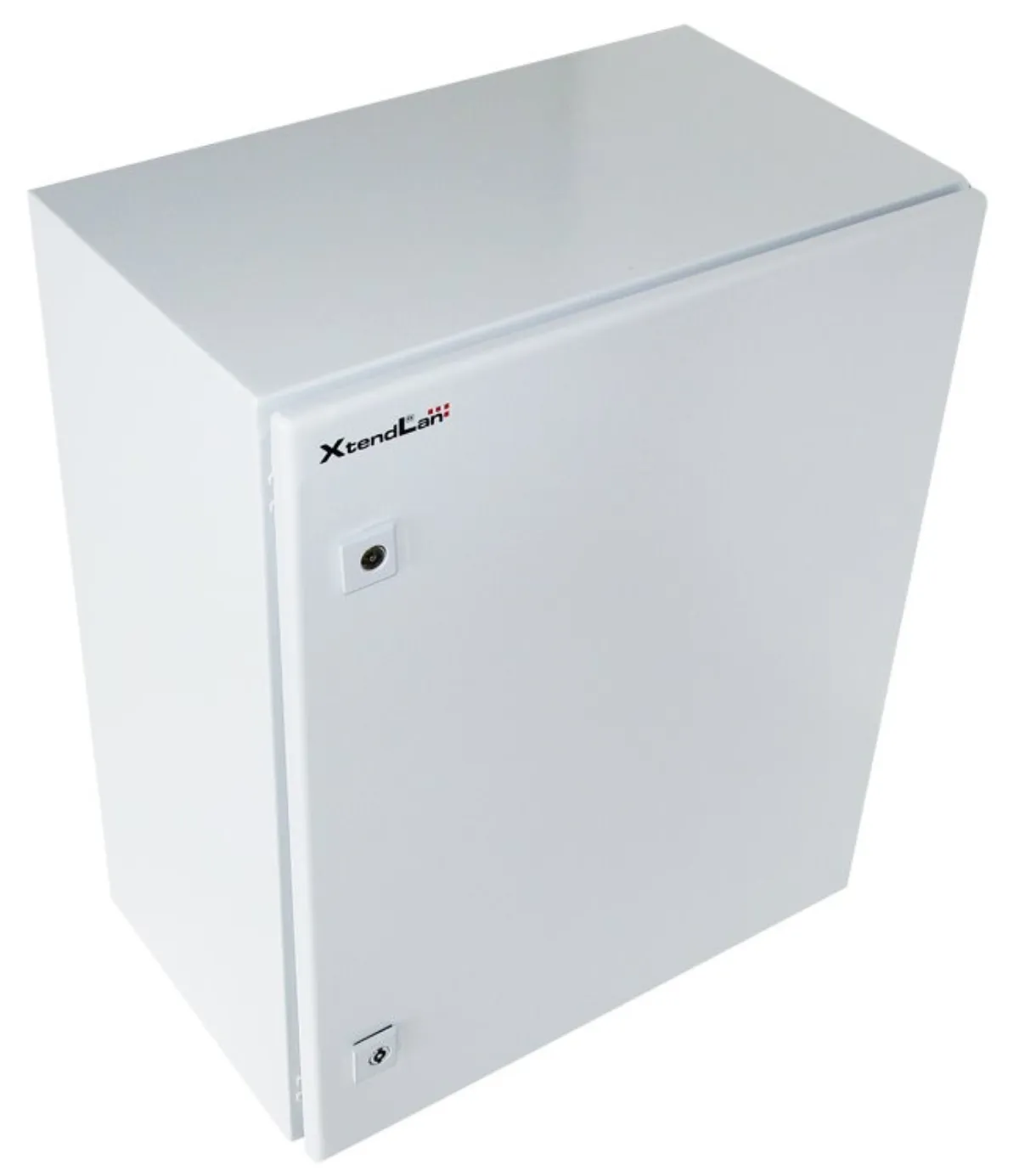

Waterproof switchboard, IP55 protection, mounting frame for 19" devices. Three-layer surface treatment (phosphating, dipping in base coat, powder coat), solid construction. Removable cover for cable passage. It is made of rolled steel, the bearing parts are made of 1.5 mm thick steel. Door opening 110 degrees, right or left mounting (user-interchangeable opening).

Vertical mounting rails for 19" devices - left and right Accessories include mounting screws, 1x universal key.

Mounting holes for wall mounting: always 20mm from the outer edges. The accessories include ears for mounting above and below the cabinet with an overlap of 10 mm on each side. Offset from the wall when using them +8mm.

Cabinet format: 19"

Capacity: 11U

Degree of protection: IP55

Dimensions: 500 x 300 x 600 mm (width x depth x height)

Standards

  • IEC60529
  • EN60529/10.91
  • GB4208-93

Properties

NameValue
Colorgrey
Dimension [mm]500 × 300 × 600 mm
Height [U]11
Floor plan of the cabinet [mm]500 × 300
Delivered assembledYes
