XtendLan Outdoor switchboard for 19" 11U depth 450mm IP55 gray

XTENDLAN Consumer | WEH-11U-604550 | 8592457171331

Out of stock.

Price of goods is 139.88 €.

Weight of goods is 21 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

XtendLan WEH-11U-604560

The cabinet is suitable for installing data and telecommunications equipment.

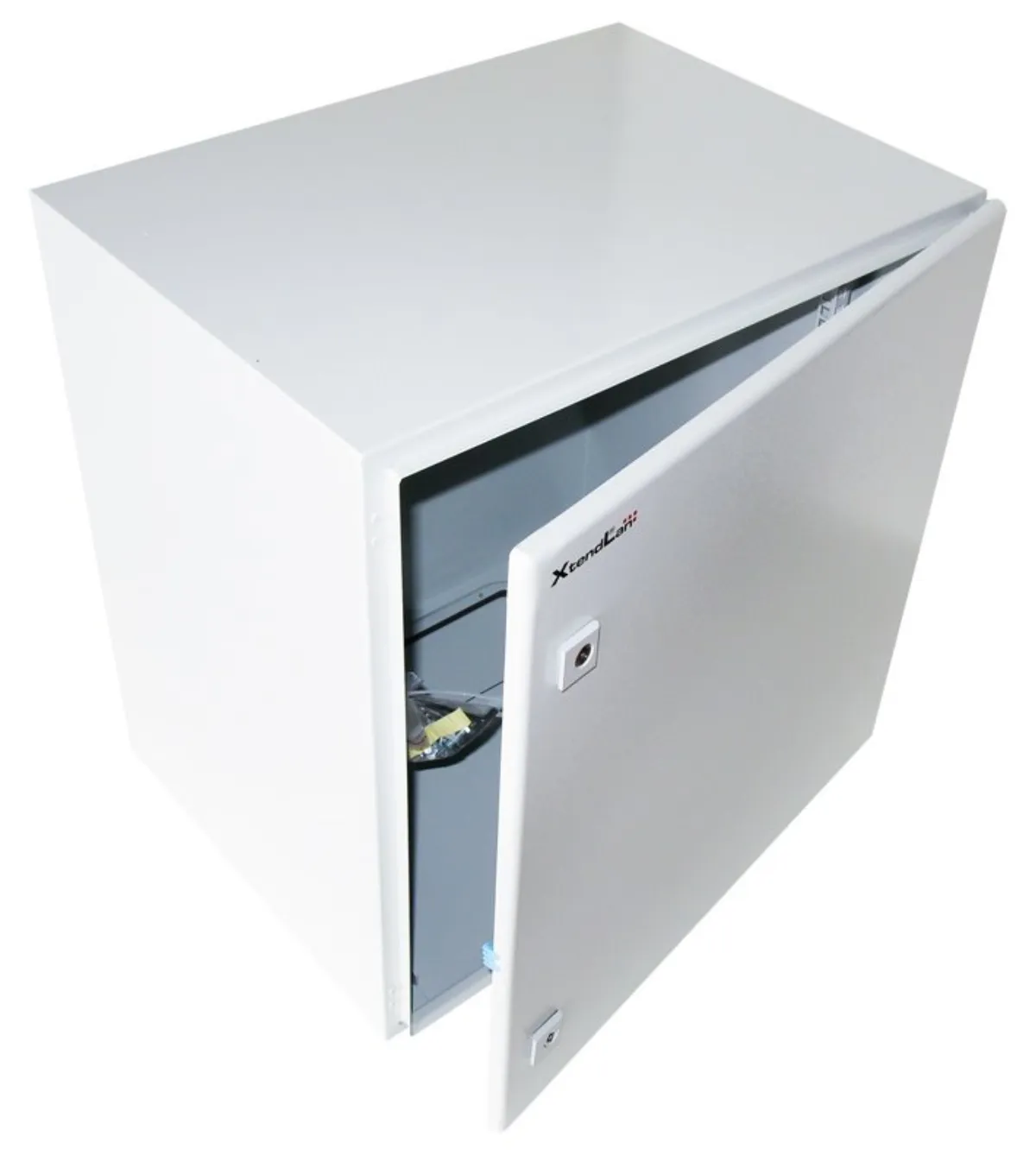

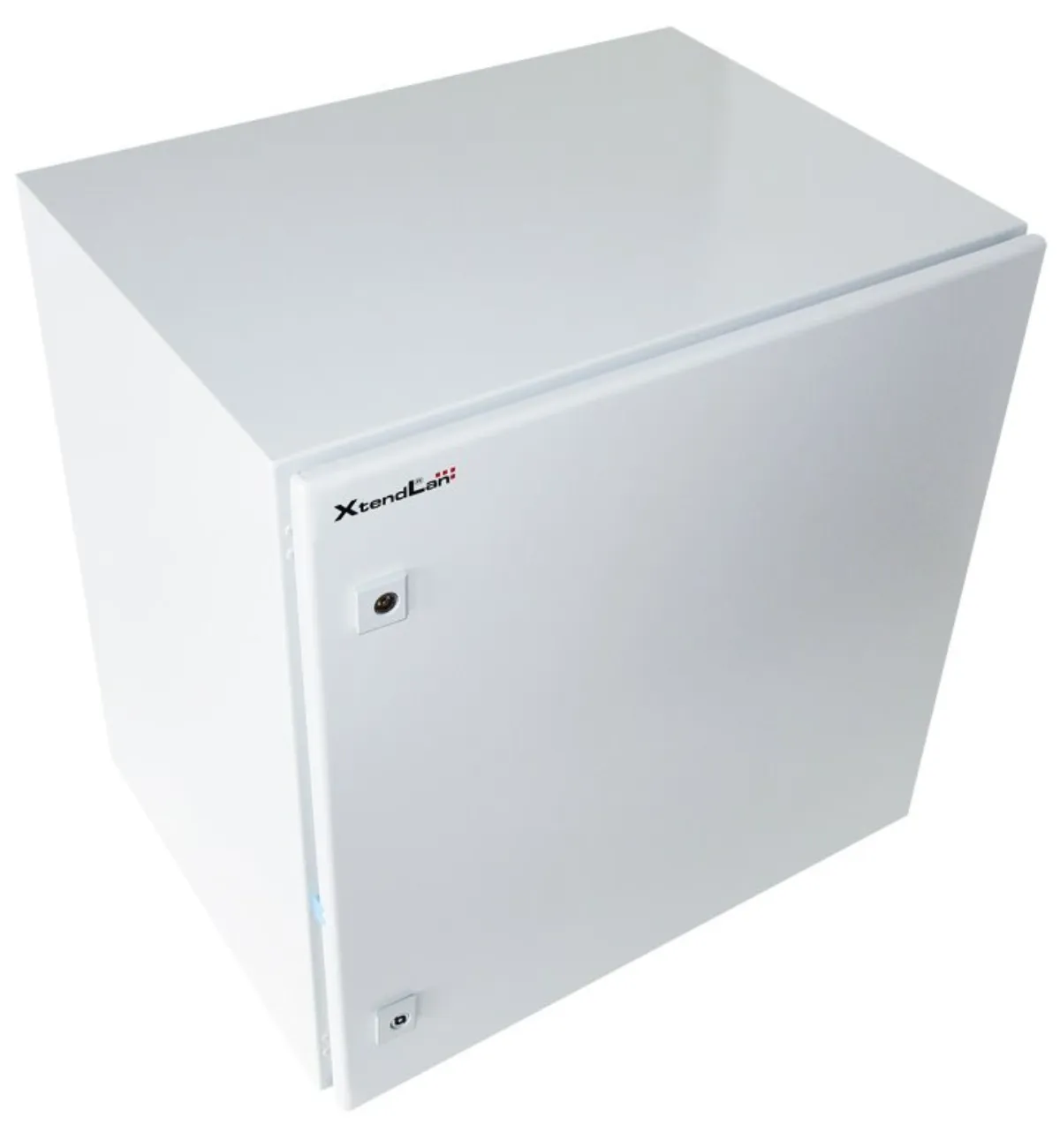

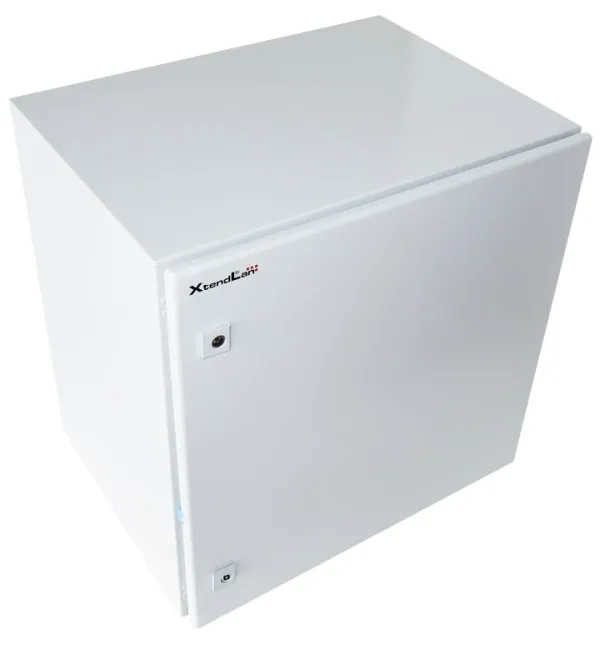

Outdoor wall switchboard made of rolled steel with a thickness of 1.5 mm. Three-layer surface treatment.

Cabinet format: 19"

Capacity: 11U

Degree of protection: IP55 - waterproof

Dimensions: 600 x 450 x 600 mm (width x depth x height)

Execution

  • door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
  • back cover - full
  • side cover - full
  • top cover - full

Additional properties

  • mounting holes for placement on the wall always 20 mm from the outer edges
  • vertical mounting rails for 19" devices - left and right
  • the connecting material is included with the switchboard
  • in the lower part of the switchboard, there is a passage for cabling with a size of 303 × 113 mm with a removable cover
  • meets IEC60529, EN60529/10.91 and GB4208-93 standards

Accessories

  • ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
  • mounting screws
  • universal key

Properties

NameValue
Colorgrey
Dimension [mm]600 × 450 × 500 mm
Outdoor useYes
Type of accessoryswitchboard
Height [U]11
Cabinet formatmural
Floor plan of the cabinet [mm]600 × 450
Delivered assembledYes
