XtendLan Outdoor switchboard for 19" 12U depth 420mm IP55 3-point lock gray

XTENDLAN Consumer | WEH-12U-420-3L | 8592457179696

Out of stock.

Price of goods is 207.71 €.

Weight of goods is 25 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

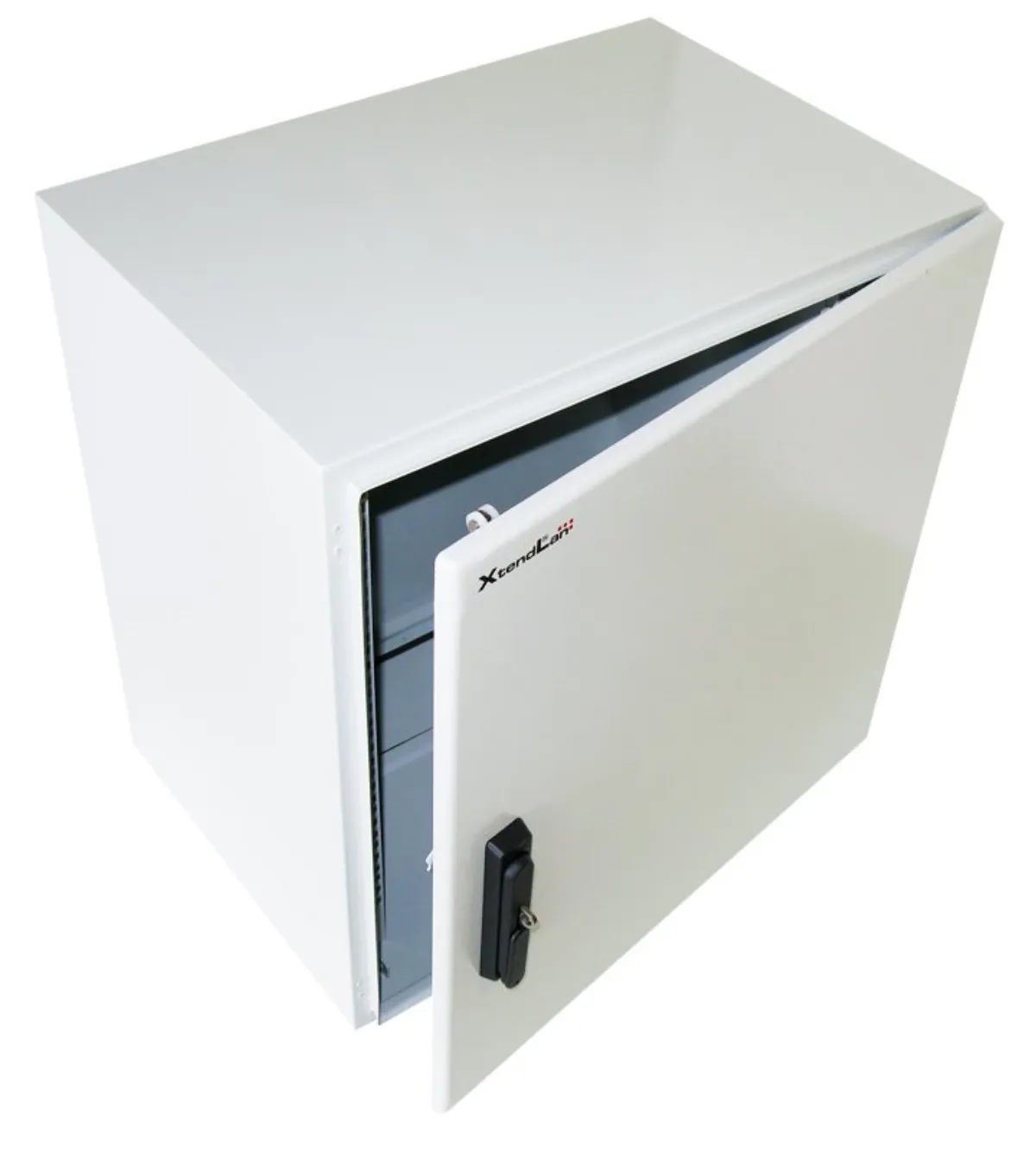

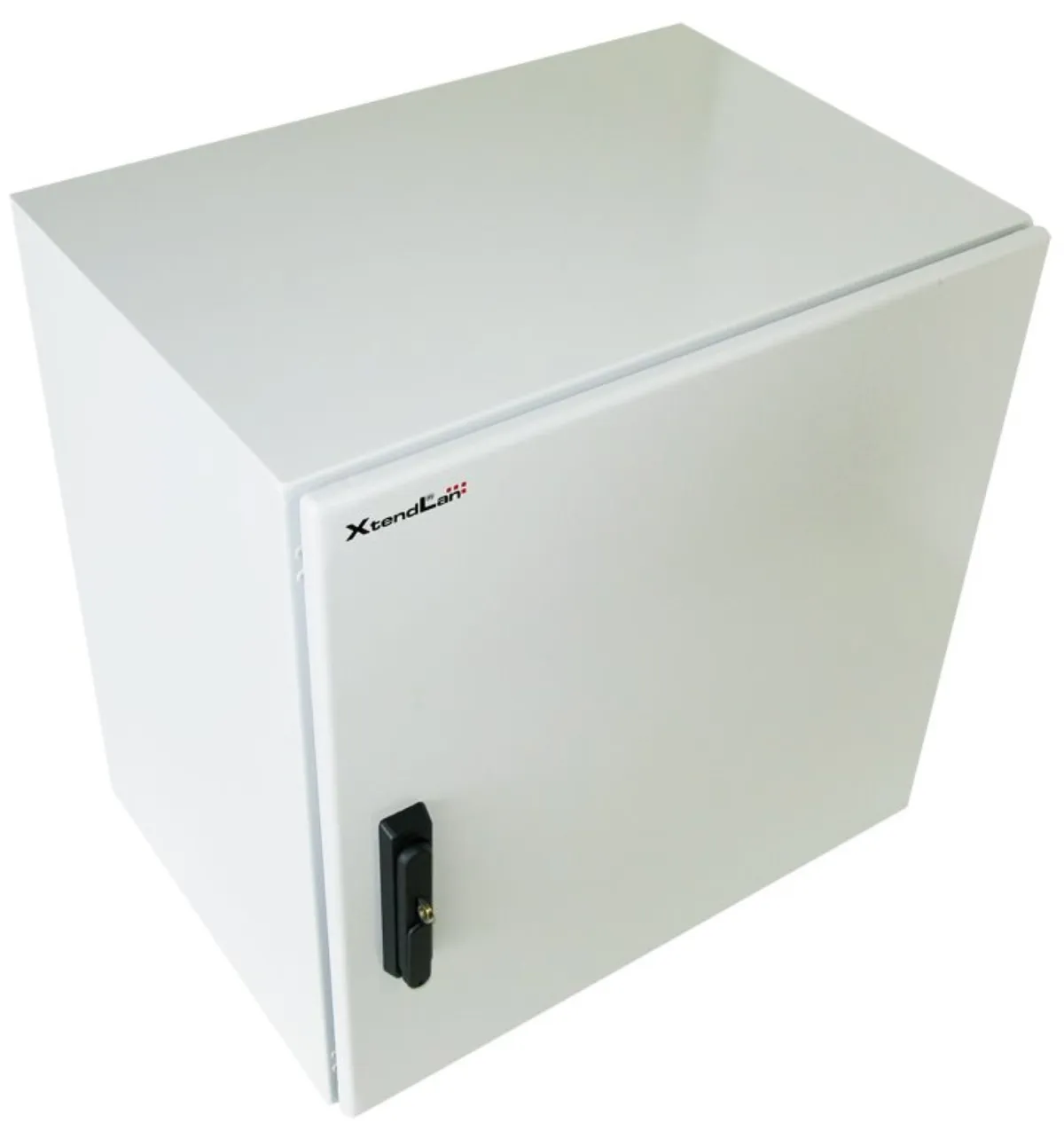

XtendLan WEH-12U-420-3L

The cabinet is suitable for installing data and telecommunications equipment.

Outdoor wall switchboard made of rolled steel with a thickness of 1.5 mm. Three-layer surface treatment.

Cabinet format: 19"

Capacity: 12U

Degree of protection: IP55 - waterproof

Dimensions: 600 x 420 x 600 mm (width x depth x height)

Execution

  • door - solid, 110° opening, 3-point lock, changeable opening direction, polyurethane foam seal
  • back cover - full
  • side cover - full
  • top cover - full

Additional properties

  • mounting holes for placement on the wall always 20 mm from the outer edges
  • vertical mounting rails for 19" devices - left and right
  • the connecting material is included with the switchboard
  • there is a 303 x 113 mm cable passage with a removable cover in the lower part of the cabinet
  • meets IEC60529, EN60529/10.91 and GB4208-93 standards

Accessories

  • ears for attachment above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
  • mounting screws
  • universal key

Properties

NameValue
Colorgrey
Outdoor useYes
Height [U]12
Floor plan of the cabinet [mm]600 × 420
Delivered assembledYes
