XtendLan Outdoor switchboard for 19" 17U depth 210mm IP55 gray

XTENDLAN Consumer | WEH-17U-762180 | 8592457181828

On stock 15 pcs.

Price of goods is 176.83 €.

Weight of goods is 26 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

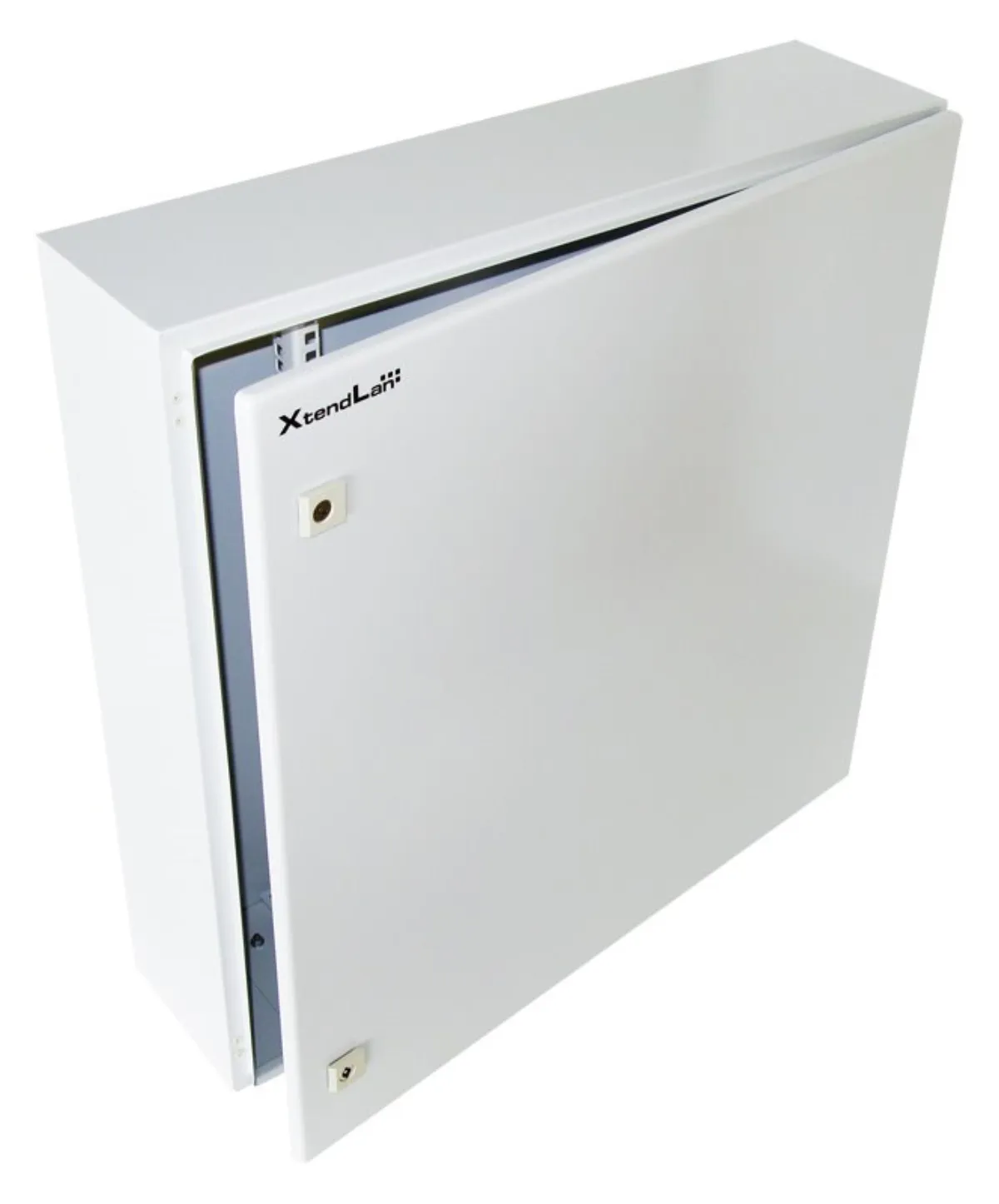

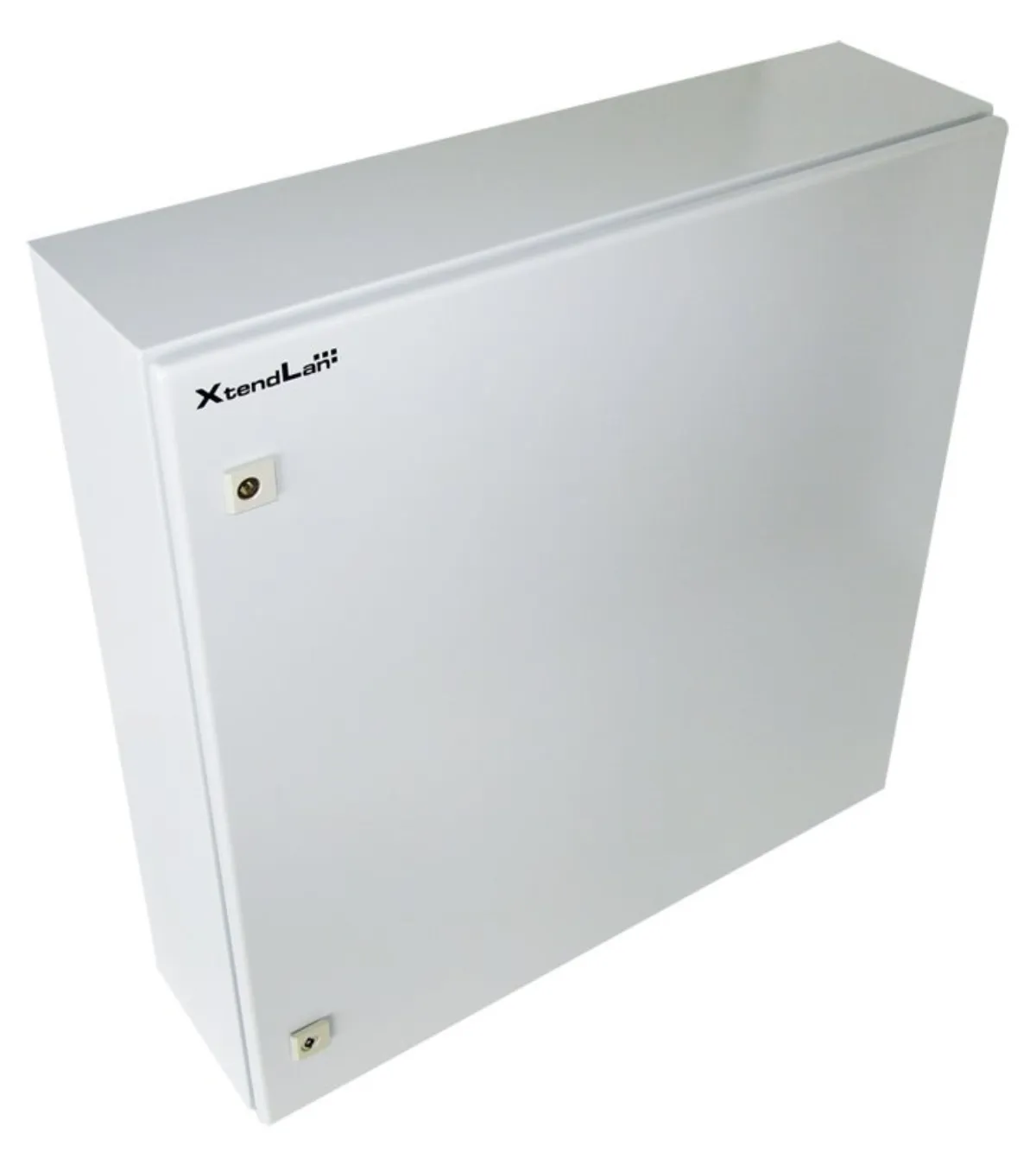

XtendLan WEH-17U-762180

The cabinet is suitable for installing data and telecommunications equipment.

Outdoor wall switchboard made of rolled steel with a thickness of 1.5 mm. Three-layer surface treatment.

Cabinet format: 19"

Capacity: 17U

Degree of protection: IP55 - waterproof

Dimensions: 760 x 210 x 800 mm (width x depth x height)

Execution

  • door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
  • back cover - full
  • side cover - full
  • top cover - full

Additional properties

  • mounting holes for placement on the wall always 20 mm from the outer edges
  • vertical mounting rails for 19" devices - left and right
  • the connecting material is included with the switchboard
  • there is a 303 x 113 mm cable passage with a removable cover in the lower part of the cabinet
  • meets IEC60529, EN60529/10.91 and GB4208-93 standards

Accessories

  • ears for attachment above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
  • mounting screws
  • universal cl

Properties

NameValue
Colorgrey
Height [U]17
Floor plan of the cabinet [mm]760 × 210
Delivered assembledYes
