XtendLan Outdoor switchboard for 19" 4U depth 360mm IP55 gray

XTENDLAN Consumer | WEH-4U-603630 | 8592457266129

On stock 3 pcs.

Price of goods is 142.57 €.

Weight of goods is 13.5 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

XtendLan WEH-4U-603630

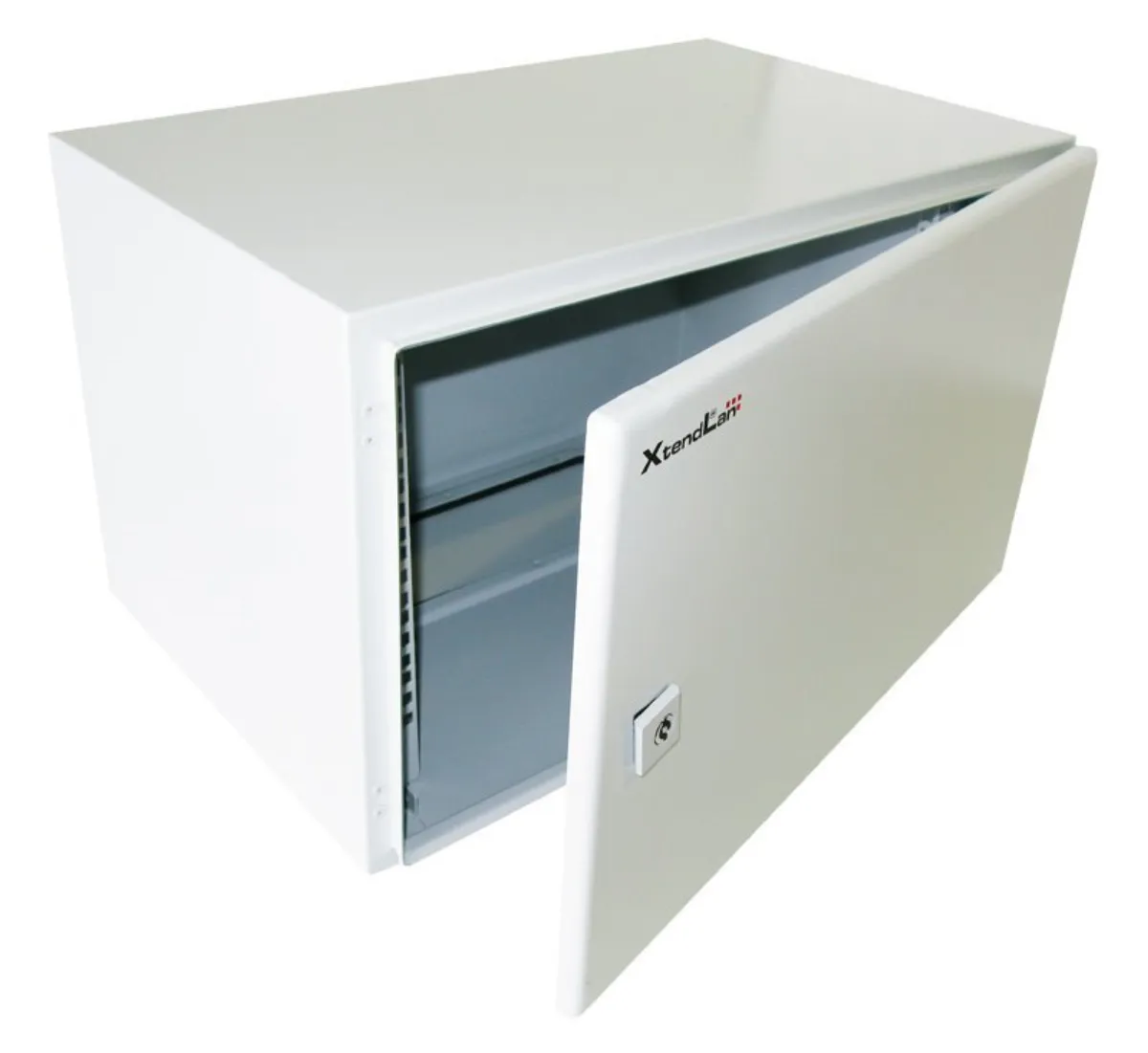

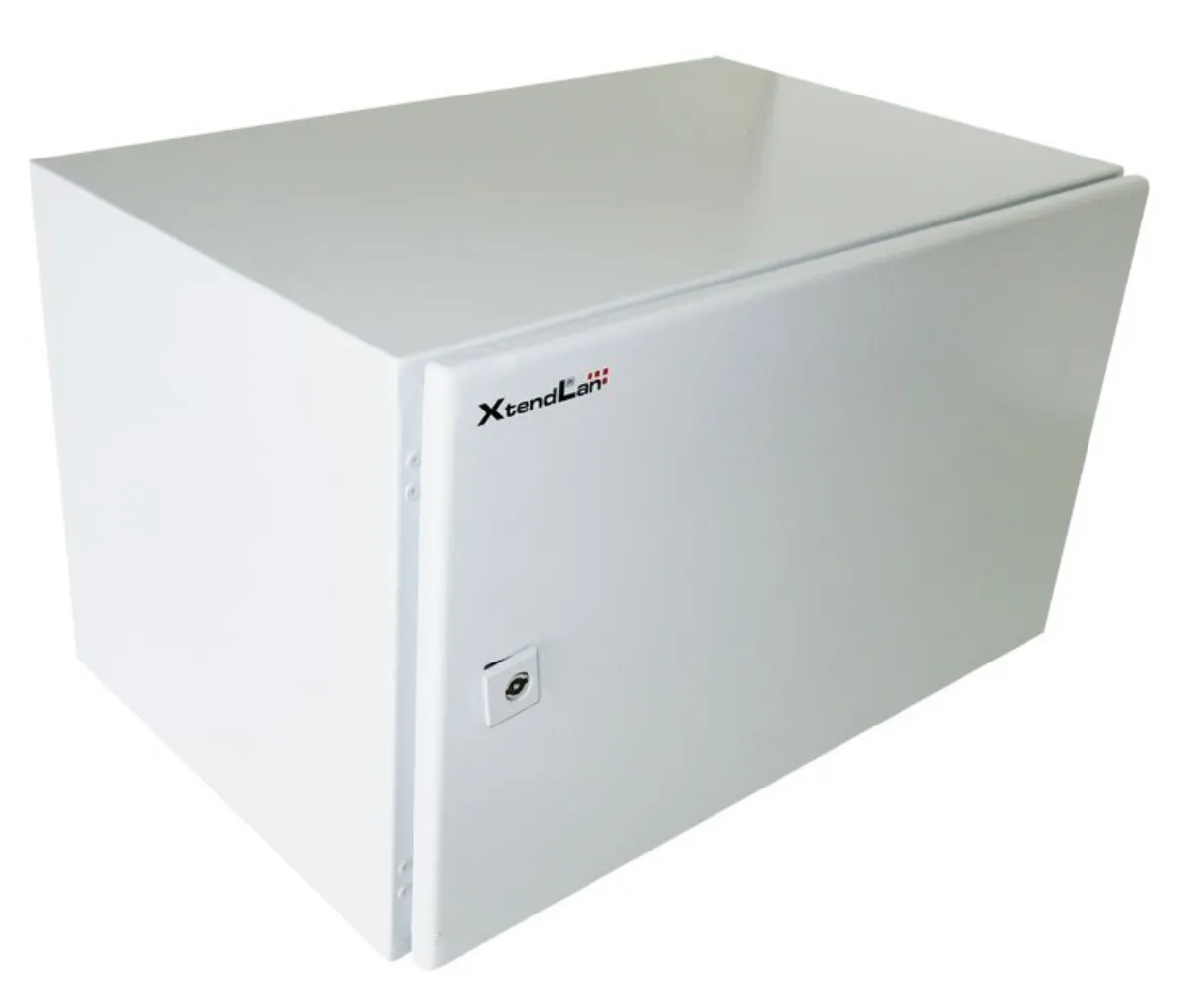

Illustrative photo

The cabinet is suitable for installing data and telecommunications equipment. Outdoor wall cabinet made of rolled steel with a thickness of 1.5 mm. Three-layer surface finish.

Cabinet format: 19"

Capacity: 4U

Degree of protection: IP55 - waterproof

Dimensions: 600 x 360 x 300 mm (width x depth x height)

Execution

  • door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
  • back cover - full
  • side cover - full
  • top cover - full

Additional properties

  • Mounting holes for placement on the wall always 20 mm from the outer edges.
  • Vertical mounting rails for 19" devices (left and right).
  • The connecting material is included with the switchboard.
  • In the lower part of the cabinet there is a passage for cabling with a removable cover.
  • Meets IEC60529, EN60529/10.91 and GB4208-93 standards.

Accessories

  • ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
  • mounting screws
  • universal key

Properties

NameValue
Colorgrey
Dimension [mm]600 × 360 × 300 mm
Type of accessoryswitchboard
Height [U]4
Cabinet formatmural
Floor plan of the cabinet [mm]600 × 360
Delivered assembledYes
