XtendLan Outdoor switchboard for 19" 6U depth 180mm IP55 gray
XTENDLAN Consumer | WEH-6U-601836 | 8592457228929
Out of stock.
Price of goods is 93.74 €.
Weight of goods is 16.2 Kg.
Actual in cart 0 pcs.

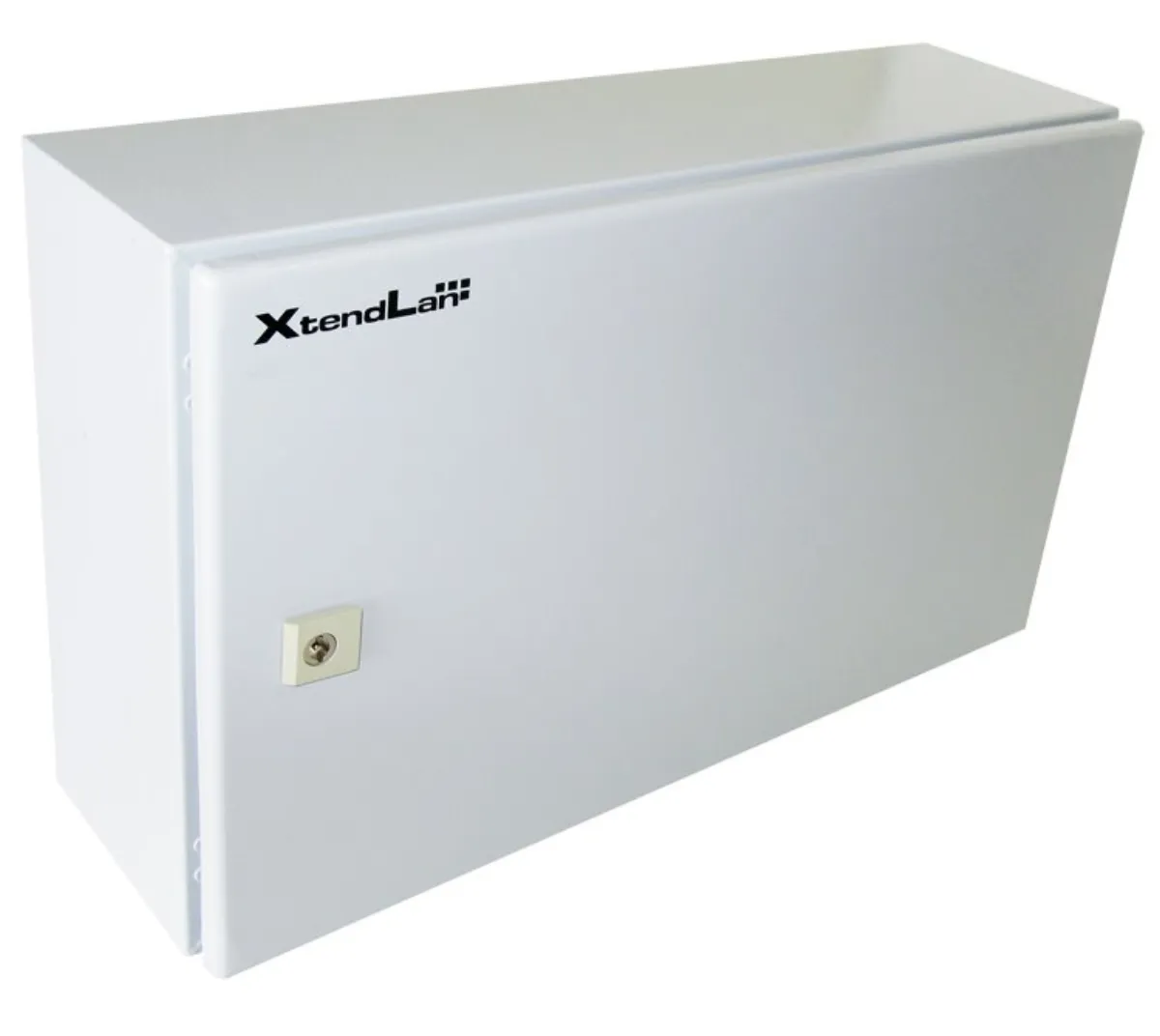

XtendLan WEH-6U-601836
The cabinet is suitable for installing data and telecommunications equipment.
Outdoor wall cabinet made of rolled steel with a thickness of 1.5 mm. Three-layer surface treatment.
Cabinet format: 19"
Height: 6U
Degree of protection: IP55 - waterproof
Dimensions: 600 x 360 x 180 mm
Execution

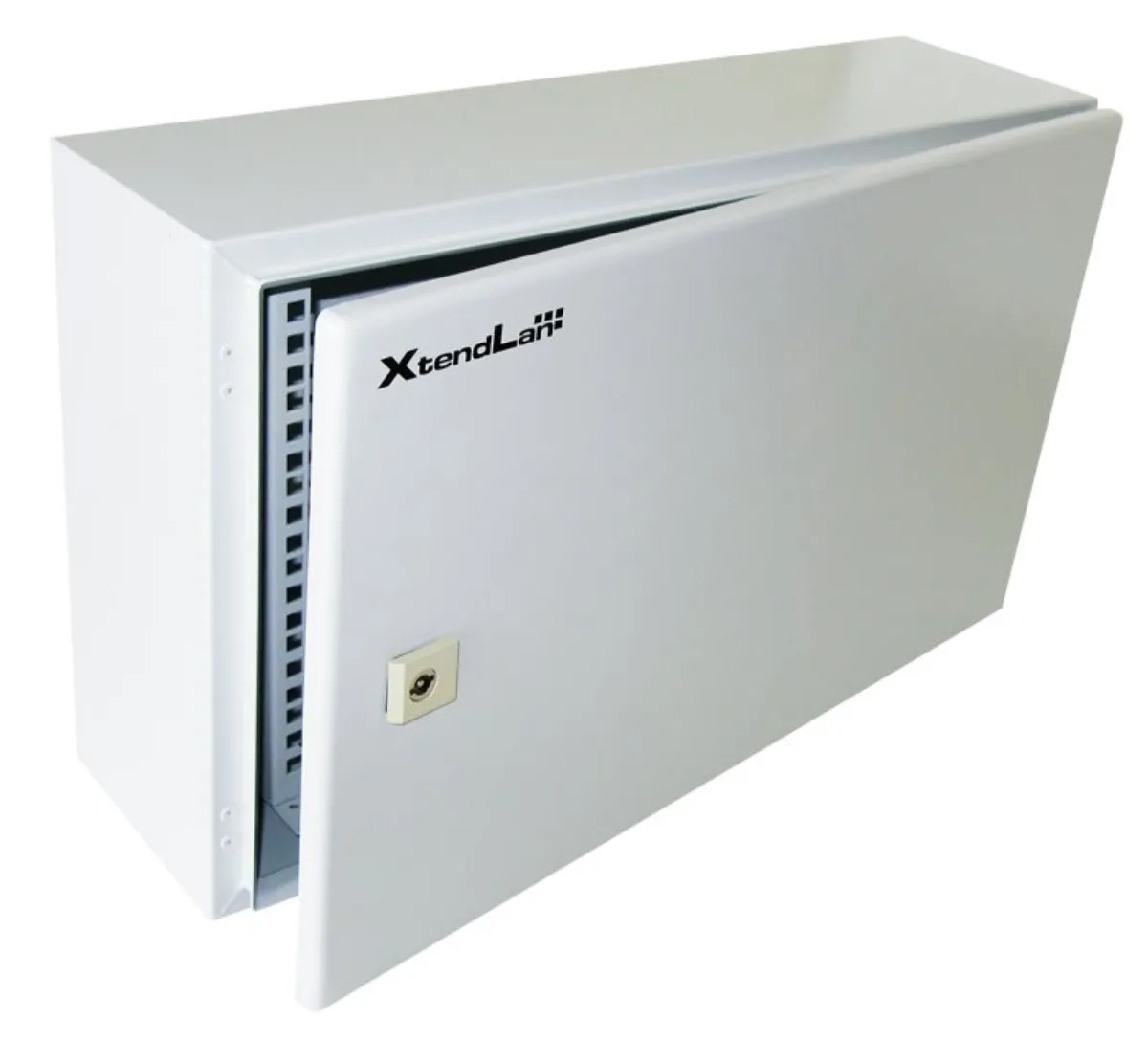

- door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
- back cover - full
- side cover - full
- top cover - full
Additional properties
- mounting holes for placement on the wall always 20 mm from the outer edges
- vertical mounting rails for 19" devices - left and right
- the connecting material is included with the switchboard
- there is a passage for cabling in the lower part of the switchboard
- meets IEC60529, EN60529/10.91 and GB4208-93 standards
Accessories
- ears for attachment above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
- mounting screws
- universal key
| Name | Value | |
|---|---|---|
| Color | grey | |
| Dimension [mm] | 600 × 360 × 180 mm | |
| Height [U] | 6 | |
| Floor plan of the cabinet [mm] | 600 × 180 | |
| Delivered assembled | Yes | |
