XtendLan Outdoor switchboard for 19" 7U depth 280mm IP55 gray
XTENDLAN Consumer | WEH-7U-602840 | 8592457192817
On stock 17 pcs.
Price of goods is 104.74 €.
Weight of goods is 18.55 Kg.
Actual in cart 0 pcs.

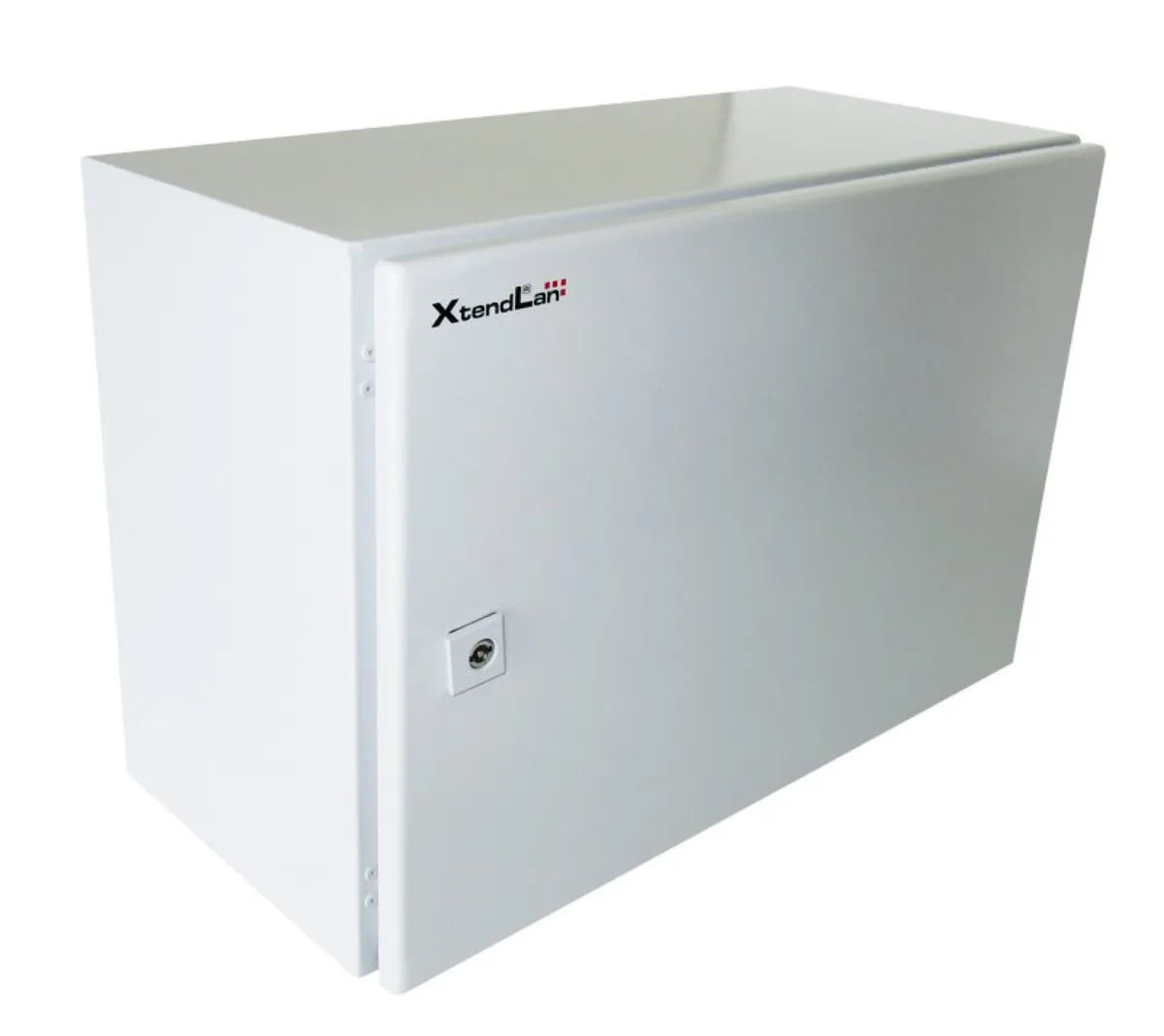

XtendLan WEH-7U-602840
The cabinet is suitable for installing data and telecommunications equipment.
Outdoor wall cabinet made of rolled steel with a thickness of 1.5 mm. Three-layer surface finish.
Cabinet format: 19"
Height: 7U
Degree of protection: IP55 - waterproof
Dimensions: 600 x 400 x 280 mm
Execution

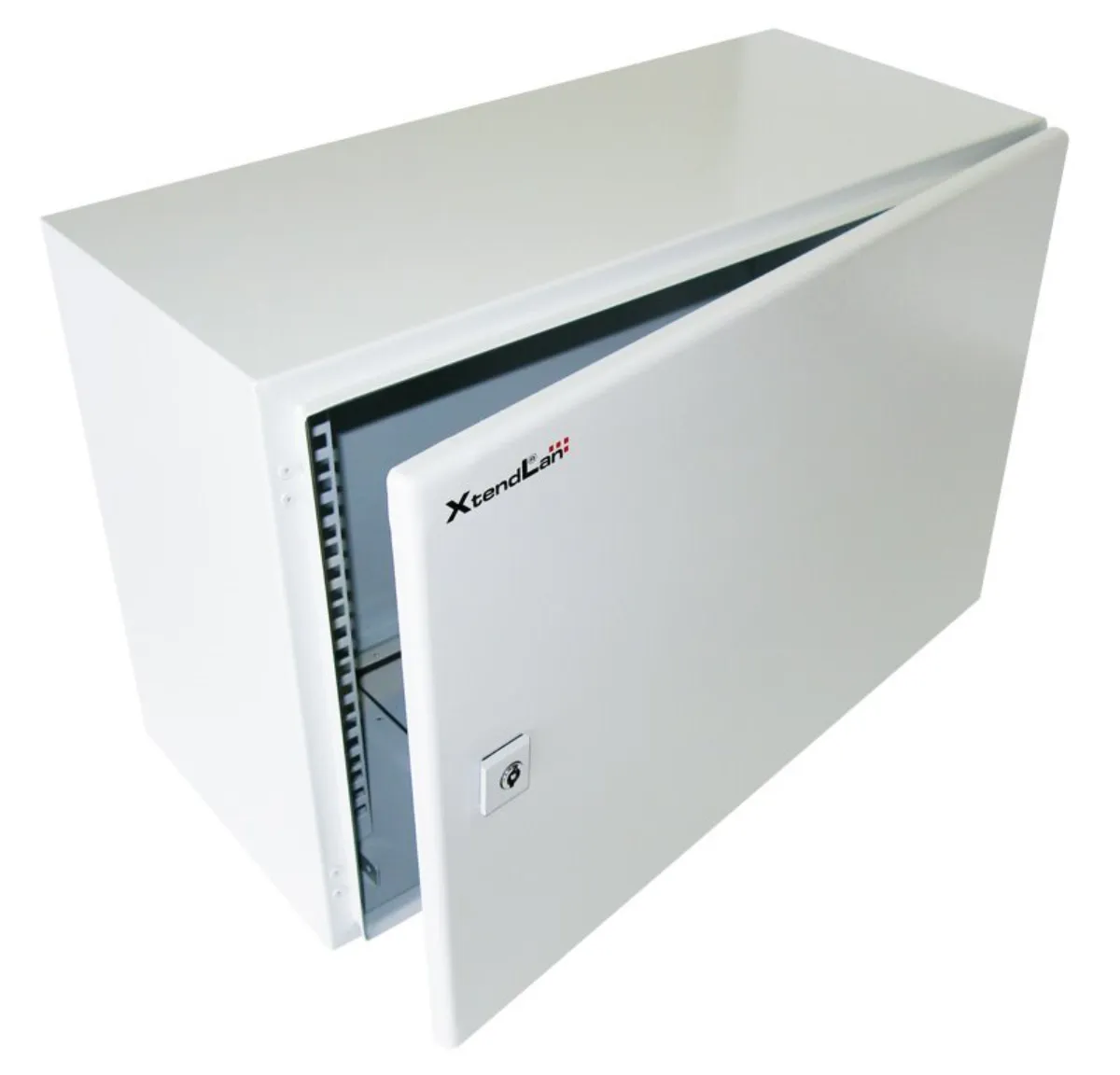

- door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
- back cover - full
- side cover - full
- top cover - full
Additional properties
- mounting holes for placement on the wall always 20 mm from the outer edges
- vertical mounting rails for 19" devices - left and right
- the connecting material is included with the switchboard
- there is a 303 x 113 mm cable passage with a removable cover in the lower part of the cabinet
- meets IEC60529, EN60529/10.91 and GB4208-93 standards
Accessories
- ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
- mounting screws
- universal key
| Name | Value | |
|---|---|---|
| Color | grey | |
| Dimension [mm] | 600 × 400 × 280 mm | |
| Height [U] | 6 | |
| Floor plan of the cabinet [mm] | 600 × 280 | |
| Delivered assembled | Yes | |
