XtendLan Outdoor switchboard for 19" 8U depth 450mm IP55 gray

XTENDLAN Consumer | WEH-8U-604540 | 8592457179672

On stock 14 pcs.

Price of goods is 155.06 €.

Weight of goods is 23 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

XtendLan WEH-8U-604540

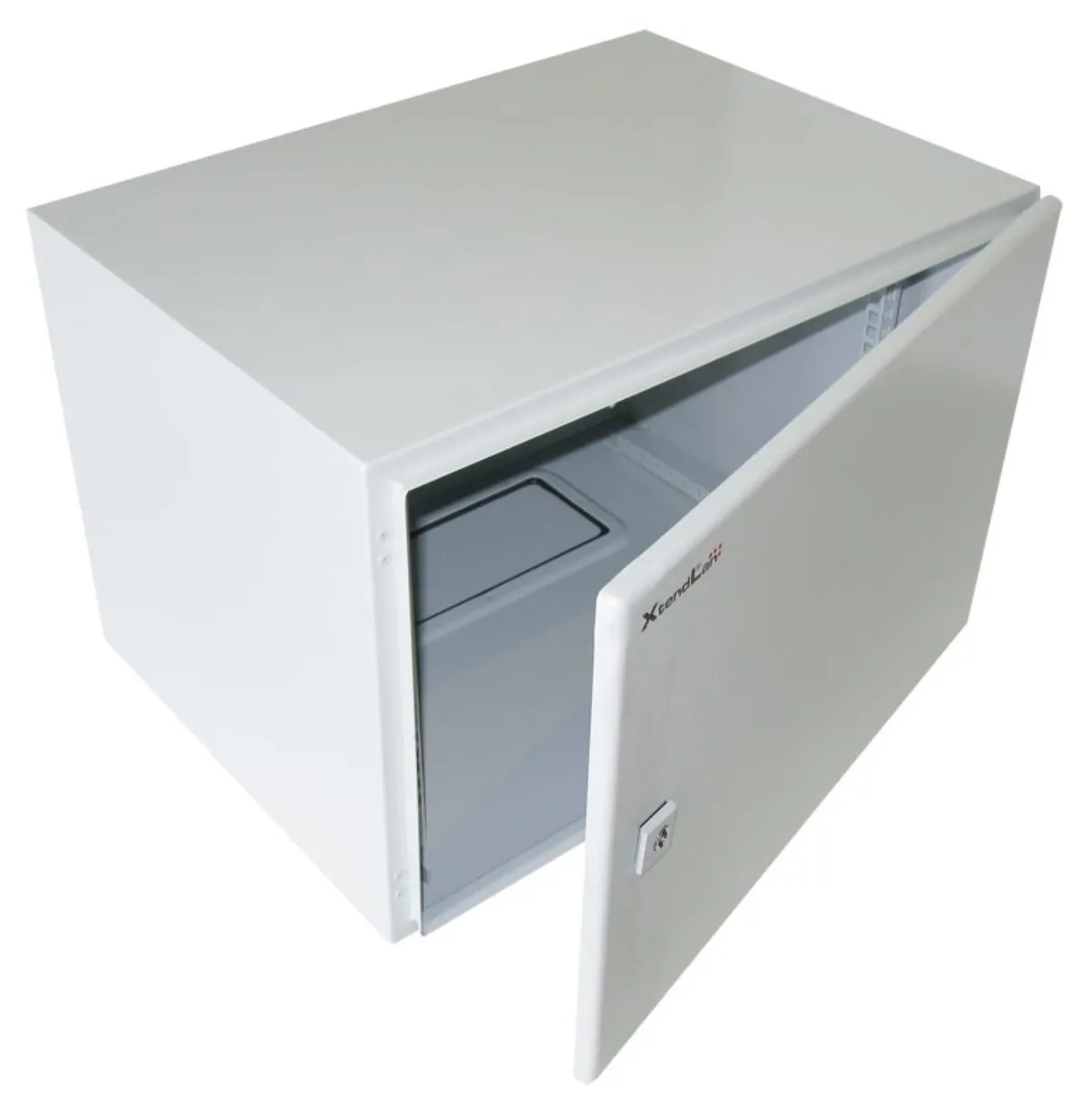

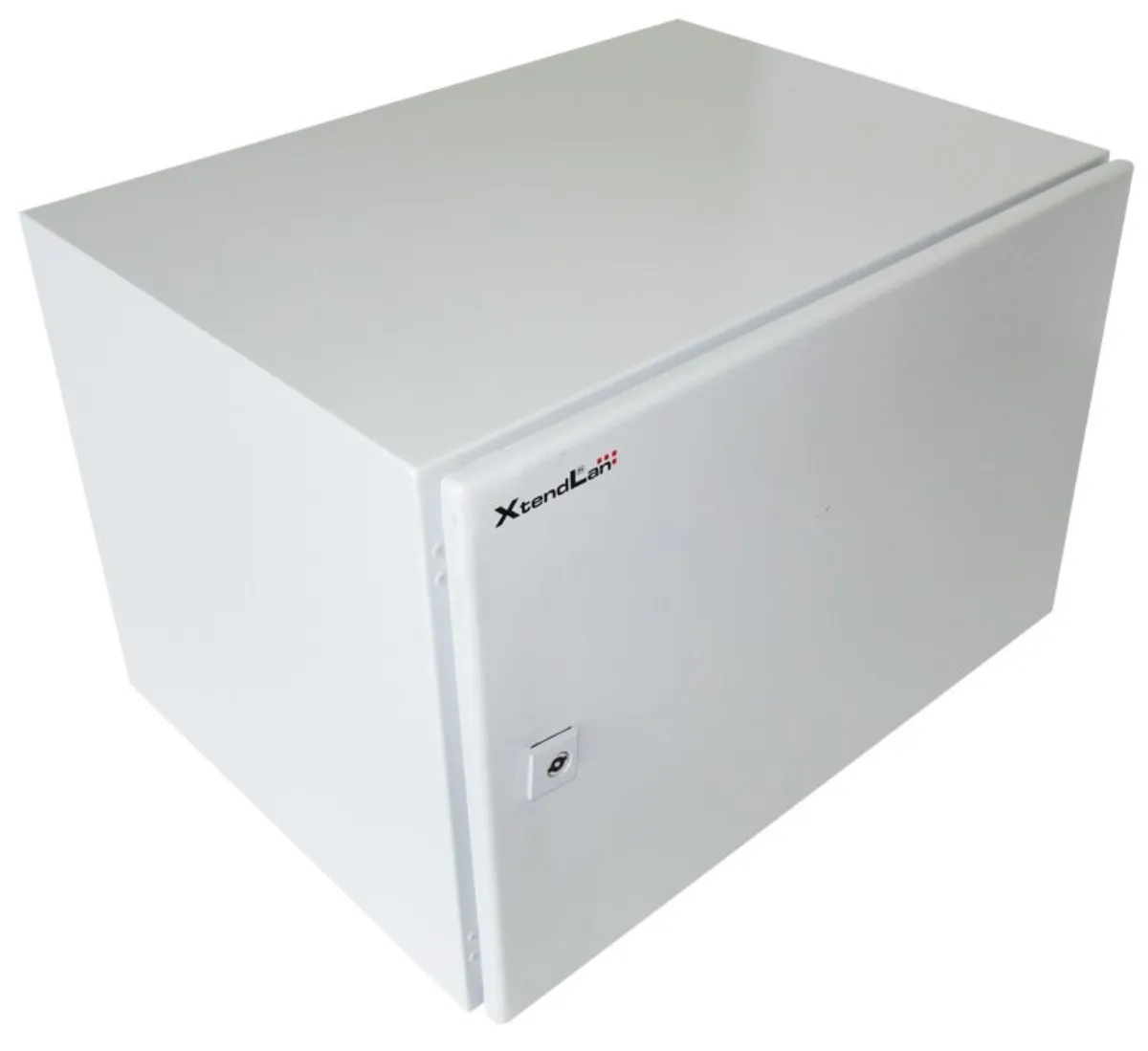

Illustrative photo - The cabinet has a height of 8U

The cabinet is suitable for installing data and telecommunications equipment. Outdoor wall cabinet made of rolled steel with a thickness of 1.5 mm. Three-layer surface finish.

Cabinet format: 19"

Capacity: 8U

Degree of protection: IP55 - waterproof

Dimensions: 600 x 450 x 400 mm (width x depth x height)

Execution

  • door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
  • back cover - full
  • side cover - full
  • top cover - full

Additional properties

  • Mounting holes for placement on the wall always 20 mm from the outer edges
  • Vertical mounting rails for 19" devices - left and right
  • The connecting material is included with the switchboard
  • There is a 303 x 113 mm cable passage with a removable cover in the lower part of the cabinet
  • Complies with IEC60529, EN60529/10.91 and GB4208-93

Accessories

  • ears for mounting above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
  • mounting screws
  • universal key

Properties

NameValue
Colorgrey
Dimension [mm]600 × 450 × 400 mm
Outdoor useYes
Height [U]8
Floor plan of the cabinet [mm]600 × 450
Delivered assembledYes
