XtendLan Outdoor switchboard for 19" 9U depth 420mm IP55 gray
XTENDLAN Consumer | WEH-9U-604245 | 8592457262107
On stock 23 pcs.
Price of goods is 154.8 €.
Weight of goods is 20 Kg.
Actual in cart 0 pcs.
XtendLan WEH-9U-604245

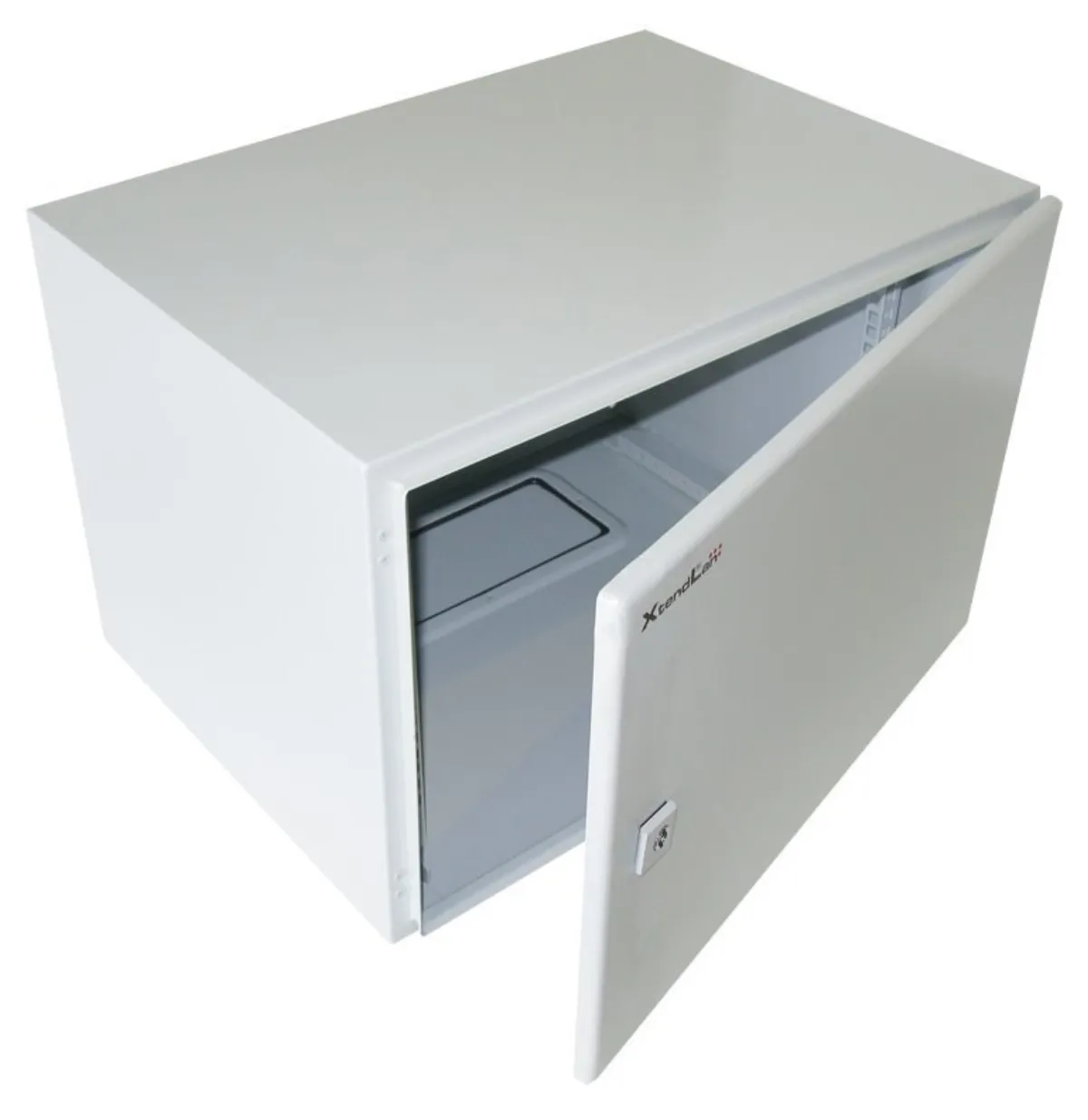

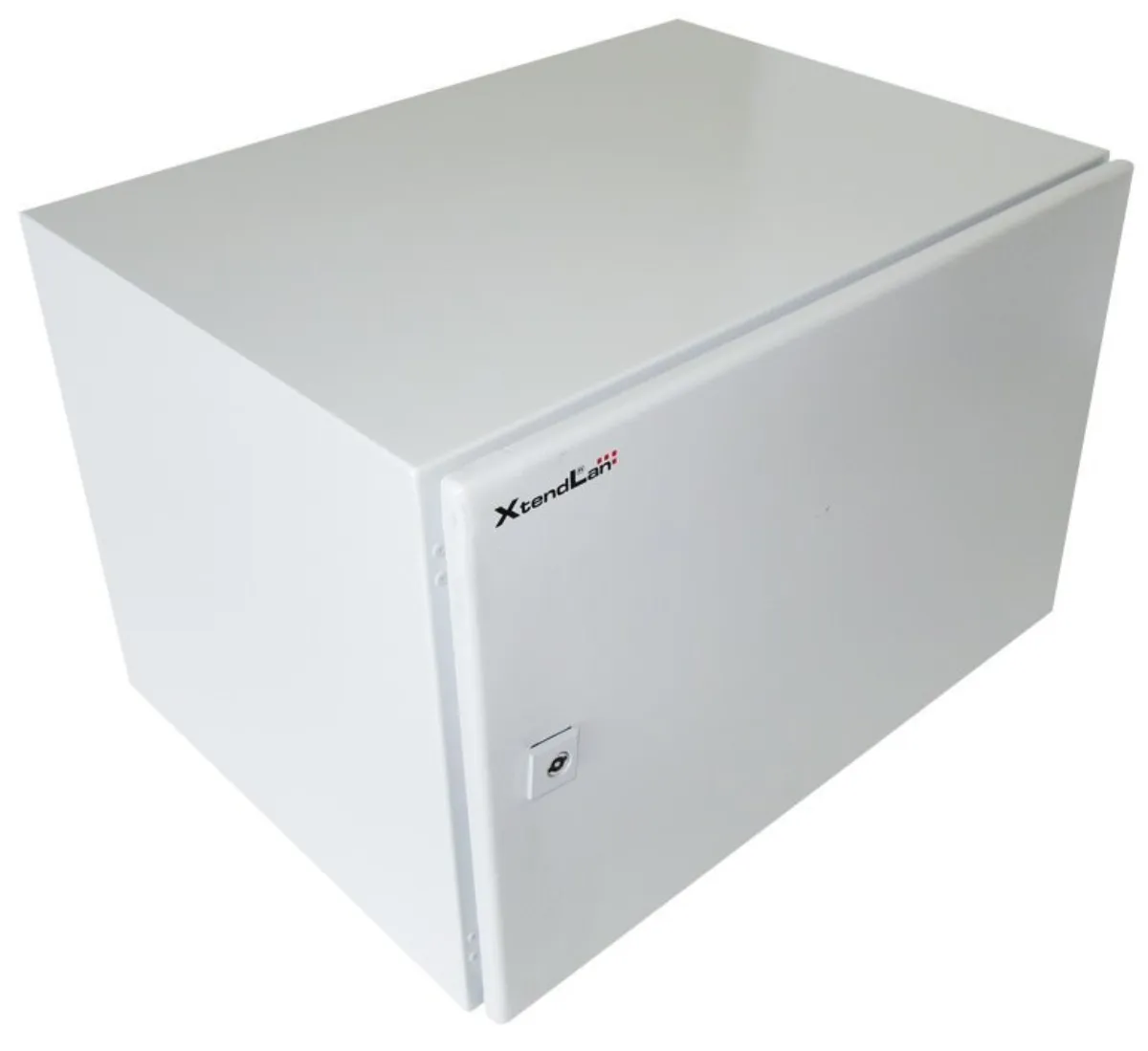

Illustrative photo - The cabinet has a height of 9U
The cabinet is suitable for installing data and telecommunications equipment. Outdoor wall cabinet made of rolled steel with a thickness of 1.5 mm. Three-layer surface treatment.
Cabinet format: 19
Capacity: 9U
Degree of protection: IP55 - waterproof
Dimensions: 600 x 420 x 450 mm (width x depth x height)
Execution
- door - solid, openable by 110°, changeable opening direction, polyurethane foam seal
- back cover - full
- side cover - full
- top cover - full
Additional properties
- Mounting holes for placement on the wall always 20 mm from the outer edges
- Vertical mounting rails for 19" devices - left and right
- The connecting material is included with the switchboard
- There is a 303 x 113 mm cable passage with a removable cover in the lower part of the cabinet
- Complies with IEC60529, EN60529/10.91 and GB4208-93
Accessories
- ears for attachment above and below the cabinet with an overlap of 10 mm on each side (offset from the wall when using them +8 mm)
- mounting screws
- universal key
| Name | Value | |
|---|---|---|
| Color | grey | |
| Dimension [mm] | 600 × 450 × 420 mm | |
| Type of accessory | switchboard | |
| Height [U] | 9 | |
| Cabinet format | mural | |
| Floor plan of the cabinet [mm] | 600 × 420 | |
| Delivered assembled | Yes | |
