XtendLan Power supply 12V DC 4 ports 3A total 36W fuse box battery backup

XtendLan ZSW04F-12-36B

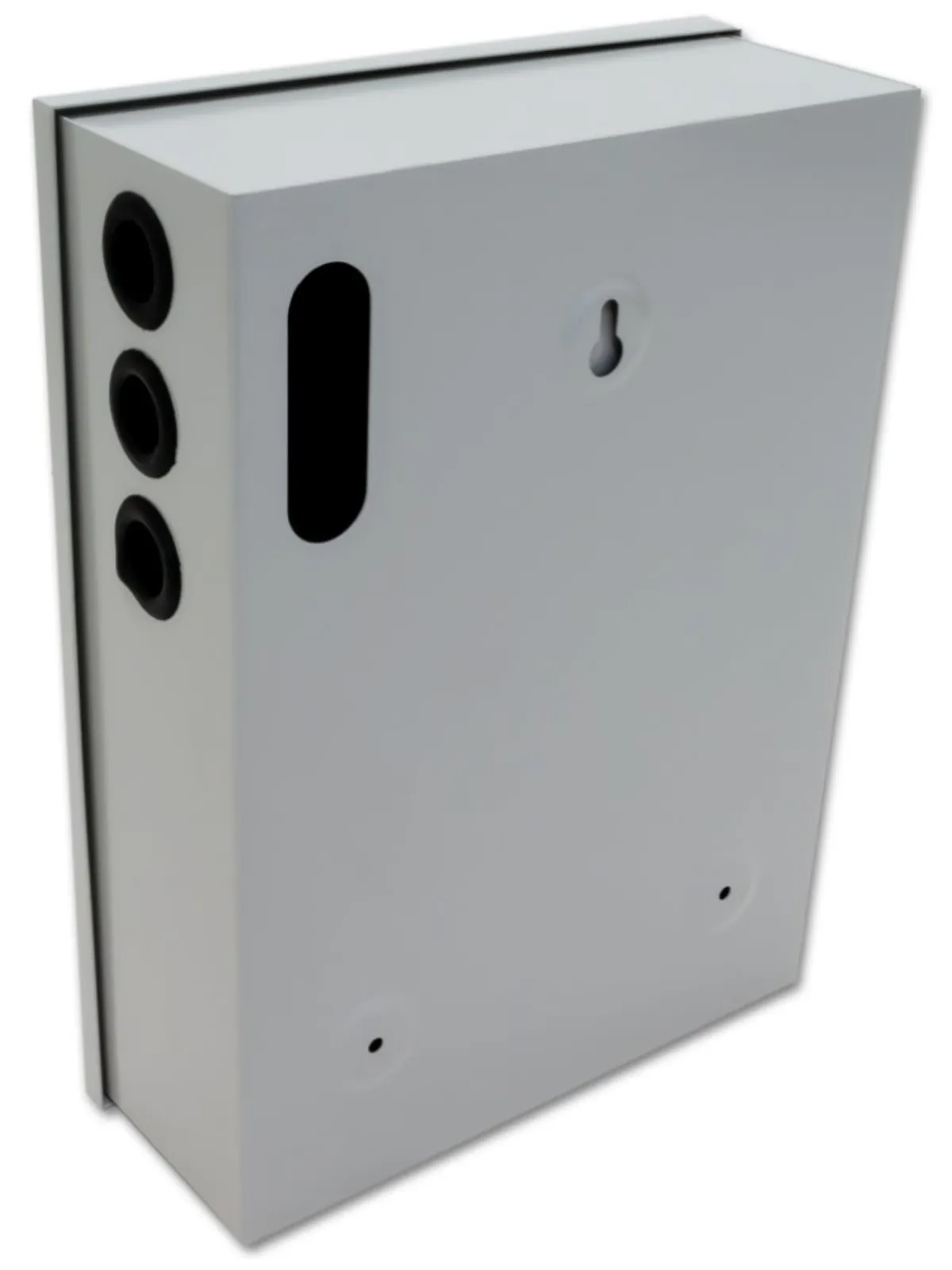

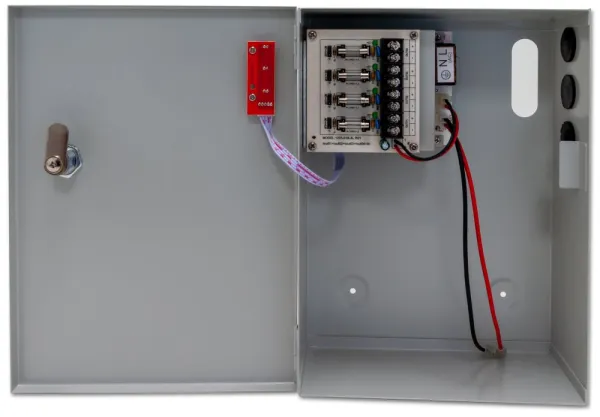

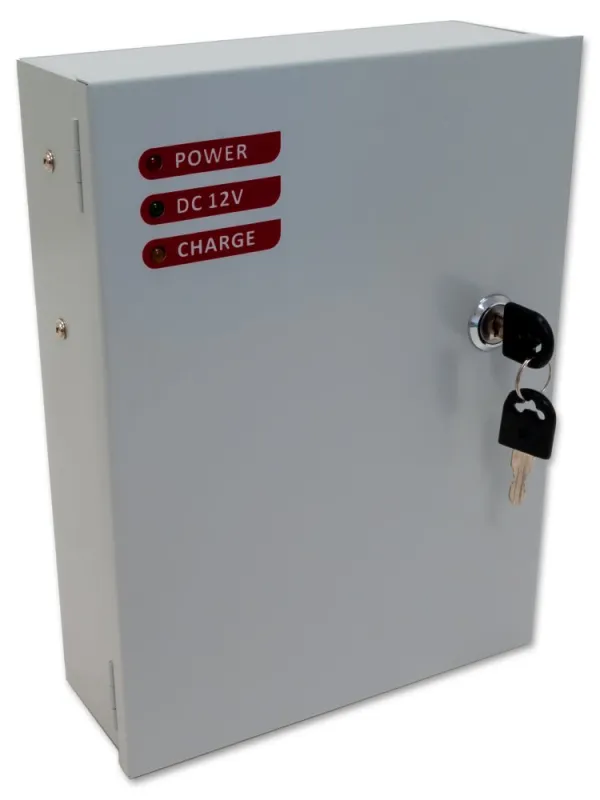

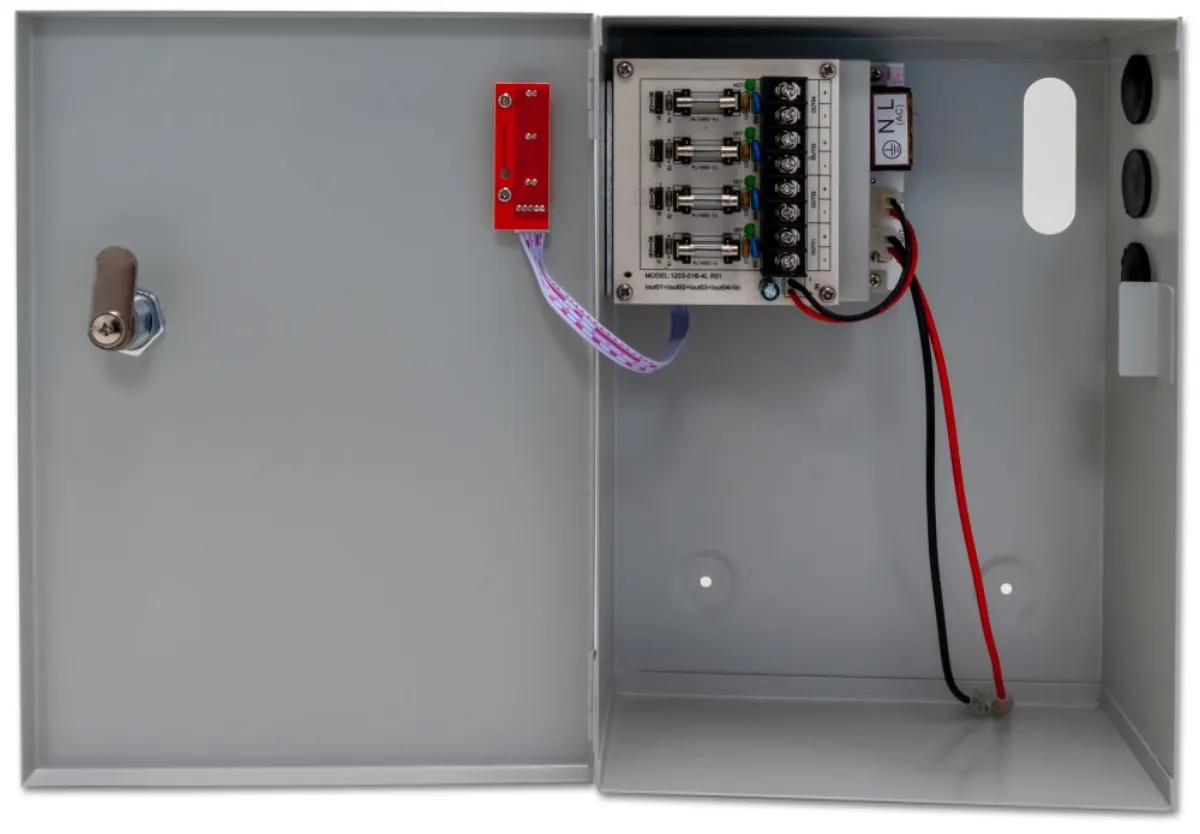

Stabilized power supply for four appliances with a circuit for charging and connecting a backup battery. Total output current 3 A. Wall box with installed PCB, cable glands, switch inside the box. Cable connection to the internal terminal block, the possibility of disconnecting the output with a jumper without the need to disconnect the wires. Short-circuit protection with a device fuse, overvoltage protection. LED diodes diagnose the status of the ports, for example, a blown fuse is recognizable at first glance. Battery circuit recharged 1 A. Battery short-circuit protection and battery protection against complete discharge. Four cable glands in the side wall sealed with rubber, one breakable in the upper part, hole diameter 19 mm, door with a simple lock.

Notes:

• Especially when implementing analog camera systems, it is advisable to ground all shielding and non-conductive parts to a common potential, which in the vast majority of cases is the protective conductor. We recommend connecting the negative pole of the DC power supply to the protective conductor of the electrical distribution system and also grounding all metal parts, shielding of coaxial cables, camera holders, etc. This is a basic measure against potential differences that deteriorate image quality. As well as basic protection against atmospheric overvoltage or dangerous touch voltages.
• The output voltage setting does not affect the voltage when operating from the battery (the power supply does not operate as a voltage converter), so pay attention to the battery power and the voltage actually provided during a power outage. For higher current consumption, we also recommend good attachment of Fastons to the battery connectors to reduce contact resistance. The main switch inside the cabinet only disconnects the 230 V power supply, not the battery power supply. For complete shutdown during installation work, also disconnect the battery connector.

Note: battery is not included.

Output circuit

Output voltage: 12 V DC

Output current in total: 3 A (+1 A battery charging)

Output current on each port: determined by a 1.5 A fuse

Total output power: 36 W (+ 12 W battery charging)

Protection

• against short circuit and overload of outputs: protected by a fuse on each port, standard type 5x20 mm, Fast, 1.5 A
• against overvoltage: by a varistor (threshold voltage 40 V)
• against battery short circuit, a defective battery will not cause a fault in the power supply system, it is automatically disconnected
• against complete battery discharge (if the battery voltage drops below approx. 11.4 V) thus preventing battery damage

Input voltage

• 100-240 V
• 50-60 Hz

Efficiency: min. 85% at maximum load

Battery compartment dimensions (WxHxD)

• 157 x 107 x 69 mm (battery not included)

• typically 5Ah to 7Ah lead-acid battery can be installed

Battery charging

• with a voltage of approx. 0.8 V higher than the set output voltage
• i.e. at an output of 12 V, it charges at a voltage of approx. 13 V
• max. current 1 A

Reset

• 1 x battery reset button
• use only when replacing a faulty battery
• no need to turn off the power

Connection: standard Faston connectors (6.3 mm width)

Material

• metal housing
• gray color

Chassis grounding: connection to protective conductor

Dimensions: 203 x 163 x 74 mm

Mounting

• on the wall (two hanging points
• two more to secure on the wall)
