XtendLan Tester STP+PSTN+coax+USB LCD display line length measurement probe
XTENDLAN Consumer | LANTESTLCD76-SONDA | 8592457142362
On stock 18 pcs.
Price of goods is 98.26 €.
Weight of goods is 0.604 Kg.
Actual in cart 0 pcs.
XtendLan LANTESTLCD76-PROBE

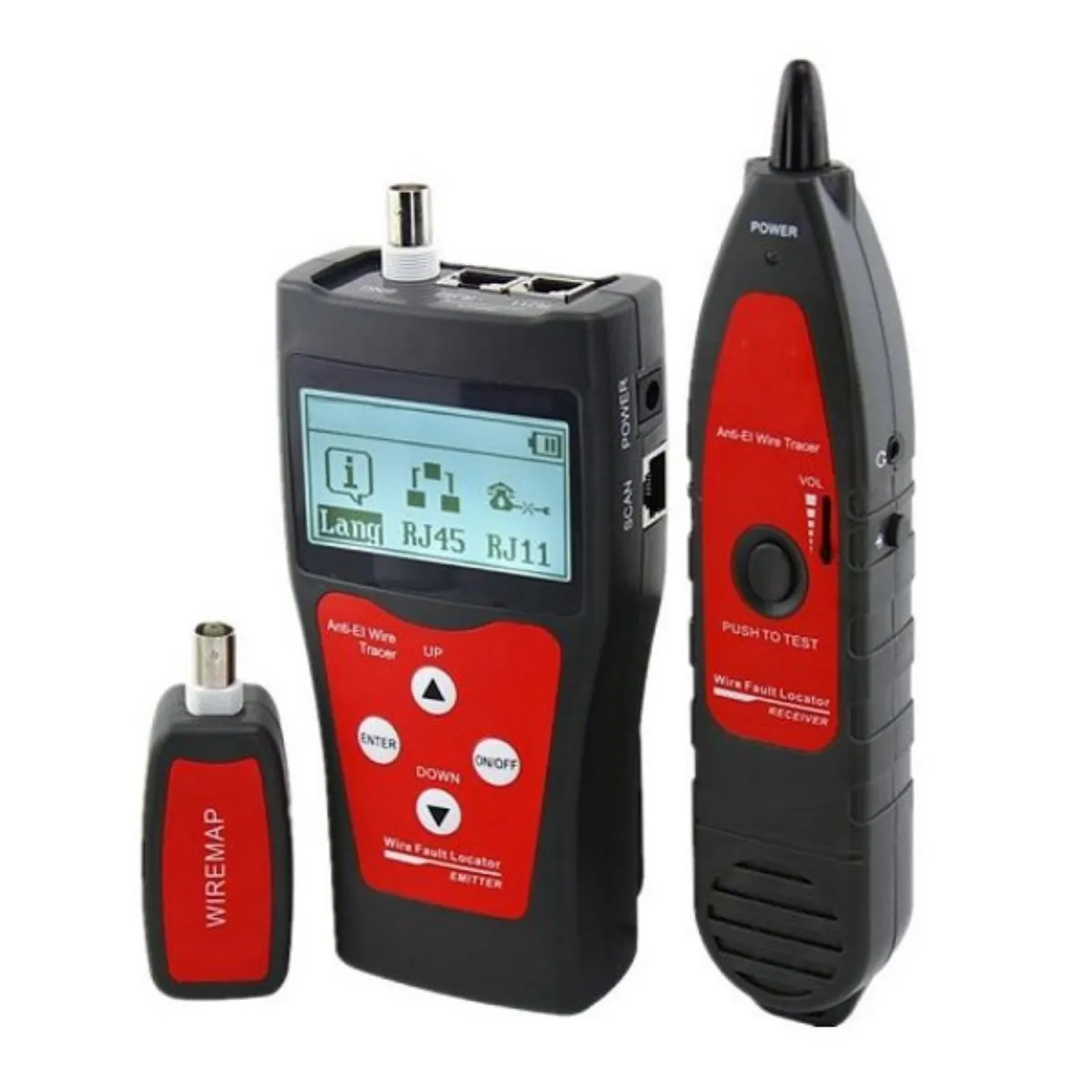

Tester of UTP/STP (RJ-45), coaxial (BNC), telephone (RJ-11) and USB lines with detection probe equipment for finding cable connections. Ohmic measurement methods, LCD display.
Display
- LCD
- 128 x 64 p
Features: Auto off
Battery: 9V
Working temperature: -10 to 60 °C
Dimensions of the tester: 175 x 80 x 43 mm
Dimensions of the probe: 218 x 42 x 29 mm
Loop Dimensions: 107 x 30 x 24mm
Type of measured cables
- UTP/STP typically CAT5, CAT5E, CAT6
- coaxial cables
- USB connecting cables telephone and other single-pair cables Measurement types:
- Measuring the length of conductors, reflection method
- Test for disconnection / short circuit with identification of located faults
- Wiring diagram in the cable - only for RJ45 ports with looback
- Locating cable lines using a probe Cable identification Length measurement accuracy:
- for an unknown cable after performing a previous calibration on a sample of at least 10 m in length: 2% of the length and +/- 0.5 m for CAT5E cables: 3% of the length and +/- 0.5 m
