Yuasa Pb traction backup battery AGM 12V 80Ah for cyclic applications (REC80-12I)
YUASA | REC80-12I | 8592457259145
Price of goods is 222.25 €.
Weight of goods is 28 Kg.
Actual in cart 0 pcs.

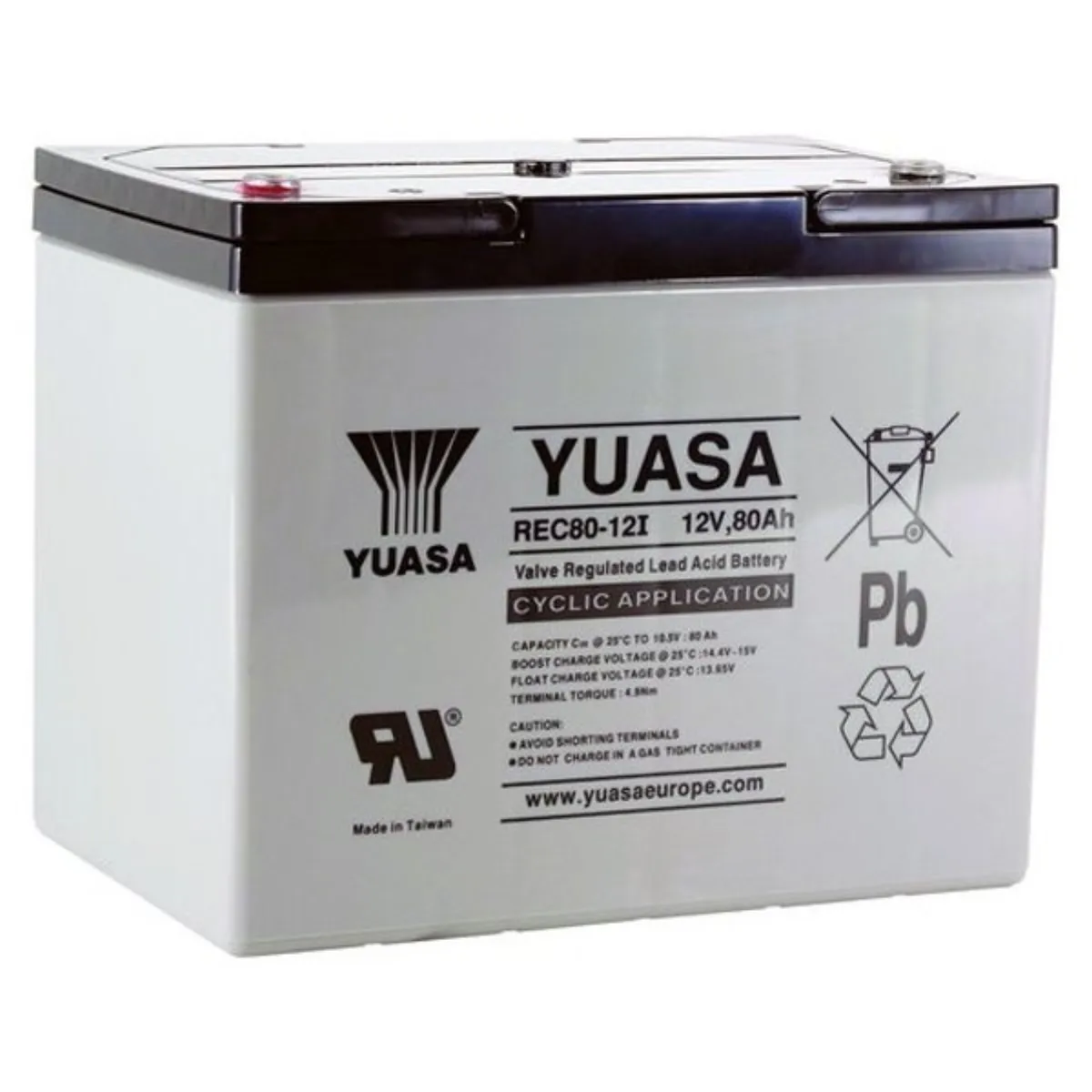

Yuasa REC80-12I battery 12 V (80 Ah)
Maintenance-free backup 12 V, 80 Ah lead battery in VRLA (AGM) design, suitable for cyclic applications, but also backup sources UPS, EZS, EPS, etc. It is a design in which regulation occurs of internal pressure using valves (VRLA - valve regulated lead acid = valve-controlled lead-acid accumulators). The model range of REC traction accumulators reaches up to twice the service life of standard VRLA accumulators. Optimum lifetime is 5 years or up to 1400 cycles (25% D.O.D. = depth of discharge 25%).
Advantages of VRLA accumulators
- Higher maximum discharge current
- Absolutely maintenance-free (in terms of water refilling)
- Much longer cycle life than conventional batteries
- Shockproof
- Leakproof - non-spillable, the battery can work in any position
- Connector type: M6 recessed thread
Accumulators are mainly intended for the following applications
- Powering electric motors (golf carts, fishing boats, etc.)
- Motorhomes (caravans, trailers, external power sources)
- Ships, boats, sailboats (for the electric motor and for powering appliances on board)
- Solar device (cyclic charging and discharging - solar energy accumulated in the battery)
- Mobile traffic control systems, traffic lights, warning signs
- Powering electric motors for electric bikes, electric scooters, etc.
- Toys, children's scooters - rides, children's mini motorbikes
Battery maintenance
The cycle life of the battery is approximately 600 cycles / 50% D.O.D. (50% D.O.D. = depth of discharge 50%) at 20°C. In order to achieve optimal battery life in cyclic operation, the maximum permitted depth of discharge of 80% D.O.D. must be respected. specified by the ČSN EN61044 standard. When storing batteries for a longer period, it is necessary to ensure their continuous charging. Capacity loss is approximately 3% per month at a storage temperature of 20°C. Operating temperature range: charging 0 to 40 °C, discharging -15 to 40 °C, storage -15 to 50 °C. Long-term exposure of batteries to temperature extremes shortens their lifespan.
Capacity: 80 Ah
Voltage: 12V
Maximum discharge current: 480 A
Battery technology: VRLA / AGM
Type of contact: recessed thread M6
Status: charged
Dimensions: 259 x 212.5 x 168 mm
Weight: 27 kg
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 27 | |
| Length [mm] | 259 | |
| Width [mm] | 168 | |
| Connector | M6 | |
| Battery capacity [Ah] | 80 | |
| Type of accessory | backup battery | |
| Battery/cell voltage [V] | 12 | |
| Height [mm] | 212,5 | |
| Battery technology | Leaded | |
| Max. output current [A] | 20 | |
| Battery capacity [Wh] | 960 | |
