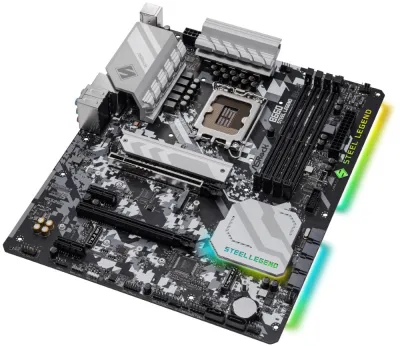

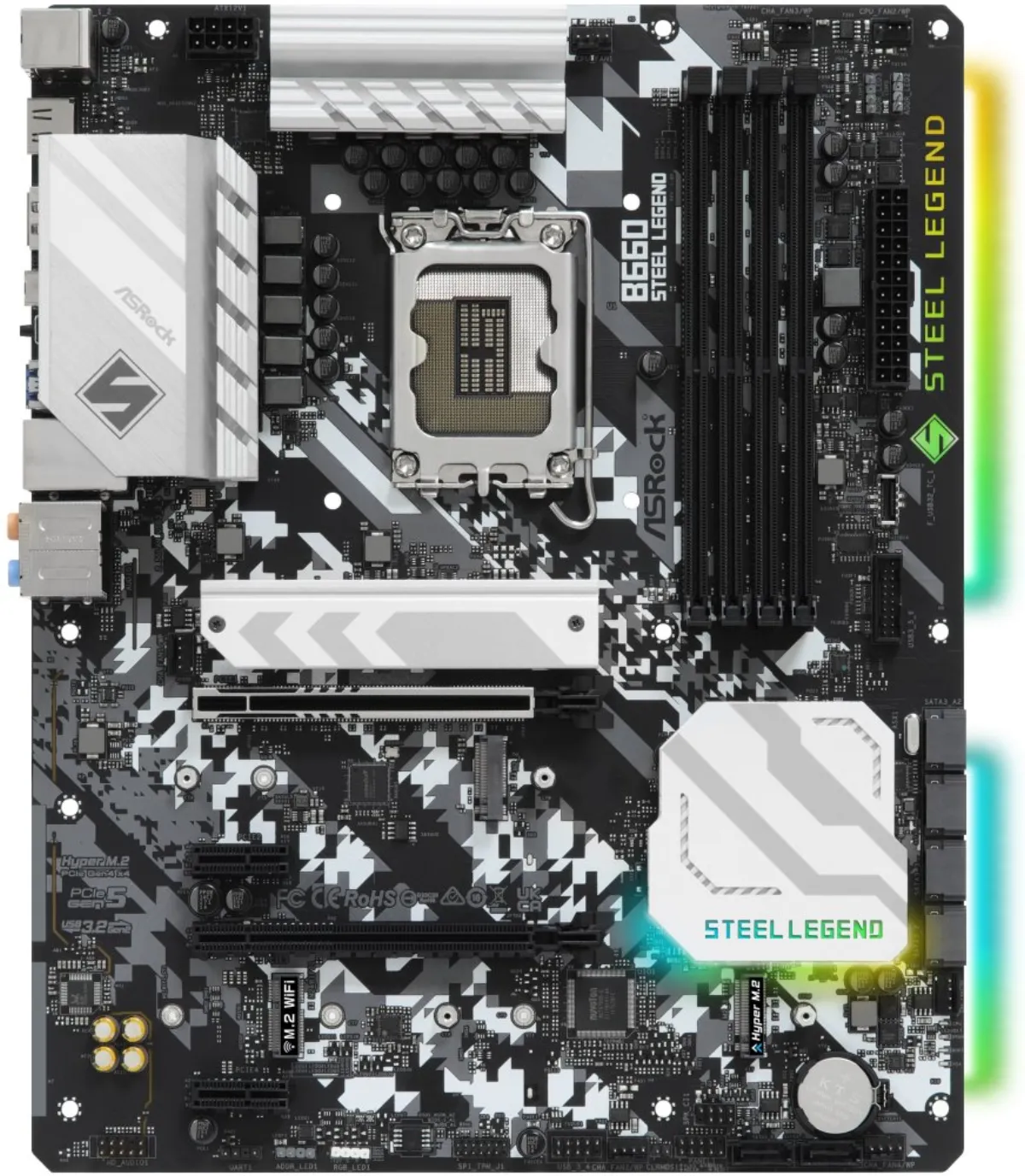

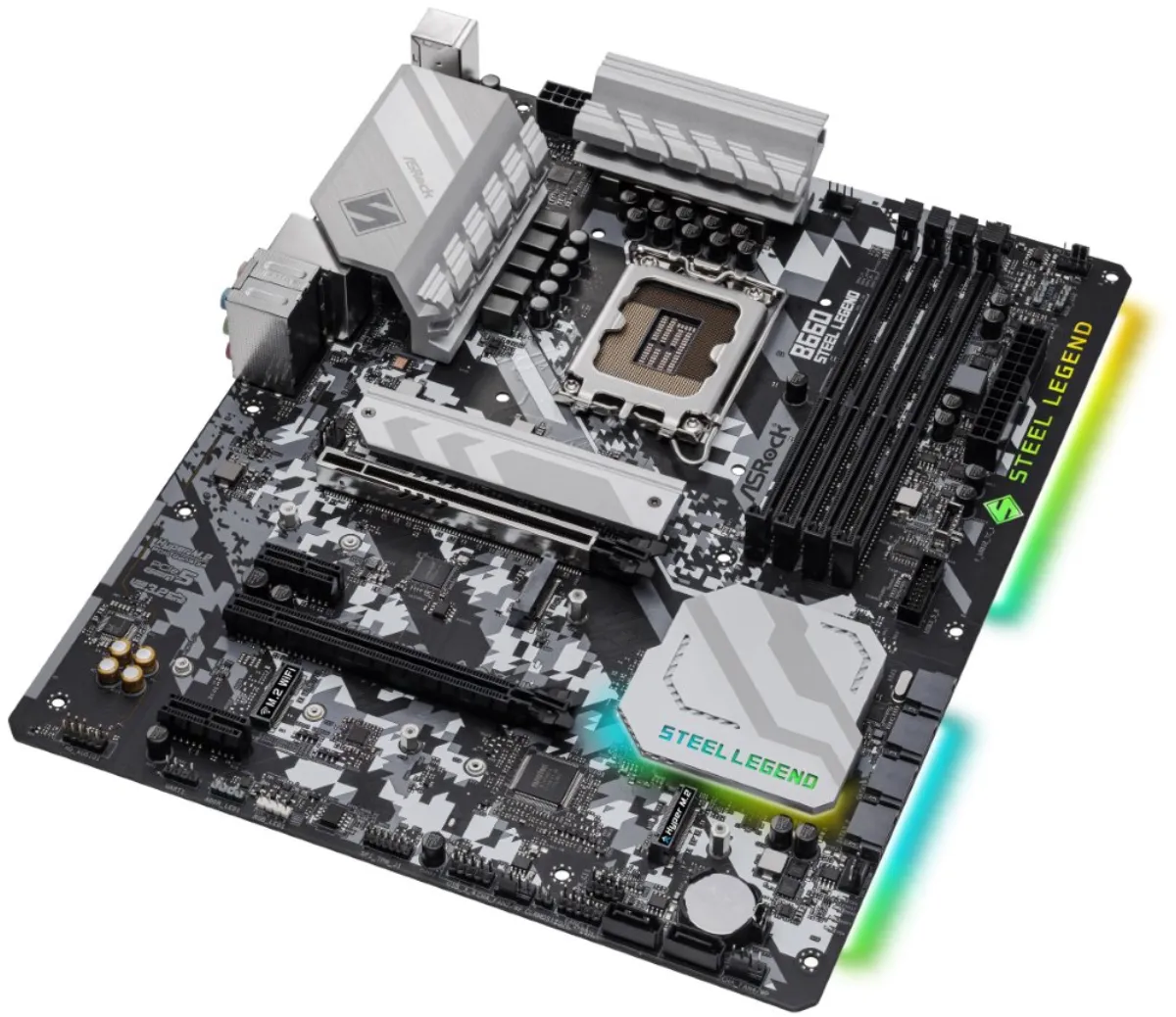

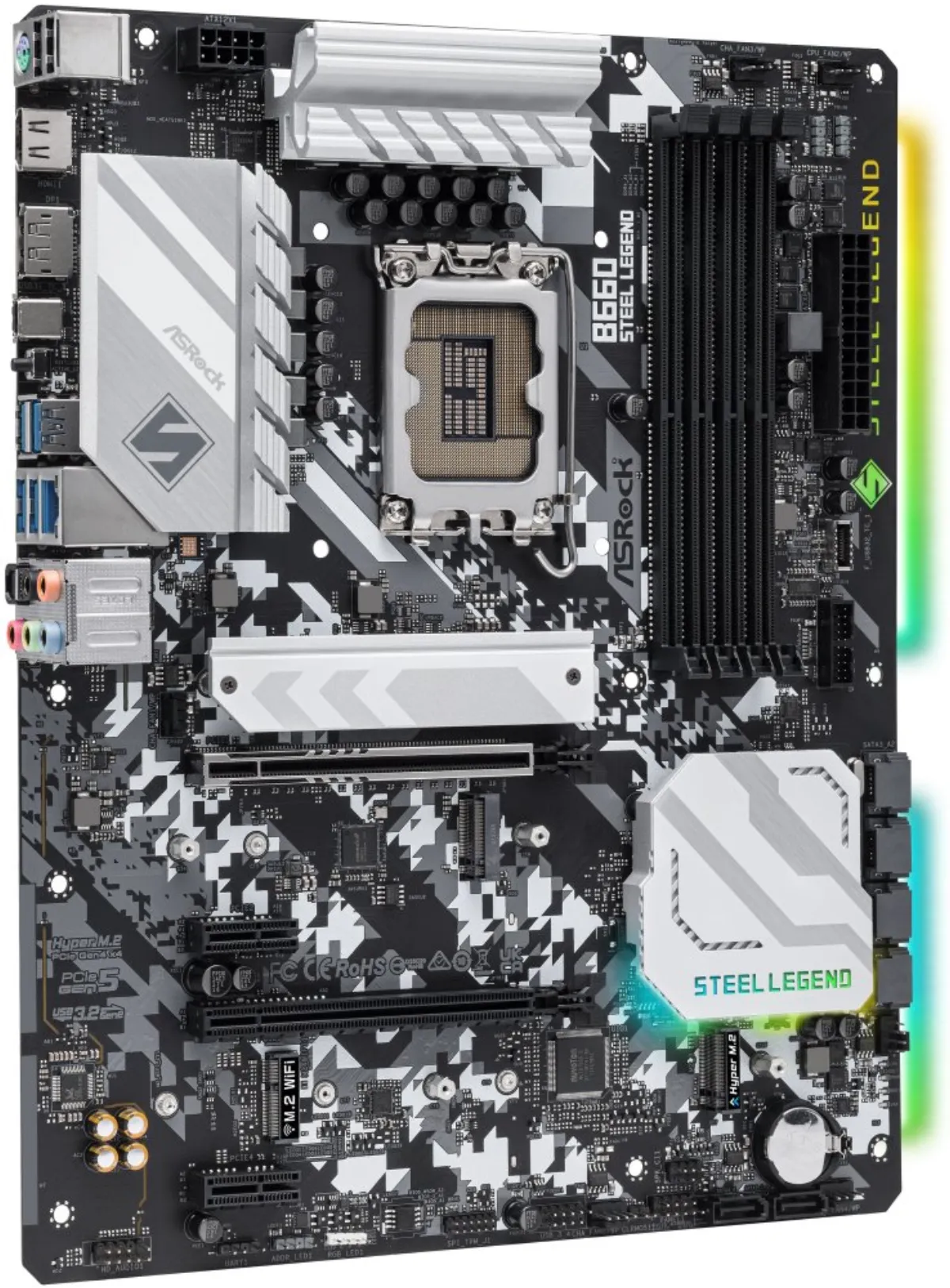

ASRock B660 Steel Legend

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B660

Memory

• 4x DDR4 memory slot, support up to 128 GB
• DDR4 support up to 5000+ (OC) MHz
• Support DDR4 3200 MHz natively
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC memory support (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x2 mode)
• 2x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 7680 x 4320 at 60 Hz

Repository

• 6x SATA 6Gb/s port
• 1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x2 mode)
• Intel Optane technology support
• Intel Volume Management Device (VMD) support
• Support ASRock U.2 Kit
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1x USB 3.2 Gen2 type C port on the back panel
• 1x USB 3.2 Gen2x2 type C port available via an internal USB connector
• 6x USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 4x USB 2.0 port (2 ports on the back panel, 2 ports available via the internal USB connector)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

HIND

• 1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal Connectors

• 1x SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/water cooling fan connector
• 5x 4-pin case fan/water cooling fan connector
• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x front panel audio connector
• 1x USB 2.0 connector (supports 2x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2x2 Type C front panel connector
• 6x SATA 6Gb/s connector
• 2x Hyper M.2 slot, M Key
• 1x M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi module (not included)

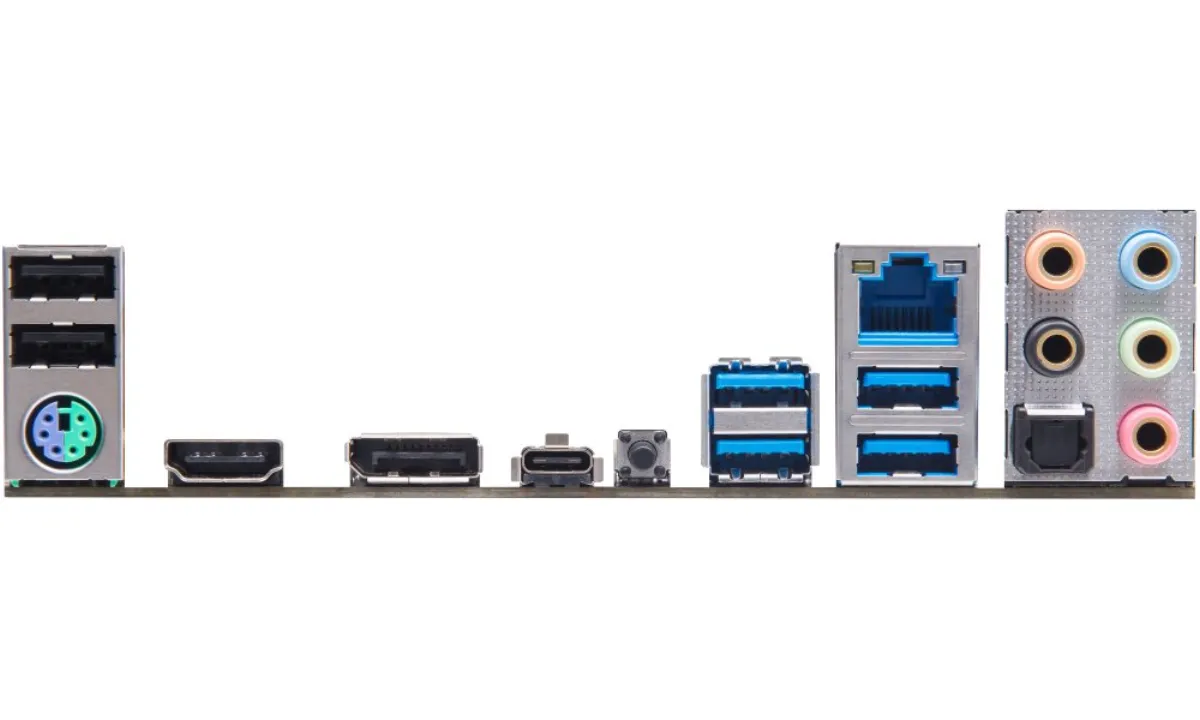

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1 x DisplayPort
• 2x USB 2.0
• 4x USB 3.2 Gen1 (USB 3.0)
• 1x USB 3.2 Gen2 type C
• 1x RJ-45
• 5x audio jack
• 1x BIOS Flashback button
• 1x optical S/PDIF output

Dimensions

• 30.5 x 24.4 cm
• ATX format
