ASRock B660M PRO RS LGA1700 Intel B660 4x DDR4 DIMM HDMI DP 2x M.2 mATX

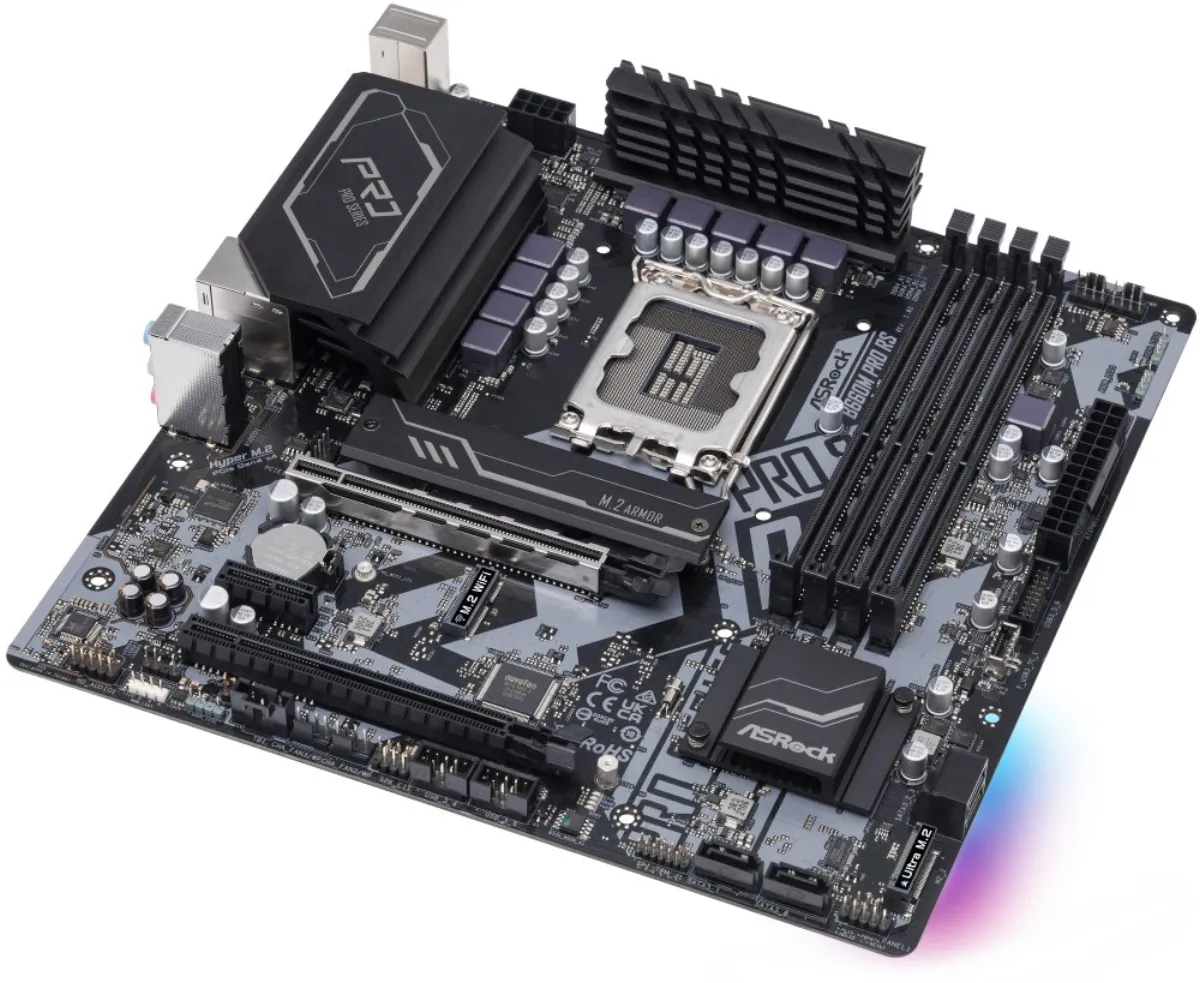

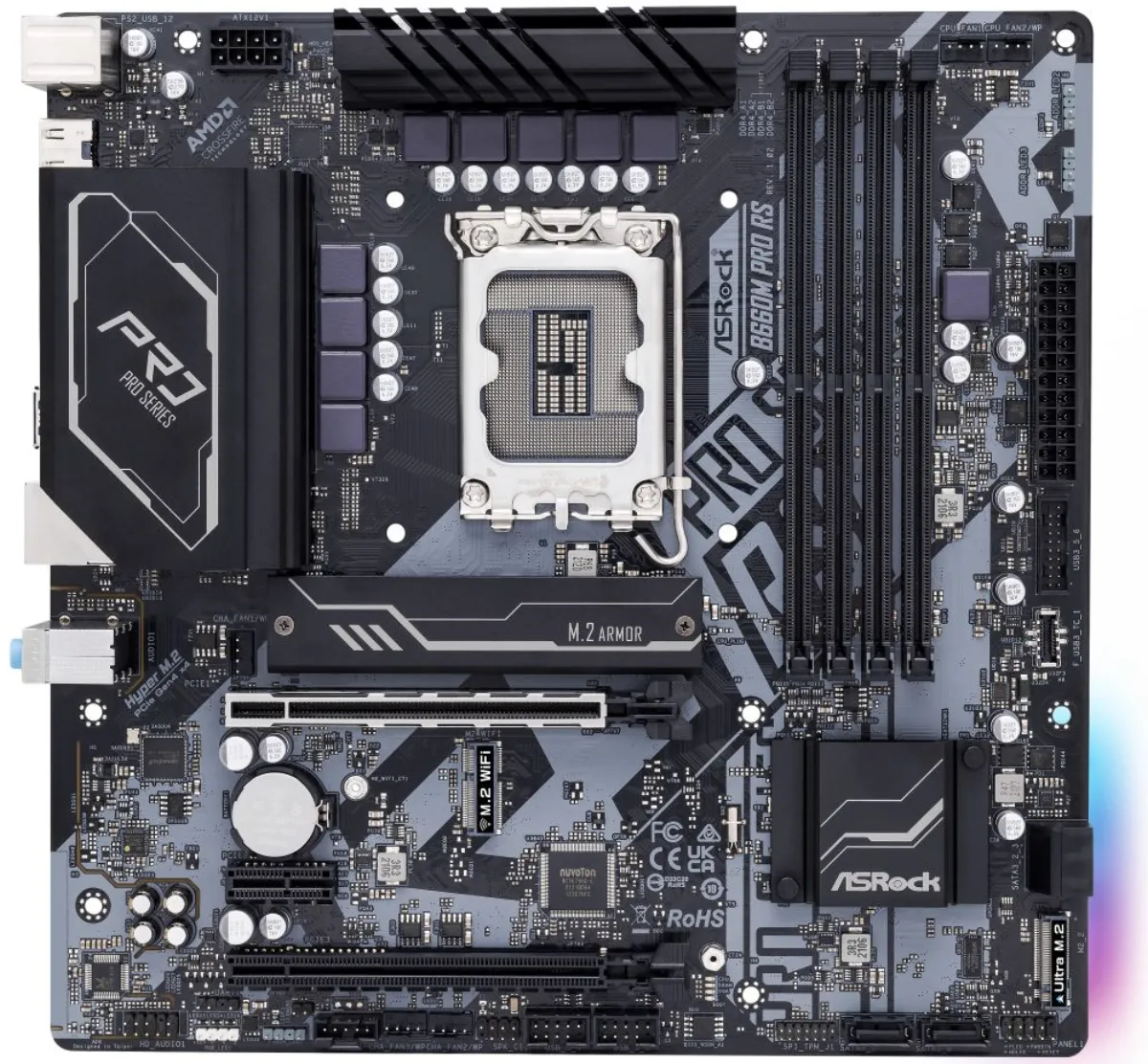

ASRock B660M Pro RS

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B660

Memory

• 4x DDR4 memory slot, support up to 128 GB
• DDR4 support up to 4800+ (OC) MHz
• Support DDR4 3200 MHz natively
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC memory support (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 3.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 7680 x 4320 at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 4x SATA 6Gb/s port
• 1x Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 1x Ultra M.2 slot, M Key, for 2280 type drives (SATA and PCIe 3.0 x4 mode)
• Intel Optane technology support
• Intel Volume Management Device (VMD) support
• Support ASRock U.2 Kit
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1x USB 3.2 Gen1 type C port available via an internal USB connector
• 6x USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

HIND

• 1x Intel I219V Gigabit LAN controller

Internal Connectors

• 1x SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/water cooling fan connector
• 3x 4-pin case fan/water cooling fan connector
• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x front panel audio connector
• 1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen1 Type C front panel connector
• 4x SATA 6Gb/s connector
• 1x Hyper M.2 slot, M Key
• 1x Ultra M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi module (not included)

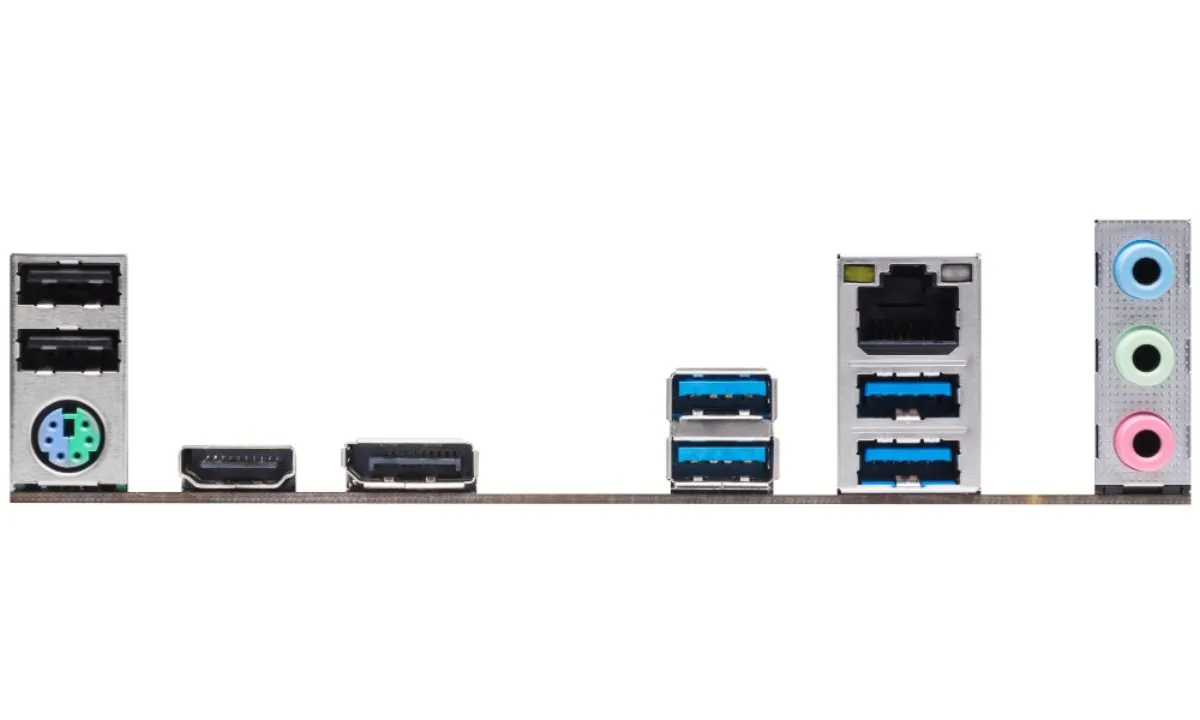

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1 x DisplayPort
• 2x USB 2.0
• 4x USB 3.2 Gen1 (USB 3.0)
• 1x RJ-45
• 3x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
