ASRock B760 PRO RS D4 WIFI Intel B760 LGA1700 4x DDR4 3x M.2 HDMI DP USB-C WiFi ATX

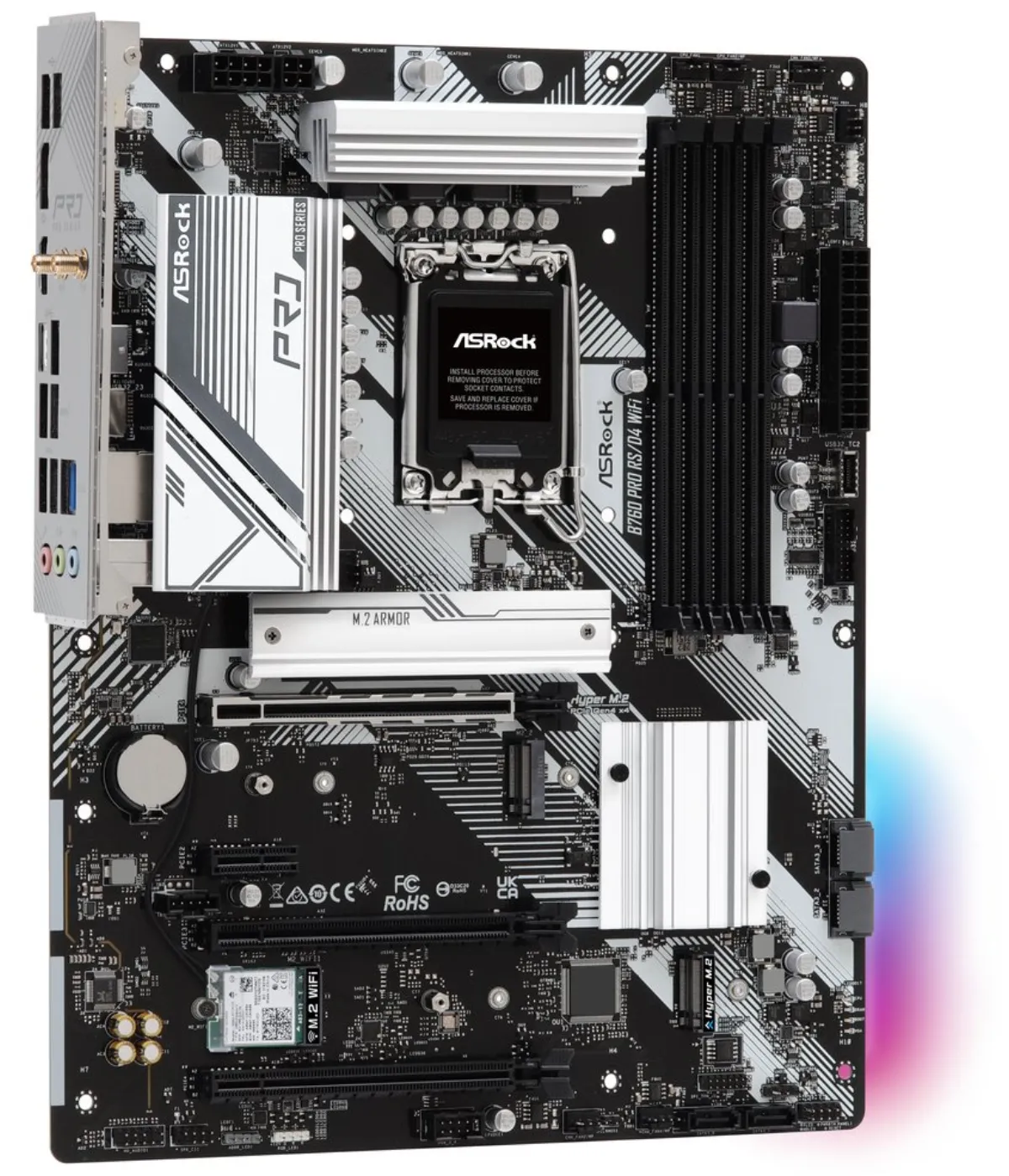

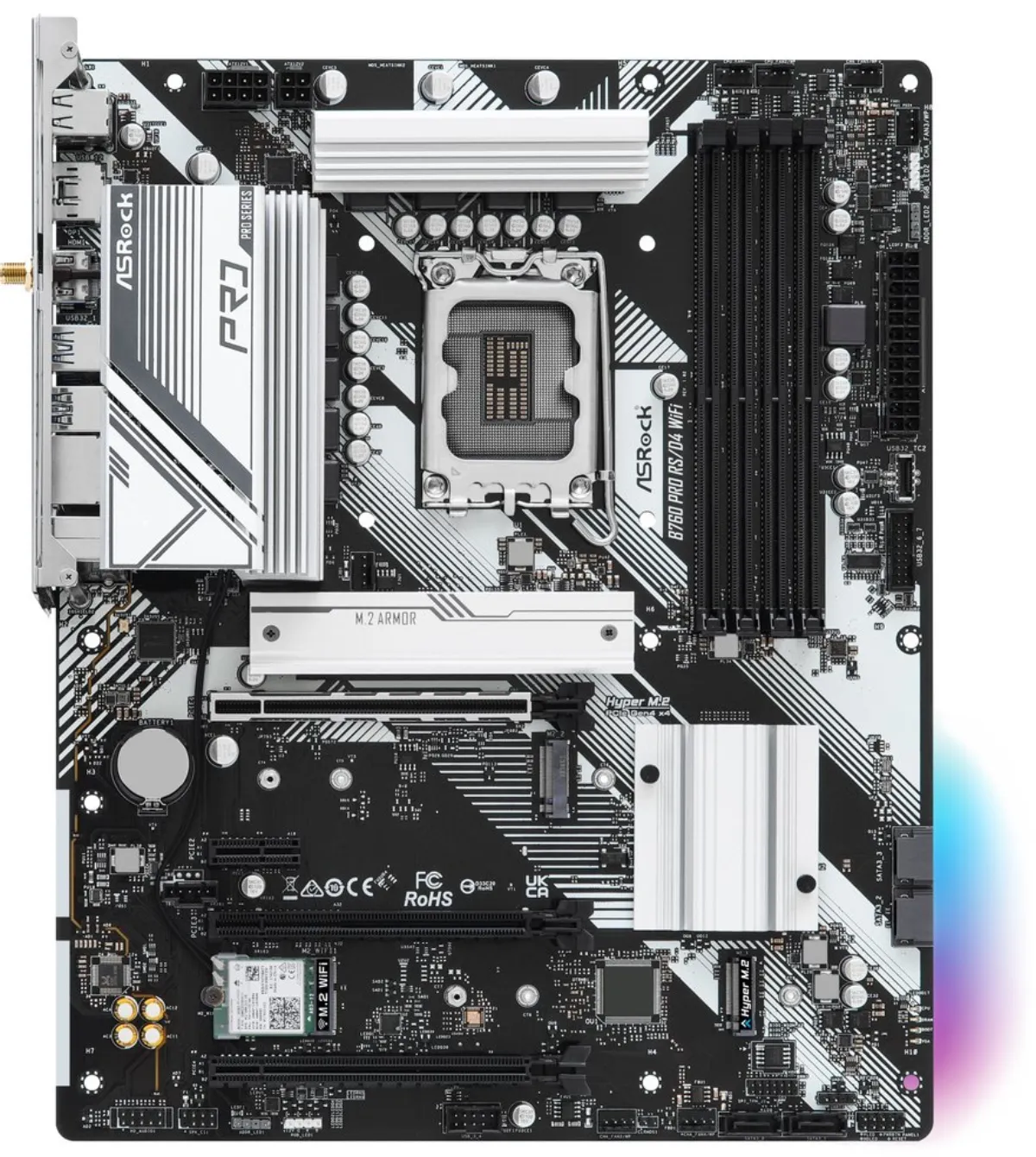

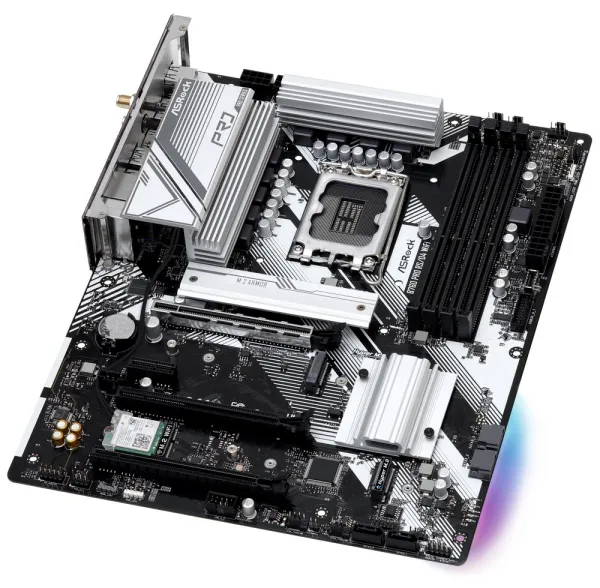

ASRock B760 PRO RS/D4 Wi-Fi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for 12 processors. and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 up to 5333+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC support, no buffer (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 4.0 x16 slot
• Intel B760 chipset
• 1× PCIe 4.0 x16 slot (supports x4 mode)
• 1× PCIe 3.0 x16 slot (supports x1 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• Multi-GPU
• AMD CrossFire technology support

Storage

• 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• Intel B760 chipset
• 1× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x2 mode)
• 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• Intel Volume Management Device (VMD) support

USB

• 1× USB-C 3.2 Gen2 port available via an internal USB connector
• 1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel
• 7× USB 3.2 Gen1 (USB 3.0) port (5 ports on the back panel, 2 ports available via the internal USB connector)
• 4× USB 2.0 port (2 ports on the back panel, 2 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Dragon RTL8125BG 2.5Gigabit LAN controller
• WLAN/Bluetooth
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth 5.3

Internal connectors

• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1× 4pin 12V power connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling pump fan connector
• 5× 4pin connector of the cabinet fan/water cooling pump fan
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 3x M.2 slot, M Key
• 1× M.2 slot, E key for Wi-Fi module (not included)
• 4x SATA 6 Gb/s connector
• 1× USB 2.0 connector (supports 2× USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB 3.2 Gen2 type C front panel connector
• 1× SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1x front panel audio connector
• 1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC card)

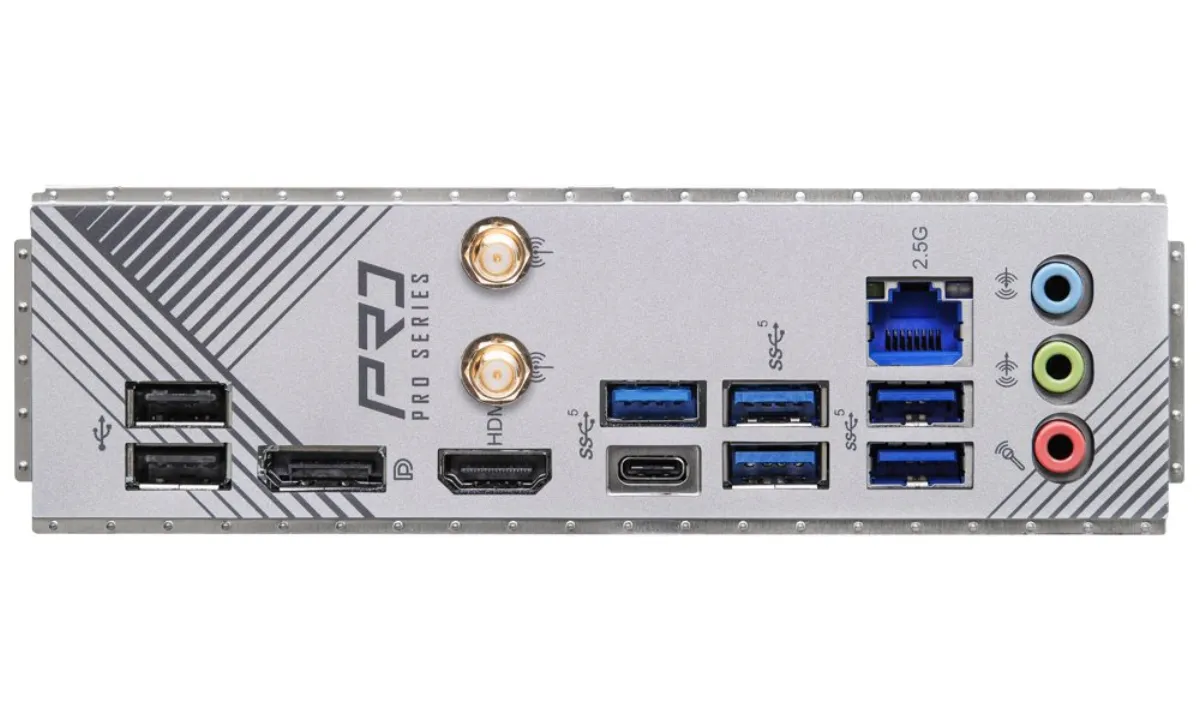

Rear panel ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x DisplayPort
• 1× USB-C 3.2 Gen1 (USB 3.0)
• 5x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
