ASRock B760M PRO RS D4 Intel B760 LGA1700 4x DDR4 2x M.2 HDMI DP USB-C mATX

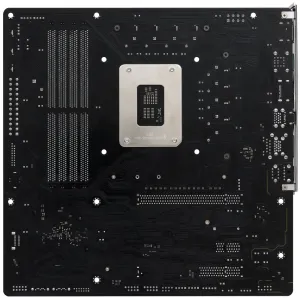

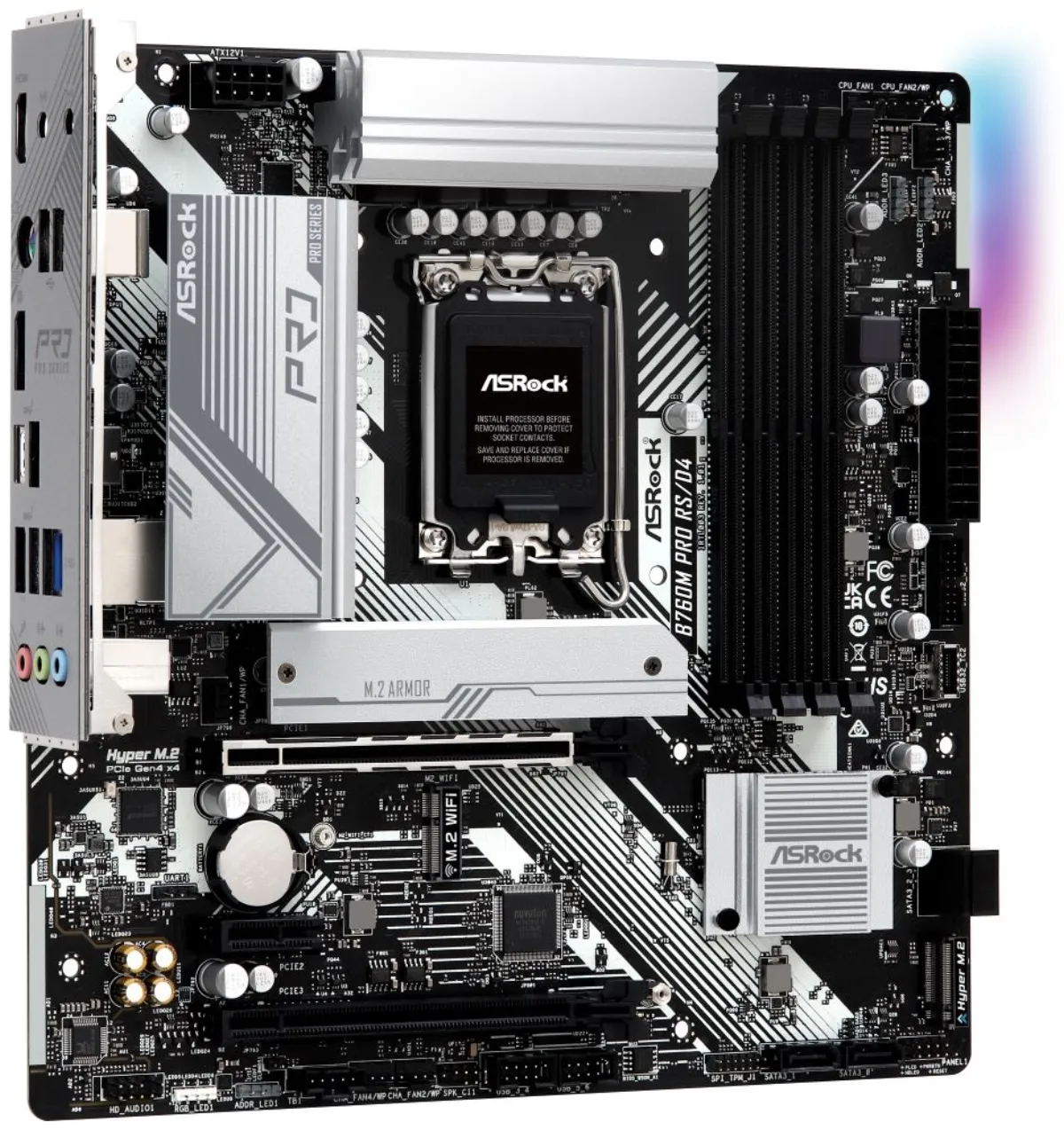

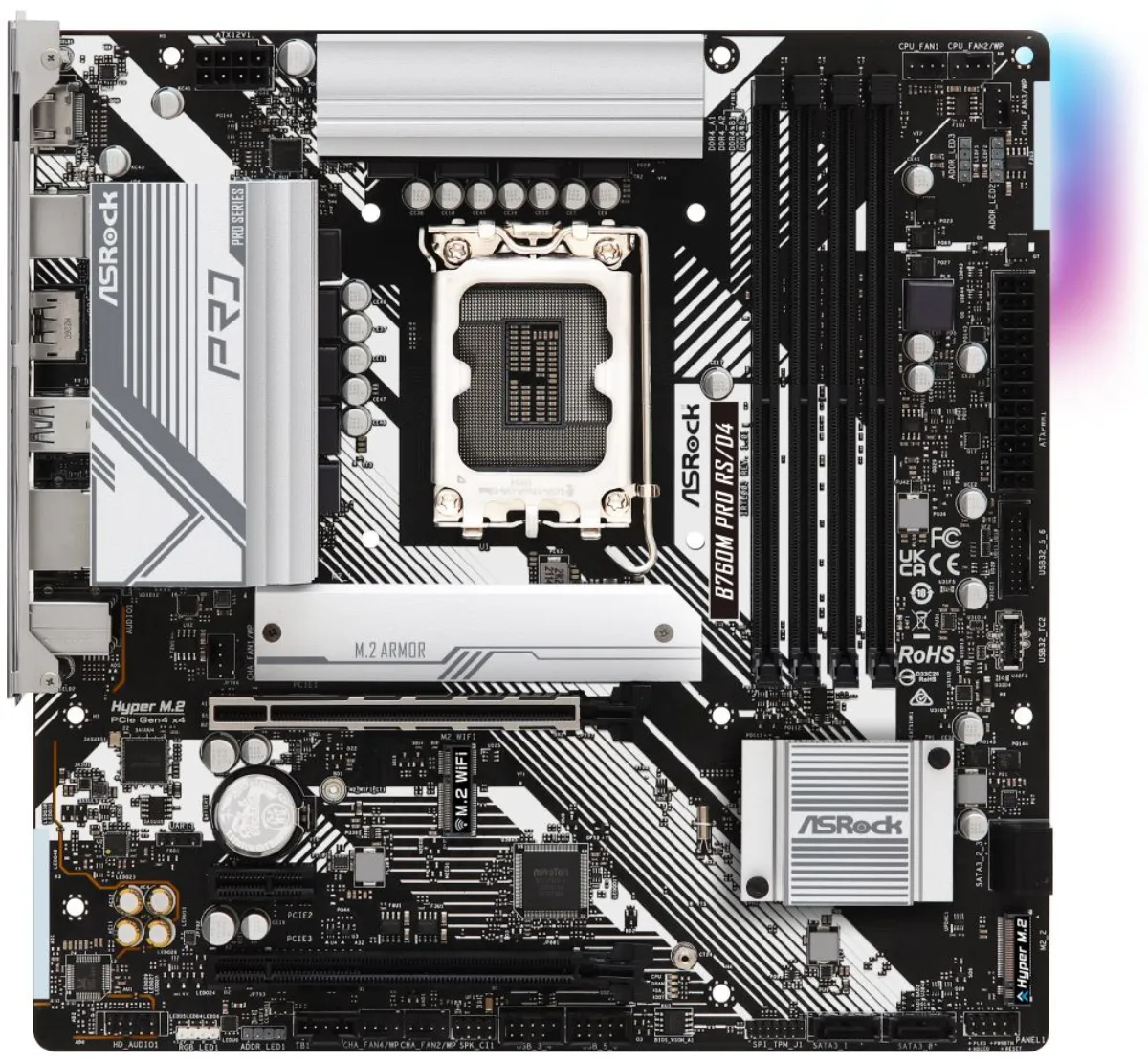

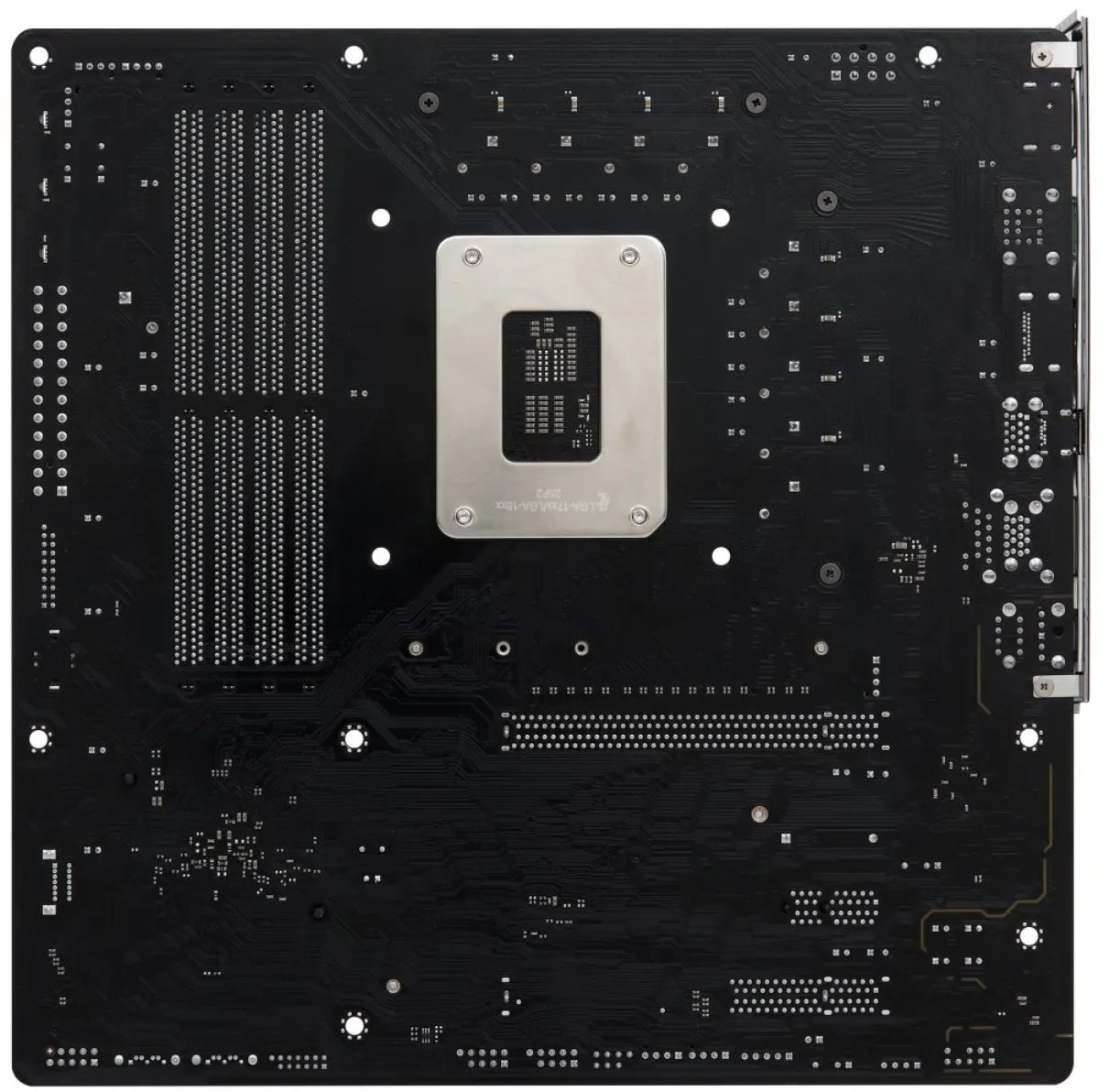

ASRock B760M PRO RS/D4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR4 memory slot, support up to 128 GB
• DDR4 support up to 5333+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC support, no buffer (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 4.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1x Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• Intel Volume Management Device (VMD) support

USB

• 2x USB 3.2 Gen1 (USB 3.0) type C port (1 port on the back panel, 1 port available via the internal USB connector)
• 5x USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

HIND

• 1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/water cooling pump fan connector
• 4x 4-pin case fan/water cooling pump fan connector
• 3x addressable LED strip connector
• 1x RGB LED strip connector
• 2x M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi module (not included)
• 4x SATA 6 Gb/s connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen1 (USB 3.0) type C front panel connector
• 1x SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1x front panel audio connector
• 1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC card)

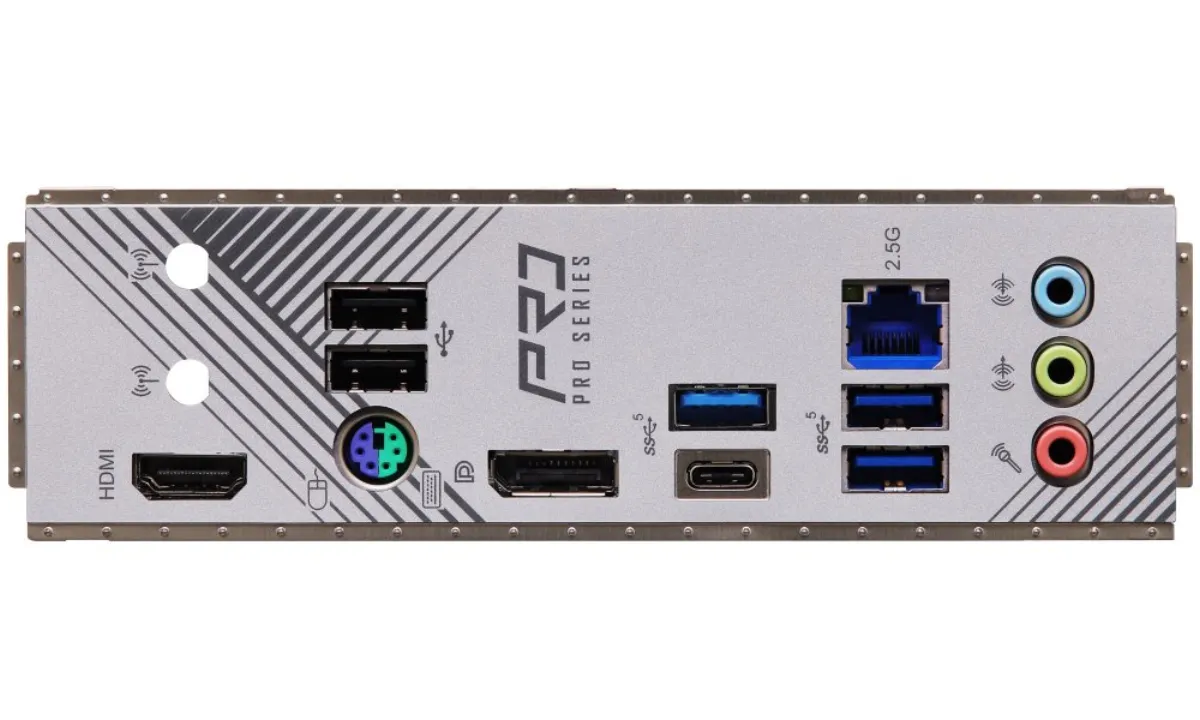

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1 x DisplayPort
• 1x USB 3.2 Gen1 (USB 3.0) type C
• 3x USB 3.2 Gen1 (USB 3.0) type A
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
