GIGABYTE B760M AORUS ELITE AX Intel B760 LGA1700 4x DDR5 2x M.2 DP HDMI USB-C WiFi mATX

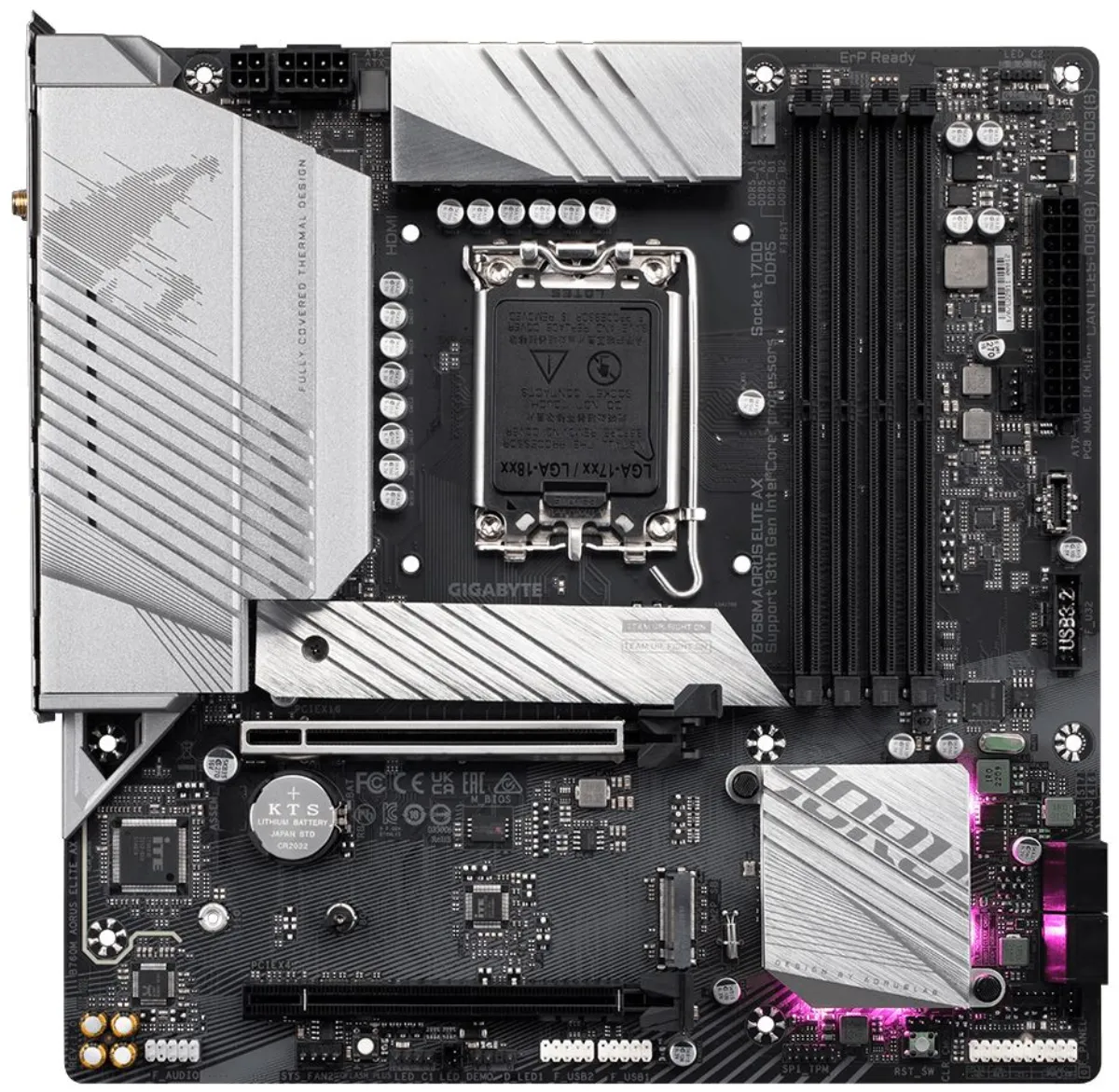

GIGABYTE B760M AORUS ELITE AX

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC) )/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800 / 4000 MHz
• Dual channel memory architecture
• ECC support, 1Rx8/2Rx8, unbuffered (non-ECC mode)
• Support non-ECC, 1Rx8/2Rx8/1Rx16, unbuffered
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 4096 x 2304 at 60 Hz

Multi-GPU

• AMD CrossFireX technology support

Repository

• 1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)
• 1x M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 1x USB 3.2 Gen2 type A port on the back panel
• 5x USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 2/4/5.1/7.1 channel High Definition Audio
• S/PDIF output support

HIND

• 1x Realtek 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E AX211
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• Bluetooth 5.3

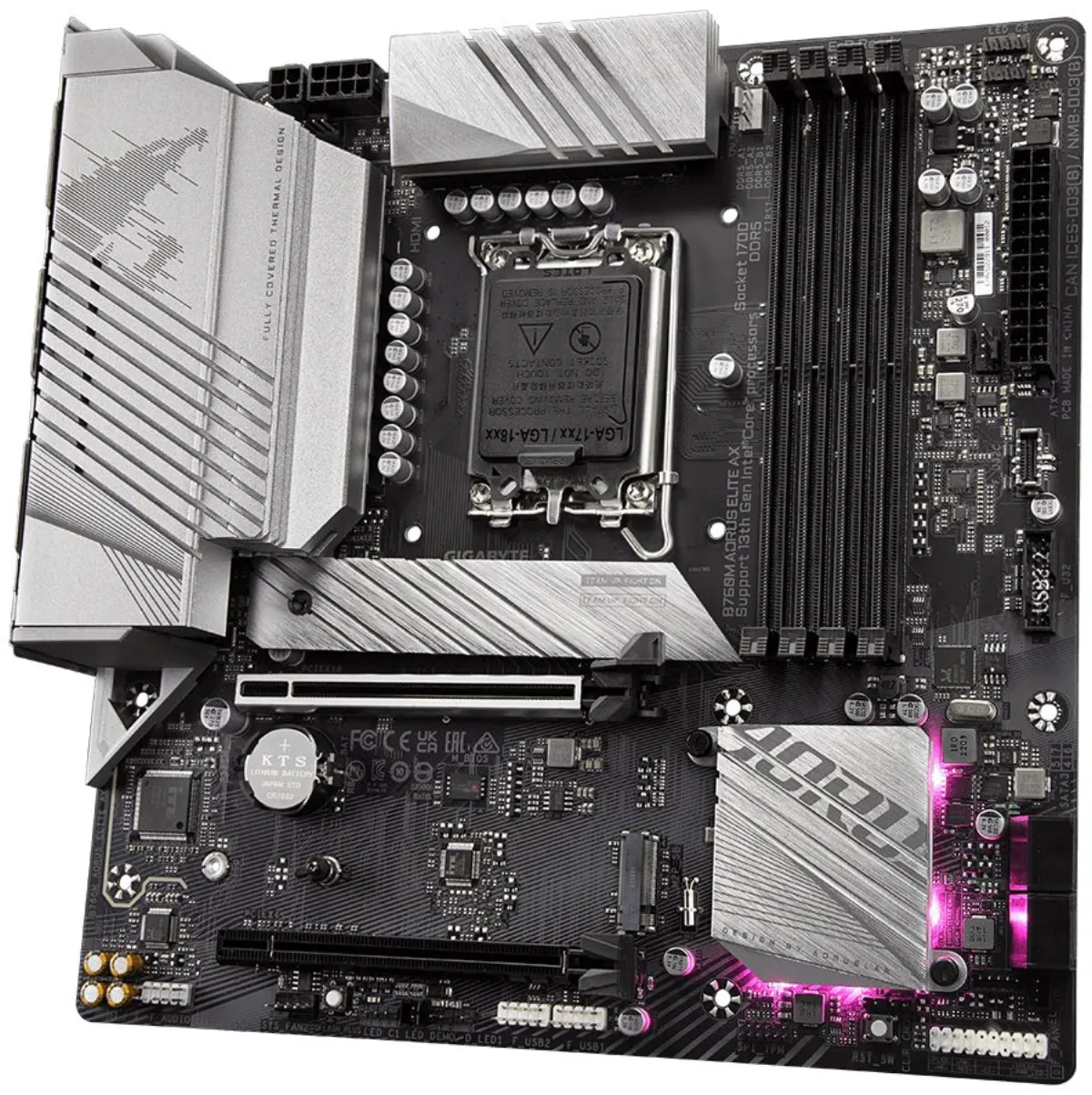

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x CPU fan connector
• 3x system fan connector
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 2x M.2 slot, M Key
• 4x SATA 6 Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1x USB 3.2 Gen2 type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x Thunderbolt AIC connector
• 1x TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x Q-Flash Plus button
• 1x Reset button
• 1x Reset jumper
• 1x Clear CMOS jumper

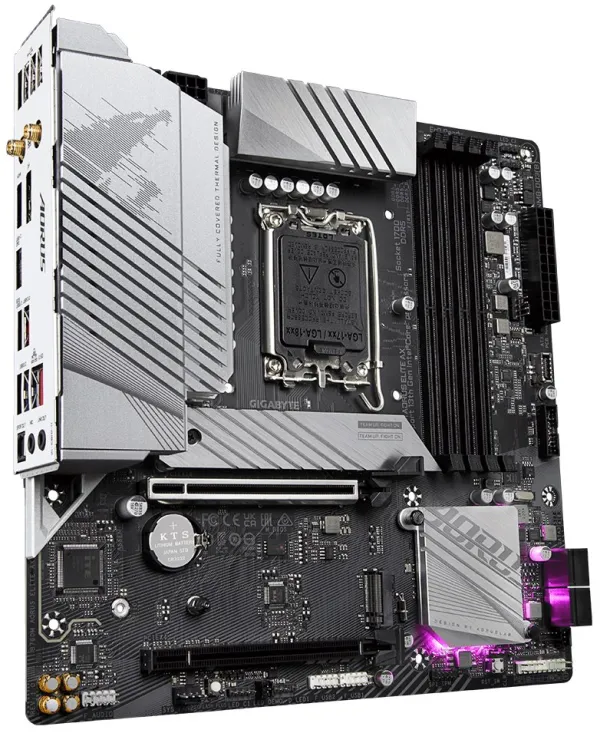

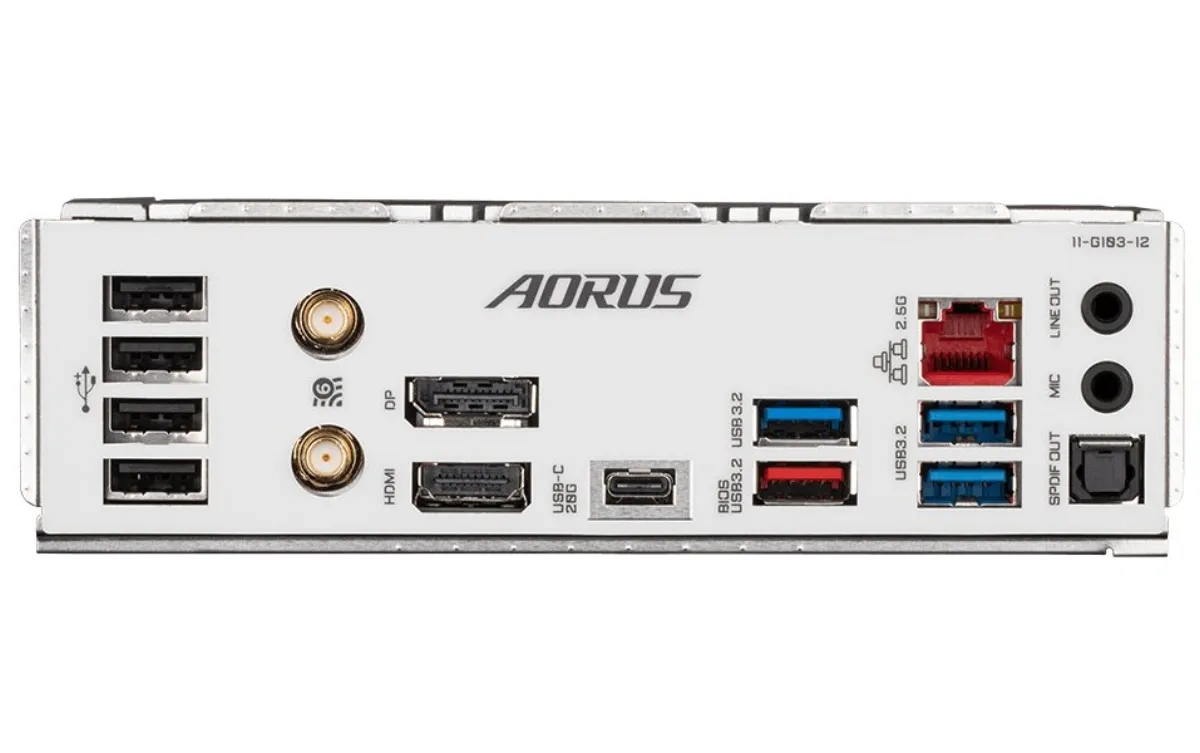

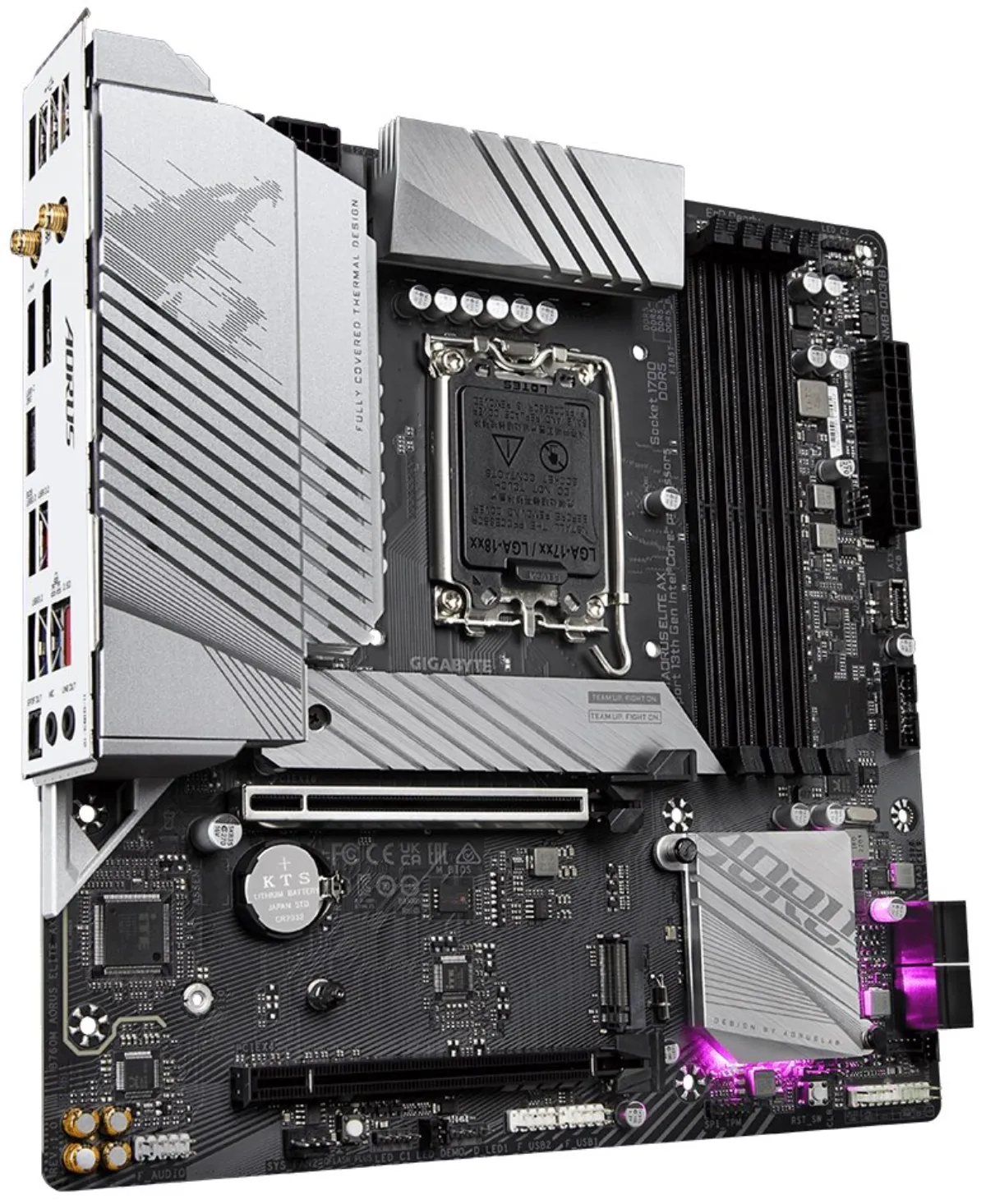

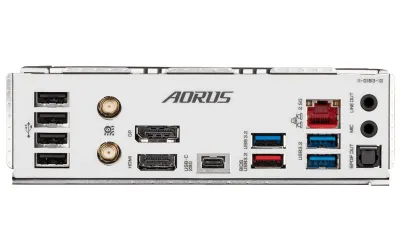

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x USB 3.2 Gen2x2 Type C
• 1x USB 3.2 Gen2 type A
• 3x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1 x DisplayPort
• 1x HDMI
• 1x RJ-45
• 1x optical S/PDIF output
• 2x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
