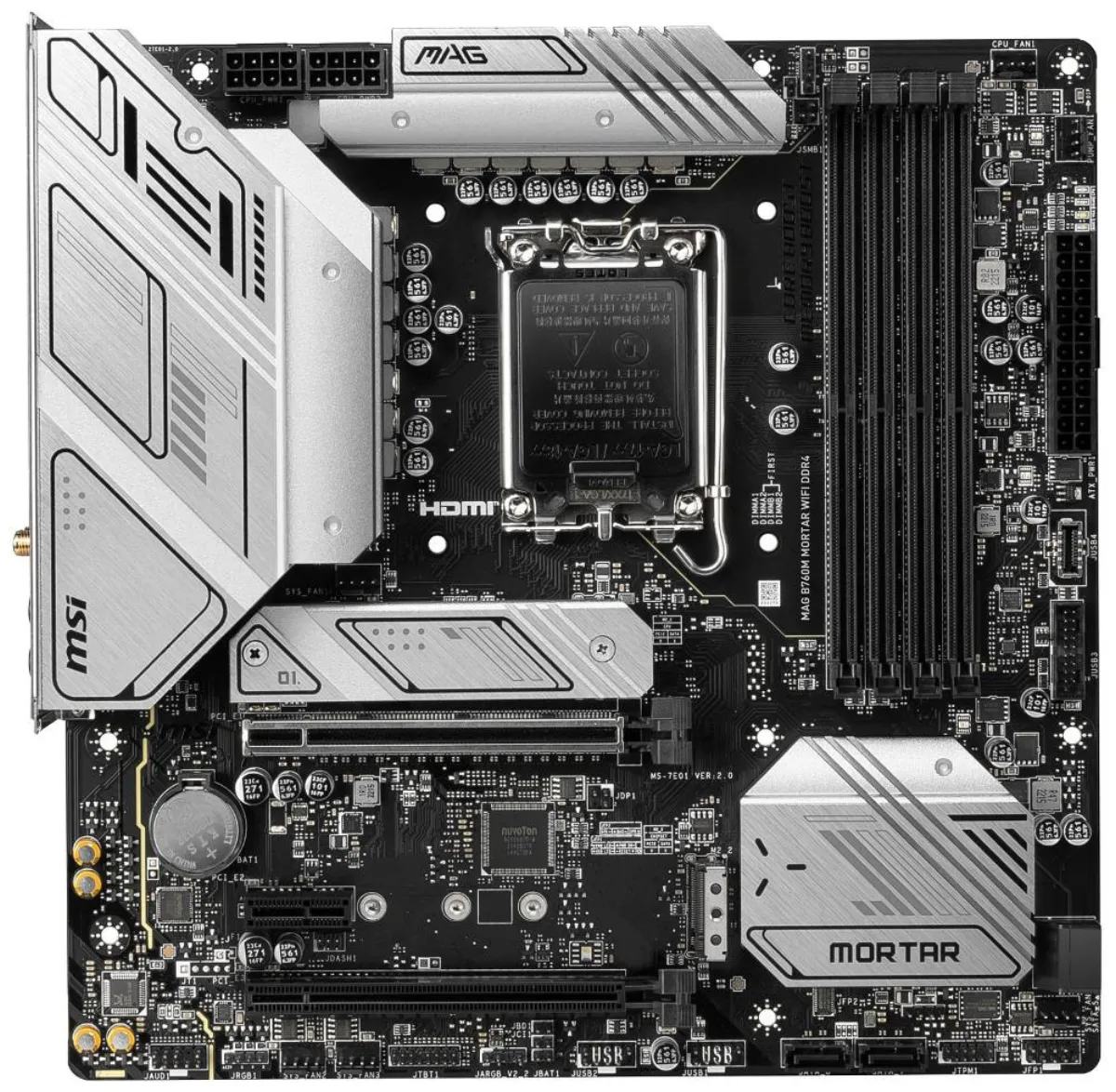

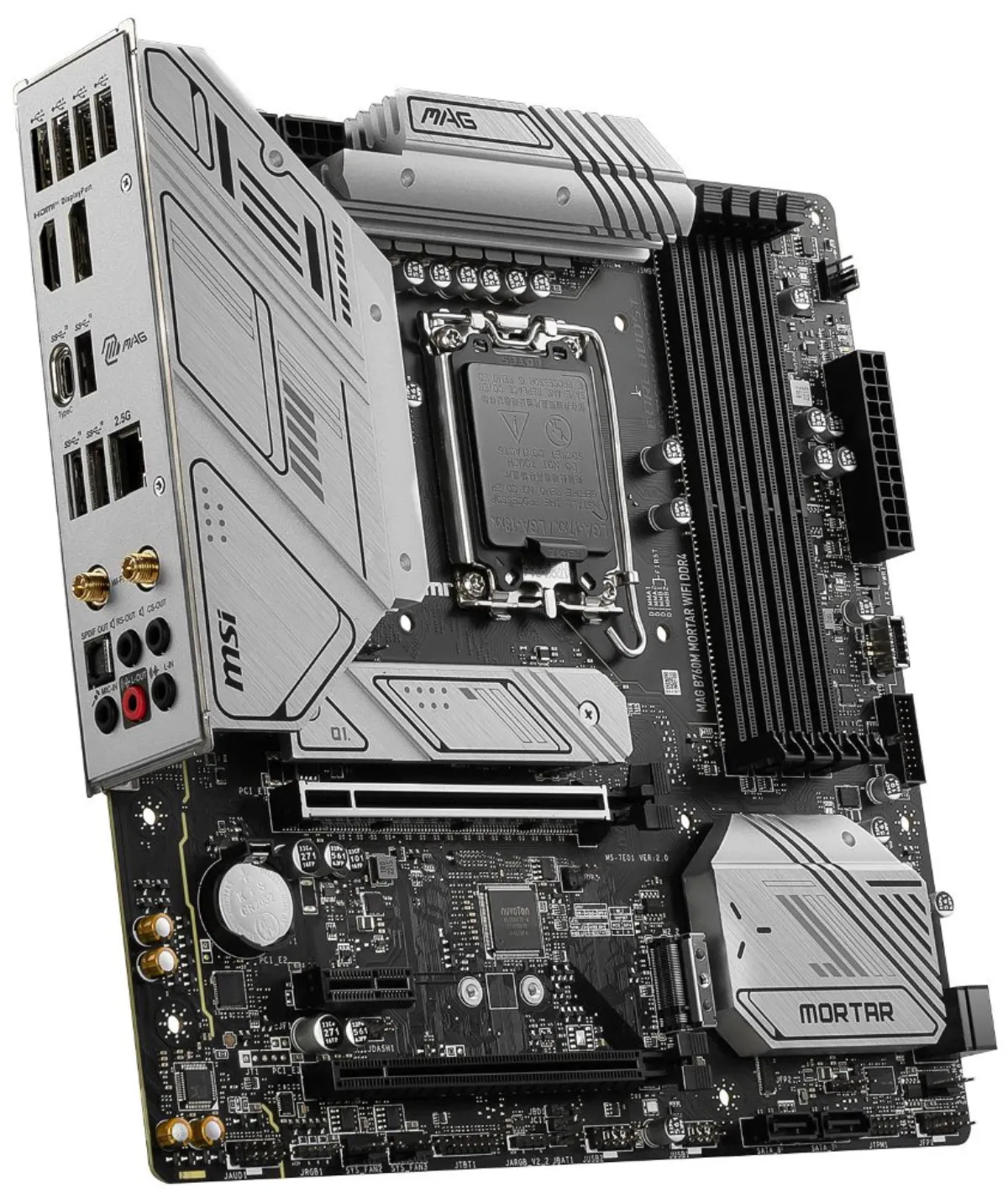

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 up to 7000+ (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 4K at 60 Hz

Repository

• 1x M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 3x USB 3.2 Gen2 type A port on the back panel
• 2x USB 3.2 Gen1 (USB 3.0) port available via an internal USB connector
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1-channel USB High Performance Audio
• S/PDIF output support

HIND

• 1x Realtek 8125BG 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Bluetooth 5.3

Internal Connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin +12V power connector
• 1x 4-pin CPU fan connector
• 1x 4-pin water cooling pump fan connector
• 4x 4-pin system fan connector
• 2x 3-pin connector A-RAINBOW V2 (ARGB Gen2) LED
• 1x 4-pin RGB LED connector
• 4x EZ Debug LEDs
• 2x M.2 slot, M Key
• 4x SATA 6 Gb/s connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2 Type C front panel connector
• 1x front panel audio connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x connector for TPM module
• 1x Tuning controller connector
• 1x TBT connector (supports RTD3)

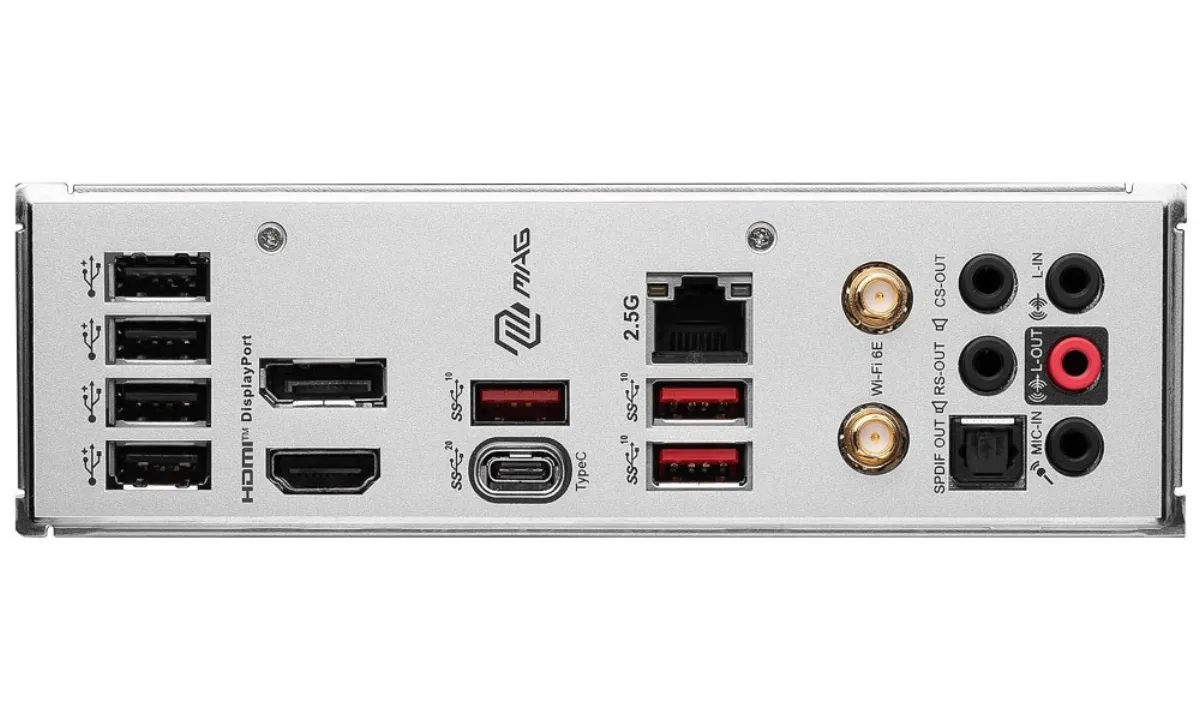

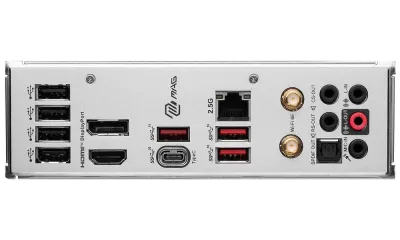

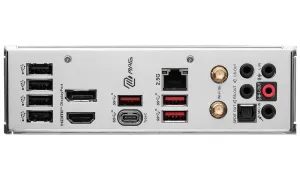

Rear Panel Ports

• 4x USB 2.0
• 1x HDMI
• 1 x DisplayPort
• 1x USB 3.2 Gen2x2 Type C
• 3x USB 3.2 Gen2 type A
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 24.384 x 24.384 cm
• Micro ATX format
