Eastron SDM120CTM-40mA Modbus electricity meter single-phase CT
EASTRON | SDM120CTM-40mA | 8592457268260
Out of stock.
Price of goods is 27.66 €.
Weight of goods is 0.19 Kg.
Actual in cart 0 pcs.

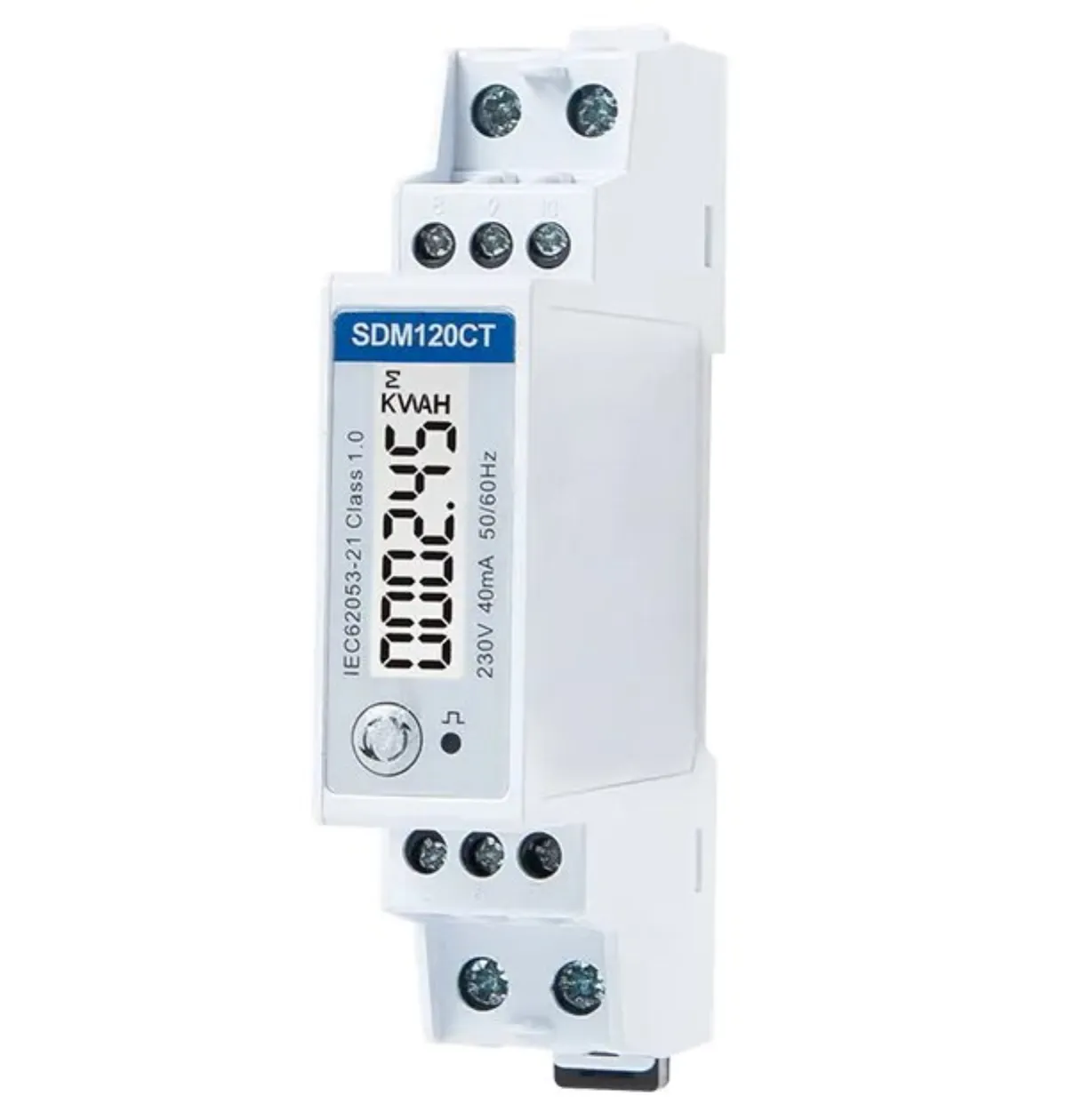

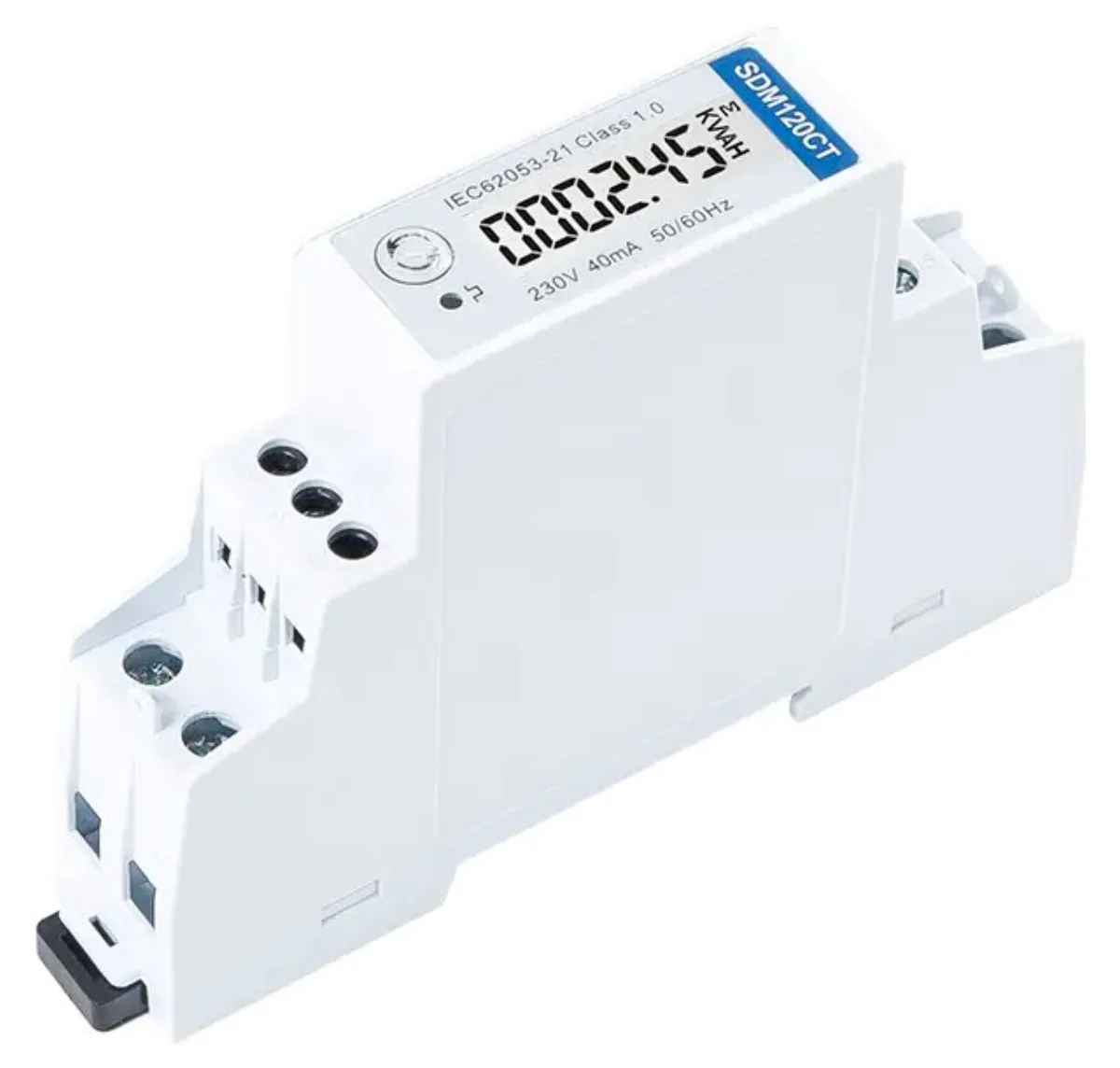

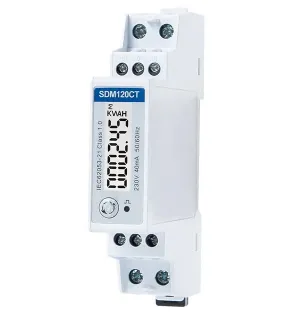

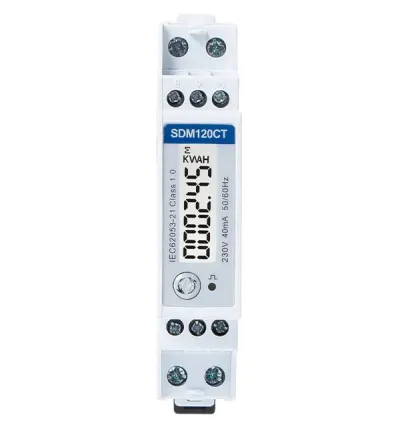

Eastron SDM120CTM-40mA
Single-phase electricity meter SDM120CT Modbus with RS-485 interface and backlit LCD display that displays important information. two pulse outputs and a communication port (RS-485 Modbus/DLT645) are available for remote monitoring and setting. Thanks to the two-way measurement, it is a suitable choice for measuring photovoltaics.

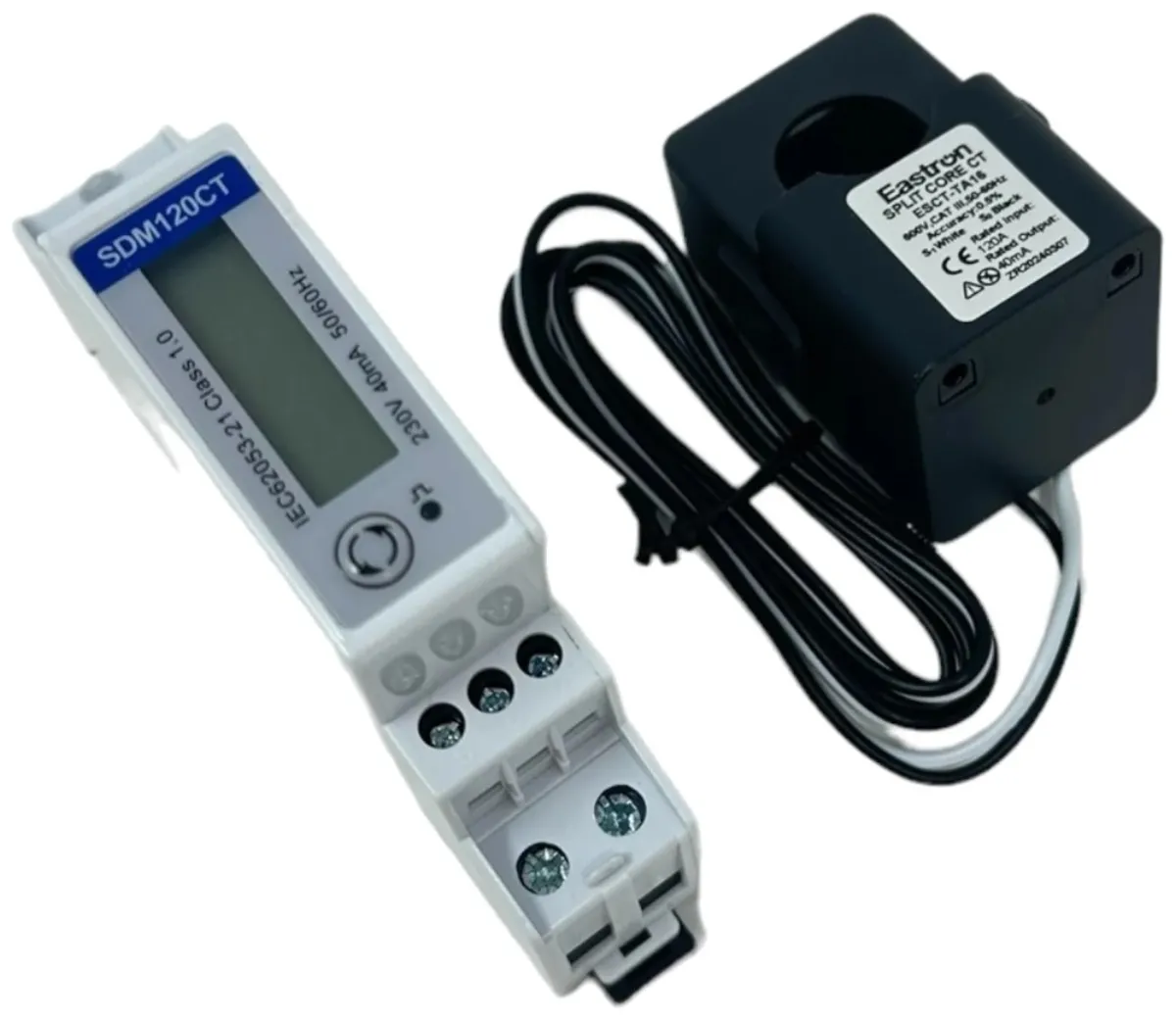

The electricity meter is supplied including a probe for currents up to 120 A.
- Multi-measurement: kWh, W, V, A, PF, Hz, dmd, etc.
- 40 mA operated CT (100 mA/100 mV optional)
- 2 pulse outputs + Modbus
- Bidirectional measurement
- Mounting on a DIN rail (1 module, width 18 mm)
Nominal voltage: AC 230 V
Working voltage range: AC 176-276V
Frequency: 50/60 Hz
Dimensions: 119 x 62 x 17.5mm
Coverage: IP51
Detailed parameters and specifications can be found in the attached manual (en).
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 119 × 62 × 17,5 mm | |
| Maximum operating temperature [°C] | 55 | |
| Minimum operating temperature [°C] | -25 | |
| Width [mm] | 17,5 | |
| Wi-fi | No | |
| Rated voltage [V] | 230 (AC) | |
| Depth [mm] | 62 | |
| Height [mm] | 119 | |
