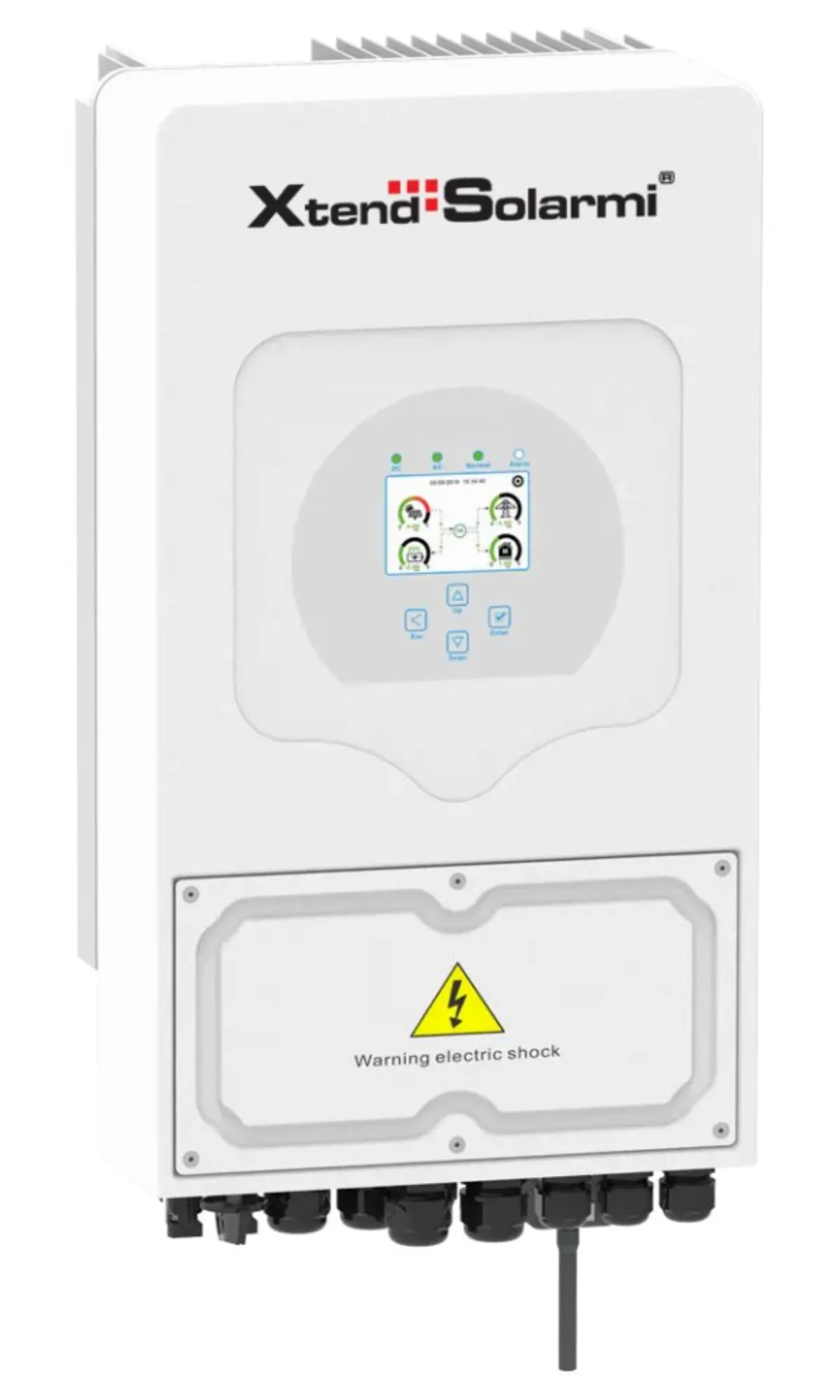

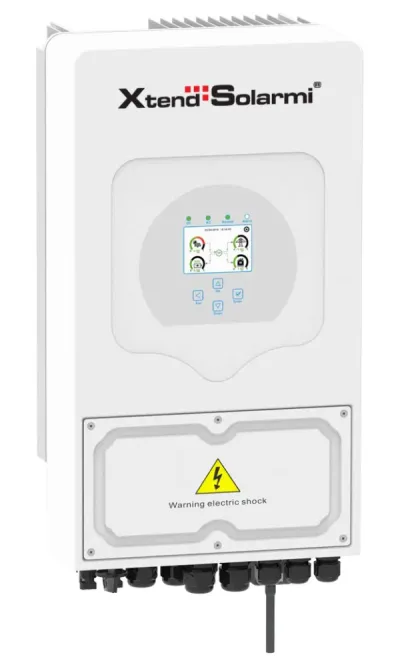

Solarmi SUN-5K-SG03LP1-EU hybrid 5kW inverter with limiter single-phase 230V Deye

Xtend Solarmi SUN-5K-SG03LP1-EU

A multi-functional 1-phase hybrid inverter/inverter from DEYE that combines inverter, solar charger and battery charger functions. It offers uninterrupted power support with the ability to regulate. Comprehensive LCD display provides user-configurable and easily accessible controls (battery charging, AC/solar charging, allowable input voltage depending on different applications, etc.). It is equipped with an RS-485/CAN port for communication and management. The inverter provides additional information, statistics, graphs + the possibility of remote management via the supplied Wi-Fi dongle. The package includes a probe for measuring consumption and a data logger. The electricity meter is not included.

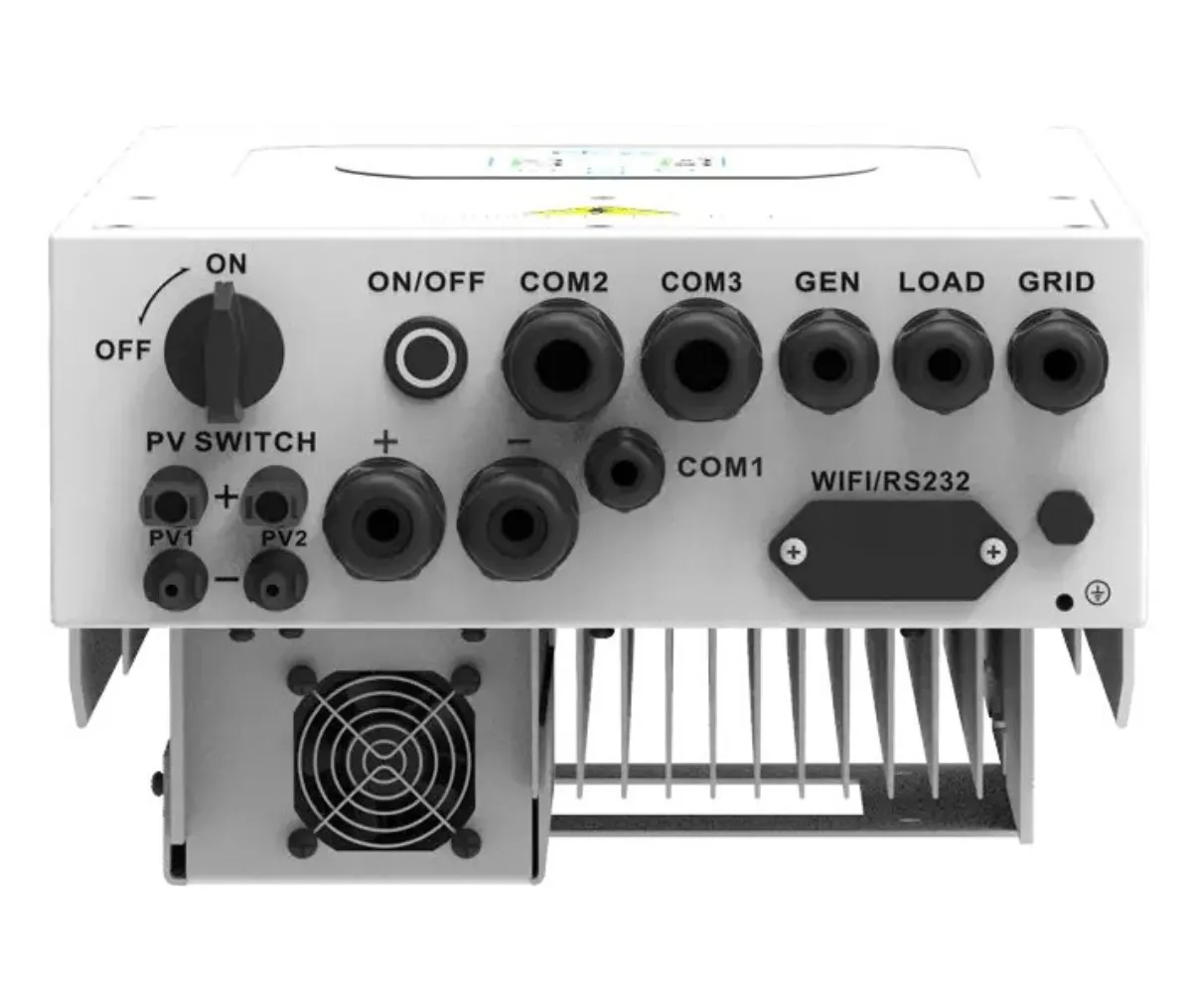

These inverters are equipped with the great SmartLoad function, which allows you to connect a 230V appliance only under certain conditions. To connect such an appliance, the GEN port is used, which can be changed in the settings from a port for a generator to a port for a smartly switched appliance. If, for example, the battery is charged to 90%, the inverter turns on the GEN port and connects, for example, the boiler. After the battery capacity drops to the set level, the appliance disconnects again at the GEN port. In this way, surpluses can be effectively used to heat water in the boiler, swimming pool, etc.

• Fast transition from On-Grid mode to Off-Grid mode (4 ms)
• Remote shutdown function
• Intelligent monitoring platform - setup, FW update, ease of PV plant operation and maintenance
• Unique Smart Load application and Grid peak shaving function
• Color touch LCD display
• Degree of protection IP65

Charger (battery)

Battery type: lead acid or lithium ion battery

Battery voltage range: 40-60V

Max. charging current: 120 A

Max. discharge current: 120 A

Charging progress: 3 stages / equalization

External temperature sensor: optional

Charging system for Li-Ion batteries: customization with BMS system

PV input (photovoltaics)

Max. DC input power: 6500 W

PV input voltage: 370V (125-500V)

MPPT Range: 150-425V

Full Load DC Voltage Range: 300-425V

Inrush Voltage: 125V

PV input current: 13A + 13A

Max. PV ISC: 17 A + 17 A

Number of MPPT: 2

Number of strings per MPPT: 1 + 1

Inverter (AC output)

Power (nominal): 5000 W (max. 5500 W)

Performance (peak)

• 2x nominal
• 10 seconds

Rated current: 22.7 A (max. 25 A)

Max. continuous alternating current flow: 35 A

Output voltage: AC 220/230 V (50/60 Hz)

Efficiency: 96.5% (MPPT 99.9%

Coverage: IP65

Dimensions: 580 x 330 x 232 mm

Weight: 20.5 kg
