Solarmi GF-M8 PA installation eye for connecting the 4mm2 cable to the GridFree M8 inverter
XTEND Solarmi | 8591120039619 | 8591120039619
On stock 221 pcs.
Price of goods is 0.3 €.
Weight of goods is 0.001 Kg.
Actual in cart 0 pcs.

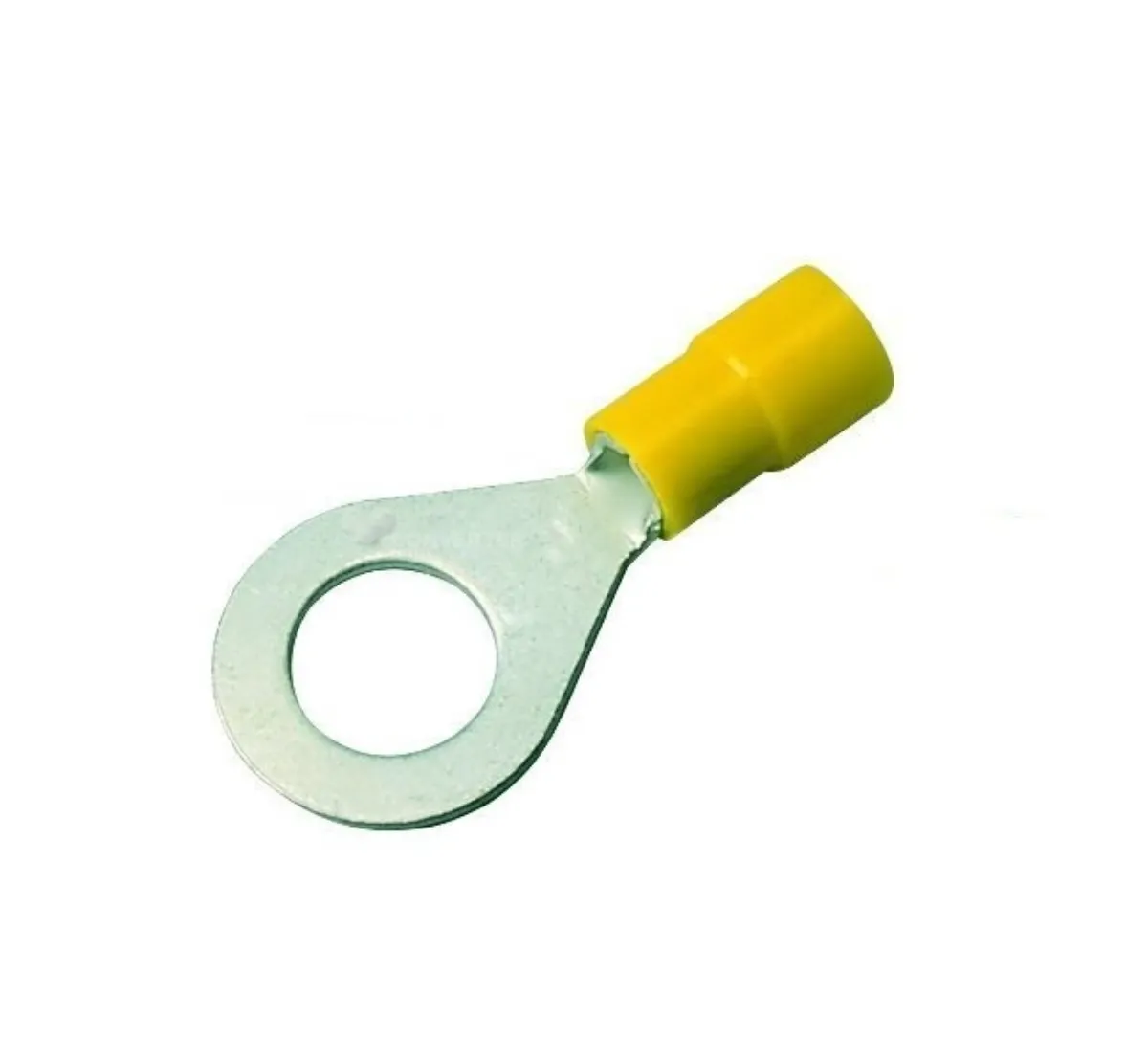

Xtend Solarmi installation eye GF-M8/PA
Installation cable eye for connecting the conductor to the termination element, which helps prevent unwanted twisting and damage to the individual cores of the cable.
- to connect the cable to the GridFree inverter
- for Cu stranded conductors ( cannot be used for solid conductors!)
Connector material: copper (galvanically tinned)
Insulation material: polyamide (nylon)
Temperature stability: -55 to +125 °C
Wire cross-section: 4 - 6 mm2
Weight: 2.45g

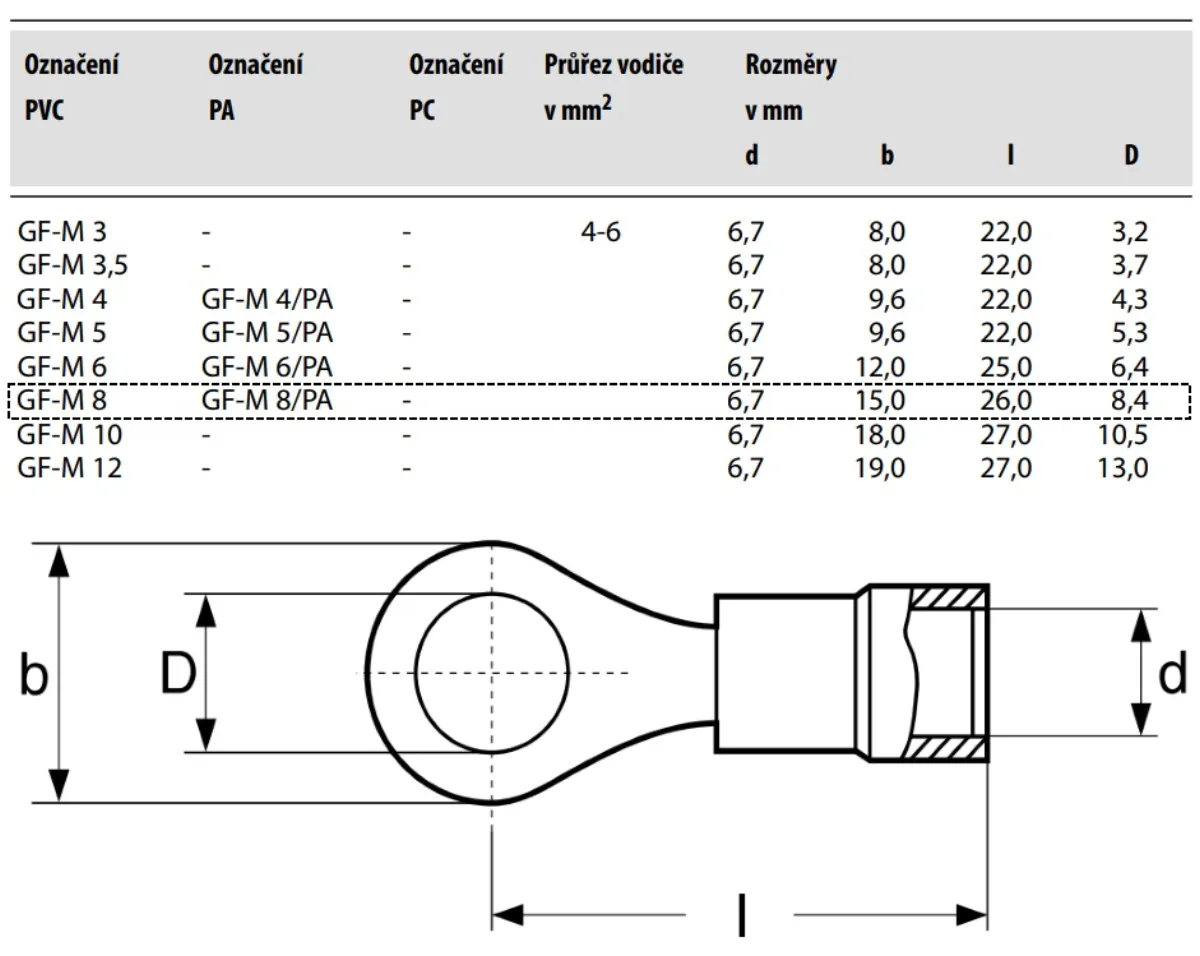

| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,00245 | |
| Dimension [mm] | 22,5 × 15 mm | |
| Maximum operating temperature [°C] | 125 | |
| Minimum operating temperature [°C] | -55 | |
| Material | copper | |
| Connector | M8 | |
