Solarmi GETI GWH01 4000W MPPT inverter controller for solar water heating 4kW
XTEND Solarmi | GWH01 | 8595563729854
Price of goods is 254.6 €.
Weight of goods is 3.6 Kg.
Actual in cart 0 pcs.
Solarmi GETI GWH01
Solar inverter GETI GWH01 4000 W MPPT for PV water heating
The GETI GWH01 solar inverter is particularly suitable for use in photovoltaic water heating systems. Save costs and heat water with solar energy today. Thanks to the GETI GWH01 solar inverter with automatic grid switching, **you can significantly reduce your hot water heating costs.
The inverter enables the direct use of photovoltaic panel systems for powering resistance heating devices such as electric boilers, heaters, heating mats, water heating, etc. The inverter is also equipped with an AC input, which allows the inverter to be connected to the mains voltage and water heating even when it is insufficient solar radiation for heating.
Note: The GETI GWH inverter is only suitable for resistive loads with a bimetallic thermostat. Not suitable for electronically controlled thermostats!
The system is simple, it only requires the connection of the appropriate number of photovoltaic panels with a maximum power of 4000 W with an operating voltage of 160 ~ 350 V DC, a mains voltage of 230 V AC and a connection to a resistive load, e.g. a heating coil, electric boiler, electric radiator or floor heating and safety elements. The direct current generated in the panels, which cannot be fed directly to the heating devices, is converted into alternating current in the inverter, which can be used to power the heating devices. The maximum power of the system is 4000 W. The inverter has a priority input from the photovoltaic panels and when this voltage drops below 120 V, the water heating will be powered from the mains voltage of 230 V AC.
- Solar inverter for hot water heating using a resistive load (heating coil, boiler)
- Automatic switching between grids (PV & grid 230 V AC)
- Working modes: only PV as an island system or PV + grid
- Silent operation - passive cooling
- Effective monitoring of the maximum power on the panels using MPPT
- High efficiency > 99%

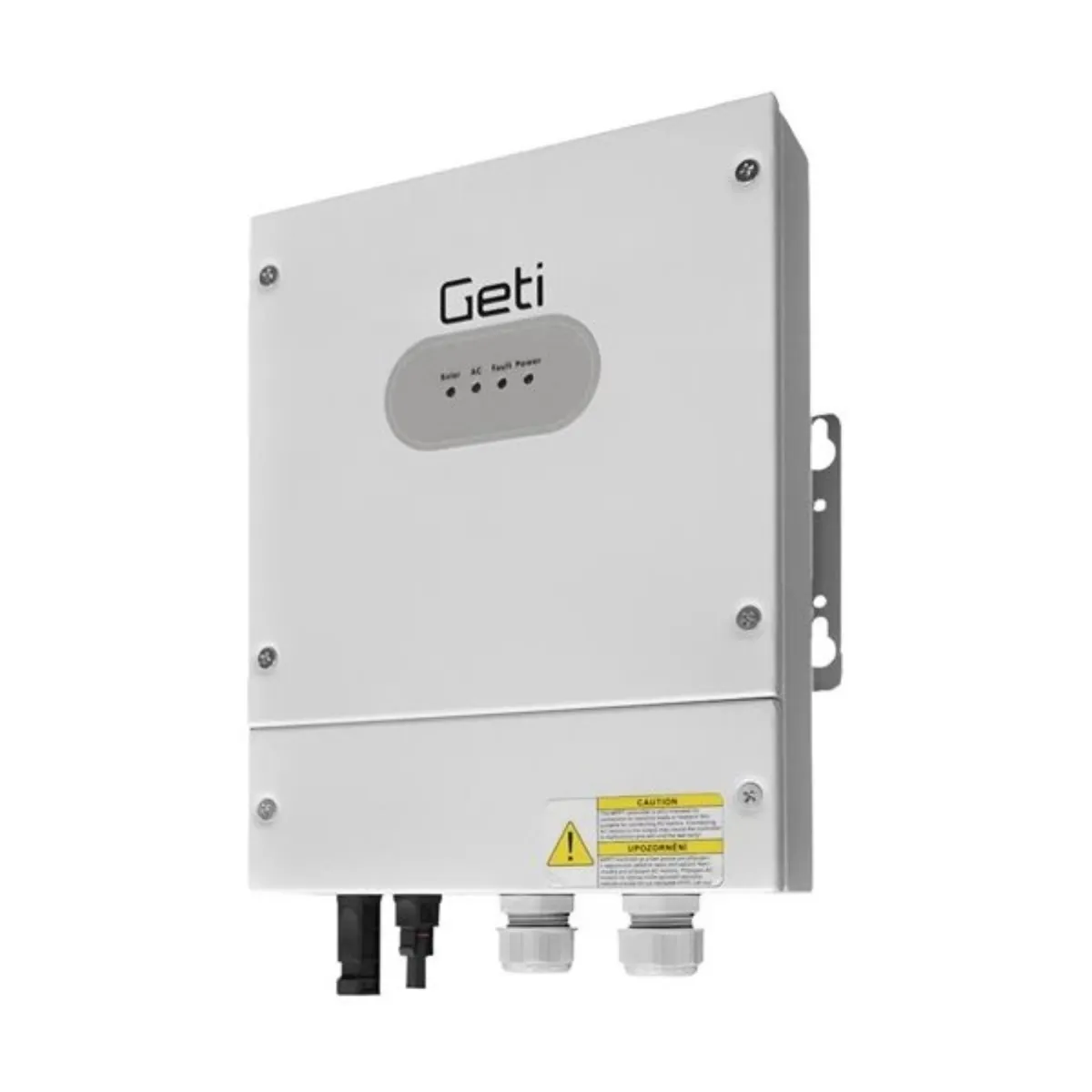

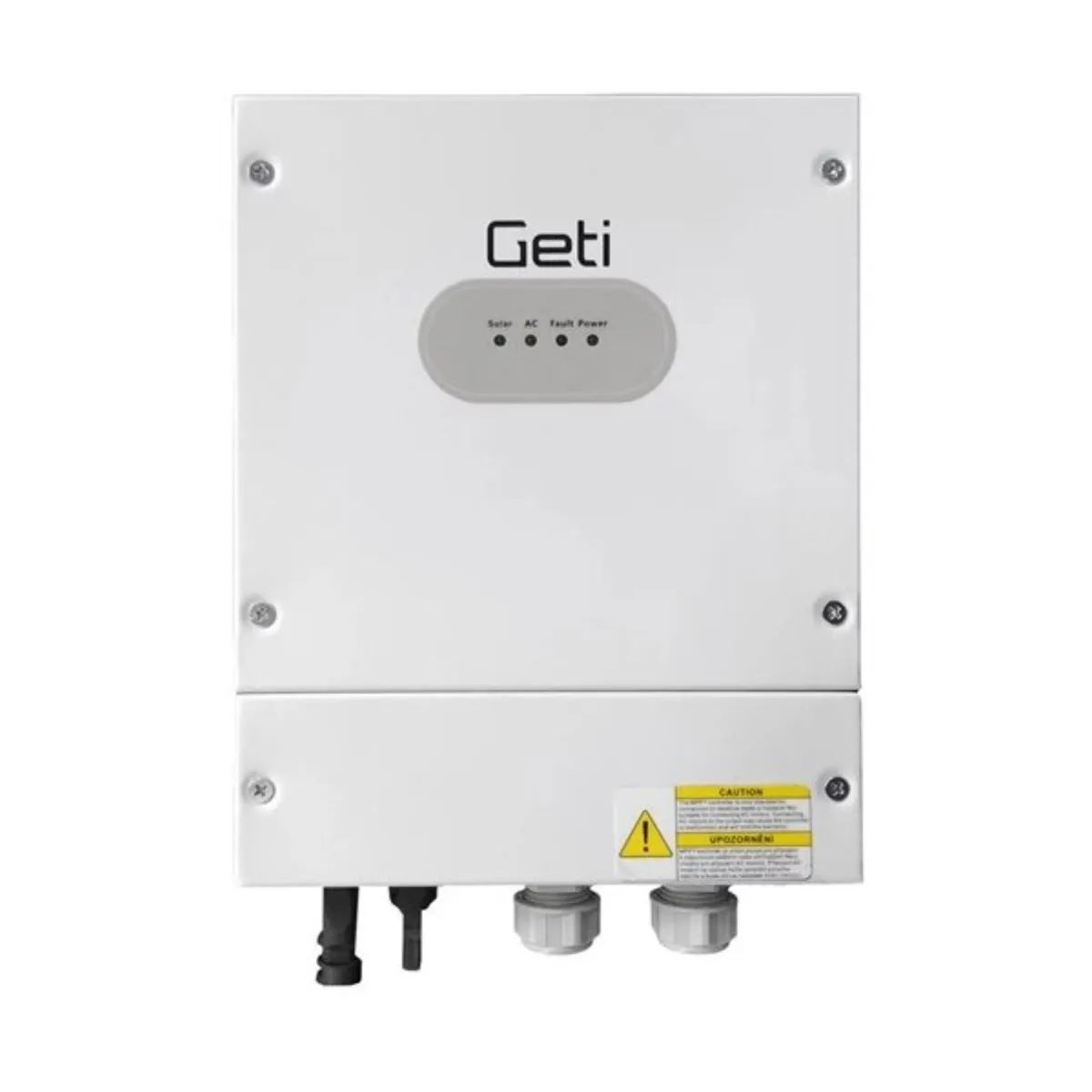

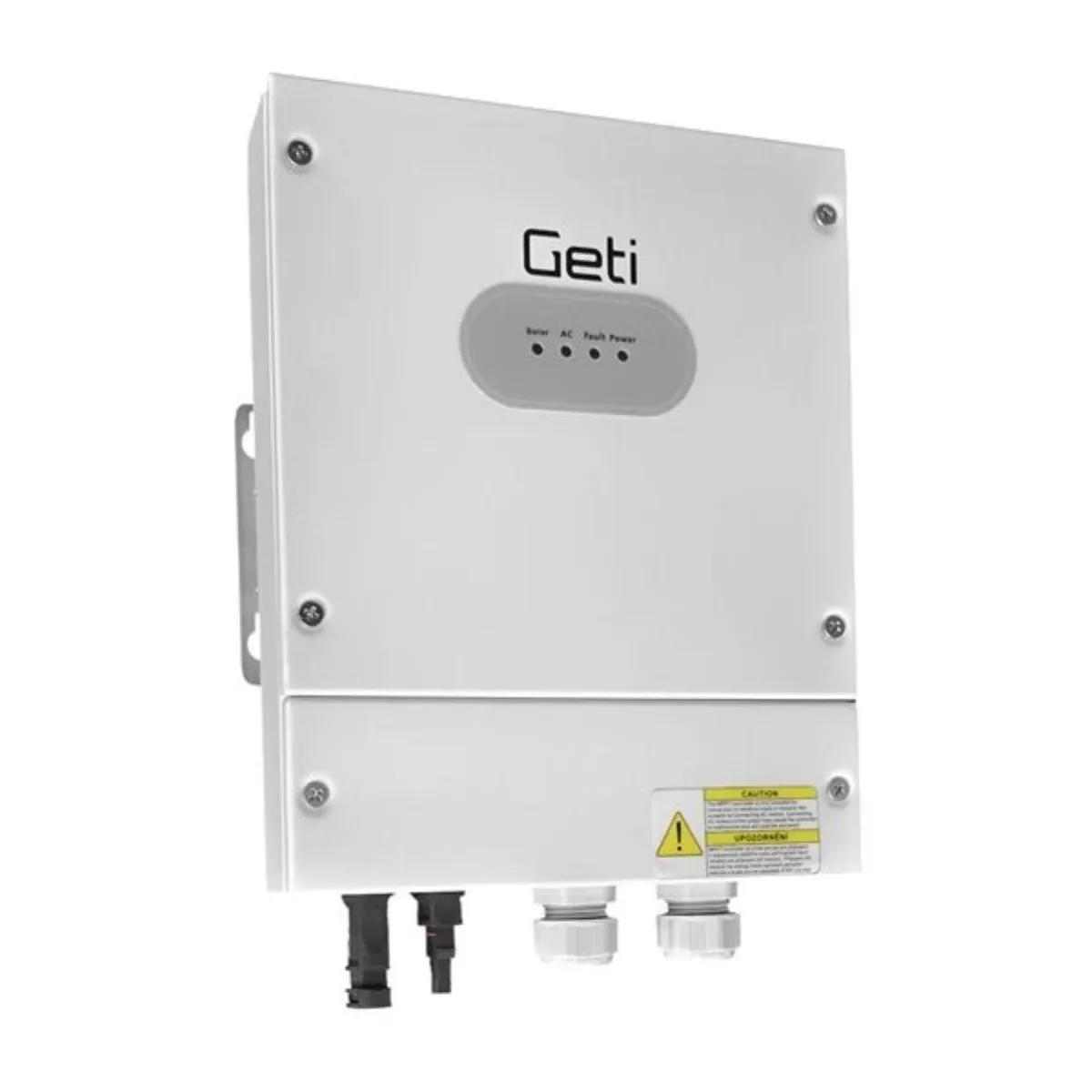

The inverter is equipped with an LED diode panel that informs the user about the current status of the inverter.
- Indication of water heating from PV panels
- Indication of water heating from the 230 V (AC) network
- Operation indication
- Error status indication
Technical parameters:
- Input voltage (DC): 160-350 V
- Input voltage (AC): 230 V
- Output voltage [AC]: 0-260 V
- Maximum power: 4000 W
- Load type: resistive with bimetal thermostat (not suitable for electronically controlled thermostats!)
- The value of the resistive load must not be lower than 13 Ohm
- MPPT function: yes
- Connection of PV panels: series or series-parallel
- Priority input: PV panels
- Backup input: mains 230 V AC
- Working temperature: -25 to + 55 °C
- Efficiency: > 99%

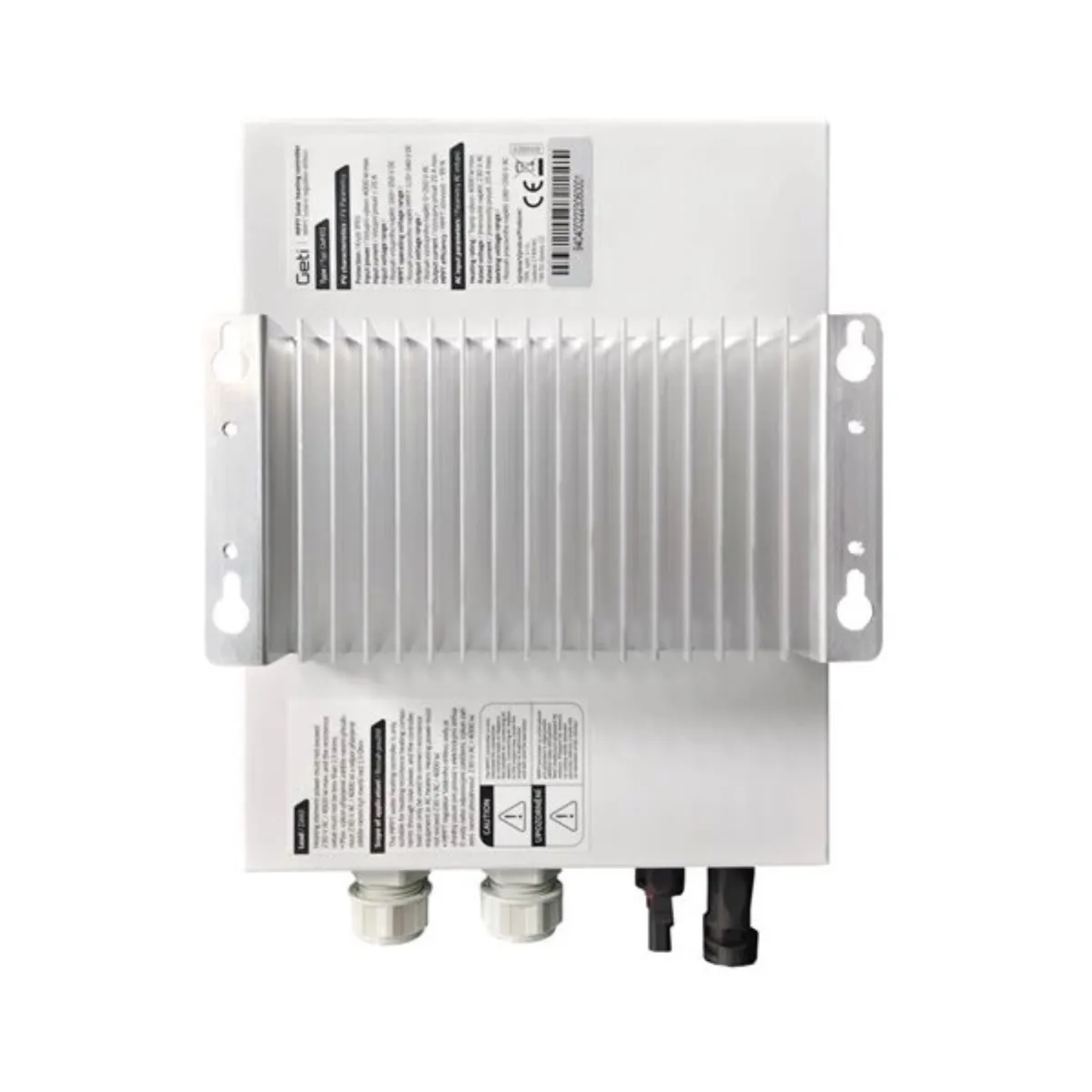

- Cooling: passive
- Short circuit protection at the input
- Protection against overheating

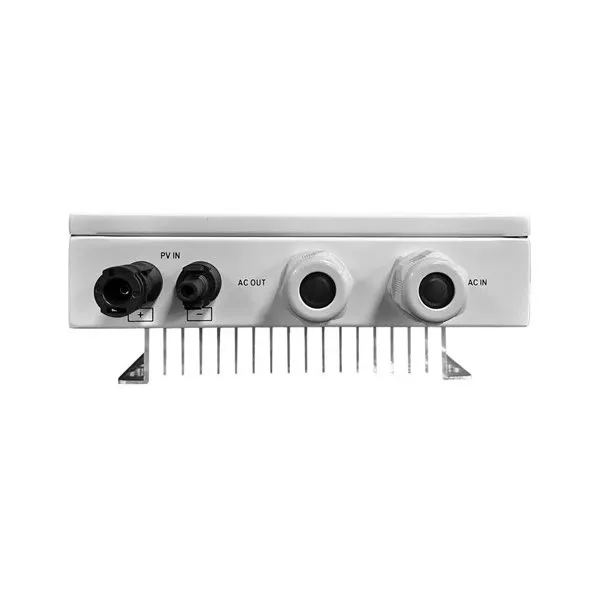

- Input connection of PV panels: MC4 connectors
- Input connection 230 V AC: screw terminal
- Output connection 230 V AC: screw terminal
- Material: aluminum + metal
Max. power: 4 kW
Input voltage: DC 160-350 V or AC 230 V
Output Voltage: AC 0-260V
Degree of protection: IP65
Dimensions: 250 x 155 x 80 mm
Weight: 3 kg
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 3 | |
| Output voltage [V] | 0–260 (AC) | |
| Maximum operating temperature [°C] | 55 | |
| Minimum operating temperature [°C] | -25 | |
| Depth [mm] | 80 | |
| Height [mm] | 255 | |
| Width [mm] | 155 | |
| Rated voltage [V] | 230 (AC) | |
| Number of phases | single phase | |
