Solarmi DC1 fitted switchboard for photovoltaics arrester fuse disconnector

XTEND Solarmi | R-AZT-DC1T1 | 8594217350024

Out of stock.

Price of goods is 78.44 €.

Weight of goods is 1.563 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

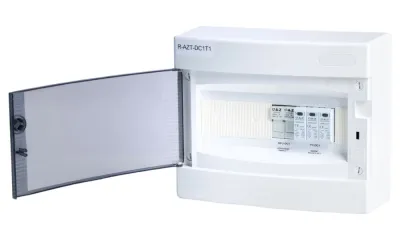

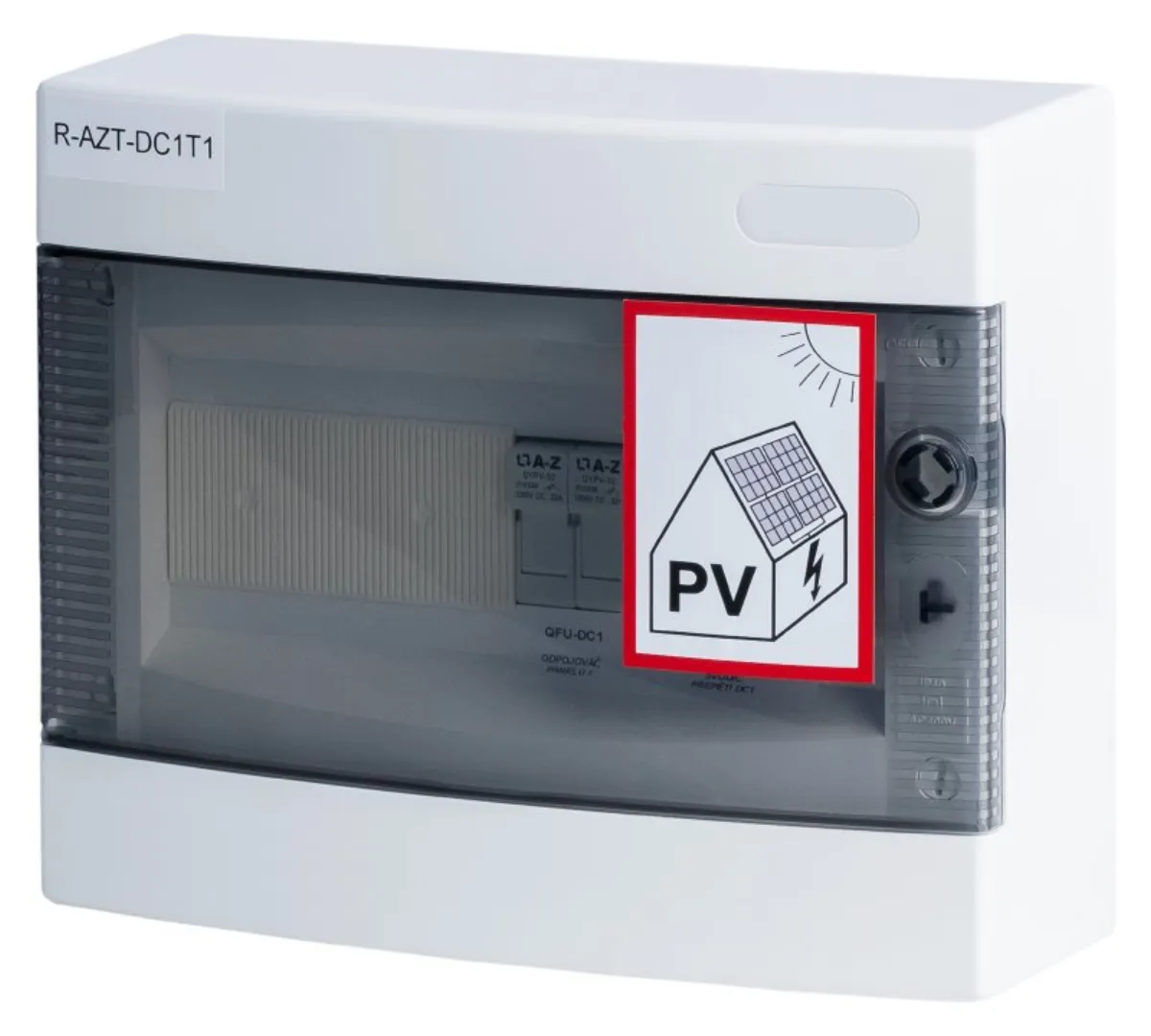

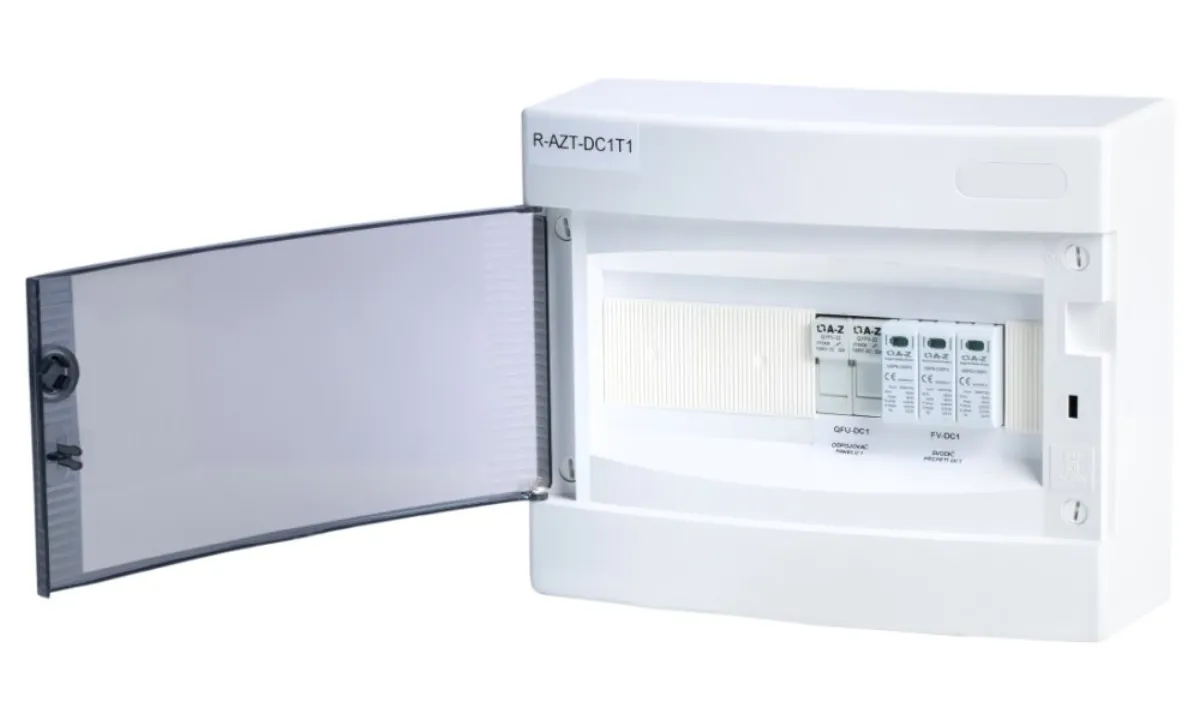

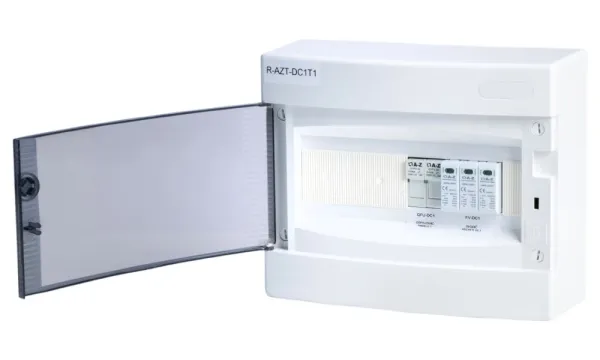

Xtend Solarmi DC1 mounted switchboard

Switchboard DC1 (T1+T2), house switchboard, PNS series

  • DC switchboard intended for wall mounting, IP40 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants.
  • Meets the standard/requirements according to ČSN EN IEC 61439-2 ed. 3:21 am
  • White plastic distribution box with removable back wall + full plastic door
  • Degree of protection IP40 & Mechanical resistance IK07
  • Protection class II (fully insulated)
  • Including N/PE terminal block
  • 1 row, 12 modules, DIN rail
  • Rated voltage 400 V AC & Rated insulation voltage 440 V AC

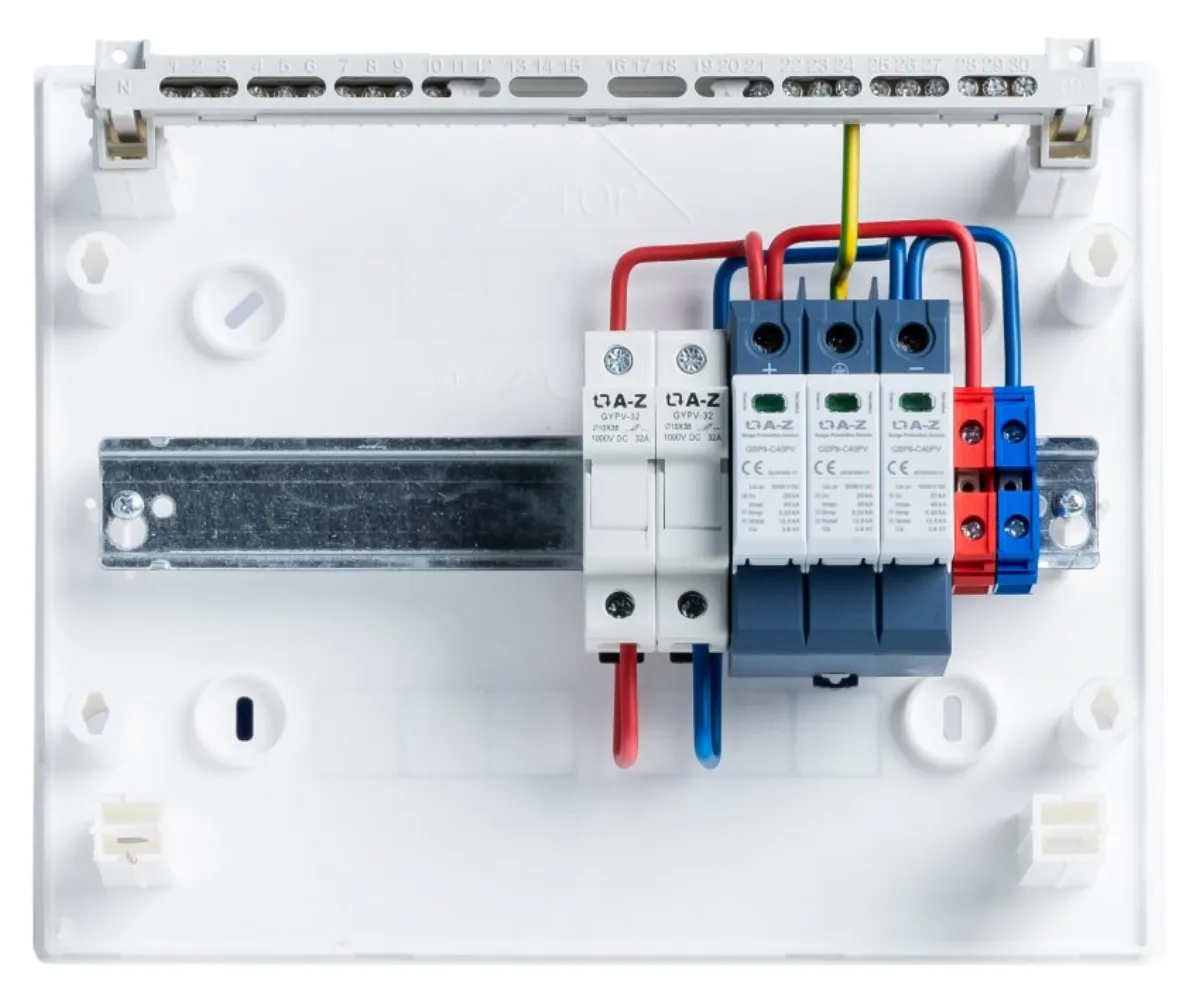

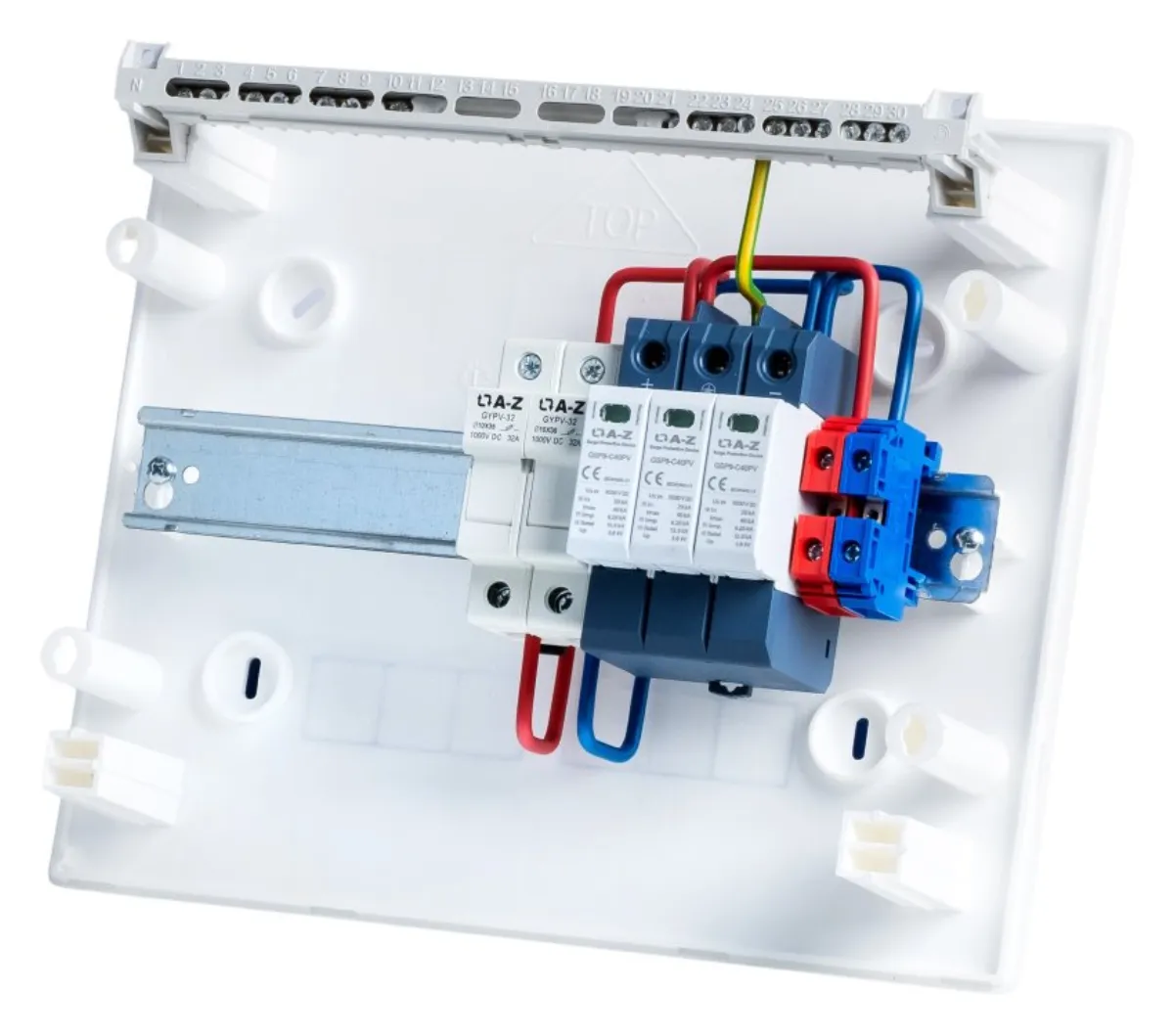

The switchboard is equipped with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.

List of components

  • 1× IP40 Plaster Switchboard, transparent door, 1 row, 12 modules
  • 1× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short-circuit current 1000 A
  • 2x Ultra-fast cylindrical fuse for photovoltaics, UL standard, 10 x 38 mm, DC 1000 V (15 A)
  • 1× Fuse disconnector, photovoltaic applications, 2-pole, AC 1000 V, 32 A, 10 × 38 mm

Intended use: for photovoltaics

Employed: yes

Material: plastic

Dimensions: 287 x 236 x 112 mm

Properties

NameValue
Dimension [mm]287 × 236 × 112 mm
Rated voltage [V]400 (AC)
